Run a 10- or 12-gauge direct burial cable from the main panel to a weatherproof subpanel outside. Bury the line at least 18 inches deep under undisturbed soil–24 inches if the route crosses a driveway. Mark the trench with warning tape at 12 inches below grade.
Install a 60-amp breaker in the main service panel and match it with a 60-amp subpanel equipped with ground-fault circuit interrupters (GFCIs). Mount the subpanel on an exterior wall or freestanding post no more than 50 feet from the first outlet to keep voltage drop under 3%.
Use individual 20-amp circuits for lighting and outlets, spacing outlets every 12 feet along walls at 14 inches above floor level. Run conduit for exposed wiring: schedule-40 PVC for above-ground runs, rigid galvanized steel for areas prone to physical damage. Secure wires every 4.5 feet.
Ground rods must be driven 8 feet apart, bonded to the subpanel with bare copper wire no smaller than #6 AWG. Test continuity before energizing; target less than 25 ohms between rod and neutral bus.
Label every circuit at both panels and include a disconnect switch near the subpanel to meet NEC Article 225 requirements. Keep a minimum 36-inch working space in front of the subpanel.
Connecting Outdoor Workspace to Your Home Electrical Plan
Run a dedicated 12-gauge copper circuit from the main service panel to the secondary structure, burying the conduit 18 inches deep (or 12 inches if encased in schedule-80 PVC) to meet NEC code 300.5. Use a 20-amp double-pole breaker for a 120/240V split system if powering heavy tools, or a single-pole 20-amp for standard outlets. Label the breaker clearly with the destination (e.g., “AUXILIARY SPACE LOAD”) and install a weatherproof disconnect box within sight of the workspace for emergency shutoff compliance with NEC 225.31.
Grounding and Safety Measures
Drive an 8-foot copper-clad ground rod into undisturbed soil near the outbuilding and bond it to the circuit’s ground wire with an irreversible crimp connector. Install GFCI/AFCI combination breakers at the panel to comply with NEC 210.8(A)(10) for outdoor circuits–this protects against ground faults and arc faults while eliminating nuisance tripping from moisture. For overhead runs (only where burial isn’t feasible), suspend THHN/THWN-2 conductors in liquid-tight flexible conduit at least 10 feet above walkways or 12 feet over vehicle paths. Include a surge protector rated for whole-system coverage at the panel to safeguard sensitive equipment.
Selecting the Optimal Cable for External Buried Connections
For underground electrical routes between structures, use Type UF (Underground Feeder) cable rated for direct burial without conduit in most residential scenarios. It withstands moisture and soil acids (pH 6-8) with a minimum gauge of 12 AWG for 20-amp circuits and 10 AWG for 30-amp.
In areas with rocky soil or heavy foot traffic, opt for Type USE-2 (Underground Service Entrance), which tolerates physical stress better than UF. USE-2 lacks sunlight resistance; if exposed above ground, transition to THWN-2 within PVC conduit (Schedule 40 minimum). Bury all cables 24″ deep–18″ if encased in 2″ rigid conduit–and increase depth to 30″ under driveways.
Key Cable Specifications
- UF Cable: Permitted under NEC Article 340 for general-purpose underground runs. Avoid in temperatures above 90°C.
- USE-2: Handles 75°C in wet locations; rated for 600V. Not suitable for hazardous locations.
- THWN-2: Resists oil, gas, and abrasion. Use only within conduit; burial depths match USE-2 requirements.
For high-load connections (50+ amps), switch to individual XHHW-2 conductors in 3″ liquid-tight conduit. Bury 36″ deep–excavate carefully to avoid damaging existing utility lines, which must be located via 811 calls at least 48 hours prior to digging. Avoid armored cable (MC) outdoors–it corrodes without proper coating.
In coastal regions, specify tinned copper conductors to resist saltwater corrosion. For northern climates with freezing temperatures, ensure conduit slopes ¼” per foot away from structures to prevent ice buildup. Always use GFCI protection at the source for any outdoor circuit, even if the cable type is weatherproof.
Verify local amendments to NEC requirements–some jurisdictions mandate Schedule 80 conduit for all underground runs or prohibit certain cable types (e.g., NM-B). Document installation with photos of depth, conduit transitions, and junction boxes labeled per NEC 314.16. Test continuity and insulation resistance (
Step-by-Step Guide to Digging a Safe Trench for Electrical Lines
Check local building codes before digging. Most jurisdictions require a minimum depth of 18 inches for direct-bury cables (UF or THWN in conduit) and 24 inches for unprotected wires. Call 811 at least 3 business days before excavation to mark underground utilities–failure to do so risks fines up to $10,000 and hazardous gas or power line strikes. Use spray paint or flags to outline the trench path, maintaining a 2-foot horizontal clearance from existing utilities.
Excavation Method and Tools
For a 20-foot run, rent a walk-behind trencher (12″ blade) for efficiency–hand-digging with a shovel and mattock works but adds 4-6 hours per 10 feet. Dig to the required depth in 6-inch increments, checking with a laser level or string line every 5 feet to avoid low spots where water could pool. Slant the trench walls at a 30-degree angle to prevent cave-ins. If soil is sandy or loose, brace with plywood sheets every 4 feet during digging.
Backfill in layers. First, lay 4 inches of sand to protect the cable or conduit from rocks, then install warning tape (e.g., yellow “CAUTION ELECTRIC LINE BELOW”) 12 inches above the line. Compact each 6-inch layer of soil with a hand tamper or vibratory plate compactor to prevent settling. Avoid using large rocks or debris–these can damage insulation over time. For cold climates, bury lines below the frost line (typically 36-48 inches in northern regions) to prevent freezing.
Installing a Secondary Electrical Panel for Outbuilding Power Management
Choose a 100-amp subpanel with a main breaker if the distance to the auxiliary structure exceeds 50 feet–this prevents voltage drop. Use 2-2-2-4 aluminum SER cable (or 1-1-1-3 copper for higher efficiency) buried in a 24-inch deep PVC conduit (schedule 40) to comply with NEC 300.5. Label the conduit at both endpoints with “Electrical Feeder” and the circuit rating. Install a ground rod at the subpanel site, bonded to the neutral bus bar only at the main service disconnect, to avoid parallel grounding paths.
Mount the panel vertically on an exterior wall or interior post, ensuring 36 inches of clearance in front for NFPA 70E access. Connect the feeder wires: red and black to the top lugs of the subpanel breaker, white to the neutral bus, and bare/green to the grounding bar. Secure all connections with a torque screwdriver set to manufacturer specifications (typically 20–25 in-lbs for 14–10 AWG conductors). Test each circuit with a multimeter before energizing: verify 120V between hot and neutral, 240V between hots, and 0V between neutral and ground.
Group circuits by load type–lighting (15-amp), outlets (20-amp), and heavy equipment (30–50-amp)–and use AFCI breakers for all 120V circuits to meet NEC 210.12. For 240V tools, install dual-pole breakers sized to 125% of the tool’s rated current (e.g., a 20-amp saw requires a 25-amp breaker). Mark each breaker with indelible labels, including the connected device and wattage. Seal conduit penetrations with waterproof silicone and apply a weatherproof cover over the panel door gasket to prevent moisture ingress.
Integrating the Primary Residence Electrical Hub with an Outbuilding Subpanel
Begin by selecting a dedicated 240-volt double-pole circuit breaker in the main service panel sized according to the outbuilding’s load requirements. A 50-amp breaker typically suffices for moderate power needs, but calculate total wattage of all devices to avoid undersizing–use the formula: Amps = Watts / Volts. Run 6 AWG copper conductors (or 4 AWG aluminum) from the breaker to the outbuilding, ensuring the route avoids high-traffic areas and sharp bends to prevent insulation damage. If the distance exceeds 100 feet, upsize wires by one gauge to compensate for voltage drop, verifying with a voltage drop calculator.

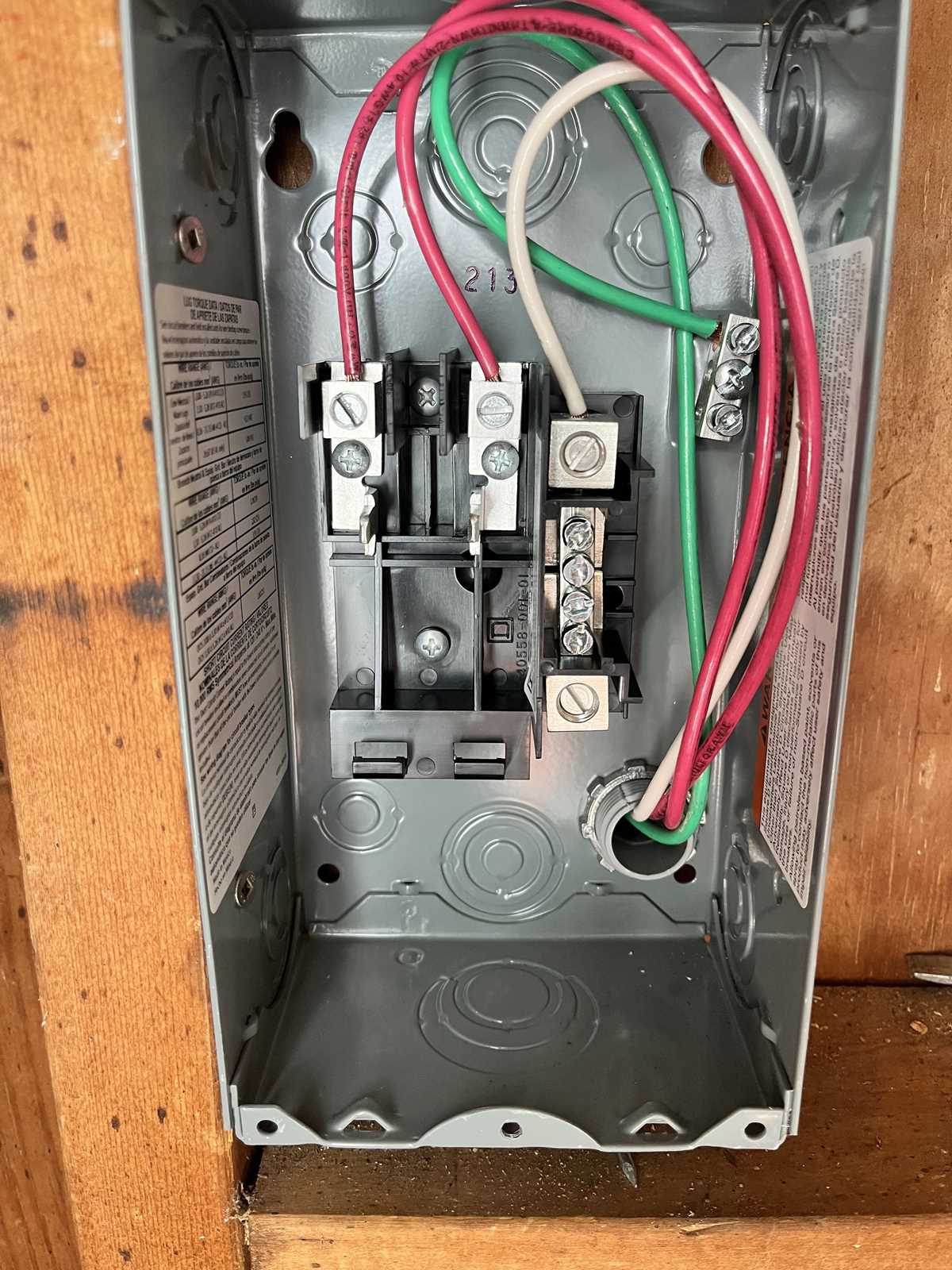

Install a four-slot weatherproof subpanel at the outbuilding with a main breaker matching the feeder circuit amperage. Mount it on a non-combustible surface at least 4 feet above ground, away from moisture sources like downspouts. The feeder wires must terminate in the subpanel’s main lugs, with the neutral bus isolated from the ground bus–bond them only in the primary panel. Include a grounding electrode system at the outbuilding, driving two 8-foot copper-clad rods spaced 6 feet apart and connecting them via 6 AWG bare copper wire to the subpanel’s ground bus.
Feeder Cable Selection and Installation Methods
| Cable Type | Max Amps | Burial Depth | Protection Requirements | Cost (per ft) |
|---|---|---|---|---|
| UF (Underground Feeder) | 60 | 18″ | None | $1.20 |
| THWN-2 in Conduit | 70 | 6″ | PVC Schedule 40 | $0.80 (wire) + $0.50 (conduit) |
| XHHW-2 in Conduit | 85 | 6″ | Rigid Metal Conduit | $1.10 (wire) + $1.70 (conduit) |
Excavate trenches with a flat-bottomed spade to the specified depth, adding 2 inches of sand beneath and above the cable for mechanical protection. For conduit runs, use sweep bends instead of sharp elbows at corners to ease wire pulling–install pulling points every 90 degrees if the run exceeds 50 feet. Mark the route with caution tape 12 inches above the cable and backfill in layers, tamping every 6 inches to prevent settling. Avoid locating cables under driveways; if unavoidable, encase in 2-inch Schedule 80 PVC.
In the main panel, label the feeder breaker clearly with the destination (e.g., “WORKSHOP SUBPANEL”) and amperage. Torque all lug connections to the manufacturer’s specifications–typically 20-25 lb-ft for breaker lugs and 30-35 lb-ft for panel lugs–using a calibrated torque screwdriver. Before energizing, perform a 1000-volt megohmmeter test between each conductor and ground to verify insulation integrity, ensuring readings exceed 1 megaohm. If readings are low, inspect for nicks or moisture ingress, especially at splice points.
Subpanel Load Balancing and Circuit Allocation
Distribute circuits across both hot buses in the subpanel to prevent overloading one leg. For example, allocate 120-volt circuits evenly–place lighting and outlets on one bus, then heavier loads like compressors or welders on the opposite bus. Use a 20-amp breaker for general-purpose circuits, but downsize to 15 amps if using 14 AWG wire. Include a dedicated 20-amp circuit for a GFCI outlet near the entrance to comply with NEC 210.8(A)(4) for outdoor receptacles. Add a surge protector rated for the subpanel’s capacity, installing it upstream of all branch circuits to safeguard sensitive equipment.
After final inspection, energize the feeder and verify voltage at the subpanel with a multimeter–expect 240 volts across the hots, 120 volts from each hot to neutral, and 0 volts from neutral to ground. Test all outlets with a receptacle tester to confirm proper polarity and grounding. Keep a panel directory inside the subpanel door listing each breaker’s purpose and load, updating it whenever modifications are made. Schedule annual inspections to check for loose connections, particularly in aluminum wire terminations where oxidation can increase resistance.
