Before handling any electrical setup, shut off the circuit breaker for the targeted room. Use a multimeter to confirm the current is fully dead–probing both neutral and hot terminals should show zero voltage. Failure to verify this risks shock or short circuits during assembly.
Select a dual-function receptacle compatible with your local voltage standards (120V or 240V). For North American systems, ensure the device carries a UL listing; in Europe, look for CE or VDE markings. Using non-certified components voids insurance and creates fire hazards.

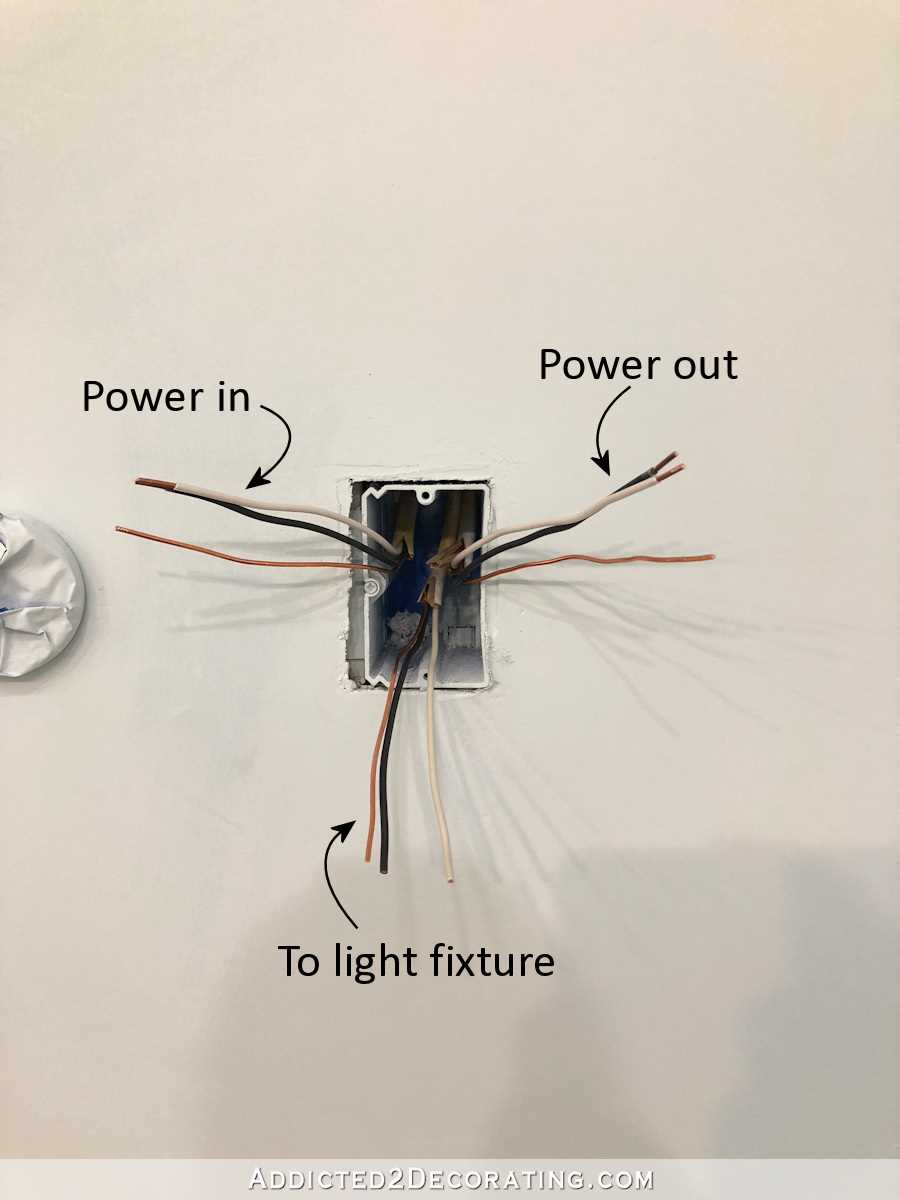

First priority: map the existing conductor paths. Identify the incoming supply cable, typically consisting of black (hot), white (neutral), and bare/green (ground). Trace these back to the junction box to prevent accidental bridging. If the supply originates from another box, mark the origin point clearly on the wall with tape for reference.

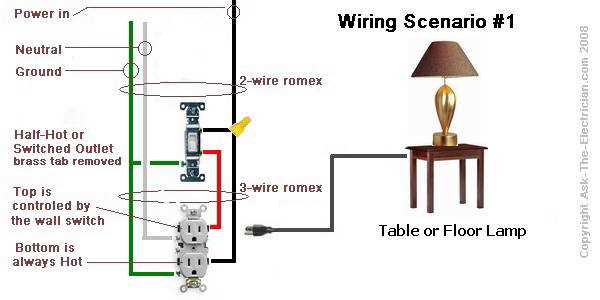

Position the control unit on the line side of the device if integrating a combined toggle and socket. The power feed must enter the control first, then branch to the socket. Mixing these sequences causes flickering illumination or dead receptacles. For split outlets (half-switched), use a pigtail splice to link the brass terminals–never daisy-chain through the socket terminals alone.
Secure grounding with a green-insulated crimp connector if splicing multiple bare wires. Twist strands clockwise under pliers before inserting into the connector, then squeeze tightly. Loose grounds arc under load, risking device failure or shock. If the box lacks grounding, replace it with a metal unit and bond it to the service panel.
Test each connection with a neon circuit tester before restoring power. Probe all brass-to-brass junctions–no voltage should register until the breaker closes. Once energized, the receptacle must deliver full voltage (within 5% tolerance), while the control should operate instantly without buzzing. If either hesitates, recheck splices for cold joints.
Connecting a Toggle Controller with Power Receptacle: Visual Guide

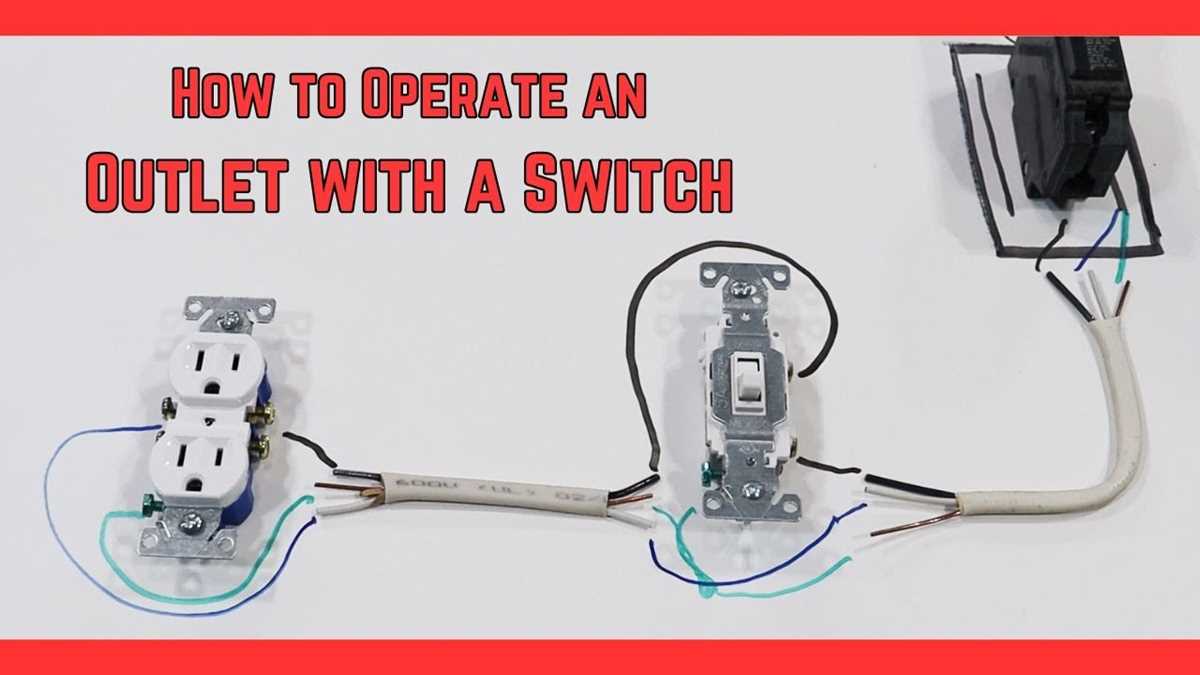

Always verify the circuit breaker is off before handling conductors. Use a non-contact voltage tester to confirm no current flows through the wires. For a standard installation, you’ll work with three conductors: hot (black or red), neutral (white), and ground (green or bare copper). If your setup includes a split receptacle–where the top and bottom outlets operate independently–you’ll need a 12/3 or 14/3 cable with an additional red conductor to carry the switched current.
Match terminal colors to conductor insulation hues. Connect the constant-power hot wire to the brass terminal marked “LINE” or “HOT” on the receptacle; this keeps one outlet always live. Attach the switched hot wire (usually red) to the toggle’s common terminal. The neutral wire bypasses the controller and connects directly to the receptacle’s silver terminal. Ground wires join at a green screw on both the receptacle and controller, then bond to the electrical box if it’s metal.
| Terminal | Wire Color | Function |
|---|---|---|
| Brass (“LINE”) | Black | Uninterrupted supply |
| Silver | White | Return path |
| Toggle Common | Red | Switched circuit |
| Green Screw | Green/Bare | Safety bond |
Twist conductors clockwise before screwing them into terminals to prevent strands from splaying. Use wire nuts rated for the gauge–typically 12 AWG for 20-amp circuits, 14 AWG for 15-amp circuits. Secure connections with electrical tape around the nut base to prevent loosening. For pigtail joins (e.g., grounding bundle), pre-twist wires tightly and cap with a nut, leaving no exposed copper beyond the nut’s skirt.
After securing all connections, fold wires neatly into the box, ensuring no terminals touch metal edges. Mount the receptacle and controller with provided screws, then attach cover plates. Restore power at the breaker and test each outlet with a plug-in tester; verify the controller toggles the designated circuit without affecting the constant-power outlet. If the switched circuit fails, double-check the red wire’s path–it should run from the toggle’s common terminal to the brass terminal marked “LOAD” on the receptacle.
Required Tools and Safety Precautions Before Starting
Begin by verifying the circuit breaker controlling the area is turned off. Use a non-contact voltage tester to confirm absence of current in all conductors near the installation site–probe each wire separately, including neutral and ground. Even residual charge in capacitors or miswired circuits can pose risks. Label the breaker clearly with masking tape if multiple panels exist in the building.
- Insulated screwdriver set (flathead and Phillips, sizes #1 and #2)
- Wire strippers with built-in cutter (12-14 AWG capacity)
- Linesman pliers (8-inch, insulated handles)
- Adjustable wire nut connector kit (red, yellow, and tan)
- Fish tape or glow rod (for pulling conductors through conduit)
- Multimeter (CAT III 600V minimum, true RMS preferred)
- Circuit finder or tone generator
- Flashlight with adjustable head (hands-free operation)
- Arc fault circuit interrupter (AFCI) tester (for compliance checks)
- Cable ripper or utility knife (retractable blade)
Wear flame-resistant clothing (rated NFPA 70E) when working near energized components. Remove all metallic jewelry, including rings and watches–direct contact with live parts can cause severe burns or welding effects. Use safety glasses with side shields to protect against accidental sparks or debris from cutting or stripping conductors. If working in a crawl space or attic, wear a dust mask rated N95 to avoid inhaling insulation particles or drywall dust.
Store tools in a dedicated belt pouch or tool bag to prevent dropping objects into live boxes. Keep a fire extinguisher (Class C, ABC multipurpose) within 10 feet of the work area–electrical fires require non-conductive extinguishing agents. Never use water or foam-based extinguishers on electrical blazes. If working near water pipes or damp locations, ensure all tools and work boots have non-conductive soles to prevent shock hazards.
Test all devices for proper operation after installation but before securing them in the wall box. Verify ground continuity with a multimeter (reading ≤ 1Ω between device ground and panel ground). Check polarity–hot conductors should register ~120V to neutral and ~240V to ground (if applicable). AFCI or GFCI devices must trip within 0.03 seconds when tested with a dedicated tester. If readings are inconsistent, re-examine all connections for loose terminals or misaligned conductors.
For installations involving aluminum conductors, use antioxidant compound on all connections to prevent oxidation and ensure long-term conductivity. Torque all terminal screws to manufacturer specifications–typically 12-15 in-lbs for small devices. Over-tightening can strip threads or crack porcelain components, while under-tightening risks overheating. If using push-in connectors (backstab), verify they are rated for the wire gauge and type; these connections are more prone to failure over time than screw terminals.
Document each step, including breaker numbers, wire colors, and device locations. Take photographs before disassembly to reference during reinstallation. If rewiring older homes (pre-1980s), assume all insulation contains asbestos–avoid disturbing it and consult abatement professionals if necessary. Label all cables entering the box to simplify future maintenance. Store spare conductors coiled with minimal bending radius (minimum 4x wire diameter) to prevent insulation damage or conductor fatigue.
Installation Guide for a Single-Pole Control Device
Turn off power at the circuit breaker before handling any electrical connections–confirm absence of voltage using a non-contact tester on both screw terminals. Remove the faceplate from the existing wall box, then disconnect the two black conductors attached to the mechanism by loosening the terminal screws. Identify the feed conductor (originating from the power source) and the load conductor (leading to the fixture) by tracing their paths or using a multimeter in continuity mode.
Securing Connections
- Strip 1/2 inch of insulation from both black conductors using wire strippers.
- Loop each exposed end clockwise around its respective terminal screw (brass for hot conductors).
- Tighten screws to 12–15 inch-pounds of torque; insufficient tension risks loose contacts, excessive torque may strip threads.
- Fold excess conductor into the wall box without sharp bends to avoid insulation damage.
- Ground conductor (green or bare): attach to the green ground screw on the mechanism.
- Neutral conductors (white, if present): cap together with a twist-on connector if the fixture requires neutral; otherwise, leave untouched in the box.
Installing a Double Receptacle Next to a Control in a Shared Junction Box
Begin by confirming the circuit breaker supplies 15 or 20 amperes–verify with a multimeter before touching any conductors. Identify the incoming hot conductor, usually black or red, and connect it to both the control’s common terminal and the brass screw on the upper receptacle using a pigtail. Secure the connections with a wire nut rated for the gauge in use; for 14 AWG, use a yellow nut, for 12 AWG, a red nut. Label the pigtail clearly to prevent confusion during final assembly.
Attach the neutral conductor–white or gray–to the silver terminal on the upper receptacle and extend a second pigtail to the control’s neutral terminal if required. Ensure the pigtail matches the gauge of the existing conductor to avoid overheating. Ground conductors–bare or green–must connect to both the control’s grounding screw and the green grounding terminal on the receptacle. Use a single continuous ground when possible; if splicing is necessary, use a grounding crimp connector instead of a wire nut for better conductivity.
For downstream power, route the switched conductor–typically red or another color distinct from the incoming hot–from the control’s load terminal to the gold screw on the lower receptacle. If the control has a second load terminal, connect it to a separate cable for additional fixtures, but never mix switched and constant power on the same receptacle unless intentionally designing a split configuration. Test each connection with a non-contact voltage tester before securing the devices in the box.
Mount the receptacle and control into the box, ensuring no conductors become pinched behind the devices. Secure both with the provided screws, applying slight pressure to prevent misalignment but avoid over-tightening, which can crack the plaster ears. Restore power at the breaker and verify the upper receptacle remains live while the lower receptacle responds to the control. Use a plug-in circuit analyzer to confirm proper polarity and grounding before finalizing the cover plate.
If installing GFCI protection, replace the standard receptacle with a GFCI unit, connecting the incoming hot and neutral to the LINE terminals and any downstream conductors to the LOAD terminals. Never connect a switched conductor to the LOAD side of a GFCI unless the entire circuit requires protection; this can cause nuisance tripping. Label the GFCI receptacle per NEC requirements to indicate protection of downstream devices.
