Begin by isolating the circuit at the fuse box–flip the corresponding breaker to off. Verify the absence of current with a non-contact voltage tester before proceeding. If the fixture has a metal housing, attach a ground wire (bare or green) to the designated screw on the mounting bracket or directly to the junction box. Failure to ground properly increases electrocution and fire risks.
Match the live (hot) conductor–typically insulated in black or red–to the brass-colored terminal on the socket. Secure the connection with a wire nut, twisting clockwise until taut, then give it a firm tug to confirm stability. For stranded wire, pre-twist the ends to prevent fraying. The neutral conductor (white) connects to the silver terminal; ensure no exposed copper extends beyond the nut, as even a millimeter can cause short circuits.

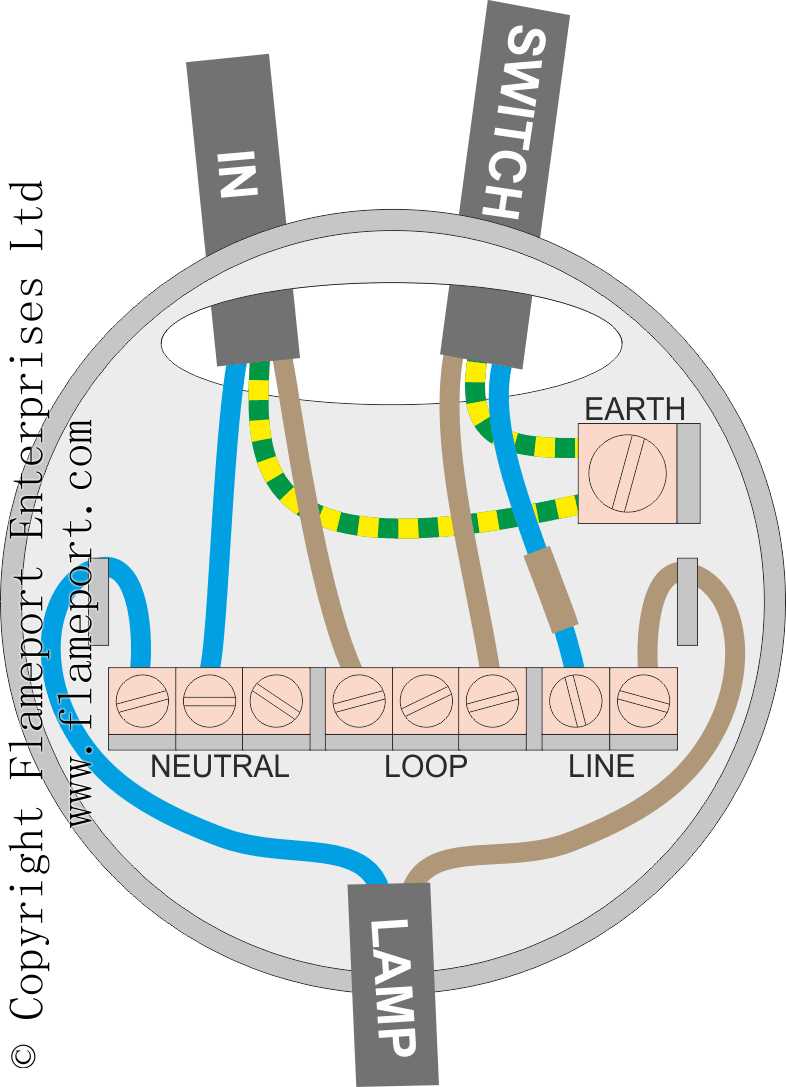

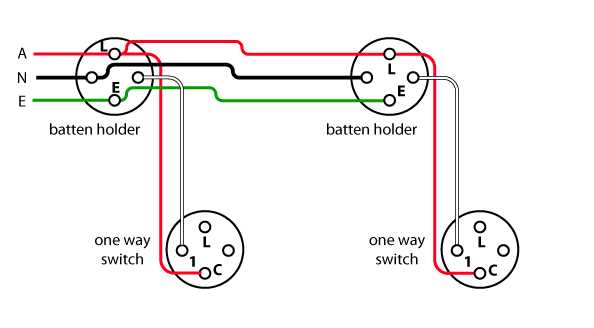

For fixtures with integrated switches, confirm whether the wiring follows switch-loop (power to the switch first) or power-to-light (power to the socket first) configuration. In switch-loop setups, the live wire runs from the fixture to the switch and returns as a switched live (often marked red); mix-ups here result in a non-functional setup. Label wires with masking tape if repurposing an existing box to avoid misconnections.
Test the assembly before finalizing: restore power, flip the switch, and observe. If the light flickers or fails to illuminate, immediately cut power and recheck terminal tightness, wire integrity, and plate alignment–most failures stem from mechanical flaws, not electrical faults. Install bulbs compliant with the fixture’s wattage limit; exceeding this by even 10% accelerates socket degradation and poses a fire hazard.
Polarity reversal–a neutral connected to a hot terminal–can cause subtle but dangerous issues: dimming anomalies, buzzing, or premature bulb burnouts. Use a multimeter set to AC voltage mode to confirm the neutral wire reads 0V relative to ground and the live wire reads 120V (US) or 230V (EU). If readings deviate, trace the wiring path back to the source before proceeding.
Connecting a Light Fixture: Step-by-Step Electrical Layout
Begin by matching the wire colors: A standard household fixture uses three core cables–black (live), white (neutral), and green or bare copper (ground). Secure the corresponding wires with twist-on connectors: live to live, neutral to neutral, ground to the fixture’s mounting bracket or dedicated screw. Confirm no exposed strands remain before pushing the assembly into the junction box. For dimmable models, verify compatibility with the switch’s voltage rating; mismatched systems risk flickering or premature failure.
Check local codes for junction box depth–shallow boxes may require smaller connectors or insulating tape to prevent shorts. If the fixture lacks pre-attached leads, strip 3/8″ of insulation from each wire, then loop the copper ends clockwise around the terminal screws. Tighten screws firmly, avoiding overtightening which can strip threads or damage conductor integrity. Test polarity with a non-contact voltage tester before finalizing installation; reverse connections can trip breakers or damage bulbs.
For suspended installations, support the fixture’s weight with a ceiling-rated hook or brace–standard drywall anchors won’t hold long-term. Use 14-gauge wire for circuits up to 15A and 12-gauge for 20A; thinner wires overheat. If incorporating a plug-in cord, solder connections and insulate with heat-shrink tubing rather than electrical tape for durability.

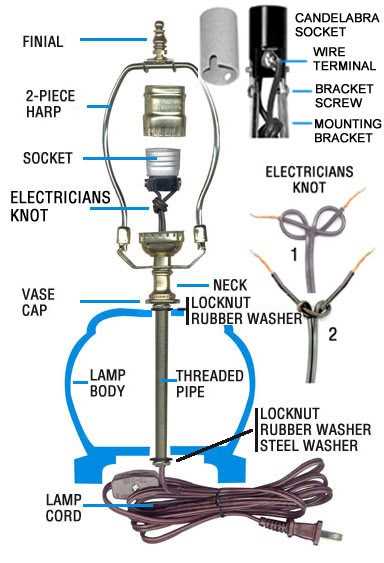

Selecting Optimal Electrical Parts for Your Light Fixture
Begin with a cord rated for at least 18 AWG if the fixture pulls up to 5 amps–any thinner risks overheating. For heavier loads (6–10 amps), upgrade to 16 AWG copper conductors; stranded wire flexes better than solid core around tight bends. Verify the jacket material: PVC suits dry indoor use, while rubber-coated cords endure outdoor moisture.
Pick a plug compatible with your outlet type. Two-prong polarized plugs prevent incorrect insertion but require a polarized socket; three-prong grounded plugs add safety for metal-bodied units. Match the plug’s amp rating–standard 10–15 amp plugs suffice for most tabletop designs, while floor models may need 20 amp Twist-Lock plugs to handle 150W+ bulbs.
- Switches: Toggle switches last ~20,000 cycles; push-button or rotary styles offer more tactile feedback but may wear faster.
- Sockets: Ceramic sockets resist 250°C; phenolic handles 150°C–critical for halogen bulbs. Threaded sockets (E12, E26) must match the bulb base.
- Fuses: Fast-blow 3–5 amp fuses protect circuits under 60W; time-delay fuses handle transient spikes from inductive loads.
Thermal protection matters: Look for heat-resistant sleeving around joints near high-wattage sources–fiberglass sleeving tolerates 450°C, polyester limits at 150°C. Avoid vinyl tubing; it melts near 80°C. Secure connections with solder or crimp terminals–twist-and-tape joints loosen over time, increasing resistance.
Check insulation integrity. Damaged conductors expose copper; even minor nicks drop voltage under load. Test continuity with a multimeter–any resistance over 0.5 ohms per foot suggests corrosion or poor contact. Replace cracked plugs immediately; internal arcing burns contacts within hours.
Key Specifications by Fixture Size
- Portable table units: 18–16 AWG cord, 2A fuse, phenolic socket.
- Floor-standing models: 14 AWG cord, 5A fuse, ceramic socket, grounded plug.
- Outdoor-rated designs: 12 AWG rubber-jacketed cord, 10A time-delay fuse, GFCI plug.
Label components during disassembly for effortless reassembly–mislabeled wires cause short circuits. Use heat-shrink tubing, not electrical tape, for strain relief at the cord entry; tape adhesive degrades above 60°C. Store spare parts in anti-static bags to prevent dust accumulation, which increases resistance over time.
Step-by-Step Guide to Stripping and Preparing Conductors
Use wire strippers calibrated for the gauge of your conductor. For 14-12 AWG solid copper, set the blade notch between 0.045″ and 0.055″. Twist stranded wire clockwise 1-1.5 turns before exposing 3/8″ of core. Verify no stray strands remain; even a single nub can create a short. For aluminum or tinned copper, reduce jaw pressure by 20% to prevent nicking.
Inspect each stripped conductor under a 10x magnifier. Remove oxidation with 220-grit sandpaper–light pressure, 3-4 strokes max. For oxidized aluminum, apply a thin coat of antioxidant compound (NOALOX or equivalent) immediately; failure to do so will increase resistance by up to 15%. Trim uneven ends with side-cutting pliers flush to the insulation edge.
Tools and Materials Reference
| Task | Tool/Material | Specification | Critical Note |
|---|---|---|---|
| Stripping solid core | Adjustable wire stripper | 0.045″–0.060″ blade gap | Avoid excessive squeeze; successive nicks weaken copper |
| Stranded core prep | Twisting tool or needle-nose pliers | 1-1.5 twists clockwise | Over-twisting frays individual filaments |
| Oxidation removal | 220-grit emery cloth | Silicon-carbide backing | Discard after single use; embedded copper particles accelerate corrosion |
| Antioxidant application | NOALOX/Zinc-based compound | 0.003″ film thickness | Excess compound attracts dust, increasing contact resistance |
Secure conductors with a self-clamping ferrule if terminating into screw terminals. Crimp ferrules rated for 600V, 12-10 AWG using a ratcheting crimper (die size marked “K”). Apply consistent pressure until the crimper releases; incomplete crimps increase joint temperature by 5–8°C under load. For push-in connectors, insert stripped core straight–no pre-twisting–then tug gently to confirm engagement.
Solder only when explicitly required (e.g., vintage fixtures with eyelet terminals). Heat the joint, not the solder; use rosin-core 60/40 solder for copper, aluminum-safe solder for mixed metals. Target a concave fillet–excess solder creates a cold joint. After soldering, allow a 60-second cooldown before handling; premature stress fractures microscopic bonds.
Secure Fixture Terminal Attachment Techniques
Turn off the power at the circuit breaker before handling any conductors–verify absence of voltage with a non-contact tester inserted into the socket flange. A single false move risks arcing that can vaporize copper strands or melt insulation, creating hidden carbon tracks.
Strip each conductor to expose 6–8 mm of bare copper; insufficient length leaves threads loose, while excess invites shorting. Use calibrated strippers with 1.5 mm jaws to avoid nicking filaments, which weaken under thermal cycling and may snap when tightening the terminal screw.
Loop the stripped end clockwise around the brass screw–never aluminum, which oxidizes and loosens over time. Tighten to 0.8 Nm torque; overtightening crushes strands, reducing current capacity by up to 20%, while undertightening invites high-resistance hotspots (IEC 60669-1:2016 §7.2).
Insert the neutral (ribbed or white-sheathed) conductor into the silver terminal first; miswiring reverses polarity and energizes the shell, increasing shock risk even when the switch is off. Confirm polarity with a neon tester before restoring power.
Twist stranded copper tightly before connecting; stray filaments can touch the metal shell and cause intermittent shorts. Apply a thin bead of anti-oxidant paste (zinc-loaded) on terminals rated for outdoor or damp locations–corrosion doubles contact resistance in under 90 days, per ASTM B817.
Secure the grounding lead (green/yellow stripe) to the green hex screw on metal fixtures only; plastic housings omit this terminal yet may still require bonding for surge suppression. Ensure the grounding conductor reaches the box without splices–each junction raises impedance and reduces fault-clearance speed.
Push the socket assembly gently into the fixture canopy until it clicks, then tug each conductor gently at 45° angle; any give means strands are not fully seated. Restore power and test with a 25 W incandescent source–LEDs may not reveal high-resistance faults masked by their low current draw.
