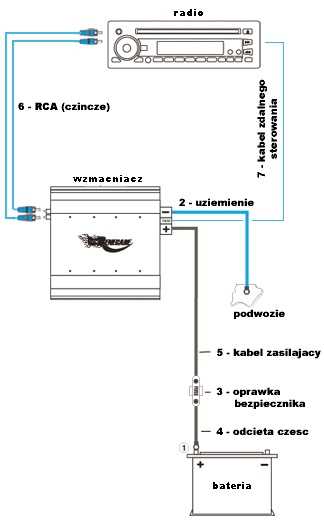

Begin by identifying the power wire gauge required for your setup–typically 4 AWG for systems drawing 100–150 watts RMS per channel, and 8 AWG for lower-powered units under 75 watts. Route the positive lead directly from the battery, avoiding any intermediate connectors that could introduce resistance. Install a fuse holder within 18 inches of the battery terminal, using a fuse rated 5–10 amps higher than the system’s continuous current draw. Failure to follow this risks overheating and potential fire hazards.
Grounding demands equal precision: attach the negative cable to a bare metal chassis point, ensuring no paint, rust, or corrosion interferes. Scrape the surface down to raw metal and use a star washer to bite into the material. For multi-channel setups, split the ground leads into separate runs rather than daisy-chaining them–shared grounds create unwanted noise and weaken performance. Test continuity with a multimeter; readings above 0.1 ohms indicate a poor connection requiring rework.
Signal cables must be routed away from power wires, alternators, and ignition systems to prevent interference. Use twisted pairs for RCA interconnects and keep them at least 12 inches from any high-current lines. For optimal clarity, shielded cables are non-negotiable. If your system includes a line output converter (LOC), adjust gain levels before wiring the main unit–overdriven signals will distort regardless of power handling. Verify all connections with an oscilloscope or high-quality head unit before finalizing the installation.
Remote turn-on leads should trigger at 12V with minimal delay–bench-test the relay or switch before mounting. After securing all connections, power up the system at low volume to check for pops, hisses, or thumps. If present, re-examine grounds and signal integrity. Finally, anchor all cables with zip ties every 8–12 inches to prevent vibration damage and ensure long-term reliability. Loose wiring degrades over time and can short against moving parts.

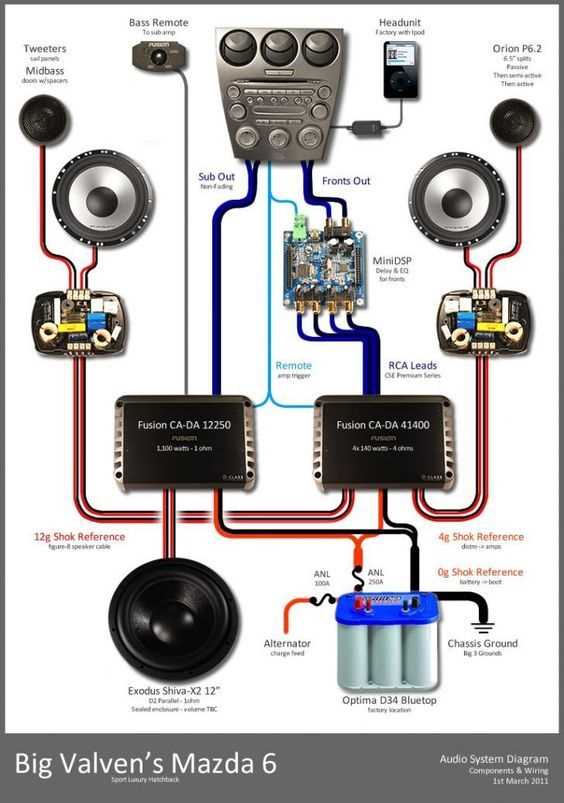

Connecting High-Performance Audio Systems: A Step-by-Step Guide

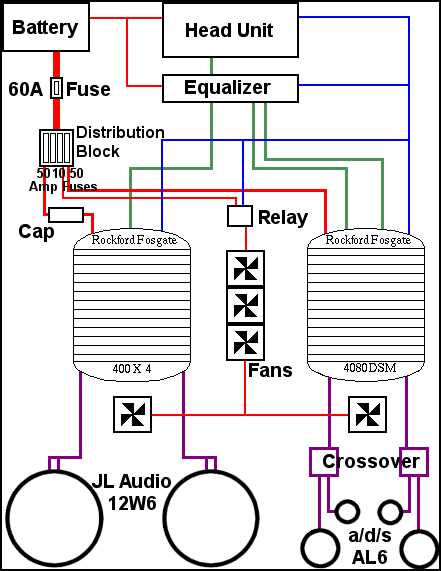

Begin by matching the gauge of your power cables to the system’s RMS output: 16 AWG for under 50W, 12 AWG for 50–150W, 8 AWG for 150–300W, and 4 AWG for anything above. Route cables away from engine components and sharp edges, securing them with plastic clamps every 12–18 inches. Use gold-plated connectors for RCA cables to minimize signal noise–avoid twisting or coiling excess length near power sources. Ground the unit to a bare metal chassis point within 18 inches of the device, sanding the contact area to remove paint or rust. If installing a fuse, place it no more than 6 inches from the battery terminal; for 4 AWG cables, a 100A fuse is standard for most setups.
Critical Component Compatibility
| Component | Minimum Spec | Common Pitfalls |
|---|---|---|
| Battery | 650 CCA, AGM for high-draw units | Using standard lead-acid with repeated deep discharges |
| Alternator | 120A+ for aftermarket systems | OEM alternators failing under sustained 80%+ load |
| RCA Cables | Shielded, oxygen-free copper | Cheap copper-clad aluminum cables causing interference |
| Speaker Wire | 14 AWG for 4Ω loads, 12 AWG for 2Ω | Undersized wire leading to power loss or overheating |
For multi-channel units, bridge channels only if the manual explicitly permits it–improper bridging can halve impedance and damage the device. Test all connections with a multimeter before powering on: voltage at the terminal should match the battery (12.6V–14.4V), and ground resistance should read below 0.5 ohms. If bass distortion persists, relocate the RCA cables away from power wires or add a ground loop isolator. Never mount the device on subwoofer enclosures–vibration degrades circuit integrity over time.

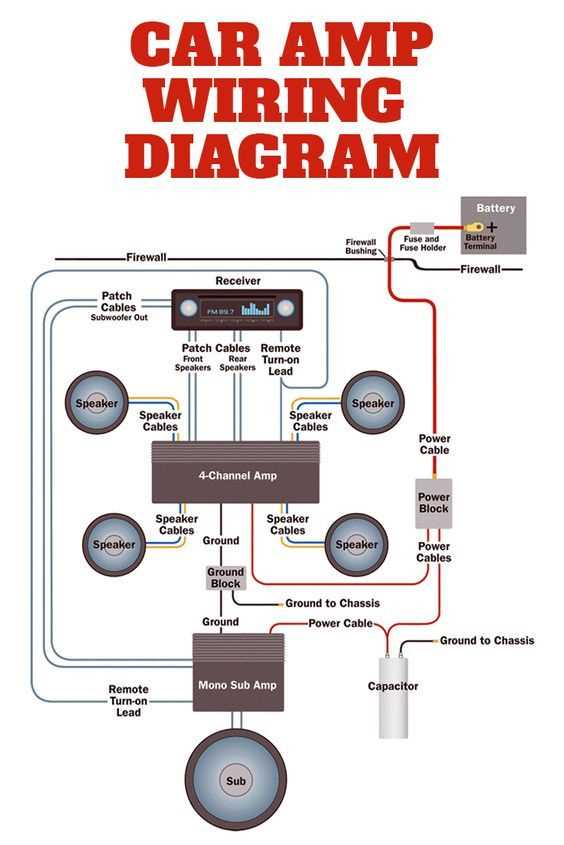

Choosing Optimal Conductors for High-Performance Audio Systems
Begin with a minimum 4-gauge power cable for setups drawing under 100 amperes–anything thicker risks unnecessary bulk without added benefit.
Locate the connection point as close to the battery’s positive terminal as possible, ideally within 18 inches, to minimize voltage drop across the run.
Ground connections demand equal attention: use the same gauge as the power lead and secure it to bare metal on the vehicle’s chassis, avoiding painted or coated surfaces. Primer and corrosion treatments create resistance, increasing noise.
For systems exceeding 1,200 watts RMS, step up to 0-gauge cable. The difference in current capacity between 4-gauge and 0-gauge is 80 amperes–critical for maintaining clean signal at high loads.
- 120A fuse within 7 inches of the battery protects against short circuits without tripping prematurely under normal operation.
- Avoid daisy-chaining ground points; a single dedicated termination prevents ground loops.
- Oxygen-free copper (OFC) reduces oxidation but offers negligible performance gain over standard copper at lengths under 20 feet.
Test voltage at the power terminal under load: a drop below 11.8 volts at full volume indicates undersized conductors or a poor ground–address immediately to prevent thermal damage.
Solderless terminals simplify installation but crimp connections must be inspected for looseness; even a 0.5mm gap introduces resistance sufficient to degrade output quality.
Insulation matters: silicone-jacketed cables resist heat and abrasion better than PVC, extending operational lifespan in confined spaces like trunks or under seats.
- Measure the exact run length before cutting–extra slack wastes money on cable and increases potential failure points.
- Verify cable specs against manufacturer guidelines; some brands inflate RMS ratings, requiring thicker conductors than expected.
- Use a multimeter to confirm continuity before final tightening; intermittent connections cause intermittent failures.
Connecting RCA Cables and Signal Sources Correctly
Use shielded RCA interconnects (minimum 22 AWG, oxygen-free copper core) between the head unit’s preamp outputs and the audio processor’s inputs to minimize electromagnetic interference from ignition systems and alternators. Match impedance–most aftermarket units expect 1 kΩ inputs; verify specifications in the manual to prevent signal degradation or premature clipping. Route cables away from power wires (maintain ≥15 cm separation) and twist pairs at 3 turns per 10 cm to cancel induced noise. If ground loops occur, install a 100 µF isolation capacitor in series with the RCA ground at the signal source.
Testing Signal Path Before Final Installation
Connect a multimeter in AC voltage mode across the RCA leads–play white noise through the source and verify 1–3 V RMS output; readings below 0.8 V suggest poor grounding or high-impedance mismatches. Use an oscilloscope with audio probe to check for symmetrical sine waves at 1 kHz; asymmetrical traces indicate grounding issues or damaged shielding. For low-level sources, employ a preamp with >80 dB SNR to avoid amplifying hiss. Secure connections with dielectric grease on RCA jacks to prevent oxidation in humid environments–poor contact causes intermittent high-frequency roll-off. Always terminate unused inputs with 10 kΩ resistors to reduce noise pickup.
Setting Up Fuse Protection Near the Power Source
Install the fuse holder no farther than 18 inches (45 cm) from the battery terminal. Use a 4 AWG or thicker cable for systems drawing up to 100A; step down to 8 AWG only if the total current remains below 50A. Bare copper strands must never contact the chassis–secure them inside heat-shrink tubing before crimping the terminal. Choose an ANL or mini-ANL fuse rated 10% above the continuous current draw; for 80A draw, select a 90A fuse.
AGU fuses corrode faster in humid climates. Opt for a sealed fuse block if mounting under-hood; polycarbonate holders resist vibration and thermal cycling better than phenolic variants. Ensure the block’s mounting surface is flat, clean, and free of paint; a rough surface increases contact resistance, risking localized heating. Torque terminals to 8–10 lb-ft; overtightening strips threads on aluminum blocks.
Fuse Placement Variations
Avoid placing the fuse holder in wheel wells or within 6 inches of steering linkages–splash from puddles or road debris can short exposed terminals. If the engine bay lacks space, route cables directly into the cabin through a dedicated grommet; use silicone sealant around the grommet edges to prevent moisture ingress. Never run unprotected cables parallel to fuel lines–maintain a minimum 4-inch clearance.
For lithium starter batteries, solder the fuse’s blade tabs for additional corrosion resistance; AGM options tolerate corrosion but require torque adjustments–6–8 lb-ft for lead terminals. Test resistance across the fuse block after installation using a multimeter; readings above 0.02 Ω indicate poor contact–re-crimp terminals with a hydraulic press or anvil-style crimper.
Store spare fuses in a waterproof pouch taped to the battery tray. Replace any fuse showing discoloration or pitting on the blades, even if continuity tests pass; micro-cracks form under repeated thermal cycles and fail under load. Label the fuse block with the amp rating and date of installation–rotating fuses every 3 years prevents oxidation buildup in high-current systems.
Grounding the Audio Power Unit for Noise-Free Performance
Connect the ground terminal directly to the vehicle’s chassis using a 4 AWG or thicker cable, ensuring the contact point is bare metal–remove paint, rust, or debris with a wire brush or sandpaper. Avoid attaching to factory bolts, screws, or welded seams, as these often have poor conductivity due to corrosion or factory coatings. Instead, drill a dedicated hole near the power unit’s mounting location, tap it for a 10-32 stainless steel bolt, and secure the cable with a ring terminal crimped and soldered for maximum conductivity. Distance matters: keep the ground cable under 18 inches from the unit to minimize resistance.
Test the ground’s integrity with a multimeter: set it to continuity mode (or the lowest ohms range) and probe between the negative terminal and the chassis point. A reading above 0.5 ohms indicates a compromised connection–re-clean the surfaces or relocate the ground. For systems with multiple channels, ground all negative speaker wires to the same chassis point as the power supply’s ground to prevent ground loops, which manifest as low-frequency hum or engine whine. Never chain grounds (e.g., from unit to component to chassis), as this creates resistance paths that degrade signal purity.
Isolate the ground from signal wires by routing them at least 12 inches apart. Cross power cables over signal wires at 90-degree angles if unavoidable, but never bundle them together. If engine noise persists, add a ground loop isolator (ferrite core or audio-grade transformer) between the head unit and the processor. For subwoofer systems, consider a separate ground cable from the enclosure to a secondary chassis point, ensuring it’s the same gauge as the power cable to handle peak current draw.
Common Mistakes and Fixes
Using undersized wire (e.g., 8 AWG for a 1,000-watt system) causes voltage drop and heat, risking melted insulation or thermal shutdown. Calculate wire gauge using the formula: Length (feet) × Current (amps) ÷ 0.03 = Required AWG. For example, a 10-foot run at 50 amps needs 4 AWG (10 × 50 ÷ 0.03 = 6 AWG, but round down to ensure headroom). Also, avoid “ground stacking”–layering multiple ring terminals on one bolt without proper torquing (35-45 inch-pounds for 10-32 bolts)–as loose connections oxidize and fail under load.
Verify ground integrity under load with an oscilloscope or distortion analyzer. Play a 1 kHz test tone at 90% of the system’s RMS power; noise should remain below -80 dB relative to the signal. If spikes appear, check for:
- Loose connections (wiggle wires with the system on to identify intermittent faults).
- Shared grounds with relays, sensors, or ECUs–these create transient noise.
- Poor-quality ring terminals (use tinned copper, not aluminum or unplated steel).
For persistent issues, install a star ground setup, where all grounds converge at a single chassis point via their own dedicated cables.
