Begin by verifying your circuit’s ampacity matches the appliance’s requirements–common configurations include 30-amp for dryers, 50-amp for stoves, or 60-amp for high-power tools. Use 10 AWG copper wire for 30-amp circuits, 8 AWG for 50-amp, and 6 AWG for 60-amp loads. Check the National Electrical Code (NEC) or local regulations for exact conductor sizing.
Disconnect power at the main breaker before handling any conductors. Strip 3/4 inch of insulation from each wire: black (hot), red (secondary hot), white (neutral), and green or bare (ground). Verify the receptacle’s terminal labeling–most heavy-duty sockets require the neutral wire connected to the center terminal, with hots on the outer brass screws.
Secure wires with torque screwdrivers set to 12–15 in-lbs for 30-amp receptacles or 20–25 in-lbs for 50/60-amp models. Over-tightening risks damaging terminals; under-tightening causes arcing. For 4-wire setups, ensure the ground wire connects to the metal chassis of the device–omitting this violates NEC safety standards and creates fire hazards.
Test the installation with a multimeter before restoring power. Check for 240V across the hots, 120V between each hot and neutral, and 0V between hot/neutral and ground. If readings deviate, recheck connections or consult a licensed electrician–miswired circuits can damage appliances or trigger electrical fires.
Use UL-listed components rated for your circuit’s amperage. Avoid cost-cutting measures like aluminum wire for high-load applications–copper offers superior conductivity and heat resistance. If extending existing circuits, verify the breaker’s compatibility; mismatched trip curves lead to nuisance tripping or overheating.
Installation Guide for High-Voltage Electrical Receptacles
Always disconnect the main breaker before handling any high-amperage connections to prevent electric shock or arc flash hazards. Use a non-contact voltage tester to confirm the circuit is dead–probe all terminals individually, including the neutral if present, as residual current can persist.
Select cables rated for 20% above the circuit’s expected load: for a 30-amp circuit, use 8 AWG copper conductors (or 6 AWG aluminum); for 50 amps, opt for 6 AWG copper (4 AWG aluminum). Verify local codes–some jurisdictions prohibit aluminum for certain applications due to oxidation risks.
Terminal Layout and Secure Connections
Strip insulation to expose 3/4″ of wire, then bend the ends into a U-shape to maximize contact with terminal screws. Tighten screws to 12–15 lb-in torque–loose connections generate heat, increasing fire risk. For NEMA 6-50 or 14-50 receptacles, confirm the ground terminal is bonded to the metal junction box; plastic boxes require a separate grounding wire.

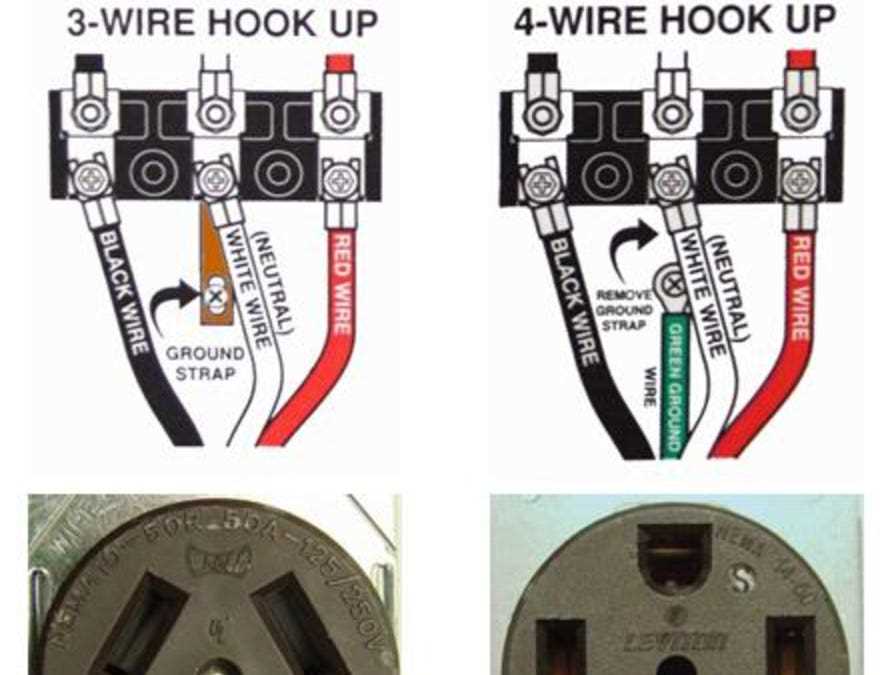

Neutral wires (if used) must only connect to silver-colored screws–mixing hot and neutral terminals will short the circuit. For 3-wire setups (no neutral), cap the unused wire with a wire nut rated for the amperage (e.g., 3M Scotchcast or Ideal Twister). Avoid backstab connections; they’re prone to failure under heavy loads.
Label the circuit at the panel with the receptacle’s location (e.g., “Garage – EV Charger”) and snap a photo of the wiring before closing the box. Should repairs be needed later, this documentation saves hours of troubleshooting. Store the photo in a cloud service or email it to yourself–paper labels fade or get misplaced.
Load Balancing and Safety Checks
For split-phase systems (e.g., NEMA 14-50), distribute the load evenly across both hot legs–an imbalance can trip the breaker or damage appliances. After installation, use a multimeter in ohms mode to test for continuity between hot-neutral (infinite resistance) and hot-ground (zero resistance). Any reading outside these values indicates a miswire.
Seal unused knockouts in the junction box with UL-listed plugs to prevent drafts, pests, or dust from entering. Reapply faceplate screws last–ensure they’re snug but don’t overtighten, as excessive force can crack the plastic or misalign the contacts. After restoring power, verify voltage at the receptacle: 220–240V between hots, 110–120V from either hot to neutral (if applicable).
Selecting the Correct Cable Thickness for a 240V Line
For a 240V circuit powering standard appliances like electric ranges or dryers, use 10 AWG copper conductors if the load draws up to 30 amps. This gauge handles currents safely while minimizing voltage drop over runs under 100 feet. Check local codes–some jurisdictions mandate thicker cables for specific devices even if wattage calculations suggest a smaller diameter.
For heavier equipment (e.g., welders, large air compressors) drawing 40–50 amps, opt for 8 AWG copper. Beyond 50 amps, 6 AWG becomes the minimum, with 4 AWG preferred for runs exceeding 150 feet to reduce resistance losses. Aluminum conductors require one size larger (e.g., 6 AWG aluminum for 40-amp service) due to lower conductivity. Verify the appliance’s nameplate–manufacturers often specify exact requirements.
- 6 AWG copper: Suitable for 50-amp circuits, supports 55 amps at 75°C.
- 4 AWG copper: Required for 60-amp breakers, handles 70 amps.
- 2 AWG copper: Necessary for 100-amp service, rated for 95 amps.
- 1 AWG aluminum: Equivalent to 6 AWG copper, max 40 amps.
Calculate voltage drop for long runs–3% or less is ideal. For a 40-amp circuit with a 120-foot run, 8 AWG copper drops ~5%, exceeding the recommended limit. Upgrade to 6 AWG to maintain efficiency. Always prioritize insulation type (THHN/THWN for indoor, USE-2 for direct burial) and round up if wattage falls between standard gauge ratings.
Step-by-Step Guide to Installing a Heavy-Duty 240V Receptacle

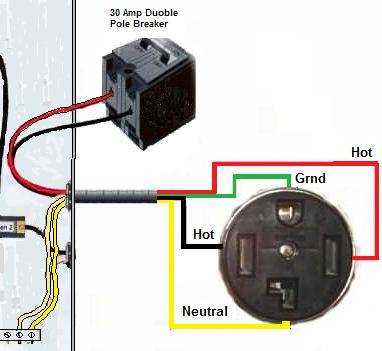

Cut power at the breaker panel and verify absence of voltage using a non-contact tester before handling any conductors. A 4-prong configuration requires four distinct cables: two hot legs (red and black, each 120V to ground), one neutral (white), and one safety ground (green or bare copper). Securely attach the wires to their designated terminals–red and black to the brass screws, white to the silver post, and ground to the green screw–ensuring no exposed strands extend beyond the terminal. Tighten each screw to 15 in-lbs using a torque screwdriver to meet NEC 110.14(D) requirements.
- Black (L1) → Brass terminal (X)
- Red (L2) → Brass terminal (Y)
- White (neutral) → Silver terminal (W)
- Green/bare (ground) → Green hexagonal terminal
Slide the assembled receptacle into the electrical box, aligning the mounting holes with the box screws. Secure it firmly but avoid over-tightening, which could crack the plastic housing. Apply a multimeter set to AC voltage mode to confirm 240V between L1 and L2, 120V from each hot leg to neutral, and 0V from ground to neutral. If readings deviate, recheck connections before proceeding.
Attach the cover plate and restore power at the breaker. Test the installation with a high-load appliance (e.g., a 5 kW heater) for 10 minutes, monitoring for excessive heat at the terminals or unusual odors. If any issues arise, disconnect power immediately and reinspect all connections. Once verified, label the circuit at the panel with the correct amperage rating and connected device for future reference.
Essential Tools and Protective Equipment for Installing High-Voltage Circuits
Start with a non-contact voltage tester rated for at least 240V. Detect live wires before touching terminals–false readings waste time, but more importantly, they prevent electrocution. Brands like Klein or Fluke offer models with audible alerts, ensuring you don’t rely solely on visual cues in low-light conditions. Test both the circuit breaker and exposed conductors; a single probe sweep can confirm power is off or reveal unexpected backfeed.
A torque screwdriver is non-negotiable for securing terminals to manufacturer specifications. Loose connections generate heat, degrade insulation, and risk arcing–which can ignite drywall or dust accumulations behind panels. Look for a preset model compliant with NEC 110.14(D); a torque range of 10–25 inch-pounds covers most residential receptacle screws. Calibration decals should be visible; replace tools if the markings wear off.
Gloves must meet ASTM D120 standards, with a minimum Class 0 rating (1,000V protection). Rubber insulating gloves paired with leather protectors shield against cuts and punctures while maintaining dexterity. Store them in a ventilated canvas bag–plastic traps moisture, accelerating rubber degradation. Inspect for pinholes or cracks before each use; even a single compromised millimeter renders them ineffective. Replace every six months if used weekly, or immediately after visible damage.
Safety glasses need ANSI Z87.1 certification, specifically marked for high-impact resistance. Wire-cutting operations propel copper shards at velocities exceeding 30 feet per second, capable of penetrating standard polycarbonate. Side shields are mandatory; wrap-around lenses prevent debris entry at oblique angles. Anti-fog coatings improve visibility in humid environments–condensation can obscure sparks or errant strands during stripping.
Keep a fire-resistant tarp at least 6 feet square on-site. Drape it over adjacent combustible surfaces like wooden studs or fiberglass insulation before stripping or splicing. Class A-rated fiberglass tarps withstand brief exposure to 2,000°F, while cheaper alternatives can melt within seconds. Secure edges with clamps to prevent wind displacement–unintended contact with live components creates a grounded path, increasing shock hazard.
