Start by confirming you’re working with a NEMA 14-50 outlet–this is the standard for high-capacity recreational vehicle power systems. Use 6 AWG copper wire for all conductors: this gauge handles the current without overheating. Measure twice before cutting; leave an extra 6 inches of slack at the outlet box and 12 inches at the breaker to simplify connections.
Connect the ground wire first–bare or green–as it’s the most critical safety feature. Attach it to the metal outlet box and the ground terminal on both the outlet and breaker. For the neutral (white) and hot wires (red and black), match them precisely: neutral to the silver terminal, hot wires to brass terminals. Swap these, and you’ll risk damaging appliances or starting a fire.
Secure all connections with a torque screwdriver set to the manufacturer’s specs–loose wires arc and melt. Use wire nuts rated for 75°C if splicing is unavoidable. Before energizing, test for shorts or ground faults with a multimeter: 0 ohms between ground and neutral, 120V between each hot and neutral, 240V across the two hots. Anything else means a mistake in the setup.
Label every wire at both ends. If modifying an existing hookup, verify the circuit breaker is rated for 50-amp service and matches the wire gauge–using a 40-amp breaker on 6 AWG wire will trip constantly. Install a GFCI breaker if the outlet lacks built-in protection; RV parks routinely have unstable power, and this prevents shocks or equipment damage.
Never run the cable through damp areas or sharp edges–enclose it in conduit if exposed, using PVC for outdoor installations. For temporary setups, use a heavy-duty extension rated for 50 amps; cheaper alternatives overheat quickly. Finally, plug in a surge protector designed for RVs between the outlet and vehicle–it blocks voltage spikes that ruin appliances.
Connecting a High-Current Recreational Vehicle Connector
Use a 6-gauge copper cable for the hot wires (X and Y terminals) to handle sustained 50-rated loads safely. This thickness prevents overheating under continuous 12,500-watt draw at 120/240V split-phase configuration. Verify local voltage regulations–some regions supply 120V single-phase, requiring adjustments to the terminal layout.
Required Tools and Materials
- Wire strippers: 6–10 AWG capable, with markings for insulation depth.
- Torque screwdriver: 15–25 inch-pounds range; under-tightened connections cause arcing, overtightening cracks terminals.
- Multimeter: Confirm 240V between X-Y, 120V from X-ground and Y-ground.
- Heat-shrink tubing: 3/4″ diameter, rated 90°C minimum to insulate splices.
- NEMA SS2-50R receptacle: Stainless steel interior, weather-resistant housing for outdoor mounting.

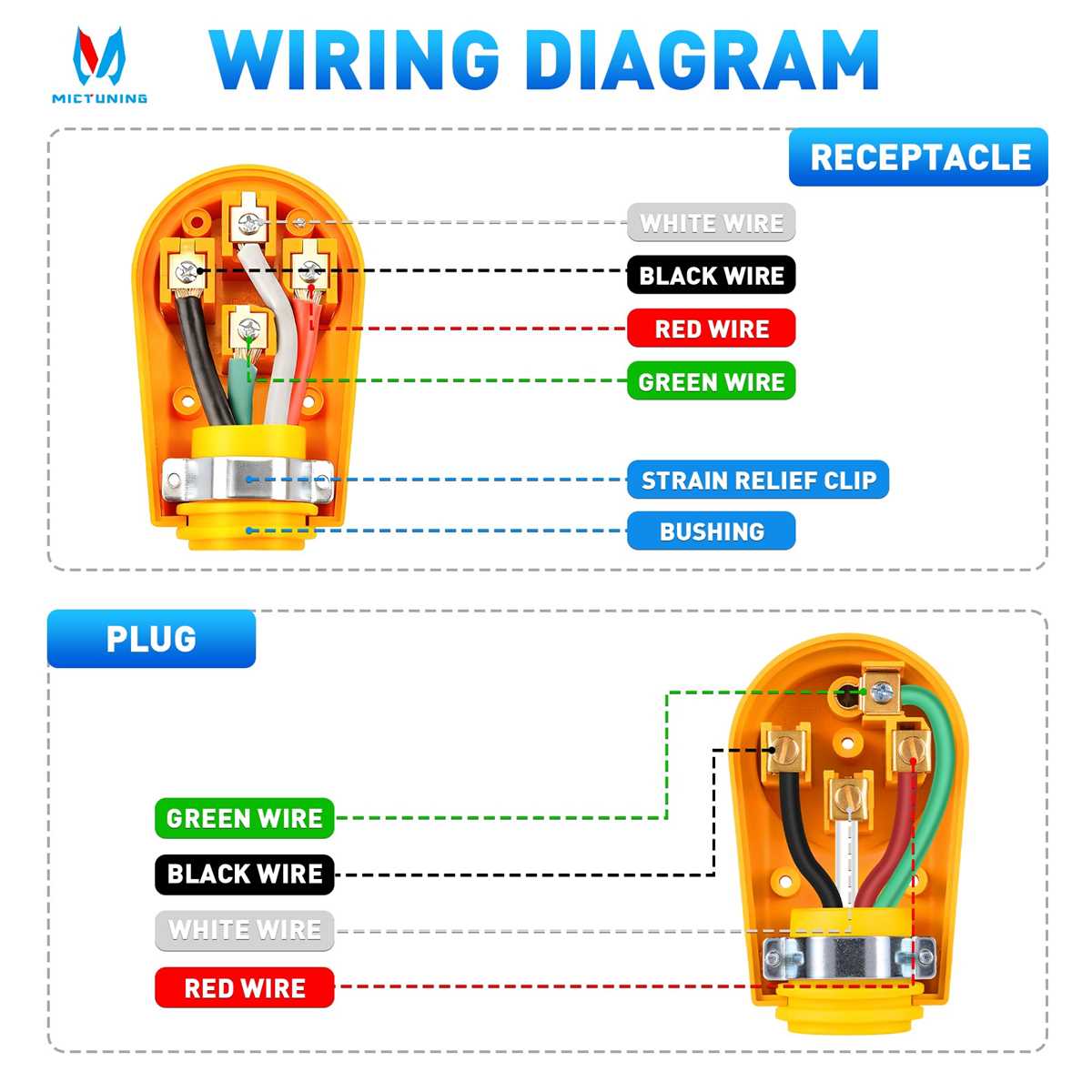

Label each conductor before termination–black (X), red (Y), white (neutral), green (ground)–to eliminate miswiring. Cross-referencing with a receptacle’s brass screw for X, silver screw for Y guarantees polarized installation. Ground attaches to the U-shaped terminal or green screw exclusively.
Step-by-Step Terminal Connections
- Strip 3/4″ insulation from each 6-gauge conductor, exposing shiny copper without nicking strands.
- Form a clockwise loop with stripped ends–matches screw tightening direction, prevents loosening.
- Insert loops under designated screws: black under brass (X), red under silver (Y), white under white or chrome (neutral).
- Torque screws to 20 inch-pounds–use the torque screwdriver’s clutch setting to avoid over-crushing.
- Fold heat-shrink tubing over each splice, apply heat until tubing seals taut.
Ground terminates last–attach green wire to the dedicated ground screw or busbar inside the service panel. Confirm zero ohms between ground prong and neutral with the multimeter; resistance above 0.5 ohms signals loose connection needing re-tightening.
Test polarity with a plug-in tester–three lights confirm correct X-Y-neutral-ground relationship. Flashlight mode checks GFCI protection if installed. Repeat testing after 48 hours of continuous use–thermal cycling reveals latent faults.
Mount the receptacle box into a rigid non-combustible surface. Secure cables with strain-relief clamps every 12 inches to prevent tension on terminals. Use outdoor-rated silicone sealant around box edges–prevents moisture ingress into splice points.
Avoid backfeeding through the connector unless the RV’s transfer switch isolates generator circuits from grid power. Use a dedicated interlock kit if connecting portable generators–backfeeding risks inverter or grid transformer damage.
Essential Gear for Installing a Heavy-Duty Recreational Vehicle Connector
Begin with a 10-gauge THHN copper wire rated for 90°C in wet locations–UL-listed variants prevent corrosion in outdoor setups. Avoid aluminum; its lower conductivity risks overheating under sustained loads. Pair this with a NEMA 14-50 outlet box featuring a weatherproof cover and stainless-steel hardware to resist rust when exposed to moisture or road salt.
- Wire strippers with a 10 AWG notch–cheap models crush strands, causing weak connections.
- Crimp connectors: Use insulated ring terminals (blue for 10-12 AWG) and heat-shrink tubing with adhesive lining to seal against moisture.
- Torque screwdriver: Set to 15 inch-pounds for terminal screws–over-tightening cracks housing; under-tightening risks arcing.
- Voltage tester: A non-contact model detects live circuits, but a multimeter verifies correct voltage (240V between hot legs, 120V from each hot to neutral).
- Fish tape: Rigid steel type navigates 90° bends in conduit without kinking–lubricate with silicone spray for smoother pulls.
- Conduit cutter: Ratcheting PVC shears ensure clean cuts without deforming the pipe; smooth edges prevent wire abrasion.
Safety-Specific Items
Lockout/tagout kit halts breaker panel access during work–accidental energizing causes fatal shocks. Arc-flash gloves (Class 2) protect against 12,000V surges; inspect for pinholes before each use. A flame-retardant drop cloth shields surfaces from solder splatter or hot tool drips during heat-shrinking. For underground installations, bury conduit 24 inches deep with warning tape 12 inches above to alert future excavators.
Step-by-Step Installation of a 50-Ampere Recreational Vehicle Power Port
Start by verifying the electrical panel’s capacity to handle the load–50 amperes at 240 volts demands a dedicated double-pole circuit breaker. Ensure the breaker matches the panel’s brand or is listed as compatible; mismatched components risk tripping or overheating. For most residential panels, a 60-ampere breaker suffices if the wiring gauge meets standards, but confirm local codes–some jurisdictions mandate exact matches.
Select the appropriate conductor: 6 AWG copper wire is the minimum for safe current delivery, though 4 AWG provides added safety margin for voltage drop over long runs. Aluminum wire (4 AWG) is permissible but requires anti-oxidant paste at connections and larger conduit due to higher resistivity. Label both ends of the conductors immediately to avoid confusion during termination–red for hot 1, black for hot 2, white for neutral, and green or bare for ground.
| Conductor Type | Minimum Gauge (Copper) | Conduit Size (THHN/THWN) | Voltage Drop (100 ft run) |
|---|---|---|---|
| 6 AWG | Standard | 1-inch | 3.2% |
| 4 AWG | Recommended | 1.25-inch | 2.0% |
Run the conduit from the panel to the outlet location using rigid metal or Schedule 40 PVC–flexible options like LFNC are easier to install but offer less physical protection. Secure the conduit every 4.5 feet and within 1 foot of boxes or terminations. For underground runs, bury Schedule 80 PVC at least 18 inches deep or use direct burial cable rated for wet locations. If routing indoors, maintain a 1.25-inch clearance from heated ducts or pipes.
At the termination point, mount a weatherproof electrical box rated for outdoor use if the outlet will be exposed to elements. A NEMA 14-50 receptacle is standard for RV connections; ensure it’s rated for 50 amperes and 250 volts. Remove 1 inch of insulation from each conductor using strippers–avoid nicking the copper–and loop clockwise around the terminal screws to match tightening direction. Torque each screw to 20 in-lbs using a torque screwdriver; under-tightening causes arcing, over-tightening can break terminals.
Connect the ground wire first–a loose ground compromises safety–then attach the neutral (white) to the designated terminal. The hot wires (red and black) attach to opposite sides; reversing their positions will damage 240-volt appliances. After securing, cover the outlet with a non-metallic faceplate and seal unused knockouts with conduit plugs. Test continuity with a multimeter: verify 120 volts between each hot and neutral, and 240 volts between the two hots.
Before energizing, double-check the circuit breaker is off. Once powered, use a non-contact voltage tester to confirm presence on all conductors–absence on one hot indicates a faulty breaker or connection. If the RV’s load exceeds 40 amperes, monitor the outlet’s temperature during initial use; a warm (not hot) outlet is normal, but excessive heat signals undersized wires or loose connections.
Label the circuit breaker with permanent marker: “RV Outlet – 50A 240V” and include the date of installation. For safety, add a ground fault circuit interrupter (GFCI) upstream if the outlet serves portable equipment, though most RV power centers have built-in protection. If extending the circuit later, calculate voltage drop using the formula: (Voltage Drop = 2 x Length x Current x Resistance / 1000) and adjust wire gauge as needed.
Periodically inspect the outlet for corrosion–especially in coastal areas–or rodent damage. Replace any receptacle showing discoloration, pitting, or cracked housing immediately. For future-proofing, consider installing a subpanel with two 50-ampere breakers if additional high-current devices are planned, ensuring the main panel’s bus rating accommodates the cumulative load.
