Begin with component terminals–label each connection point before plotting interlinks. Use standardized symbols: IEC 60617 for European designs, ANSI Y32.2 for North American applications. Resistors: zigzag for IEC, R in a rectangle for ANSI. Capacitors: parallel lines (IEC) or curved plates (ANSI). Document every terminal with polarity markers–non-compliance risks functional failures.
Trace current flow clockwise from power sources, ensuring no loops bypass critical nodes. Apply netlist validation–cross-reference physical pinouts against logical paths. Voltage rails must be color-coded: red for VCC, black for ground, blue for auxiliary. Segment high-density networks into subcircuits (e.g., power, signal, control) to prevent oversight during troubleshooting.
Avoid “spaghetti” configurations by orthogonal routing: horizontal for main traces, vertical for branches. For ICs, mark pin 1 with a dot or notch–misalignment causes short circuits. Include test points near complex junctions; use 0.1-inch headers for post-assembly verification. Ground planes should occupy 30%+ of board area to minimize noise induction.
Annotate trace widths based on load: 0.2mm for signals (5A). Copper weight: 1oz/ft² for standard boards, 2oz/ft² for high-current. Provide a bill of materials adjacently, listing part numbers, ratings, and alternates. Save iterations in versioned formats (KiCad .kicad_sch, Altium .SchDoc) to track revisions.
For cable harnesses, use branched tree diagrams–differentiate color-coding schemes: MIL-STD-681 for aerospace, SAE J560 for automotive. Specify insulation ratings (e.g., PVC 300V, XLPE 1kV). Add mechanical constraints: bend radii (4× conductor diameter minimum), strain relief grips. Validate with continuity checks–ohmmeter probes on both ends before final assembly.
Mastering Electrical Blueprint Design
Always begin by segmenting the project into functional blocks before detailing individual traces. Group power lines, signal paths, and control circuits separately–this prevents clutter and simplifies troubleshooting. Label each block with a unique identifier (e.g., PWR-01, SIG-02) and maintain consistency across all documentation.
Use standardized symbols for components, but customize notation for proprietary elements. For example, replace generic resistor symbols with manufacturer-specific part numbers when dealing with precision sensors. Below is a reference for common notations:
| Component | Symbol | Variations |
|---|---|---|
| Capacitor | || | Electrolytic marked with polarity |
| Transistor | ↑| | NPN/PNP differentiated by arrow direction |
| IC | ▭ | Pin numbers added externally |
| Relay | ⋮⊣ | Coil and switch shown separately |
Prioritize trace clarity by varying line weights. High-current paths should be 2–3x thicker than signal lines, while ground planes require solid fills with cross-hatch patterns for thermal management. Avoid right-angle bends–use 45° miters to reduce signal reflections, especially in RF circuits operating above 1 MHz.
Implement net naming conventions that reflect both function and hierarchy. Prefix global nets with “G_” (e.g., G_VCC_5V), local nets with “L_” (L_SENSOR_A1), and bus lines with “B_” (B_I2C_SDA). Include a revision suffix (e.g., _v2) if the design undergoes iterative changes. Store these labels in a separate document cross-referenced with the visual layout.
Color-code layers for rapid identification. Assign red for power, blue for signals, green for grounds, and yellow for test points. Reserve purple for nets requiring special handling (high-voltage isolation, shielding). Document this scheme in a legend positioned at the bottom-right corner of every sheet to avoid misinterpretation during assembly or debugging.
Validate interconnects with a continuity check before finalizing. Use design rule checks (DRC) to flag unconnected pins, overlapping traces, or clearance violations. For multi-board systems, include a connectivity matrix showing inter-board pin mappings. Example:
| Source Board | Source Pin | Target Board | Target Pin | Cable Type | Max Current |
|---|---|---|---|---|---|
| Main Controller | J1-3 | Sensor Array | P5-7 | Shielded Twisted Pair | 500 mA |
| Power Supply | TB2-1 | Motor Driver | AUX-4 | 18 AWG SIL | 12 A |
For complex systems, embed thermal dissipation data directly into the layout. Indicate max temperatures adjacent to heat-generating components (e.g., MOSFETs, voltage regulators), and specify required cooling methods (passive heatsink, forced airflow). Use annotations like “Tj_max=125°C, 20mm copper pour” to guide PCB designers.
Archive all versions with timestamps and modification notes. Use a version control system like Git LFS for native files, paired with exported PDFs containing embedded metadata. Include an “as-built” revision for post-production documentation, highlighting deviations from the original plan (e.g., jumper wires, component substitutions). Require sign-off from electrical, mechanical, and firmware teams before release to manufacturing.
Critical Elements for Accurate Circuit Representations
Begin with unambiguous identifiers for every conductive path–use alphanumeric labels tied to a parts list. Include voltage, current ratings, and wire gauge directly adjacent to connections if space permits, or reference them via nearby callouts. Label power rails separately from signal lines, distinguishing high-current feeds from low-level traces with thicker strokes or color coding.
Integrate test points at strategic junctions–especially near IC pins, voltage regulators, and sensor outputs. Mark these with standardized symbols (e.g., TP1, TP2) and cross-reference them in the accompanying documentation’s troubleshooting table. Ground nodes must be explicitly defined, segregating analog, digital, and chassis returns to prevent interference loops.
Map each connector precisely: pin numbering, mating orientation, and any mechanical keying details. Indicate cable shielding as dashed lines around bundle groups, specifying shield termination (e.g., tied to ground at one end, floating elsewhere). For multi-board systems, include board-to-board interconnects with matching labels on both ends to trace signal flow without ambiguity.
Document component footprints inline–resistors with resistance, polarity for diodes/capacitors, and pin functions for ICs (e.g., VCC, GND, IN, OUT). Use hierarchical blocks for repeated sub-circuits like power supplies or amplifier stages, nesting them behind a single labeled block to reduce clutter while retaining accessibility to internal details when expanded.
Embed revision history directly on the sheet: date, author, and concise change descriptions. Reserve a margin area for approval signatures or electronic verification stamps if compliance standards require traceability. Ensure every symbol adheres to industry conventions (IEEE, IEC) to eliminate interpretation errors across teams or regions.
Step-by-Step Guide to Sketching Circuit Blueprints for Newcomers

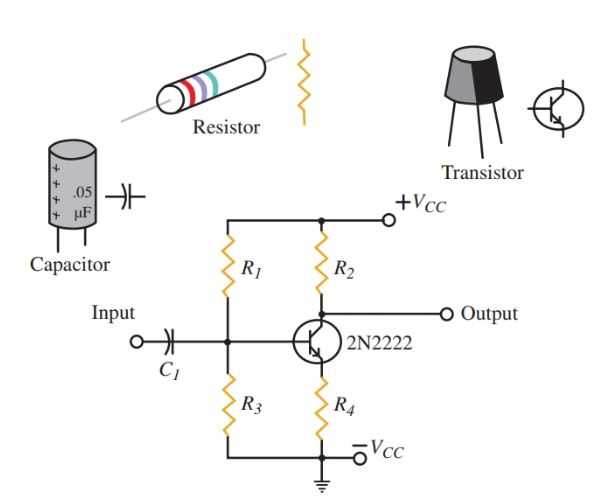

Select symbols from an industry-standard library like IEEE 315 or IEC 60617. Use a resistor icon with two parallel lines, a capacitor as two curved plates, and a transistor with a circle, collector, base, and emitter legs. Label each component with a unique identifier (R1, C2, Q3) and its value (e.g., 10kΩ, 100nF). Maintain consistent spacing–leave at least 0.5 inches between adjacent symbols to avoid clutter.
Draw horizontal or vertical lines to represent connections between components. Keep traces straight; avoid diagonal paths unless absolutely necessary for clarity. Place power rails at the top and ground lines at the bottom of the layout. Use thicker lines (0.03 inches) for power and ground paths to indicate higher current flow, while thinner lines (0.01 inches) work for signal paths.
Start with the primary signal flow: trace the path from input (e.g., sensor) through processing components (amplifiers, microcontrollers) to output (e.g., LED, motor). Group related elements–keep all resistors for a voltage divider together, and place decoupling capacitors near the IC power pins. Leave temporary gaps between sections for later additions or corrections.
Tools and Techniques for Precision
Use grid paper with 0.1-inch spacing or digital software like KiCad, Altium, or even a basic vector editor. Enable snap-to-grid to align symbols perfectly. For manual drawing, use a 0.5mm mechanical pencil for precision and an eraser shield to correct mistakes without smearing adjacent lines. Darken finalized connections with a fine-tip pen for readability.
Avoid crossing paths by routing them around components or using vias (small circles) to indicate where a connection jumps to another layer. If crossings are unavoidable, use a small jump (a half-circle arc) to show that lines are not electrically connected. Label nodes at intersections with lowercase letters (e.g., “a,” “b”) if multiple paths converge, and reference these in a separate netlist for clarity.
Add reference designators and values directly above or below each component. Use a consistent font size (3–4mm tall) and style (sans-serif for digital, serif for hand-drawn). Include a title block in the bottom-right corner with the project name, your name, date, and revision number. For complex layouts, add a legend explaining non-standard symbols or abbreviations.
Verify each connection by tracing the path with a colored marker or digital highlight. Check for continuity: ensure all component pins connect to at least one other element. Remove redundant paths–for example, if two resistors share a node, merge their connections instead of drawing separate lines. Scan or export the finalized blueprint at 300 DPI for clean reproduction.
