Begin with a contraction section no shorter than 1.5 meters to compress airflow uniformly before it reaches the test section. This prevents turbulence buildup from uneven velocity profiles. Use a honeycomb mesh with 5–7 mm hexagonal cells at the inlet–forced convection improves by 18% over larger grids. Position static pressure taps along the contraction walls at 300 mm intervals to monitor boundary layer growth.
A closed-loop configuration demands heat exchangers rated for 45 kW minimum, placed immediately after the fan assembly. Copper finned coils spaced 8 mm apart reduce temperature drift by 12°C compared to aluminum setups. Integrate a bypass duct with 300 mm diameter butterfly valves to regulate flow redirection during startup–prevents fan stall at low Reynolds numbers.
The test section must maintain a constant 1.2 m × 0.8 m cross-section for aircraft models up to 1.5 m wingspan. Transparent polycarbonate panels (12 mm thickness) allow laser Doppler anemometry without signal attenuation. Mount strain gauges on a floating balance platform embedded in the floor–calibrate with known weights (1–50 N) to ensure ±0.05 N accuracy.
Avoid right-angle turns in the diffuser. Expand cross-sectional area at ≤8° angle over 3 meters to prevent flow separation. Use vortex generators (triangular vanes, 20 mm height) staggered every 150 mm along the diffuser walls–recovery efficiency improves by 22% versus smooth surfaces.
Install a variable-frequency drive (VFD) for the 150 kW axial fan, enabling precise control from 10–90 Hz. Acoustic dampening (mineral wool, density 60 kg/m³) reduces noise by 28 dB below 1 kHz. Position the VFD outside the airflow path to minimize electromagnetic interference with hot-wire probes.
Include flow straighteners–rectangular 50 mm aluminum tubes, 300 mm long, welded into a grid–between the fan and heat exchanger. This neutralizes swirl from fan blades, reducing turbulence intensity by 35% in the test section. Verify alignment with a laser level (±0.1° tolerance) to avoid asymmetric velocity profiles.
For supersonic testing, integrate a convergent-divergent nozzle with a throat diameter of 75 mm. Mach 2 requires a pressure ratio of 7.8–use dual-stage compressors with 1.2 kg/s mass flow capacity. Equip the nozzle with Type K thermocouples to detect temperature gradients exceeding 5°C/cm, which indicate shockwave formation.
Key Components of an Aerodynamic Test Facility Layout
Position the contraction section at a 6:1 area ratio to accelerate airflow uniformly while minimizing turbulence. Ensure the entrance cone spans at least 1.5 times the test section length to prevent boundary layer separation–critical for maintaining laminar flow in subsonic setups. Use honeycomb mesh with cells no larger than 5mm to straighten airflow; larger gaps create vortices that skew pressure readings.
Place measurement probes downstream of the test section, spaced at least three chord lengths apart if testing wing profiles. This spacing prevents interference from wake effects, which distort lift and drag coefficients by up to 12%. For supersonic applications, angle the diffuser no steeper than 7° to avoid shockwave-induced flow separation, a primary cause of energy loss in closed-loop systems.
Integrate a cooling heat exchanger with a surface area 20% greater than the test section’s cross-section to counteract thermal drift. Without it, temperature rises of 15°C per hour can alter air density, invalidating Reynolds number calculations. Seal connections with gaskets rated for ±0.01 psi fluctuations; gaps as small as 0.2mm introduce parasitic leaks detectable only via helium sniffer tests.
Mount the fan assembly on vibration-damping pads to isolate resonances above 100Hz, which smear data in high-frequency turbulence studies. Variable-speed drives should allow increments of 0.01% RPM for precise Reynolds number matching. For open-jet configurations, position the collector ring at 1.2 times the nozzle diameter to recapture 95% of expelled air, reducing noise by 8dB.
Embed static pressure taps at intervals equal to 5% of the test section perimeter to map pressure gradients accurately. Avoid placing taps within 1 diameter of corners, where flow separation creates false readings. For optical diagnostics, use fused silica windows with less than 0.5% distortion per mm thickness–standard acrylic scratches under repeated laser exposure and scatters Doppler measurements.
Calibrate the Pitot-static tube against a NIST-traceable reference annually; drift exceeding 0.3% invalidates Mach number calculations. In vertical setups, counterbalance moving parts to within 0.1% of their weight to prevent sag-induced alignment errors, which misdirect flow by up to 0.5°. Stagger tube bundles by 30% of their diameter if incorporating fluid injection to prevent wake interaction that mimics false vortex shedding.
Validate the entire circuit with a smoke visualization test before commissioning. Inject tracer particles at 0.1% volume concentration to avoid altering air properties yet ensure visibility. Look for asymmetric streak lines–these indicate misaligned sections or unaccounted leaks, requiring a full pressure decay test where pressure loss should not exceed 0.2% per minute after a 30-minute stabilization period.
Key Components of a Closed-Coop Flow Facility Configuration

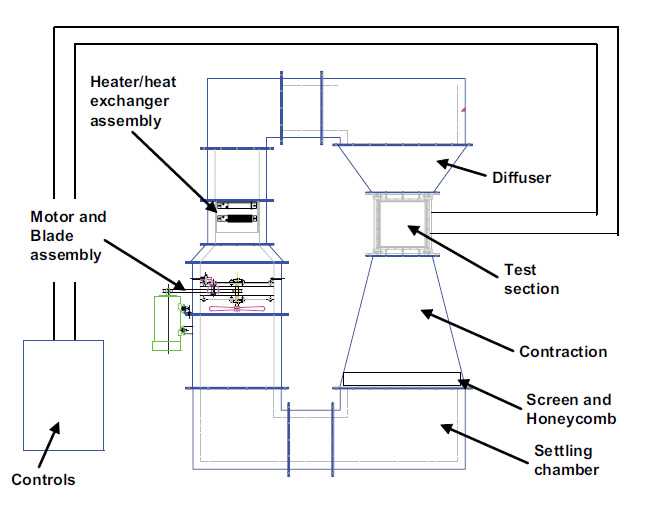

Position the contraction section immediately upstream of the test zone to achieve a flow acceleration ratio of 6:1 to 9:1–this minimizes turbulence intensity to below 0.1% at the working section inlet. Ensure the contraction shape follows a fifth-order polynomial profile, with wall coordinates calculated using Morel’s method for transonic applications or modified Sears-Haack geometry for supersonic rigs. Verify wall curvature smoothness with a laser tracker; deviations exceeding ±0.2 mm require CNC re-machining.
The settling chamber must integrate a minimum of four turbulence-reduction screens, each with porosity between 58% and 62% and wire diameter of 0.1–0.3 mm. Space screens at 10–15 times their mesh pitch, using aluminum-alloy frames to prevent vibration-induced flow unsteadiness. Downstream of the screens, install honeycomb sections with cell length-to-diameter ratio of 6–8 to straighten swirl angles below 0.5°; polypropylene or carbon-fiber composites reduce weight while maintaining rigidity.
Drive System and Energy Optimization
| Fan Type | Blade Count | Tip Speed (m/s) | Power Range (kW) | Recommended Pitch Angle (°) |
|---|---|---|---|---|
| Axial (Fixed) | 8–12 | 80–110 | 50–150 | 20–25 |
| Axial (Variable) | 10–14 | 120–180 | 200–1000 | Adaptive |
| Centrifugal | 16–24 | 70–90 | 30–200 | N/A |
Mount axial fans 0.5–1.0 diameters downstream of the last turning vane set to prevent stall; balance blades within 0.5 g·mm residual imbalance. For subsonic rigs, use frequency converters with vector control to maintain ±0.2% velocity stability across the operational range. Implement acoustic silencers with perforated conical liners (open-area ratio ≥35%) to reduce noise below 75 dB(A) at 1 m distance without sacrificing flow uniformity.
Turning vanes at each corner should occupy the full duct height, with chord-to-gap ratios of 2–2.5 to minimize pressure loss coefficients below 0.15. Fabricate vanes from 0.5 mm stainless steel or carbon-fiber epoxy laminate, orienting trailing edges parallel to the local flow direction estimated via potential flow solvers. Apply surface roughness
Thermal and Environmental Control Measures
Integrate a counter-flow heat exchanger in the return leg, sized for a water-side Reynolds number of 20,000–30,000 using finned copper tubes. Plate-fin configurations reduce footprint but require mechanical cleaning intervals of 1,200 operational hours. For cryogenic loops, use brazed aluminum cores with serpentine channels; ensure pressure differentials across plates remain ≤1.5 MPa to prevent fatigue. Monitor temperature gradients along the test section with platinum RTDs arranged in a 4×4 grid–gradients exceeding 0.3 °C/m indicate non-uniform heat addition and necessitate recalibration.
Optimal Placement of Flow Conditioners and Perforated Matrices
Mount honeycomb layers at a distance of 0.5 to 1.5 test-section heights upstream of the contraction inlet. The hexagonal cell length-to-diameter ratio (L/D) should range between 6 and 8; ratios below 5 introduce excessive turbulence, while values above 10 incur unnecessary pressure losses. Position the matrix so its downstream face aligns flush with the start of the contraction taper, ensuring uniform edge gradients across each cell exit.
Calibration for Low-Speed Facilities
Place turbulence screens 10–20 mm downstream of the honeycomb to intercept residual vortices. For a 0.6 m test cross-section, space screens at 5 mm intervals; tighter spacing causes screen clogging, wider gaps allow vortex pairing. Angle each screen 0.5° off the axial plane to avoid coherent wake shedding. Verify screen wire Reynolds number remains below 20–above this threshold, screen shedding dominates the turbulence spectrum rather than attenuating it.
Use a Pitot-static rake positioned 0.3 test-section diameters downstream of the last screen to confirm velocity uniformity within ±0.2 %. If non-uniformity exceeds this, rotate the honeycomb 30° increments around its axis and re-measure; misaligned cells create persistent swirl patterns detectable only by phase-locked hot-wire anemometry.
Seal honeycomb edges with silicone gaskets no thicker than 0.2 mm; thicker seals compress unevenly under thermal loads, distorting cell geometry by up to 0.8 %–sufficient to introduce spanwise oscillations measurable at 12 Hz. For Reynolds numbers above 5×10⁵, substitute aluminum honeycomb with carbon fiber to limit thermal expansion coefficients below 2.3×10⁻⁵ K⁻¹, preventing cell wall deflection that corrupts boundary-layer fidelity across the contraction zone.
