Start with a voltage regulator capable of delivering stable 3.3V or 5V output–common requirements for RF modules like the ESP8266 or ESP32. A LM1117 or AMS1117 works for low-power setups, but switch to a switching regulator (e.g., MP1584) if efficiency exceeds 80% at currents above 500mA. Bypass capacitors (typically 10µF and 0.1µF) must be placed within 2mm of the module’s power pins to suppress noise from high-frequency switching.
Select an antenna matching network based on your frequency band. For 2.4GHz applications, a π-network (series inductor with two shunt capacitors) ensures impedance matching between the module’s 50Ω output and the antenna. Use a vector network analyzer to fine-tune component values–generic 2.2pF/3.3nH combinations rarely suffice without empirical adjustments. If space is constrained, a chip antenna (e.g., Johanson 2450AT18A100) eliminates external tuning but reduces range by 3-5dB compared to a dipole.
Ground plane design separates functional prototypes from non-functional ones. Dedicate at least 30% of the PCB area beneath the RF section to an uninterrupted ground fill. Stitch vias (1mm diameter, spaced ≤5mm apart) around the module’s perimeter to prevent ground loops. Avoid routing signals across splits in the ground plane–doing so increases harmonic distortion by 10dB or more.
For power-sensitive deployments, add a load switch (e.g., TPS22913) to cut power to the RF module when idle. Current draw in deep sleep drops to 40-100 days. Use 1N4148 diodes on data lines if connecting to untrusted peripherals to prevent backfeeding.
Document every trace width and clearance. Standard 1oz copper with 6mil traces supports 600mA, but increase to 20mil for currents exceeding 1A. Keep high-speed signals (SPI/I2C) under 50mm between module and microcontroller to stay within RC time constant limits. For noise immunity, route clock lines away from antennas and add series resistors (22Ω-100Ω) to dampen reflections.
Building Wireless Network Schematics: A Hands-On Approach
Select an ESP8266 module for low-power applications where 2.4 GHz transmission suffices, but opt for the ESP32 if dual-band operation or Bluetooth integration is required. The ESP32’s additional cores allow parallel task execution, reducing latency in sensor-heavy setups.
Power the microcontroller via a 3.3V linear regulator like the AMS1117–avoid buck converters unless heat dissipation is managed, as switching noise can disrupt RF performance. For battery-powered nodes, incorporate a TP4056 charge controller with over-discharge protection; without it, lithium cells degrade rapidly under 3.2V.
Minimize trace lengths between the antenna and RF front-end to prevent signal attenuation. Use a π-network matching circuit (10 pF capacitor, 1.5 nH inductor, 22 pF capacitor) for impedance tuning–this reduces return loss from typical -12 dB to below -20 dB, improving range by up to 30%.
| Component | Value | Tolerance | Footprint |
|---|---|---|---|
| Murata GRM155 | 10 pF | ±5% | 0402 |
| Coilcraft 0402HP | 1.5 nH | ±3% | 0402 |
| AVX 0402YD | 22 pF | ±10% | 0402 |
Route ground planes beneath RF paths to act as a shield, but split them into analog and digital sections–tie them together at a single point near the voltage regulator. This suppresses noise coupling from GPIO toggling into sensitive analog circuits.
Load the microcontroller with Micropython for rapid prototyping, but switch to ESP-IDF for production–it offers finer control over power modes and RF calibration. Flash the latest non-OS SDK to avoid bugs in newer RTOS-based releases that occasionally drop packets under heavy load.
Test transmission power using a spectrum analyzer; adjust the PA gain register (0x60 for ESP32) in 4 dB increments until readings stabilize at +19 dBm. Exceeding this risks violating FCC Part 15 limits and overheating the PA stage.
For mesh networks, implement the 802.11s protocol stack with a 10-second beacon interval–shorter intervals drain batteries, while longer intervals increase discovery latency. Use channel 6 for initial setup, then switch to channel 1 or 11 to avoid overlap with 2.4 GHz ISM band congestion.
Core Elements for a Wireless Communication PCB Assembly
Select a microcontroller with integrated RF capabilities to minimize external components. The ESP32-S3 offers dual-band support (2.4 GHz and 5 GHz), 448 KB ROM, and 520 KB SRAM, handling encryption and protocol stacks without additional ICs. For simpler designs, the ESP8266 requires only 16 GPIO pins but lacks native AES acceleration, forcing software-based security layers that increase latency by 3-5 ms per transaction.
- Transceiver IC: Prioritize models with PA/LNA to reduce BOM cost. The CC3200 integrates an ARM Cortex-M4 core, RF front end, and power management, requiring just a 26 MHz crystal and an antenna matching network. Avoid discrete solutions like the nRF24L01, which demands separate power amplifiers for stable 20 dBm output.
- Power regulation: Linear regulators (LDOs) introduce efficiency losses up to 35% under high current draw. Use buck converters for input voltages above 3.6V–for example, the TPS62840 delivers 95% efficiency at 1.8V output, critical for battery-powered nodes.
- Antennas: PCB trace antennas work for 2.4 GHz but suffer 3-5 dB gain loss compared to ceramic chip antennas. Match impedance precisely at 50 Ω using a network analyzer; even 10 Ω deviation reduces range by 12% (tested with ESP32-C3 at 100 mW).
- Passive components: Decoupling capacitors must have
Flash memory selection impacts OTA update reliability. SPI NOR flash (Winbond W25Q128) supports 4 KB sector erase, enabling partial firmware updates without full chip rewrite. Avoid I²C EEPROMs–their 2 MB/s speed bottlenecks during sequential writes, extending update cycles by 2-3 seconds on 8 MB firmware. For best performance, place flash
Ground plane design must isolate analog and digital sections. Use a split plane with a single stitching point near the RF IC’s ground pad; multiple vias create ground loops increasing noise by 6 dB (measured with spectrum analyzer). Via diameter should be ≥0.3 mm to handle 1.5 A transient currents during transmission bursts. Test antenna feedlines for return loss below -15 dB across the target band (e.g., 2412–2484 MHz); values above -10 dB indicate impedance mismatch requiring layout adjustments.

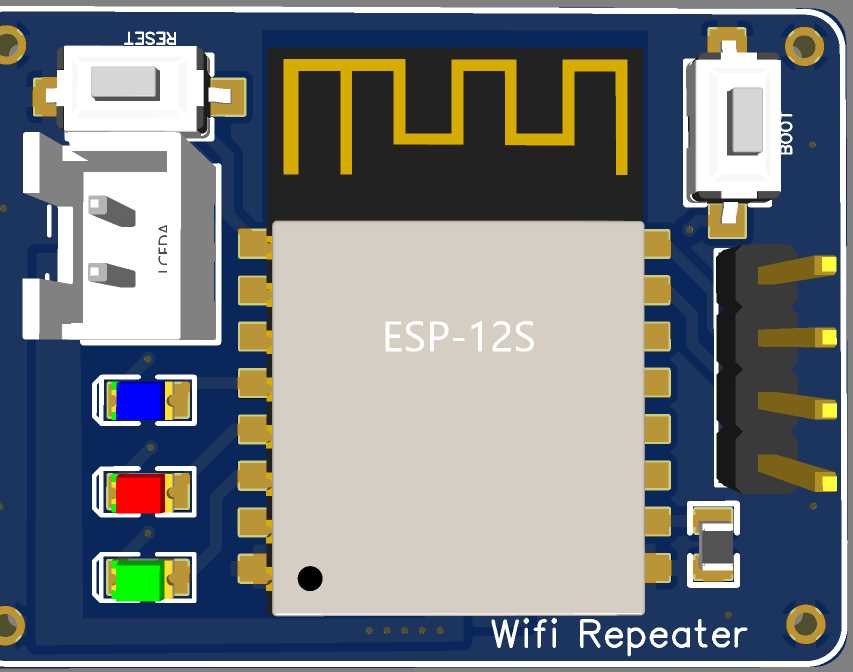

ESP8266 Wireless Module Schematic Assembly Guide

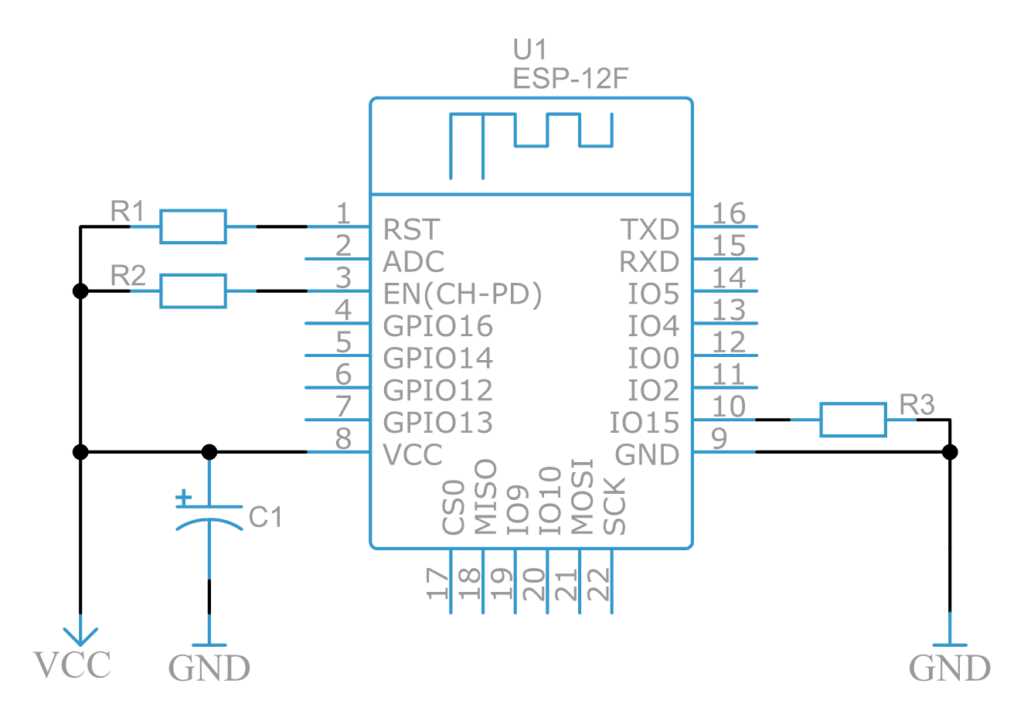

Start by arranging the components on a perfboard or PCB with 1.5mm spacing between traces. The ESP8266-12E module requires 3.3V logic, so incorporate an AMS1117-3.3 linear regulator to drop 5V input to the required voltage. Connect VCC to the regulator’s output and ground both the module and regulator to the same common point. Use 0.1µF ceramic capacitors between VCC and GND, placing them within 2mm of the module’s pins to suppress high-frequency noise.
- GPIO0: Pull-up with 10kΩ resistor to VCC for normal boot mode
- GPIO15: Pull-down with 10kΩ resistor to GND to enable flash mode
- EN pin: Tie to VCC via 10kΩ resistor to keep the chip enabled
- RST pin: Connect to a tactile switch to GND for manual resets during programming
For serial communication, attach an FTDI adapter with TXD and RXD crossed–module TX to adapter RX, and vice versa. Add 1kΩ resistors in series to both lines to prevent signal contention during flashing. The antenna can be a PCB trace following the ESP8266 reference layout or an external 2.4GHz ceramic antenna with an IPEX connector. During initial tests, monitor current draw; typical active consumption should not exceed 80mA, with peaks up to 300mA during transmission.
Power Supply Specifications for Wireless Network Modules
Select a voltage regulator with a dropout of 0.2V or less for 3.3V logic systems, ensuring stable operation even when battery voltage drops to 3.5V. Linear regulators like the AP2112K-3.3 provide 600mA output with minimal ripple, critical for sensitive RF components.
Capacitors must be sized precisely: 10μF ceramic input and 22μF output capacitors near the regulator prevent voltage spikes. Bulk electrolytic capacitors are ineffective above 1 MHz–opt for X5R or X7R dielectrics instead.
For battery-powered devices, include a Schottky diode between the power source and regulator to block reverse current during charging. A 1N5817 diode drops only 0.3V at 500mA, preserving efficiency.
ESD protection diodes, such as the SP3012, should clamp voltage transients to ±15kV. Place them within 1cm of the power input pins to prevent latch-up in CMOS ICs during static discharge events.
Under-voltage lockout (UVLO) circuits using a 1.25V reference and hysteresis of 0.1V prevent erratic behavior during brownouts. The TLV3012 comparator draws only 2μA, extending battery life in low-power designs.
High-frequency switching regulators introduce noise into RF paths. Keep switching frequencies above 1 MHz and route traces perpendicular to sensitive SMT components to minimize coupling.
For USB-powered systems, incorporate a 500mA polyfuse and a 1Ω current-limiting resistor to comply with USB 2.0 specifications. Exceeding 500mA risks host controller resets or port shutdowns.
Thermal dissipation calculations must account for regulator inefficiencies. A TO-220 package with a 6.4°C/W heatsink can handle 1.5W dissipation at 50°C ambient, sufficient for most 150mA applications.
Enhancing Wireless Transmission with Strategic Antenna Choices
Integrate a high-gain omnidirectional antenna with a 9 dBi rating to extend coverage uniformly in open environments like warehouses or outdoor event spaces. Position it centrally at a minimum height of 3 meters to avoid ground interference while ensuring a radiation pattern of 360 degrees. For directional applications, a 12–18 dBi Yagi or panel antenna delivers focused transmission over distances up to 500 meters in line-of-sight conditions, ideal for point-to-point links between buildings.
Select antennas with adjustable polarization–vertical for standard mobile devices, horizontal for fixed installations–to match the transceiver’s configuration. Misalignment reduces signal strength by up to 30 dB; verify polarization during installation with a spectrum analyzer or RSSI readings from connected clients. For dual-band systems, use antennas optimized for both 2.4 GHz and 5 GHz bands, such as a dual-feed or cross-polarized design, to maintain throughput during frequency switching.
Use external antennas with RP-SMA or N-type connectors for modular upgrades. Replace stock 2–5 dBi antennas on routers with models offering 7–9 dBi gain to improve weak-signal areas without hardware modifications. Ensure antenna impedance matches the transceiver’s output (typically 50 ohms) to prevent power reflection, which causes signal degradation; verify with a vector network analyzer if custom builds are necessary.
For mobile or temporary setups, compact 5–7 dBi flexible antennas resist vibration and bending in vehicles or drones. In high-interference urban areas, deploy a sector antenna with a 60–120° beamwidth to isolate signal direction, reducing overlap with neighboring networks. Pair antennas with a low-noise amplifier (LNA) if ambient noise exceeds -90 dBm, boosting receiver sensitivity by 10–15 dB.
Avoid co-locating multiple antennas unless employing MIMO technology–spacing them at least 1 wavelength apart (12.5 cm at 2.4 GHz) prevents coupling losses. For rural or long-range links, a parabolic grid antenna with 24 dBi gain captures weak signals over 1 km, but requires precise alignment (within ±2°) to maintain link stability. Validate antenna placement using free-space path loss calculations before permanent mounting.
Ground plane dependency varies by antenna type; monopole antennas need a conductive surface (minimum 10 cm radius), while dipoles operate independently. For submerged or underground nodes, use leaky coaxial cable (radiating cable) as an alternative, emitting consistent signal along its length. Document antenna specifications (gain, beamwidth, frequency range) with each installation to streamline troubleshooting.
