Start with a 40-amp circuit breaker directly from the vehicle’s battery to prevent overloads. Use 10-gauge wire for the main power feed–any thinner risks voltage drop under load. Ground the system at a chassis point with minimal corrosion, ideally within 12 inches of the power source. Avoid daisy-chaining grounds; a single, dedicated connection ensures stable operation during high-current demands.
For multi-zone setups, isolate each section with a relay. A 30/40-amp relay per channel prevents cross-talk between strobe, steady-burn, and takedown circuits. Wire relays with 14-gauge wire; thicker conductors add unnecessary bulk. Label all connections–misrouted leads are the primary cause of erratic flashing patterns. Check pinouts against the manufacturer’s spec sheet before energizing; reversing polarity will damage the control module instantly.
Use waterproof connectors rated for at least 25A–subpar seals corrode in under a year. Apply dielectric grease to terminals before crimping; this extends connector life in salt-spray environments. Route wiring away from moving parts and sharp edges. If splicing is unavoidable, solder and heat-shrink each joint–tape alone will fail. Test continuity with a multimeter before final assembly; resistance above 0.1 ohms indicates a faulty connection.
Mount the control head within 6 feet of the operator to avoid signal degradation. Use shielded cables for CAN bus lines; unshielded wires pick up engine noise. For aftermarket integrations, verify compatibility with existing systems–some OEM networks reject non-native modules without proper termination resistors. Finally, secure all harnesses with nylon straps every 12 inches; loose wiring vibrates, leading to chafing and short circuits within months.
How to Connect Emergency Vehicle Signal Systems
Start by identifying the power source–most modern setups require a 12V or 24V direct current input. Use a dedicated fuse block rated at least 20% above the total amperage draw of the entire assembly to prevent overload. Thin-gauge wires (below 14 AWG) should be avoided for high-output configurations, as they risk melting under sustained load.

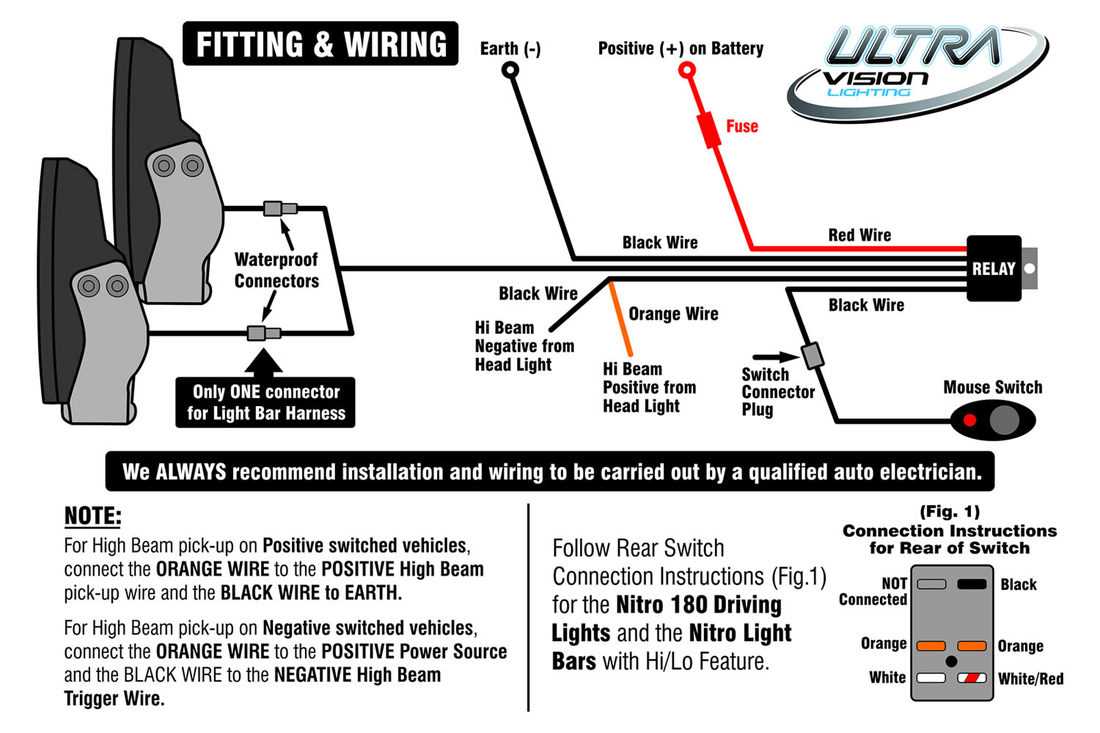

Integrate a relay between the switch and the illumination module. A standard Bosch-style relay (SPDT, 5-pin) works for most installations, allowing low-current control signals to manage higher current flows. Connect the coil terminals to the activation switch and ground, while the output terminals link to the main power feed and the signal unit’s positive input.
Ground placement is critical–attach all negative leads to a clean, unpainted metal surface within 18 inches of the signal unit. Corrosion or loose connections at grounding points cause flickering or intermittent failures. Use dielectric grease on terminals to prevent oxidation, especially in marine or off-road environments where moisture exposure is common.
- For strobing patterns: Wire the control input to a programmable flasher module (e.g., Whelen Edge or SoundOff Signal Edge) using 18 AWG twisted pair cables. Avoid running signal cables parallel to power lines to minimize interference.
- For steady-burn setups: Connect directly to a fused auxiliary circuit with a manual toggle switch. Ensure the switch is rated for the continuous current draw–most standard automotive switches handle only 10A.
- For RGB color-changing systems: Use a 3-wire connection (power, ground, data) following the manufacturer’s protocol (e.g., WS2811). Keep data cables shielded and under 10 feet in length to maintain signal integrity.
Test the setup before final mounting. Measure voltage at the unit’s terminals under full load–expect no more than a 0.5V drop from the battery. If voltage sags, upgrade the wiring gauge or relocate the power source closer to the load. For vehicles with sensitive electronics (e.g., ECUs), add a capacitor (minimum 2200µF) across the power input to filter voltage spikes.
Document the installation with a labeled schematic. Include wire colors, fuse ratings, and connection points. Store this reference for future troubleshooting–common issues like reversed polarity or loose terminals are easily resolved with accurate diagrams. For multi-zone setups (e.g., front, rear, and side units), use separate relays for each zone to allow independent control and reduce single-point failure risk.
Choosing the Optimal Electrical Connector Kit for Your Emergency Beacon Assembly
Begin by matching the harness gauge to your beacon’s maximum current draw–never exceed 80% of the wire’s rated capacity. The 10-gauge kit handles 30A continuously, while 12-gauge is limited to 20A; refer to the manufacturer’s peak amperage specs before purchasing. Solid-core copper wiring outperforms aluminum or copper-clad alternatives in vibration resistance and conductivity.
Select a connector kit with waterproof Deutsch or WeatherPack terminals if exposure to moisture is unavoidable. Cheaper spade connectors corrode within weeks under daily rain or road spray. Verify the ingress protection rating–IP67 ensures sealed connections that withstand pressurized washdowns. Avoid splices near moving parts; route cables through loom tubing to prevent abrasion from chassis vibrations.
| Wire Gauge | Max Continuous Current (A) | Recommended Fuse Size (A) | Typical Application |
|---|---|---|---|
| 10 AWG | 30 | 35 | Dual-row 48″ modules |
| 12 AWG | 20 | 25 | Single-row 36″ modules |
| 14 AWG | 15 | 20 | Compact 24″ modules |
Use a relay harness for any setup exceeding 10A–direct battery connections risk voltage drops that cause dimming under load. A 30/40A automotive relay draws minimal current from the switch while handling full power from the battery. Locate the relay within 18″ of the battery to minimize voltage loss.
Color-coded leads simplify installation and troubleshooting; insist on harnesses with MIL-spec color standards: red (switched +12V), black (ground), white (dimmer), yellow (strobe), blue (auxiliary). Missing or mislabeled wires add unnecessary diagnostic time. Confirm compatibility with existing control systems–aftermarket controllers often require separate triggers for steady burn vs. flash patterns.
For vehicles equipped with CAN bus networks, select harnesses featuring built-in load-shedding diodes to prevent power feedback. Standalone kits lacking this component can trigger false fault codes or disable other electronic modules. Test the installation with a multimeter before final mounting–measure voltage at the beacon terminals to confirm
Heat-shrink tubing over terminal connections outperforms electrical tape in durability–apply tubing rated for minimum 125°C. Silicon-filled heat shrink prevents water ingress even under high-pressure cleaning. Secure all runs with adhesive-backed clips spaced every 12″; avoid zip ties alone as they chafe wires over time.
Battery proximity matters: install the fuse holder within 7″ of the positive terminal to protect against short circuits. Marine-grade tinned copper lugs resist corrosion better than bare copper; crimp using a hydraulic crimper for consistent pressure, then solder the joint for extra security. Never daisy-chain multiple units–each requires its own fused supply line back to the battery.
Document the installation layout–photograph connection points before enclosing them in loom or panels. Keep spare fuses and a wiring schematic onboard for emergency repairs. Re-check torque on all terminal screws after one week of operation to combat loosening from thermal cycling.
Step-by-Step Guide to Connecting Power Cables to a 12V Source
Disconnect the battery terminal first to prevent short circuits. Use a 10mm wrench to loosen the negative clamp–remove it entirely before handling the positive side. Store the terminal away from the post during installation to avoid accidental contact. If corrosion is present, clean both posts with a wire brush until metal surfaces are bare and shiny.
Prepare the Cables
- Trim insulation 6mm from the cable end using strippers–avoid cutting strands.
- Slide a 5mm shrink tube onto each wire before crimping terminals.
- Crimp ring terminals rated for 20% above expected current (minimum 16AWG).
- Apply heat evenly to shrink tubes until adhesive seals the connection.
Attach the positive cable to the battery post first–secure it with the wrench, ensuring torque reaches 12-15 Nm. Tighten the negative cable immediately after, matching the same torque. Double-check connections with a multimeter: voltage should read 12.6V without load. If readings fluctuate, re-crimp terminals and inspect for frayed strands.
Final Safety Checks
- Reconnect the negative terminal last–verify no sparks occur.
- Test components at low power before full activation.
- Secure loose cables with zip ties every 20cm along the vehicle frame.
- Use dielectric grease on terminals to prevent oxidation.
If battery voltage drops below 12.4V during load testing, inspect for parasitic draws or undersized cables. Replace fuse holders near the power source if they show discoloration–use only automotive-grade fuses matching the system’s maximum current. Store unused cable lengths in a project box to prevent chafing against sharp edges.
Mastering the Emergency Signal Control Switch
Connect the toggle unit directly to the power distribution block using 12-gauge tinned copper wire–no jumper cables. Label each terminal (“steady burn,” “strobe,” “rotator”) on the back of the housing with heat-shrink markers to prevent miswiring. Ensure the rocker’s amperage rating matches your relay’s capacity; most models handle 15A continuous, but verify the specs on the switch’s data plate before engaging 30A circuits.
Field Adjustments Without Disassembly
Calibrate intensity by turning the potentiometer clockwise for brighter output–three full turns typically max out seven-segment LED clusters. For momentary activation, solder a 10kΩ resistor across the switch’s COM and NO terminals; this prevents accidental lock-on during high-vibration operations. Test each function at 9V before full system integration to catch faulty contacts early; even minor contamination causes erratic flashing patterns.
