For accurate unknown resistance detection, position the sensing element between two known resistive legs in a diamond configuration. One arm should hold a high-precision potentiometer set to a value close to the target measurement–typically within ±10% for optimal sensitivity. The opposing arms require stable reference resistors, preferably metal film types with ±1% tolerance or better to minimize errors. Connect the detector–a galvanometer or digital multimeter in voltage mode–across the central nodes, where the differential signal will vary logarithmically with resistance differences.
Adjust the potentiometer until the detector reads zero, indicating a balanced state. At this equilibrium, apply the ratio formula: Rx = (R2 × R3) / R1, where Rx is the unknown resistance. For values below 1Ω, incorporate a four-terminal Kelvin connection to eliminate lead resistance, using separate voltage and current paths. Above 1MΩ, shield components from stray capacitance by enclosing them in a grounded metal box.
Select resistor values based on expected range: for 1kΩ–100kΩ targets, use 1kΩ–10kΩ references; for sub-ohm measurements, drop references to 10Ω–100Ω. Power the array with a regulated DC source–5V for standard setups, reducing to 1V for high-impedance scenarios to prevent self-heating. Verify balance by swapping Rx and the potentiometer; a true match will maintain zero reading. If instability occurs, insert a 10kΩ resistor in series with the detector to dampen oscillations.
For dynamic measurements, replace the potentiometer with a digitally controlled rheostat (e.g., MCP4131) and interface via SPI. Log data at 10Hz or slower to avoid inducing parasitic effects. Calibrate the setup using a decade resistor box with ±0.1% accuracy, checking linearity across the intended range before deployment. Store components in a temperature-controlled environment when not in use–humidity above 60% RH can degrade performance within hours.
Precision Resistance Measurement Setup: A Practical Guide
Begin by arranging four resistors in a diamond-shaped configuration–ensure precise pairing. Two known resistors should occupy adjacent arms, while the third acts as a reference with a calibrated potentiometer. The unknown resistor connects across the remaining nodes, forming a closed loop with a sensitive galvanometer or null detector at the central junction. Accuracy hinges on the ratio of the two known resistors; select values that bracket the expected measurement range to minimize error.
For optimal results, use resistors with tolerance ≤0.1% and temperature stability. Combine a 1 kΩ fixed resistor with a decade box or multiturn trimpot for fine adjustments. Power the network with a stable DC source between 1–10 V, avoiding excessive current that could heat components and distort readings. A 5 V supply typically balances sensitivity and safety.
Critical Assembly Steps
Connect the galvanometer or digital voltmeter with input impedance >10 MΩ to prevent loading effects. During testing, adjust the reference potentiometer until the detector reads zero–this null condition confirms exact proportionality between the resistor pairs. Document each adjustment incrementally; even minor deviations (e.g., 0.01 Ω) disproportionately affect outcomes in high-precision scenarios.

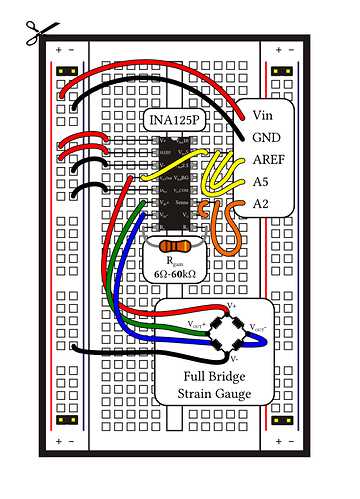

Shield the entire setup from electromagnetic interference using grounded enclosures. Twisted-pair wiring for leads reduces parasitic inductance, while short, thick conductors lower resistance introduced by connections. For dynamic measurements, replace the unknown resistor with sensors (e.g., strain gauges, RTDs) and recalibrate the baseline after environmental changes (e.g., temperature shifts >0.5°C).
Post-assembly, verify linearity by substituting known resistors across the target range (e.g., 100 Ω–10 kΩ). Plot deviations from expected values–consistent errors suggest systematic bias (e.g., resistor drift, lead misalignment), while random spikes may indicate contact issues. Address these before deployment to maintain sub-microvolt stability in critical applications like sensor calibration or material resistance testing.
Finalize by adding a protective resistor (e.g., 1 MΩ) in series with the detector to prevent overload during initial balancing. For low-resistance targets (
Creating a Precision Resistance Network Step-by-Step

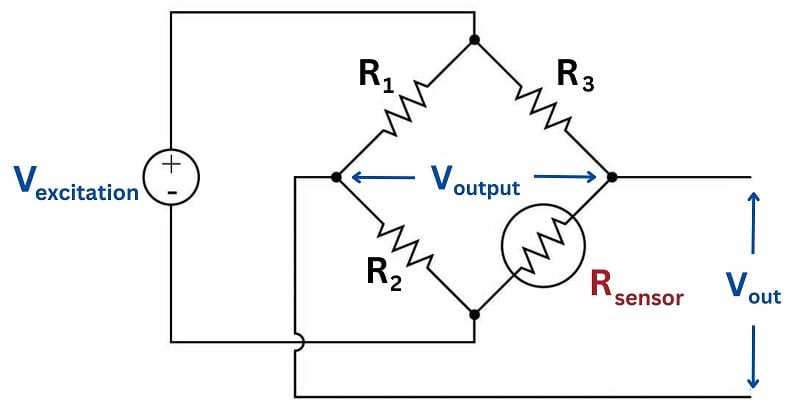

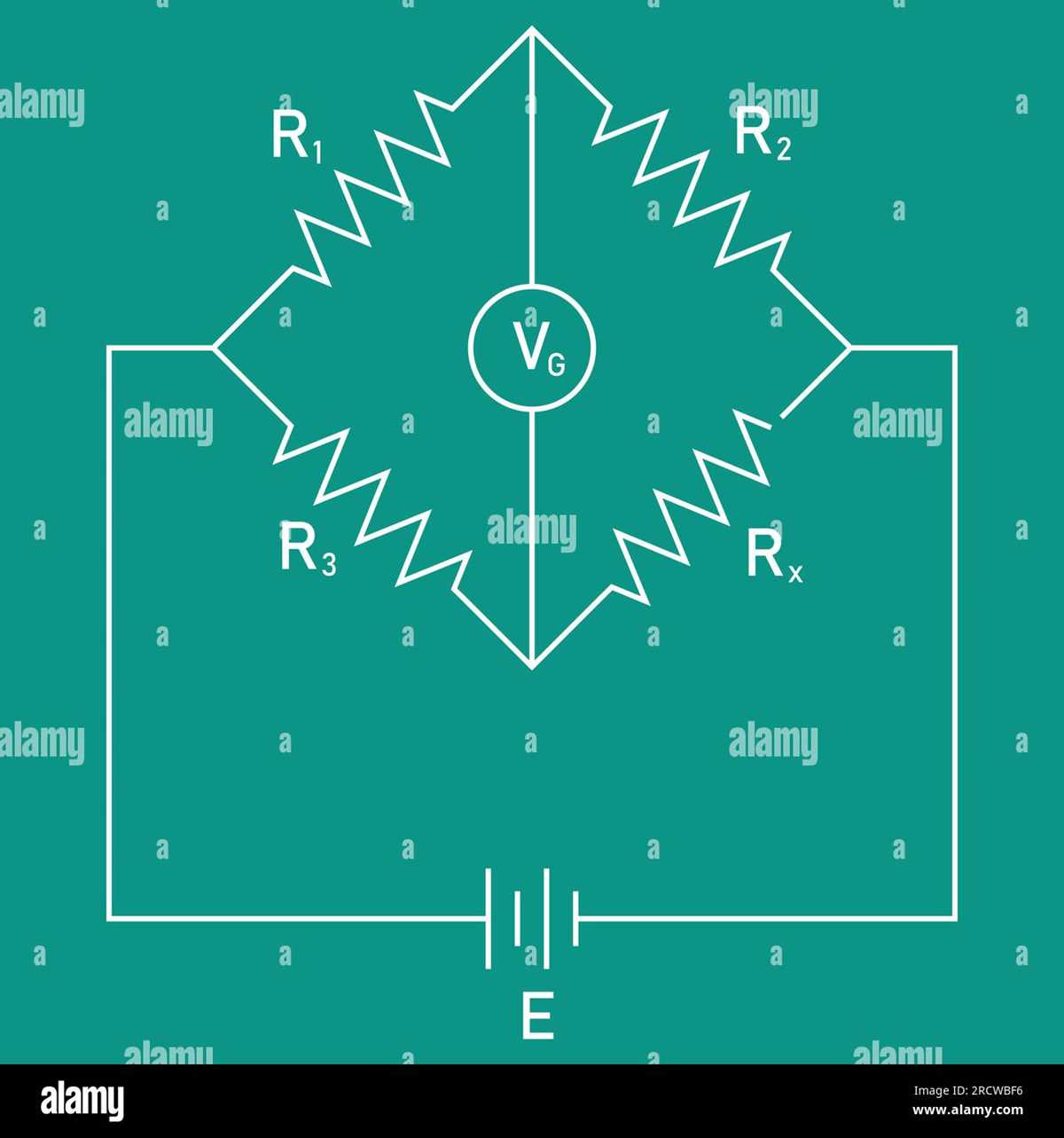

Sketch the outline of a diamond shape on paper or in a schematic editor, ensuring symmetry. Place four resistive elements at each vertex, forming closed paths between them. Label the top-left and bottom-right components as R₁ and R₃ respectively, while R₂ (top-right) and R₄ (bottom-left) complete the arrangement. Maintain equal spacing to prevent visual clutter.
Position a voltage source horizontally across the left-most connection point, linking R₁ and R₄. Use a battery symbol for clarity, marking the positive terminal at the upper junction. Ensure the supply aligns with standard conventions–positive at the top when oriented vertically. Double-check polarity before proceeding.

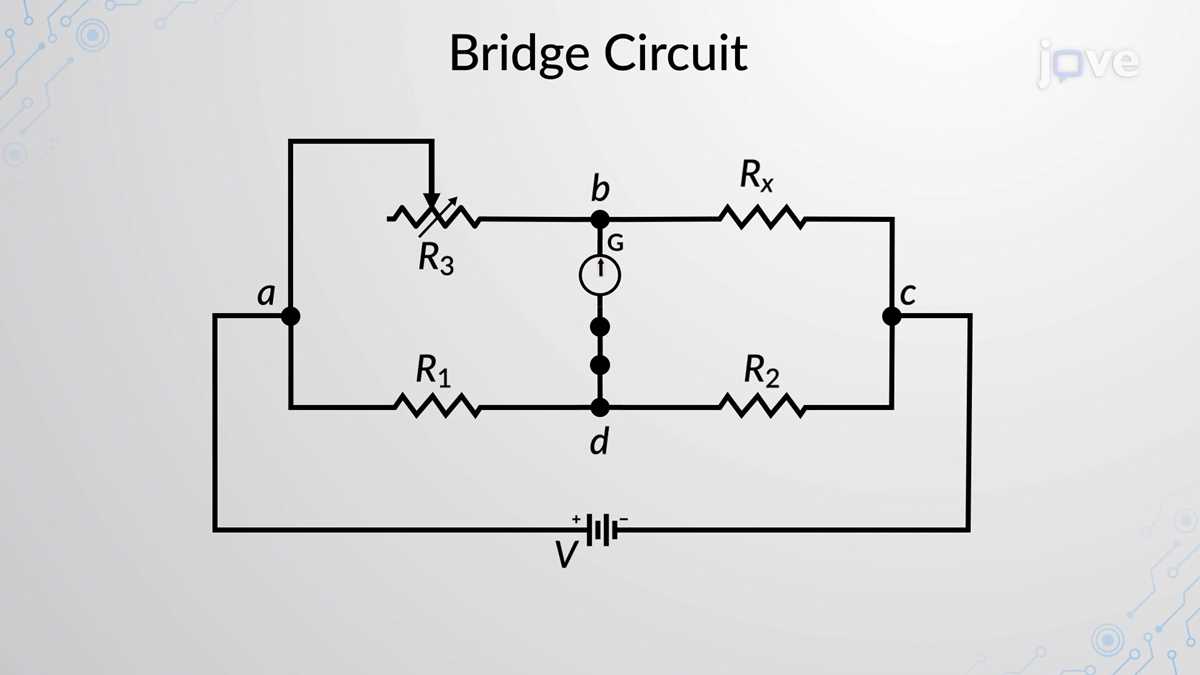

Introduce a galvanometer at the intersection of R₂ and R₃, bridging the central gap. Depict it as a rectangular block with a diagonal arrow or the letter G inside. Verify the detector sits perpendicular to the resistive paths, avoiding diagonal placement, which complicates reading.
Assign reference designators below each resistive segment for traceability. Use consistent lettering–uppercase for primary elements, subscripts for specifics. Avoid generic labels like Rx; precision matters. If simulating, replace symbolic values with realistic ranges (e.g., 100Ω–10kΩ) to reflect practical applications.
Draw connection nodes at each vertex and midpoint alongside the detector. Represent these as filled circles or hollow dots, depending on your schematic style. Confirm all junctions adhere to Kirchhoff’s laws by ensuring no stray lines disrupt current continuity. Missing nodes lead to analysis errors.
Add balancing trimmers if fine-tuning is required. Insert a variable resistor in series with R₃ or R₄, depicted as a zigzag with an adjustable tap. Label it Radj. Keep the trimmer’s value 10–20% of adjacent resistors to maintain sensitivity without overshooting null conditions.
Final Verification
Trace every path with a pencil or digital cursor, confirming no unintended gaps exist. Highlight conductive routes in bold or red for visibility. If drafting digitally, enable grid snapping to enforce 45° angles on diagonal resistive links, ensuring geometric accuracy. Misalignment skews measurements.
Common Pitfalls
Avoid overlapping the detector with resistive traces–this masks the null point. Ensure the voltage source connects exclusively to R₁ and R₄; stray connections introduce parasitic resistances. Test continuity across all junctions with a multimeter or software probe before finalizing.
Standard Resistor Selections for Precision Null Detection Networks
For balanced resistive divider arrangements, common ratios like 1:1, 1:2, and 1:10 dominate practical designs. A 1:1 configuration typically uses pairs of 100Ω, 1kΩ, or 10kΩ resistors for general-purpose measurements, balancing sensitivity with thermal stability. The 1:2 ratio often employs 1kΩ alongside 2kΩ or 500Ω with 1kΩ, ideal for moderate impedance sensors where resolution of 0.1% is sufficient. Higher ratios like 1:10 (e.g., 100Ω with 1kΩ) suit low-impedance sensing elements but demand careful lead compensation to avoid errors exceeding 0.5%.
The table below lists optimized resistor combinations for three common null detection scenarios, accounting for temperature coefficients (TC) and tolerance:
| Application | Primary (R₁) | Secondary (R₂) | Tolerance | TC (ppm/°C) | Minimum Detectable ΔR |
|---|---|---|---|---|---|
| Strain gauge (350Ω) | 350Ω | 350Ω | 0.1% | ±25 | 0.35Ω |
| RTD interface | 1kΩ | 2kΩ | 0.05% | ±10 | 0.5Ω |
| Thermistor compensation | 10kΩ | 100kΩ | 1% | ±50 | 10Ω |
Metal film resistors with 0.1% tolerance and ±25 ppm/°C TC (e.g., Vishay Z201 series) ensure stability across -40°C to +125°C, critical for industrial environments. Carbon composition types, while cheaper, introduce errors >2% due to high TC (±300 ppm/°C) and poor repeatability. For sub-ppm resolution, selected networks use hermetically sealed wirewound resistors (e.g., Ohmite HVR series) despite their higher cost and inductive effects at frequencies above 1kHz.
Precision adjustments often require a decade box or trimpot rated at ≤1% of the smallest network resistor–for a 1kΩ base, a 10Ω trimpot (Bourns 3296 series) provides fine-tuning without degrading the overall stability. Avoid trimmer values exceeding 10% of R₁/R₂ to prevent nonlinear errors during balancing. In high-accuracy applications, substitute fixed resistors with digipots (e.g., Microchip MCP4131) for programmable nulling, though their digital noise floor (~50nV) may interfere below 1mV signals.
Common pitfalls include ignoring parasitic resistance in PCB traces (typically 1-2mΩ/cm) and connector contacts (~5mΩ), which distort readings in low-impedance setups. For 1Ω to 10Ω networks, Kelvin sensing becomes mandatory–standard 4-wire configurations reduce errors to
Determining Hidden Resistance via Precise Balance Equations
To compute an obscured resistor value in a balanced network, measure the three known resistances with tolerances below ±0.5% and record their exact values. Use the proportion Rx = (R2 × R3) / R1, where Rx is the target resistance. Ensure zero current through the galvanometer before applying the formula–adjust the ratio arms until the null point is detected. For accurate results, verify that the supply voltage remains stable (±0.1V) and eliminate thermal drift by allowing components to stabilize for 10 minutes before measurement.
- If R1 = 1000Ω, R2 = 3300Ω, and R3 = 470Ω, then Rx = (3300 × 470) / 1000 = 1551Ω.
- For resistances below 10Ω, substitute the galvanometer with a low-resistance millivoltmeter to avoid loading errors.
- When working with high resistances (>1MΩ), use a guarded configuration to prevent leakage currents from distorting the null condition.
- Repeat measurements at least three times, recalculating each iteration to confirm consistency within ±0.2% deviation.
