Begin by identifying key components in the layout: batteries, resistors, capacitors, switches, and conductive paths. Each symbol represents a specific function–batteries supply current, resistors limit flow, capacitors store energy, and switches control activation. Standardized symbols ensure clarity across designs, so familiarize yourself with IEC 60617 or ANSI Y32 conventions before interpreting or drafting.
Trace paths methodically–start from the power source and follow the line until it returns, ensuring no breaks exist. Parallel branches split current, while series connections share the same flow. Calculate expected values at each node: voltage drops across resistors (V = IR), charge times for capacitors (Q = CV), and power dissipation (P = IV). Discrepancies between predicted and measured values often reveal faults like open circuits or shorted paths.
Document modifications immediately. Label every segment with part names, values (e.g., R1 220Ω), and reference points (e.g., TP1). Use color-coding for multi-layer designs: red for positive, black for ground, blue for signal lines. For complex assemblies, segment the schematic into functional blocks (e.g., power supply, control logic) to isolate issues during troubleshooting.
Verify connections against physical layouts using a multimeter. Probe continuity between points–absence of beep or zero resistance indicates either a missing link or incorrect symbol placement. For printed boards, correlate the schematic with the PCB footprint; misalignment here causes operational failures despite correct theoretical design.
Adopt simulation tools like LTspice or Tinkercad Circuits to pre-test behavior. Simulate worst-case scenarios (e.g., sudden voltage spikes, component degradation) to assess robustness. Export netlists to CAD software (e.g., KiCad, Altium) for manufacturing, ensuring schematic annotations match real-world tolerances (±5% for resistors, ±20% for capacitors).

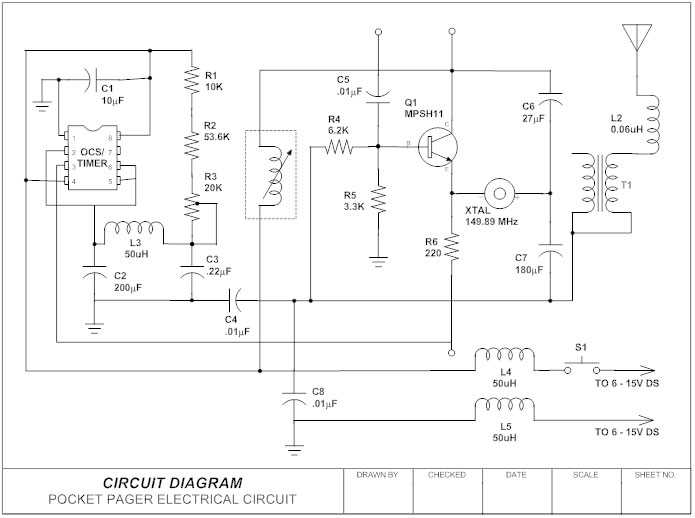

Understanding Schematic Representations in Electronics
Begin by sketching a basic layout before adding components–this clarifies connections and prevents errors. A standardized symbol set streamlines interpretation: resistors use zigzag lines, batteries show parallel lines of unequal length, and switches appear as gaps with a movable link. Always orient symbols consistently; power sources typically run vertically, current flow should be logical, and component labels must be adjacent but unobtrusive.
Use hierarchical sheets for complex designs. Break the representation into functional blocks: power regulation, signal processing, and output stages. Each block receives a separate sub-sheet, linked via net labels or global connectors. This reduces visual clutter, simplifies troubleshooting, and allows team members to work simultaneously on distinct sections without conflicts.
Ground symbols demand special attention. Distinguish between chassis ground, signal ground, and earth ground using distinct symbols–common mistakes cause noise or damage. Label every ground point with its purpose, especially in mixed-signal designs. Maintain a single-point ground philosophy to prevent ground loops, connecting all grounds at a designated star point.
Annotate every component with unique identifiers: R1, C3, U2, etc. Follow a sequential numbering system, never skipping values. Include tolerance and power ratings for passive parts, and pin numbers for integrated circuits. Add a bill of materials table summarizing all components, their values, and suppliers–this accelerates procurement and assembly.
Validate the schematic before proceeding:
- Check for floating nodes–every net must end at a component or ground.
- Verify power rails; ensure voltage levels match component specifications.
- Simulate critical paths using software–Spice or similar tools reveal hidden flaws.
- Cross-reference with physical pinouts to catch mismatches early.
Adopting Best Practices for Clarity
Limit intersecting connector lines–use orthogonal routing (90-degree turns) to improve readability. Avoid diagonal runs unless absolutely necessary. Color-code nets by function: red for high voltage, blue for signals, green for grounds. Maintain uniform text size and font; labels should be legible at 100% zoom without strain. Reserve annotations for critical notes only–excessive text obscures the design.
Common Pitfalls and Solutions
Errors often stem from overlooked details:
- Unlabeled junctions: Every intersection requires a dot or crossing bridge to avoid ambiguity.
- Misaligned components: Group related parts (e.g., decoupling capacitors near ICs) to reflect physical placement.
- Omission of test points: Add them near sensitive nodes for debugging; label with expected voltage ranges.
- Ignoring thermal considerations: Note heat-generating parts (e.g., power transistors) and suggest thermal relief patterns.
Review schematics inverted–flipping the page reveals overlooked issues by disrupting visual familiarity. Peer reviews catch 90% of errors; schedule them before finalizing.
Key Symbols in Schematic Representations and Their Roles
Begin by memorizing core components to interpret technical layouts accurately. The resistor (a zigzag line or rectangle) limits current flow; its value in ohms determines behavior in series or parallel configurations. Capacitors (two parallel lines, sometimes curved) store energy–polarized variants demand correct polarity to prevent damage, while non-polarized types suit AC applications. Inductors (a coiled wire symbol) resist rapid current changes, critical in filters and oscillators.

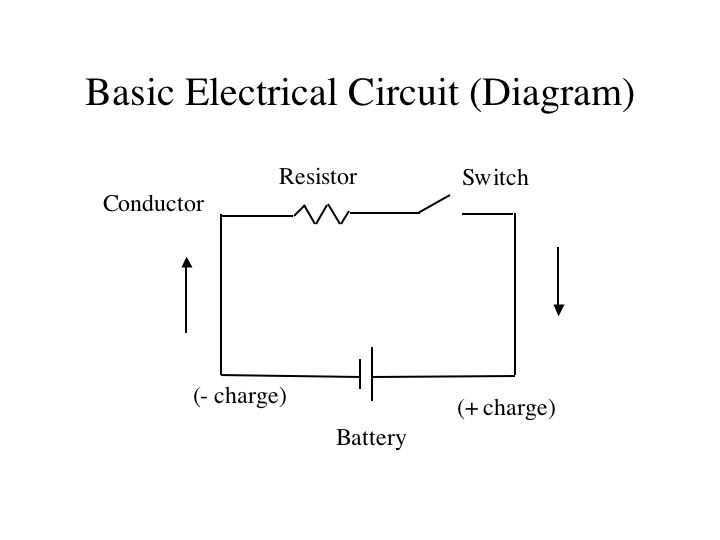

- Battery: Long and short parallel lines denote DC power. The longer line indicates the positive terminal; multiple pairs signal multi-cell configurations.
- Switch: A gap in the line with a movable contact (usually an angled line) represents mechanical activation. Variants include SPST, SPDT, and DPDT for single or dual-path control.
- Diode: A triangle pointing toward a line blocks reverse current. Light-emitting diodes (LEDs) add arrows to show emission; Zener diodes incorporate an additional line for breakdown voltage.
- Transistor: Bipolar junction transistors (BJTs) use a vertical line with three leads: emitter, base, and collector (NPN/PNP notation critical). Field-effect transistors (FETs) add a perpendicular gate lead.
Ground symbols vary by context but represent reference voltage or earth. A single downward line signifies chassis ground; three descending lines indicate earth ground. Misinterpretation risks short circuits or system failure. Integrated circuits (ICs) use a rectangle with numbered pins–consult datasheets for pin assignments, as symbolization lacks standardization.
- Match symbols to IEC (International Electrotechnical Commission) or ANSI (American National Standards Institute) standards for consistency. IEC favors rectangles for resistors, while ANSI uses zigzags.
- Label components with values (e.g., “10kΩ,” “22µF”) near their symbols to avoid ambiguity during assembly or troubleshooting.
- Cross-reference symbols with schematic notes–unconventional designs may repurpose standard graphics (e.g., a “crossed-out” battery for a disabled power source).
Step-by-Step Guide to Interpreting a Schematic Blueprint

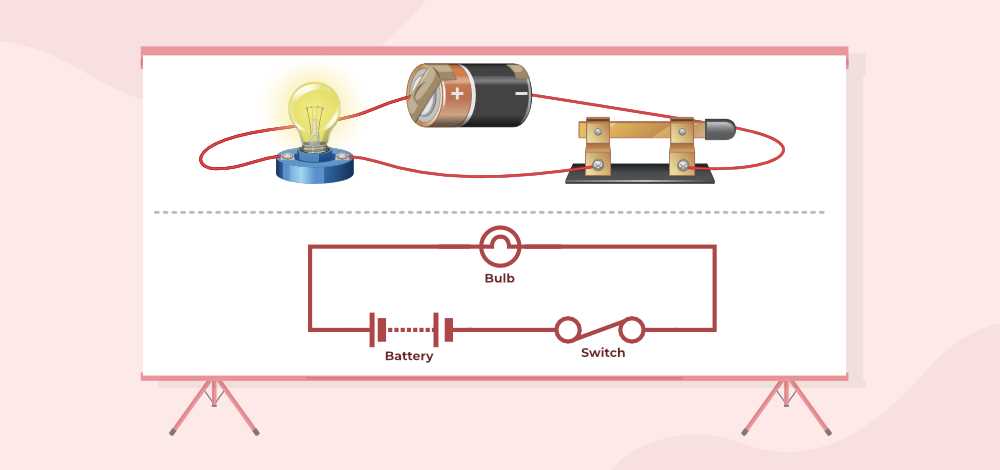

Identify the power source first–look for symbols resembling a battery or voltage lines at the edges of the layout. Note polarity markings (+/-) to avoid miswiring, as reversed connections can damage components. Trace its path immediately to determine if it splits or feeds directly into a load.
Recognize common symbols: resistors appear as zigzag lines or rectangles labeled with values (e.g., 220Ω), capacitors as parallel lines (polarized) or curved lines (non-polarized), and switches as gaps bridged by arrows or lines. Transistors have three leads (emitter, base, collector), while LEDs show an arrow pointing outward from a triangle. Cross-reference unrecognized symbols with a standardized chart.
Follow the conductive paths–thin lines represent wires, while thicker or dotted lines often indicate ground rails or shared connections. Junctions where lines intersect are connection points; dots confirm electrical contact, whereas crossed lines without dots imply no connection. Highlight each path with a colored pen to track current flow before moving to the next segment.
Locate the load–this could be a motor, lamp, or integrated component consuming energy. Verify its specifications match the source (e.g., a 12V LED on a 5V line will fail). Check for intermediary elements like fuses (shown as a rectangle with a gap) or diodes (arrows with a perpendicular line), which restrict flow direction.
Key Troubleshooting Checks
Test for shorts by ensuring no unintended paths bypass the intended route. Look for isolated loops–closed conductive paths without loads–which create dead ends. Confirm ground symbols (downward triangles or horizontal lines) connect to the negative terminal; floating grounds cause erratic behavior. Measure continuity with a multimeter if the drawing lacks labels.
Advanced Symbol Interpretation
Decode ICs (integrated chips) by noting pin numbers and orientation marks (usually notches or circles). Relays show a coil symbol adjacent to switch contacts. Variable components like potentiometers have an arrow intersecting the resistor symbol, while transformers display two parallel coils. For AC sources, waveforms or sine symbols replace direct-current batteries.
