Start by locating the power source–usually a battery or mains connection–on the visual layout. Identify its positive and negative terminals first, as this establishes the foundation for interpreting every other component. Mistakes here ripple through the entire system, causing miswirings that can damage equipment.
Trace circuits from the source outward, following conductor paths to switches, resistors, capacitors, and loads. Each element should be marked with standardized symbol notation: a zigzag for resistance, parallel lines for capacitors, and straight lines for conductive routes. Deviating from these conventions invites misinterpretation.
Label every connection with its voltage rating and current capacity. A 12V DC circuit behaves differently than 240V AC–ignore this distinction, and components may fail instantly. For critical systems like motors or LED arrays, include fuse ratings and ground paths to prevent overloads.
Use color-coding consistently: red for positive, black for negative, green or bare wire for grounding. In complex layouts, introduce numbered tags or alphabetic identifiers (e.g., “S1” for Switch 1) to cross-reference components. This reduces debugging time and eliminates guesswork during assembly.
Validate layout accuracy by simulating flows with a continuity tester or multimeter before energizing. Even minor deviations–a reversed diode or misaligned relay–can introduce faults invisible until powered. Document every adjustment in real-time to create a trusted reference for future troubleshooting.
For high-current applications, incorporate busbars and terminal blocks instead of point-to-point splicing. This reduces resistance losses and improves mechanical stability. Overlooking this detail risks thermal runaway in circuits handling more than 10A.
Understanding Electrical Schematics
Begin by identifying the component symbols before tracing connections. Standardized icons–resistors (zigzag lines), capacitors (parallel plates), switches (break in a line)–denote specific parts. ANSI and IEC standards differ slightly; cross-reference your document with the correct set. Mistaking a transistor for a diode or misreading polarity on electrolytic capacitors causes immediate circuit failure.
Color-coding in schematics typically follows a strict convention: red for power, black for ground, blue for signal, yellow for control. Deviation from this risks misinterpretation; always verify against manufacturer datasheets. For multi-layer boards, layer-specific markings prevent shorts–use a continuity tester to confirm physical matches the schematic.
Scale schematics proportionally when working with complex systems. Break down large layouts into functional blocks (power supply, signal processing, output stage) to isolate errors efficiently. Label each block with unique identifiers–U1, Q2, R3–to streamline debugging. Overlapping or tangled lines indicate poor design; redraw sections for clarity before prototyping.
Schematic software like KiCad or Altium enforces netlist accuracy but manual verification remains critical. Print the layout, use a highlighter to trace each net, and compare against the physical board. Discrepancies between digital representation and PCB often reveal hidden design flaws–especially in high-frequency or sensitive analog applications.
Archive revision histories alongside schematics. Note date, component substitutions (e.g., 2N3904 replaced with BC547), and rationale. Future troubleshooting becomes exponentially faster when past modifications are documented. Include test points–TP1, TP2–in the schematic for quick voltage or signal checks during operation.
Decoding Electrical Schematics: Symbols and Notations
Start by identifying power sources–look for straight lines with a plus or minus sign, or a battery icon marked with voltage values. These indicate direct current (DC) supplies. For alternating current (AC), search for sine waves or circles with a tilde (~) inside. Voltage ratings typically accompany these symbols, revealing system requirements at a glance. Ground connections appear as downward-pointing triangles or three parallel lines decreasing in size; confirm their type (chassis, earth, or signal) by checking labels or nearby annotations.

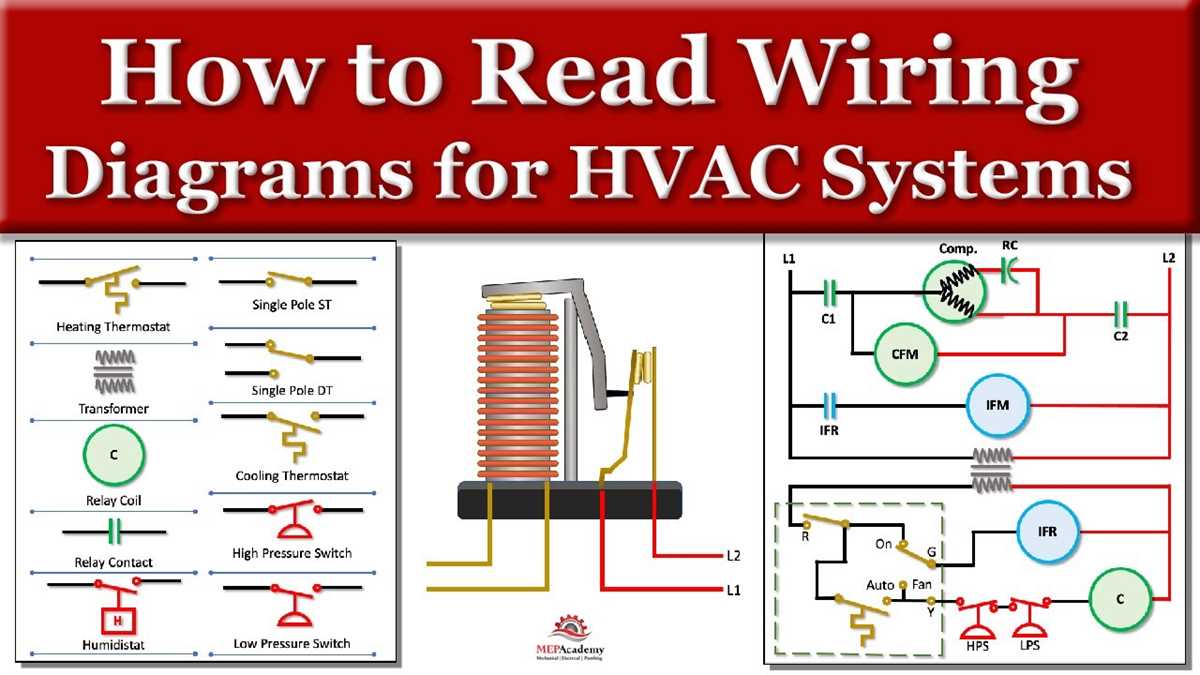

Switches and relays follow standardized shapes: single-pole variants show a break in a line with a slanted segment, while double-pole versions stack two breaks vertically. Momentary switches include a small circle at the pivot point. Relays combine coil symbols (a rectangle with curved or straight lines) and contact sets; match coil designations (e.g., K1) with corresponding contacts to trace activation paths. Fuses and circuit breakers display as rectangles with a diagonal line or a zigzag; amperage ratings often appear beside them.
Understanding Component Variations
Resistors feature zigzag lines or rectangles with resistance values (ohms, kilohms) or color codes. Variable resistors include an arrow crossing the symbol. Capacitors split into polarized (curved and straight lines with a plus sign) and non-polarized (two parallel lines) types; capacitance values (microfarads, picofarads) appear adjacent. Inductors show coiled lines or loops, sometimes with core material indications (ferrite, air). Diodes and LEDs point in the direction of conventional current flow, with LEDs adding two small arrows for light emission. Transistors (BJT, FET) use composite symbols–emitter, base, collector or source, gate, drain–arranged in specific configurations.
Locate connectors by circles or dots at wire junctions, often labeled with pin numbers or letters. Wires crossing without connection show a semicircular bridge; connected wires merge at a single dot. Harnesses or bundled cables simplify complex routing with thick lines branching into thinner ones, sometimes labeled with wire colors or gauge (AWG). Motors and generators use circular symbols with internal labels (M for motors, G for generators) and phase markings for AC variants. Always cross-reference symbols with legends or reference sheets, as some manufacturers use proprietary variations.
Interpret annotations adjacent to symbols as critical data points. A “C1 .1µF” beside a capacitor specifies its role and value, while “Q5 2N3904” near a transistor identifies its designator and part number. Tolerances (±5%), voltage ratings, or special conditions (e.g., “NC” for normally closed) appear in smaller text. Trace signal flow by following arrowheads or numbered conductors, ensuring each path begins and terminates logically. Mistaking a normally open switch for a closed one risks misdiagnosing circuit behavior–verify default states before testing.
Key Components Represented in Electrical Schematics
Begin by identifying power sources immediately; their symbols–batteries, transformers, or generators–anchor every circuit layout. A battery appears as two parallel lines, with the longer line indicating the positive terminal, while transformers use overlapping coils to show magnetic coupling. Verify voltage ratings next, as mismatches between sources and loads cause failures or fires. Include ground symbols–a downward-pointing triangle or three horizontal lines–to establish a reference point for safety and signal integrity.
Resistors demand precise attention; films, wires, and variable types each have distinct markings. Fixed resistors use zigzag lines, while potentiometers add an arrow to show adjustability. Locate their resistance values directly on the schematic, avoiding assumptions based solely on color codes, as ambient temperature and voltage derating curves must align with expected operating conditions. Combine resistors with capacitors–two parallel lines for standard types, curved lines for electrolytic variants–to manage time delays, filtering, or energy storage challenges.
Switches toggle paths, yet their configurations vary widely. Single-pole single-throw (SPST) switches appear as a break in a line, while double-pole double-throw (DPDT) variants use crossing lines with dots at connection points to show multiple states. Label each position with clear abbreviations (e.g., ON/OFF, NC/NO) to prevent miswiring. Pair switches with indicators like LEDs–marked by a triangle with outward arrows–to provide immediate feedback on circuit status. Always confirm polarity: flat sides denote cathodes, while default symbols assume standard forward voltage drops.
Semiconductors introduce complexity requiring careful symbol interpretation. Diodes–straight lines with triangular points–block reverse current unless specified as Zener or Schottky types. Transistors, whether BJT or FET, use three-terminal symbols: BJTs show arrows for emitter direction, while FETs use perpendicular lines to indicate gate-source channels. Examine datasheets for pinouts; incorrect orientation risks permanent damage. Integrate protection components–TVS diodes, varistors–near sensitive semiconductors to handle transient spikes common in inductive loads.
- Jumpers and connectors: dotted lines or rectangles with numbered terminals simplify complex multi-board systems.
- Fuses: elongated rectangles with values (e.g., 5A, 10A) appearing next to the component; omit them only if redundant overcurrent devices exist.
- Relays: coiled symbols paired with switch contacts, distinguished by normally open (NO) or normally closed (NC) labels.
- Inductors: coiled lines resembling springs, often paired with capacitor banks for LC filters or resonant circuits.
Signal paths merit distinctive treatment separate from power lines. Use thinner lines for low-current signals and thicker lines for high-power routes. Cross-reference signal names across pages if the schematic spans multiple sheets; consistent naming prevents errors during soldering or troubleshooting. Differential pairs require adjacent traces with controlled impedance, while analog and digital grounds must converge at a single point to avoid ground loops. Insert test points–small circles with identifiers (e.g., TP1, TP2)–at critical nodes for easier diagnostics.
Annotations eliminate ambiguity when placed strategically. Specify wire gauges next to high-current traces (e.g., AWG 14 for 15A circuits) and color codes for bundled harnesses. Include tolerance values for passive components (±5%, ±1%); omit them only when manufacturer defaults suffice. Group related components using dashed boxes or shaded regions to visually separate functional blocks like power supplies, microcontroller peripherals, or sensor interfaces. Update each iteration of the schematic immediately after modifications, ensuring every stakeholder–engineers, technicians, assemblers–works from a unified, current document.
