Start with the control module’s power input. Most front-mounted systems use a 12-gauge red wire connected directly to the vehicle’s battery via a 40-amp fuse. Never splice into existing circuits–this risks voltage drops under heavy load. The ground cable (typically black 8-gauge) should terminate at a clean, unpainted chassis point within 18 inches of the module to prevent corrosion-induced resistance.
For solenoid integration, match the activation wire (yellow/white stripe on most setups) to the vehicle’s ignition-switched 12V source. Avoid tapping into accessory circuits–they often lack sufficient current capacity. Install a relay if the system requires more than 5 amps; standard ignition wires handle only 10-15 amps safely. Verify relay contacts with a multimeter–oxidized terminals cause intermittent failures.
Headlight compatibility requires precision. The lighting harness (green/white wires) must bypass the vehicle’s original connector to prevent feedback. Use 20-amp circuit breakers for each lighting circuit; fuses won’t react fast enough to protect LED assemblies. Check voltage at the plug with headlights off–above 13.2V indicates proper alternator output. Below 12.8V, expect dimming or erratic solenoid behavior.
Hydraulic control wiring follows a strict sequence. The motor relay trigger (blue/black) expects ground-side switching–reverse polarity damages the controller. For angle adjustment, the gray/black (left) and gray/white (right) wires require momentary push-to-ground signals, not constant voltage. Test with a scan tool before installation–incorrect signals cause uncontrollable actuator movement.
Always disconnect the battery before splicing. Use crimped butt connectors with heat shrink; solder alone fails under vibration. Route wires away from exhaust manifolds (minimum 6-inch clearance) and sharp edges (protective loom required). Store unused connectors in sealed bags–environmental exposure degrades terminals within 3 months.

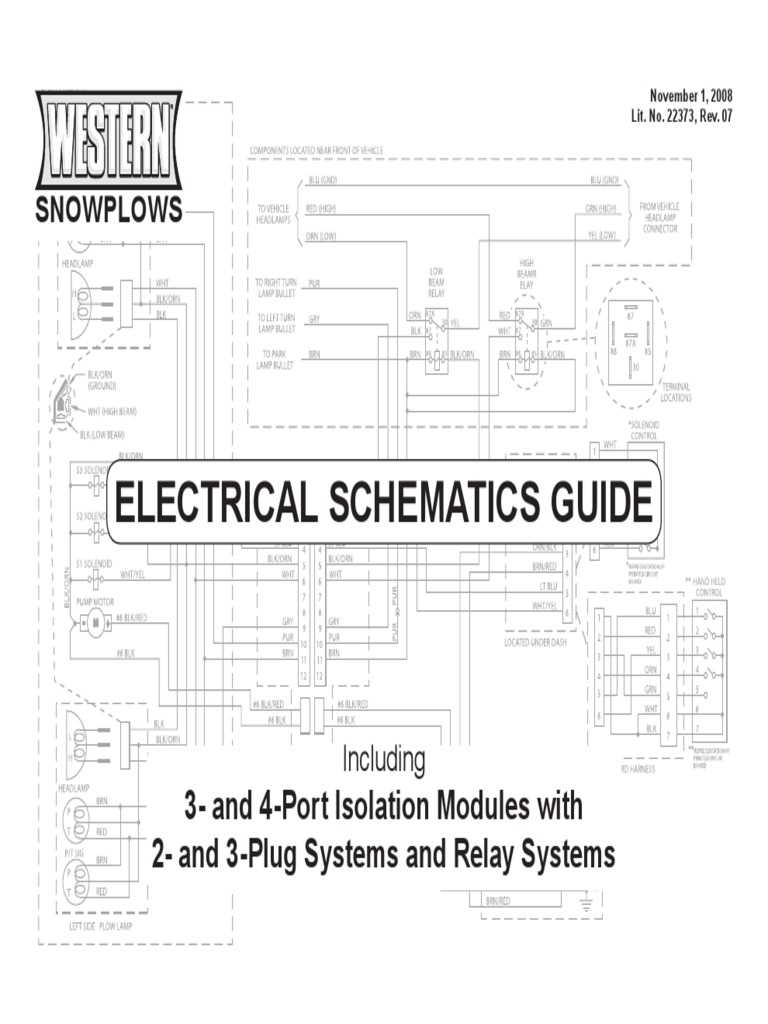

Snow Removal Equipment Electrical Schematic Guide
Connect the controller’s solenoid terminal to the vehicle’s 12V auxiliary power via a 30-amp inline fuse–skip factory relays as they often lack surge protection. Verify ground connections at the attachment frame; corrosion here causes intermittent failures even if voltage checks at the battery read normal. For models with LED lighting, route wires through grommeted openings away from sharp edges–standard zip ties degrade under subzero temps, use nylon-coated stainless clamps instead.
Troubleshooting Common Circuit Issues
If the angle motor cycles but doesn’t hold position, test the directional coils with a multimeter: resistance below 2 ohms indicates shorting, while readings above 20 ohms suggest open windings. Replace the entire assembly if readings fluctuate during operation. For solenoid clicks without action, probe the trigger wire–voltage below 9V at the pump motor pin means a faulty control module or corroded bulkhead connector. Always bypass transient voltage suppressors during diagnostics; they mask symptoms by absorbing spikes.
Locating Critical Elements in Your Snow Removal Equipment Cable Assembly
Begin by inspecting the harness’s power relay–typically a black or gray rectangular box near the vehicle’s battery terminal. Verify the relay’s label matches the manufacturer’s part number (e.g., 26040 for 12V systems) and check for corrosion on the spade connectors. Replace the relay if resistance exceeds 5 ohms between terminals 85 and 86 or if voltage at terminal 30 drops below 11.5V under load. Use a multimeter to confirm continuity in the solenoid coil circuit, where a reading above 0.5V indicates internal shorting.

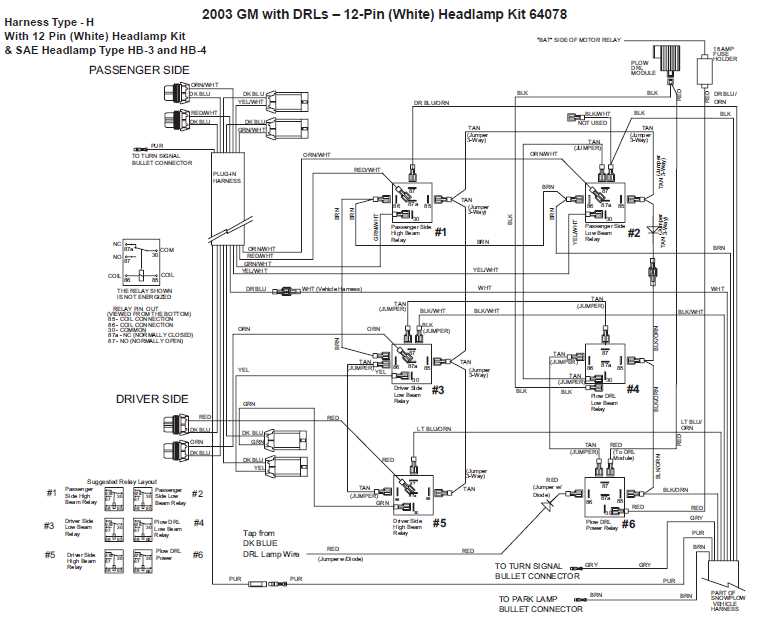

- Headlight modules: Trace violet wires from the control harness to ensure they terminate at the dedicated bulb sockets–not spliced into factory circuits, which causes voltage sag under 9V during plunge activation.
- Ground bus bars: Locate the star-shaped terminals beneath the dash; clean oxidation with 400-grit sandpaper and apply dielectric grease to prevent future corrosion, targeting a resistance under 0.1 ohms.
- Fuse block: Identify the 30A blade fuse labeled “motor protection”–replace if the filament shows gaps or discoloration, as this directly impacts pump motor start-up surge.
- Circuit breakers: Press red “reset” buttons on cylindrical breakers; if the plunger doesn’t stay depressed, the breaker is faulty and requires immediate replacement to prevent overload damage.
- Signal interfacing: Confirm the control module’s yellow “plunge” wire connects to the solenoid valve with a weatherproof butt splice; loose crimps here cause intermittent lift failures.

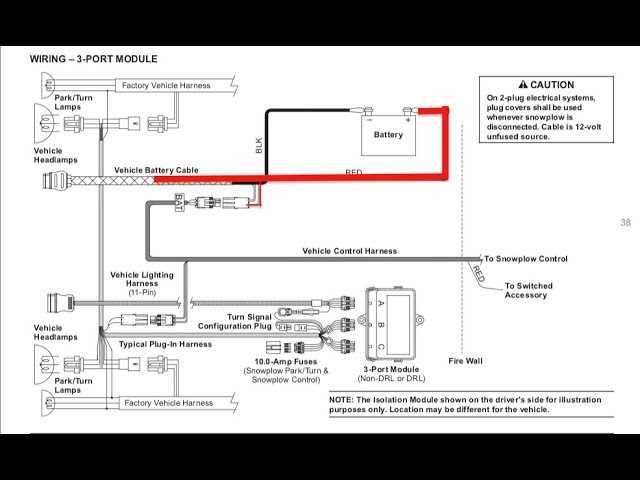

Step-by-Step Guide to Connecting Your Snow Removal System’s Control Unit
Begin by locating the vehicle’s fuse box under the dashboard. Identify the 30-amp fuse slot designated for the attachment–consult the owner’s manual if uncertain. Use a multimeter to verify the fuse is functional before proceeding. Replace it if readings show no continuity.
Disconnect the negative battery terminal to prevent short circuits during installation. Route the main power cable (red, 10-gauge) from the fuse box to the mounting location of the control module. Secure it with zip ties every 12 inches to avoid chafing against sharp edges or moving components.
Connecting the Control Module
- Power Input: Attach the red cable to the module’s “+12V” terminal. Ensure the connection is crimped with a ring terminal and tightened to 8–10 in-lbs torque.
- Ground: Connect the black cable (8-gauge) to a bare metal chassis point with a star washer. Scrape paint or corrosion to expose clean metal for a solid ground.
- Solenoid Trigger: Link the yellow cable to the solenoid’s “S” terminal. Use dielectric grease on the connection to prevent oxidation.
Mount the module using the provided bracket, ensuring it’s positioned away from direct heat sources or moving parts. Reconnect the battery, then test the system with the handheld controller–verify lights illuminate and the attachment responds to inputs. If unresponsive, recheck all connections with a multimeter for 12V at each terminal.
For ambient lighting integration, splice the green wire (if equipped) into the truck’s existing clearance lights. Connect it to the “marker light” input on the module, matching polarity. Finalize by securing all loose wires with loom tubing and testing the setup under load (e.g., activating the attachment at full extension).
Identifying and Resolving Frequent Electrical Connection Problems
Check for voltage drops at key junctures before disassembling components. Use a multimeter to measure across the primary feed points–specifically the solenoid outputs and controller input terminals–where fluctuations often occur. A reading below 11.8V under load signals potential corrosion, loose terminals, or undersized conductors. Replace cables with at least 4 AWG gauge if measurements reveal resistance above 0.2 ohms per meter. Document each test point in a sequence to isolate recurring failure zones efficiently.
Inspect connector pins for oxidation or bent contacts, prioritizing moisture-prone junctions near the hydraulic unit and joystick module. Clean pins using dielectric grease applied sparingly–overapplication traps debris and worsens conductivity. Secure connections with heat-shrink tubing or corrosion-inhibiting spray (CRC 2-26 or equivalent). For intermittent faults, gently flex wiring harnesses while observing multimeter readings; sudden changes indicate internal wire breakage or insulation failure.
| Symptom | Probable Cause | Action | Tool Required |
|---|---|---|---|
| Intermittent response | Frayed conductors in harness | Trace harness route, splice damaged section | Wire strippers, crimp connectors |
| No power to auxiliary functions | Faulty relay or burned fuse | Test relay resistance (should read <50Ω), replace blown fuse | Multimeter, relay tester |
| Erratic solenoid engagement | Weak battery or parasitic drain | Verify battery health (minimum 700 CCA), check for quiescent current >50mA | Battery load tester, clamp meter |
Fuse integrity demands direct resistance testing rather than visual inspection. Remove each fuse and measure continuity–readings above 0.1 ohms indicate internal degradation requiring replacement with identical amperage ratings (consult manufacturer specifications for auxiliary circuits). Avoid substituting higher-amperage fuses as short-circuit protection may be compromised. Label fuse types during removal to prevent misinstallation.
For systems exhibiting delayed activation, evaluate the ground path integrity. Scrape paint from mounting surfaces to ensure bare-metal contact; verify ground wires terminate directly to the chassis rather than through painted or powder-coated brackets. Use star washers between terminals and chassis points to penetrate oxidation layers. In persistent cases, add a secondary ground strap from the frame to the engine block, ensuring a cross-sectional area equivalent to the main feed cables.
Color-Coding Standards for Snow Equipment Electrical Systems
Adhere to the following color conventions when connecting components to ensure consistency and reduce diagnostic errors. Black wires (#000000) serve as the primary ground return, terminating at the vehicle’s chassis or dedicated negative terminal. Red (#FF0000) carries switched ignition power, limited to 10–15 amps; verify fuse rating before installation. Yellow (#FFFF00) designates constant 12V power directly from the battery, fused at 30 amps to prevent overload.
Blue (#0000FF) transmits solenoid activation signals, requiring a minimum 16-gauge wire to handle motor startup surges; never splice this circuit without relays for loads exceeding 100 watts. Green (#00FF00) controls the directional solenoid, polarity-sensitive–swap leads only after confirming voltage drop below 0.2V across connections. White (#FFFFFF) and brown (#A52A2A) wires manage auxiliary functions: white for high-beam override, brown for lighting ground–isolate these from primary circuits to avoid interference.
Orange (#FFA500) delivers power to heated edges, rated for 20 amps; use crimp connectors with adhesive-lined heat shrink to seal splices from moisture. Purple (#800080) and gray (#808080) handle momentary switch inputs–purple for manual defrost, gray for automatic delay; terminate both with 560-ohm resistors to suppress voltage spikes. For vehicles with integrated controllers, match the proprietary color scheme (e.g., pink #FFC0CB for ISO module data lines) to factory specifications; deviations risk ECU errors.
