For accurate force detection, use a Wheatstone bridge configuration with four strain gauges–two in tension, two in compression. Arrange them on the load-bearing element (aluminum or steel beam) at 90-degree angles to maximize sensitivity. A 3V to 5V excitation voltage ensures linearity without overheating the gauges. Connect the bridge output to an instrumentation amplifier like the INA125 or HX711, which provides a gain of 128x and filters noise below 10Hz. Ground the amplifier’s reference pin to the midpoint of the excitation voltage to eliminate drift.
To calibrate, apply known weights (e.g., 1kg, 5kg) and adjust the amplifier’s offset potentiometer until the output voltage matches the expected value. For a 5V system, a 1kg load should produce ~1mV/V, requiring 5mV raw signal amplification. Store calibration coefficients in EEPROM if using a microcontroller–ATmega328 or ESP32–to compensate for nonlinearity. Avoid placing the ADC near high-current traces; route analog signals with a ground plane beneath them.
Avoid resin-coated strain gauges; epoxy-bonded models (e.g., BF350-3AA) adhere better to metal surfaces. For dynamic loads, add a low-pass RC filter (1kΩ + 10µF) before the ADC to smooth vibrations. If targeting portable applications, power the system with a TP4056 module for Li-ion charging, but isolate the load cell’s ground from the battery’s to prevent ground loops.
Test the completed assembly by placing it on a rigid surface–uneven supports skew readings. For high-precision demands (0.01% accuracy), temperature-compensate the gauges using a thermistor in a half-bridge configuration. Log data via UART at 9600 baud if real-time monitoring is needed; compress readings to 16-bit integers to reduce storage overhead.
Precision Measurement System Blueprint
Select a high-precision load cell with a rated capacity matching your application–0.1% full-scale accuracy suffices for most consumer-grade builds. Use a Wheatstone bridge configuration with four 350Ω strain gauges for balanced voltage output; mismatched resistors introduce zero-drift errors. Power the bridge with a regulated 5V DC supply to avoid thermal noise from fluctuations.

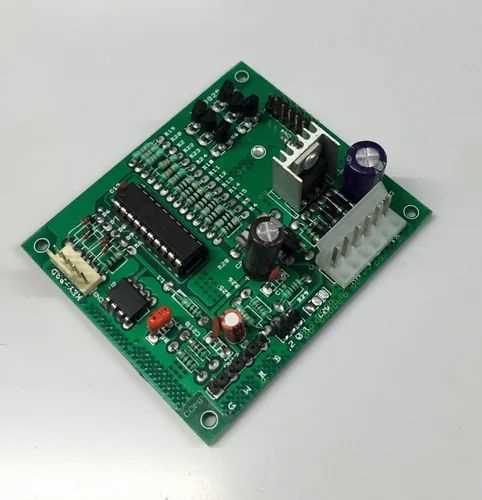

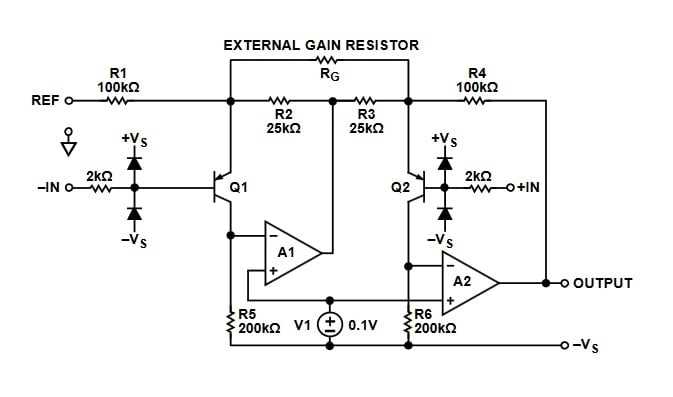

Amplify the differential signal with an instrumentation amplifier (INA125 or AD620) set to a gain of 100–500×, depending on the load cell’s mV-per-gram output. Avoid generic op-amps–input impedance below 1GΩ causes signal attenuation. Filter the amplified signal with a second-order low-pass filter (cutoff at 10Hz) to eliminate AC interference and mechanical vibrations.
Convert the analog signal using a 24-bit ADC (ADS1231) to resolve up to 1 part per million. Bypass capacitors (0.1µF ceramic) at the ADC’s power pins reduce digital noise; place them within 2mm of the pins. For microcontroller interfacing, use SPI at 1MHz–slower speeds risk data skew during dynamic loads.
Calibration & Compensation Techniques
Implement two-point calibration by measuring zero-load (tare) and a known weight (e.g., 1kg). Store offset and span values in EEPROM (e.g., AT24C02) to survive power cycles. Add temperature compensation by reading an onboard sensor (TMP36) and applying a linear correction factor (±0.02%/°C for most load cells).
Reduce creep error by averaging 10–20 samples before displaying results–single-shot readings fluctuate ±0.5g under static loads. For battery-powered designs, switch the load cell supply via a P-channel MOSFET (IRF4905) in standby mode; quiescent current below 1µA extends operation to months.
Route traces for the bridge output on opposite PCB layers to minimize capacitive coupling. Keep high-current paths (≥50mA) away from analog signals; a 0.1mm gap prevents crosstalk. Ground the shield of signal cables directly to the ADC’s ground reference–floating shields act as antennas for 50/60Hz noise.
Key Components for Building a Precision Measurement Device with Load Cells
Select a high-quality load cell rated for your target capacity–common ranges include 10kg, 50kg, 100kg, or 500kg, depending on the application. Look for cells with a sensitivity of 2mV/V or better and a non-linearity under 0.05% to ensure consistent readings. Strain gauge load cells with a Wheatstone bridge configuration are ideal for most DIY and industrial setups due to their accuracy and durability. Brands like HBM, Interface, or Omega offer reliable models, but verify compatibility with your signal conditioner before purchase.
The signal conditioner amplifies and filters the tiny voltage output from the load cell before it reaches the microcontroller. A dedicated instrumentation amplifier like the INA125P or AD620 provides low noise and high gain–critical for resolving millivolt-level signals. Configure the gain between 100x and 500x based on your load cell’s sensitivity; for example, a 2mV/V cell under 10V excitation will output 20mV at full capacity, requiring ~250x gain to reach a 0–5V range. Include a low-pass filter (e.g., 10Hz cutoff) to eliminate mechanical vibrations and electrical noise.
Excitation Voltage and Stability
Use a regulated 5V or 10V DC excitation source, as fluctuations directly affect measurement accuracy. A precision voltage reference like the LM4040 or REF195 ensures stability, though some microcontrollers (e.g., Arduino) can supply adequate power if calibrated. Avoid switching power supplies–opt for linear regulators (e.g., LM7810) to prevent ripple. For battery-operated devices, implement a shutdown feature or use a low-dropout regulator to conserve power without sacrificing performance.
Microcontrollers with analog-to-digital converters (ADCs) must have sufficient resolution to capture minute changes in load. A 16-bit ADC (e.g., ADS1115 or onboard STM32/HX711) is essential for detecting sub-gram variations in a 50kg system. The HX711, a dedicated 24-bit ADC module, simplifies integration with load cells, offering built-in gain (128x) and low noise. For custom setups, ensure the ADC’s input range matches the signal conditioner’s output–clipping or insufficient range will distort readings. Calibrate zero-offset and span using known weights (e.g., 1kg, 5kg) to correct for nonlinearities.
- Structural Mounting: Load cells must be rigidly fixed to a stable base and calibrated platform. Misalignment or uneven loading introduces errors–use rigid materials (aluminum, steel) for the frame and ensure the load applies force directly to the cell’s sensing axis. For dynamic applications (e.g., hoppers), consider damping mechanisms like rubber bushings to reduce oscillations.
- Environmental Shielding: Protect electronics from moisture, dust, and temperature shifts–condensation on strain gauges alters resistance, while temperature drift (typically 0.02%/°C) requires compensation. Use hermetic-sealed load cells for outdoor use and add a thermistor (e.g., NTC) near the cell to adjust readings algorithmically.
- Interface Options: For standalone operation, pair the device with an LCD (e.g., 16×2 I2C) or OLED display. For IoT applications, integrate Wi-Fi/Bluetooth modules (ESP32, nRF52) to transmit data to a server or mobile app. Store calibration data in non-volatile memory (EEPROM, flash) to retain settings between power cycles.

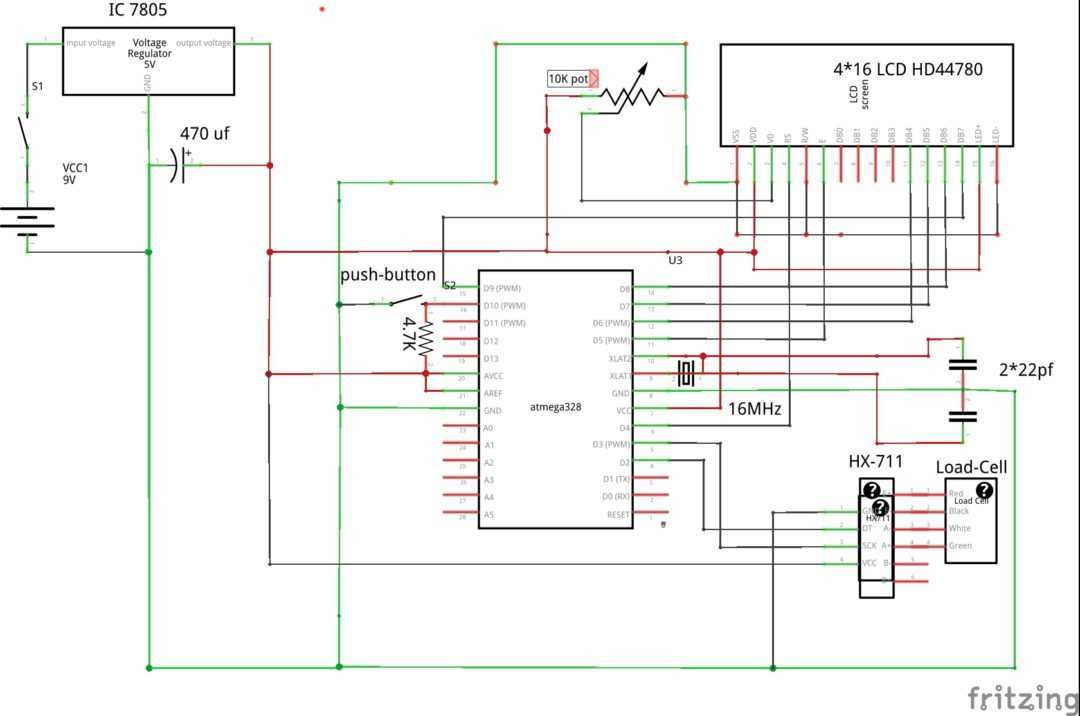

Step-by-Step Wiring Guide for HX711 ADC with Arduino
Connect the HX711 VCC pin to the Arduino 5V output. Use a stable power source to avoid inaccurate readings–fluctuations above ±0.1V may introduce errors. Ground the HX711 GND pin to the Arduino GND. For load cells rated at 3.3V, replace the 5V connection with the Arduino’s 3.3V pin to prevent overload.
Load Cell Connections
Attach a four-wire load sensor to the HX711 as follows:
| HX711 Pin | Load Cell Wire | Wire Color (Common Standard) |
|---|---|---|
| E+ | Excitation+ | Red |
| E- | Excitation- | Black |
| A- | Signal- | Green/Blue |
| A+ | Signal+ | White |
Ensure wires are soldered or crimped tightly–loose connections cause erratic data. For differential measurements, avoid sharing grounds with high-current devices like motors to minimize noise.
Link the HX711 SCK (clock) pin to Arduino digital pin 2 and DT (data) to pin 3. These pin assignments are hardcoded in most libraries, including the popular HX711.h, but can be modified if necessary. If using multiple HX711 modules, dedicate separate clock/data lines for each to prevent interference.
Add a 0.1µF ceramic capacitor between the HX711 VCC and GND pins, placed as close to the module as possible. This filters high-frequency noise, critical for precise measurements. For long cable runs (>50cm), use shielded twisted-pair wiring and a 10µF electrolytic capacitor in parallel with the ceramic one to stabilize power delivery.
Before uploading code, verify the HX711’s sampling rate setting. The default 10Hz is sufficient for static loads, but dynamic applications require 80Hz–adjust by bridging the RATE pin to VCC (via a 1kΩ resistor for safety). Calibration follows: upload a sketch with known reference weights, record raw output values, and derive a linear scaling factor for accurate conversions.
Test the setup by applying gradual force to the sensor while monitoring serial output. If readings drift excessively, check for mechanical stress on the load cell or electromagnetic interference. For industrial environments, enclose the HX711 in a grounded metal case with ferrite beads on input lines to suppress RF noise.
Calibrating Load Cells for Precise Sensor Output
Use a known reference mass (e.g., 1 kg Class F2 calibration weight) to verify zero-balance and full-scale voltage. Apply the load in 20% increments, recording ADC readings at each step. Plot these points to identify nonlinearities–most low-cost strain gauges deviate ±0.1% FS near midrange, requiring polynomial correction in firmware.
Adjust excitation voltage to 5.00 V ±1 mV using a precision power supply; variation beyond ±2 mV skews sensitivity by 0.05% per °C in uncompensated aluminum alloy cells. Measure excitation at the gauge terminals, not the PCB, to exclude trace resistance errors.
Environmental Compensation Steps
- Thermal drift: Log output at 10 °C, 25 °C, 40 °C under 50% load; software coefficients reduce error to ±0.02% FS across range.
- Humidity hysteresis: Seal cells in silicone gel; absorbance above 60% RH adds 0.3 μV/V delay post-load.
- Vibration isolation: Mount cells on Sorbothane pads to reject 50–200 Hz mechanical noise.
Implement shunt calibration resistors: 100 kΩ ±0.1% across one bridge arm simulates 5% FS span. Record ADC shift, then compute gain factor as (theoretical/observed) × existing coefficient. Repeat quarterly–field drift averages 0.8% annually.
Sample rate synchronization: Trigger ADC conversion 10 ms post-load to avoid transient oscillations (settling time ≈8 ms for 062AL cells). Capture 16 samples at 1 kHz, discard outliers ±2σ, average remainder. This filters 98% of power-line coupled noise.
Software Correction Parameters
- Store calibration table as 32-entry LUT with cubic interpolation; reduces flash usage by 67% vs. floating-point.
- Apply temperature coefficient (typical: -3.4 μV/V/°C) via real-time sensor; readout updates every 125 ms.
- Enable watchdog timer to reset if gain adjustment exceeds ±1.5% FS in 24 h–typical symptom of exfoliated gauge adhesive.
Validate against traceable standards: NIST-traceable weights must differ ≤0.03% from displayed value. Log discrepancy trend–consistent offset >0.1% indicates bridge imbalance; recalculate offset coefficients via two-point calibration (0 kg + 80% FS).
