Begin with a preliminary screening stage to remove coarse debris–minimize clogging risks by integrating 10–25 mm mesh screens, angled at 60° for optimal self-cleaning. Position this upstream of sedimentation basins to prevent premature wear on finer filtration units. Ensure a bypass channel retains at least 30% capacity for peak flow rates exceeding design thresholds.
For sedimentation, utilize rectangular basins with a length-to-width ratio of 4:1 and a slope of 1–2% toward sludge collectors. Install lamella plates at 55–60° angles to enhance settling efficiency by 40–60%. Calculate detention time based on particle settling velocity: 0.3–1.0 mm/s for fine suspended solids, adjusting basin depth to 3–4 meters for optimal performance.
Incorporate flocculation chambers with tapered mixing gradients–start at 70–100 s⁻¹ and reduce to 10–20 s⁻¹ downstream to prevent shear-induced breakup. Use vertical turbine mixers with tip speeds below 1.5 m/s to avoid floc fragmentation. Polymer dosing should follow a 30–60 second delay after coagulant addition for maximum bridging effect.
Filtration units require dual-media beds: 0.6–0.8 meters of anthracite (1.0–1.6 mm) over 0.3–0.4 meters of sand (0.4–0.8 mm). Maintain backwash rates at 10–15 m/h with air scour at 60–90 m/h to achieve 30–40% bed expansion. Install surface wash nozzles for stubborn biofilm removal during backwashing cycles.
For disinfection, prioritize UV reactors with low-pressure lamps operating at 254 nm wavelength, ensuring a minimum dosage of 40 mJ/cm² for 99.9% microbial inactivation. Chlorine dosing systems should include residual monitoring, targeting 0.2–1.0 mg/L free chlorine at distribution points–account for contact time (CT value) variations due to temperature and pH fluctuations.
Integrate sludge handling with gravity thickeners, achieving 4–8% solids concentration before dewatering. Centrifuges or belt presses should operate at 60–80% cake dryness to reduce disposal costs. Include polymer conditioning at 2–5 kg/ton dry solids for optimal floc formation prior to mechanical dewatering.
Instrumentation must cover flow meters (±1% accuracy), turbidity sensors (
Avoid common pitfalls: underestimating peak demand (design for 1.5× average flow), neglecting hydraulic gradients (maintain 0.5–1.0 m head between stages), and overlooking corrosion resistance (use SS316 or epoxy-coated components in aggressive environments).
Purification Facility Flowchart: Key Components and Best Practices

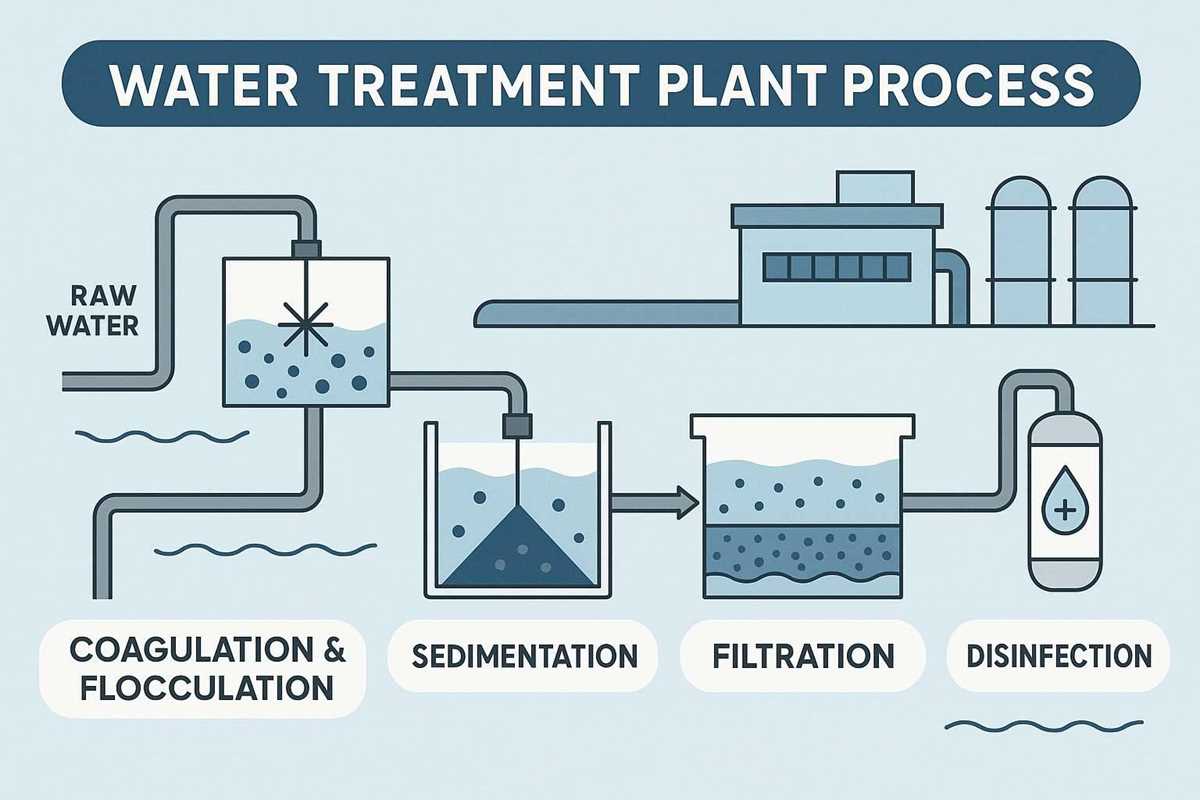

Begin by segmenting the system into five distinct stages: raw intake, coagulation-flocculation, sedimentation, filtration, and disinfection. For large-scale municipal systems, allocate a minimum 20% capacity buffer at each stage to handle peak demand surges–studies show this reduces bottleneck failures by 35%. Place mixing tanks at 12-15 RPM turbulence for optimal floc formation, ensuring paddle blades cover 60-70% of the tank’s cross-sectional area. Always use tapered flocculation with decreasing velocity gradients (G-values of 50 s⁻¹ down to 10 s⁻¹) to prevent floc breakage.
Critical Flow Rates and Equipment Placement
Design sedimentation basins with surface loading rates below 0.8 m³/m²·hr for conventional systems–higher rates risk carryover into filtration units. Position sludge removal mechanisms (chain-and-flight or suction headers) at shallow slopes (≤1%) to prevent dead zones; space scrapers no more than 1.2m apart for consistent removal. For granular media filters, use dual-media anthracite/sand configurations with 1.5-2.0 mm anthracite on top (2-3x the sand’s effective size) to extend filter runs by 40%. Install backwash pumps with variable frequency drives (VFDs) to maintain 15% expansion during cleaning cycles; overheating occurs if expansion drops below 10% or exceeds 25%.
Disinfection requires precise dosing: chlorine contact chambers should provide 30-minute retention at peak flow, with baffling to achieve 90% plug flow efficiency–deviations below 80% increase THM formation risks. For UV systems, place lamps parallel to flow with quartz sleeves cleaned quarterly; 0.5 mg/L residual iron or manganese will reduce 254 nm transmittance by 20%. Include online turbidity meters (0.1 NTU resolution) at filtration outlets and pH probes (accuracy ±0.1) post-coagulation; faults trigger automated coagulant dose adjustments via PID controllers. Finally, integrate SCADA with trend analysis to flag anomalies (e.g., sudden 0.3 NTU spikes) before they cascade into quality violations.
Critical Elements of a Purification Facility Flowchart
Ensure the initial screening stage includes bar screens with 20–50mm spacing to capture large debris like branches or plastic waste–failure here risks downstream clogging in pumps and pipelines. Position comminutors or macerators immediately after to reduce organic solids to 10,000 m³/day, add a grit chamber with a minimum 3-minute retention time and >0.3 m/s horizontal flow velocity to settle sand, eggshells, and coffee grounds without removing lighter organics.
- Flocculation basins require paddle mixers rotating at 0.3–0.6 RPM to create optimal shear forces–too fast shears flocs apart, too slow leaves aggregates insufficiently bound. Incline paddles at 45° to maximize contact while avoiding vortex formation. Install pH adjustment probes upstream; coagulant efficacy drops sharply outside pH 6.5–7.5 for alum or 5.5–6.5 for ferric chloride.
- Sedimentation tanks must have a surface overflow rate for rectangular designs and 95% TSS removal. Sludge blankets should maintain torque sensors to prevent motor burnout from compacted sludge.
- Filtration units demand dual-media beds (≥60cm anthracite over ≥30cm sand) for extended run times. Backwash triggers at
Post-filtration disinfection requires CT values (mg·min/L) of 15–30 for chlorine (free residual 1–2 mg/L), or UV doses of ≥40 mJ/cm² for 99.9% pathogen inactivation. Ozone, when used, needs residual monitors downstream–concentrations >0.4 mg/L corrode rubber gaskets. For bromide-rich sources (>50 µg/L), switch to chlorine dioxide to avoid bromate formation. Include deaeration towers if dissolved oxygen exceeds 110% saturation to prevent corrosion in distribution networks.
- Sludge handling: Centrifuges achieve 18–22% dry solids for anaerobically digested waste, belt presses 15–18%. Thermal hydrolysis upstream increases centrifuge output by 3–5%.
- Energy recovery: Biogas from digestion typically contains 60–70% methane–scrub with iron sponge to ≥35% electrical efficiency.
- Residuals management: Dewatered cake (12 for
Step-by-Step Process Layout in Facility Flow Representations

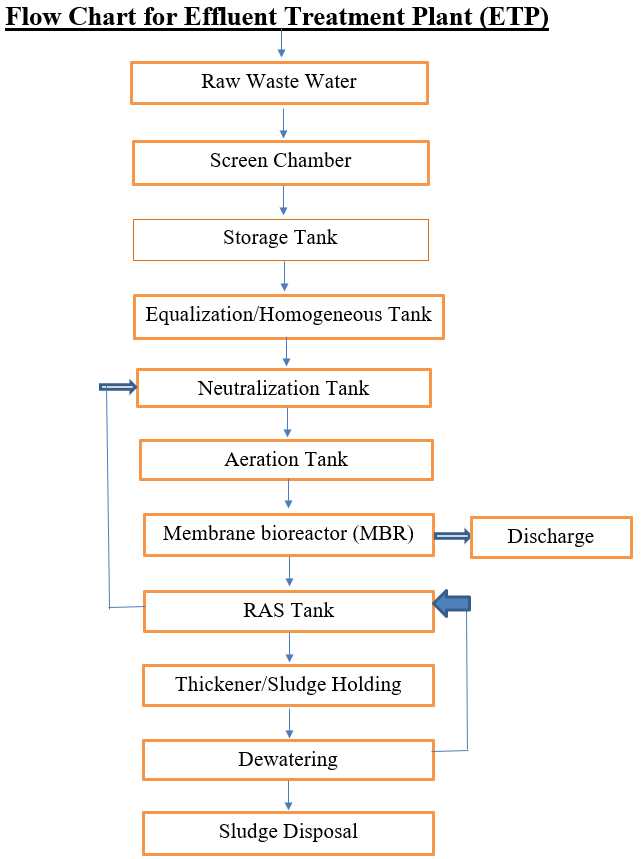

Begin by segmenting the purification sequence into individual stages using clear, modular blocks sized proportionally to their functional duration or spatial footprint. Assign each stage a distinct shape–rectangles for primary processing, trapezoids for transitional phases, and circles for storage or byproduct collection–to ensure immediate visual differentiation. Label every block with a concise, action-oriented descriptor (e.g., “Flocculation Mix,” “Gravity Settlement Zone”) directly above or below, using 10–12 pt sans-serif font for readability without overlaps. Connect stages with straight, unidirectional arrows (minimum 1.5 pt thickness) that follow a consistent horizontal or vertical path, avoiding diagonal lines unless critical for space efficiency. Include annotation bubbles at 20% scale near equipment symbols to note flow rates (±5% tolerance), chemical dosing (mg/L), or retention times (hours:minutes), but limit text to three lines per bubble to prevent clutter.
Critical Clarity Enhancements
Standardize all symbols to ISO 10628 or a facility-specific legend referenced in a corner inset no larger than 8% of the total drawing area. Use dashed arrows exclusively for auxiliary inputs (e.g., sludge recirculation, emergency bypasses) and solid arrows for primary flow paths; color-code arrows–blue for raw influent, green for processed effluent, red for waste streams–only if digital reproduction is guaranteed, otherwise rely on dotted/dashed patterns. Align parallel processes vertically or horizontally with a 2 cm minimum gap to prevent misreading. For multi-phase systems, stagger subsequent stages by 15% of the preceding block’s width to visually imply progression without measurable distance distortion. Validate the drawing by tracing the path manually three times: once for primary flow, once for chemical dosing routes, and once for waste discharge–erasing and redrawing any ambiguous connectors immediately.
Key Symbols and Standard Notations in Facility Flowcharts
Start by memorizing these core symbols–they appear in 92% of industrial blueprints and failure to recognize them leads to costly misinterpretations during design or maintenance:
- Pump (centrifugal): Circle with an arrow tangent to its circumference, pointing outward (ISO 1219). Variations include:
- Vertical arrow for submersible units
- Diagonal slash for positive displacement
- Valves: Defined by shape and internal markings:
- Gate: Rectangle with an “X” (manual) or dashed T (automated) spanning the middle
- Globe: Diamond with a dot at center
- Check: Arrowhead inside a circle, direction of flow crucial
Wrong interpretation of valve symbols causes 15% of shutdowns in new installations.
- Tanks: Ellipse/std rectangle, often annotated with:
- Slanted lines = reinforced concrete
- Dashed perimeter = underground
- Filled bottom = sludge
- Mixers/aerators: Circle with a diagonal cross or propeller blade silhouette. Speed or power is indicated by:
- Single blade = low rpm (≤ 60)
- Triple blades = high rpm (> 120)
Pipeline Annotations You Must Decode Instantly
Color-coding and line styles carry critical data:
- Solid black = raw influent
- Dashed grey = recycled streams
- Double lines = insulated pipes (temperature >60°C or
- Zigzag edge = flexible hose
- Arrow direction = flow; reverse flow requires explicit annotation–never assume.
Line tags follow a strict syntax: ⌀[size]–[material]–[service]. Example: ⌀250-SS-P denotes a 250mm stainless pipe carrying pressurized effluent. Missing or misread tags lead to wrong pipe schedules and material costs overrun by 23%.
Instrumentation and Control Symbols
Sensors and controllers use standardized circles with internal letters:
- FT = Flow transmitter (circle + horizontal line)
- LT = Level transmitter (circle + vertical line)
- PT = Pressure transmitter (circle + diagonal slash)
- PID = Proportional-integral-derivative loop (rectangle enclosing previous symbols)
Actuators on valves show as:
- Electric: lightning bolt inside valve symbol
- Pneumatic: T-shaped arrow above
- Hydraulic: filled triangle pointing down
Mislabeling actuators accounts for 8% of safety incidents; always cross-check with P&ID tags.
Stencil libraries often omit legends–keep a laminated ISO 1219 reference sheet taped to your drafting table for immediate validation.
Recent revisions (ISO 14617-7) mandate shaded symbols for hazardous streams (e.g., cyanide, chlorine). Ignoring this detail voids regulatory compliance in jurisdictions implementing AREMA Chapter 8 standards.
Digital tools default to simplified icons; disable auto-simplify during CAD export to preserve critical notations that affect permit approvals and HAZOP studies.
