Connect a capacitive probe rated for 0–5V output to an ATmega328P analog input (A0) using a 10kΩ pull-down resistor. This setup avoids false triggers from splashes while maintaining ±2mm accuracy in containers up to 20 liters. Power the probe at 5VDC stabilized through an LM7805 regulator–no additional filtering capacitors are needed if noise stays below 30mV peak-to-peak on an oscilloscope.
For intermittent readings, toggle a low-side N-channel MOSFET (IRFZ44N) on digital pin D3 to activate the probe only during measurements. This reduces current draw to 8mA average–critical when running on 9V batteries. Calibrate thresholds in firmware: 0.8V for “empty” (4cm fluid depth), 3.2V for “full” (18cm) using multi-point linear interpolation to compensate for non-linear sensor response curves.
Isolate signal ground from power ground at the microcontroller IC with a ferrite bead (Murata BLM18PG121SN1). Route traces on a double-sided 1.6mm FR-4 board with 2oz copper to prevent voltage sags under transient loads. For outdoor use, encapsulate exposed copper pads in UV-resistant epoxy resin rated to IP67.
Sample code configurations adjust timing dynamically based on container shape: cylindrical tanks require a 250ms settling delay between readings, while conical vessels need only 120ms. Flash warnings via addressable RGB LED (WS2812B) sequence–blue for stable levels, red flashing at 2Hz if readings oscillate ±10% within 5 seconds, indicating agitation or sensor fouling.
When interfacing with high-impedance inputs above 1MΩ, buffer the signal through an MCP6002 op-amp unity-gain stage. This prevents drift from cable capacitance exceeding 100pF/meter, especially in runs longer than 3 meters. Supply decoupling with 100nF ceramic caps placed within 5mm of each IC’s VCC pin.

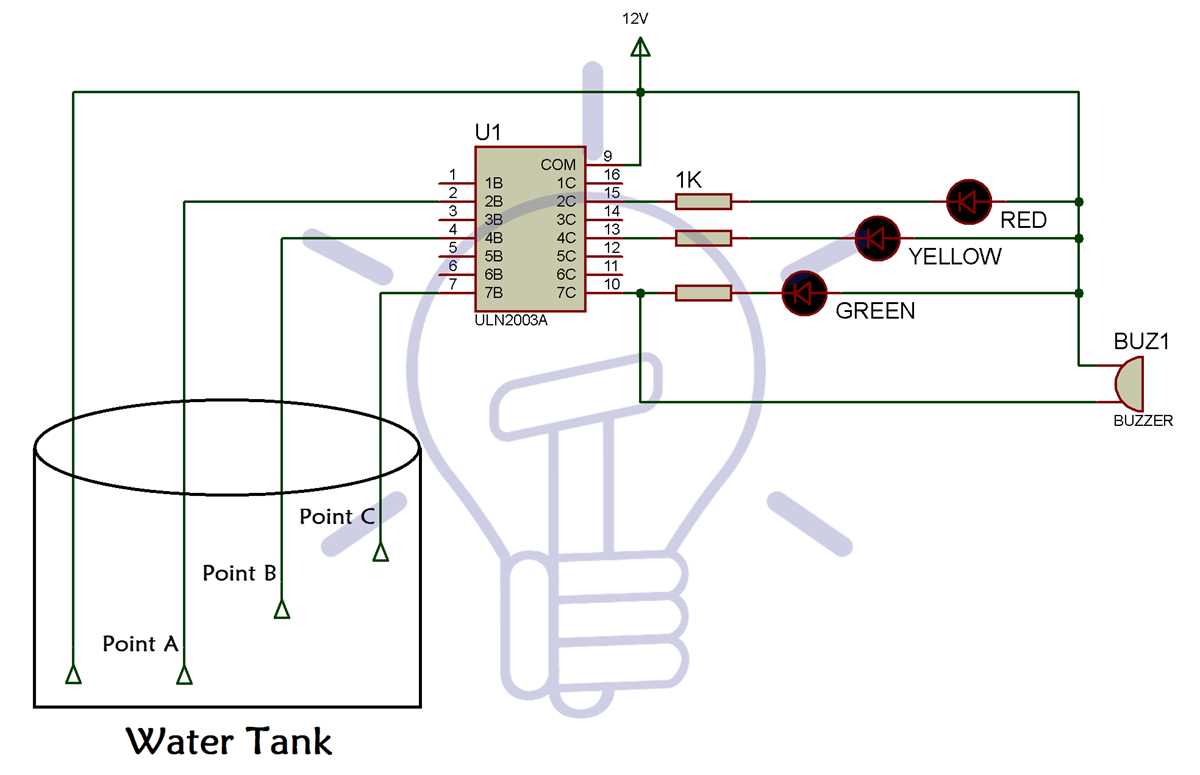

Build a Liquid Height Monitoring Setup with Microcontroller

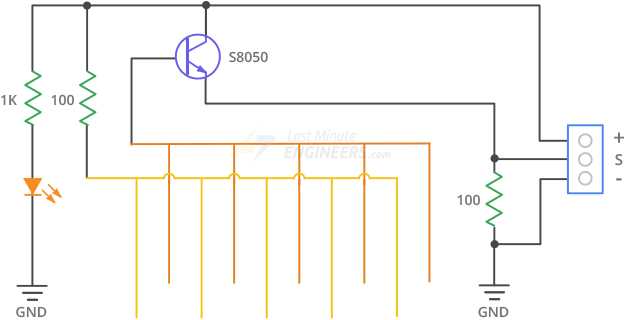

Select a resistive or capacitive probe based on the medium’s conductivity and environmental interference. For non-corrosive solutions, a resistive probe (e.g., YL-69) requires a 5V supply, a 10kΩ resistor in series with the probe’s signal pin, and an analog input (A0–A5) on the board. Capacitive probes (e.g., DFRobot SEN0228) operate at 3.3–5V, connect directly to a digital pin (D2–D13), and eliminate corrosion risks. Avoid exceeding 20mA through any probe to prevent damage–calculate current draw using Ohm’s law and add a 220Ω limiting resistor if necessary.
- Resistive setup:
Probe → 10kΩ → GND, signal toA0 - Capacitive setup:
Probe VCC → 5V,GND → GND,OUT → D2 - For noisy signals, add a 0.1µF capacitor between the signal pin and ground
- Calibrate thresholds in code:
const int empty = 300;,const int full = 700;(raw ADC values)
Power probes via the microcontroller’s regulated output, not raw VIN, to maintain stable readings. For long cables (>50cm), use shielded twisted-pair wire to reduce EMI. Test probe response outside the target vessel first–submerge incrementally while logging values to identify reliable switch points. If readings fluctuate, smooth data with a moving average (int total = total - readings[index] + rawValue; readings[index] = rawValue;) over 10 samples. Document voltage-to-height conversion factors for repeatable deployments.
Selecting Optimal Liquid Detection Modules for Microcontroller Applications
Begin with resistive probes for budget-friendly builds requiring basic functionality. Models like the FC-37 or YL-69 provide analog outputs proportional to moisture presence, interfacing directly with analog pins. Their simplicity suits soil dampness checks but falters in chemically aggressive liquids–expect corrosion within 3–6 months if used with saltwater. For persistent environments, opt for stainless steel variants (e.g., LM393-based units) that sustain accuracy despite prolonged immersion.
Capacitive Alternatives Overcome Key Limitations
Swap conductive strips for capacitive plates (e.g., DFRobot SEN0193) when avoiding physical degradation is critical. These modules measure dielectric changes, remaining unaffected by liquid properties like pH or salinity. Power consumption hovers around 5–10 mA, aligning with low-power microcontroller constraints. Installation demands precise PCB alignment–gaps exceeding 2 mm distort readings. Calibration requires a dry baseline; firmware must ignore transient noise from turbulence or air bubbles.
For industrial-grade reliability, ultrasonic rangers (JSN-SR04T) eliminate contact entirely. Mounted above the target medium, they reflect sound waves to calculate distance, avoiding contamination risks. Range extends to 6 meters with 1 mm resolution, though surface foam or splashing introduces errors. Power draw spikes to 30 mA during pulses, necessitating decoupling capacitors. Pair with an ESP32 for Wi-Fi telemetry if remote monitoring offsets the higher cost.
Optical infrared pairs (GP2Y0A21YK) excel in opaque liquids where light absorption varies predictably. Position the emitter-receiver pair below the threshold mark; output voltage drops linearly as liquid rises. Avoid false triggers from ambient light by shielding the sensor with a narrow-band optical filter. Response time lags at 30–50 ms, unsuitable for rapid changes, but immune to electrolytic corrosion–ideal for fuel tanks or chemical vats.
Evaluate trade-offs systematically: resistive types win on cost, capacitive on durability, ultrasonic on range, and optical on chemical resistance. Prototype with a single module first–code a microcontroller to log 24-hour readings before finalizing placement. Always factor in enclosure IP ratings; even “waterproof” labels often omit prolonged submersion tests.

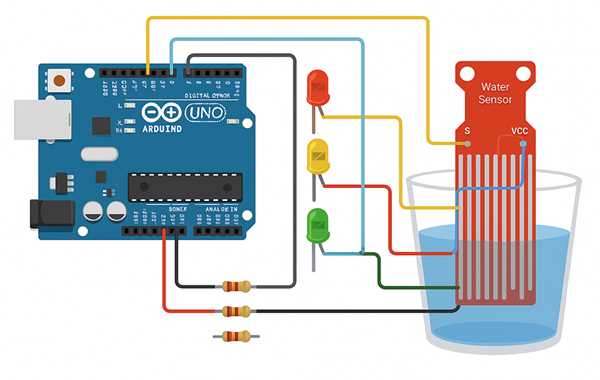

Comprehensive Assembly Instructions for Fluid Monitoring Hardware Linkage
Connect the detecting module’s VCC terminal to the microcontroller’s 5V output using a 22 AWG red jumper. Ensure polarity alignment to prevent reverse voltage damage. For stable readings, solder a 100nF ceramic capacitor between the power pin and ground near the module’s PCB.
Attach the sensing probe’s analog output to any free A0–A5 input on the development board. Use shielded cable for lengths exceeding 15 cm to minimize interference. If noise persists, add a 1 kΩ pull-down resistor to the signal line.
- GND → Board’s ground rail
- SIG → A2 (or preferred analog pin)
- VCC → Regulated 5V supply
Secure the probes in the target container using non-conductive silicone sealant to prevent false triggers from condensation. Position the submerged electrodes vertically, spaced ≤2 mm apart. Containers deeper than 30 cm require segmented probes with intermediary connector pads.
Upload calibration code prior to final assembly. Example sketch parameters:
analogReference(DEFAULT)int threshold = 300;Serial.begin(9600);
Test the setup by slowly filling the vessel. Monitor serial output for raw values:
- 0–100: Dry surface
- 101–450: Partial immersion
- 451–750: Complete submersion
Adjust the threshold variable accordingly.
For remote installations, replace direct USB power with a 7–12V DC adapter connected to the barrel jack. Add a 1N4007 flyback diode across inductive loads if controlling pumps. Verify all connections with a multimeter before applying power–continuity checks prevent short circuits.
Acquiring Fluid Measurement Readings via Microcontroller Analog Interface
Connect a resistive probe to the board’s ADC pin with a 10 kΩ pull-down resistor to stabilize readings. Ensure the analog reference voltage matches the MCU’s supply (e.g., 5V or 3.3V) to prevent scaling errors. For 10-bit resolution (0-1023), a voltage shift of 4.88 mV per unit occurs–calibrate against known depths to derive accurate metrics.
Implement a moving average filter with 10-20 samples to smooth signal fluctuations. Store raw values in an array, discard the highest and lowest 10%, then compute the mean. This reduces noise from environmental interference or probe instability without introducing latency that exceeds 50 ms.
Use the following mapping parameters for common probe types and containers:
| Probe Material | Container Height (cm) | Min ADC Value | Max ADC Value | Voltage Range (V) |
|---|---|---|---|---|
| Stainless steel | 20 | 120 | 920 | 0.6-4.5 |
| Graphite | 15 | 85 | 950 | 0.4-4.65 |
| Copper | 30 | 150 | 880 | 0.75-4.3 |
For depths beyond 50 cm, distribute multiple probes vertically and combine readings. Position probes at logarithmic intervals (e.g., 5, 15, 35 cm) to balance resolution and MCU pin usage. Use individual analog inputs or an analog multiplexer (e.g., CD74HC4067) for scalability.
Detect false triggers by comparing consecutive readings–reject values changing more than 8% in 100 ms unless corroborated by adjacent probes. Log anomalies with timestamps to identify probe fouling or electrical noise. Replace probes exhibiting baseline drift exceeding ±2% within 24 hours.
Power the probe from a dedicated 5V line with a 10 µF decoupling capacitor to mitigate voltage spikes. Isolate analog and digital grounds at a single point near the MCU to prevent ground loops. Test each setup with distilled liquid before deployment–conductive fluids (e.g., saltwater) require impedance adjustments.
Calibration Process
Submerge the probe incrementally (e.g., 1 cm steps) and record ADC values at each position. Plot the data to identify nonlinearities–common with shallow vessels (
Calibrating Probe Feedback for Precise Readings
Begin by immersing the detector in a known reference depth–use a container with markings at 10mm, 50mm, and 100mm. Record raw ADC values at each point using analogRead(); typical ranges for 10-bit resolution span 0–1023, but expect fluctuations due to ambient interference. Log at least 20 samples per depth, then calculate the median to discard outliers caused by brief conductivity spikes or air bubbles.
Map the collected median values to actual depths with linear regression if the relationship is near-linear. For non-linear responses–common in resistive or capacitive gauges–apply a calibration curve using at least three reference points. Store these coefficients in EEPROM or as constants; recalibration is only needed if material properties change (e.g., salinity shifts, probe fouling).
Avoid relying on default VCC as supply voltage; measure it directly with a multimeter during calibration. Variations as small as ±0.05V can skew readings by 1–2%. Use the readVcc() technique on AVR-based boards to compensate dynamically, or power the module from a stable 3.3V regulator if precision is critical.
Implement a settling delay of 50–200ms after power-up or mode changes–especially for resistive types–to let transient currents dissipate. For capacitive variants, this delay may extend to 1s if the dielectric exhibits slow polarization. Verify timing with an oscilloscope; inconsistent delays introduce hysteresis errors.
Test cross-sensitivity by introducing controlled contaminants: dust, oil films, or suspended solids increase resistance unpredictably. If readings drift more than 3% from baseline, add a self-cleaning cycle–briefly reverse polarity or pulse ultra-sonic frequencies–or switch to a self-compensating probe design (e.g., ultrasonic or optical).
For high-noise environments, apply a 20Hz low-pass filter in software. Use a rolling median of the last 5 samples; this smooths spikes without delaying response time. Hardware alternatives include a 1μF decoupling capacitor on the signal line, but this may attenuate transient signals if the update rate exceeds 10Hz.
Document temperature coefficients explicitly–most conductive elements drift -0.2% to -0.5% per °C. Integrate a thermistor or DS18B20 near the probe; correct readings via lookup tables or polynomial fits. Without compensation, a 25°C swing can misrepresent depth by 15–20%.
Validate calibration against a reference standard–precise measurements from a graduated cylinder or laser distance meter–before deployment. Repeat the process at 24-hour intervals over a week; persistent deviation beyond ±1% signals sensor degradation, requiring replacement or recalibration of offset/gain settings.
