Begin by selecting a ultrasonic sensor module (e.g., HC-SR04) for non-contact measurement. Mount it above the container’s maximum fill height, ensuring a clear line of sight. Connect the trigger pin to a microcontroller’s digital output (e.g., Arduino’s pin 9) and the echo pin to an input (e.g., pin 10). Use a 1kΩ resistor between the echo pin and 5V to stabilize readings. Upload a script calculating distance via pulse duration: multiply the echo time by 0.034 (sound speed in cm/µs) and divide by 2. Test with calibrated increments (e.g., 10cm, 20cm) to verify accuracy.
For conductive liquids, deploy a series of float switches (SPST) at critical heights. Wire each switch in parallel, connecting one terminal to ground and the other to a microcontroller’s pull-up input (e.g., pins 2–5). Use interrupts or periodic polling to detect state changes. Add a 10kΩ pull-down resistor to each input to prevent false triggers. For corrosive fluids, opt for reed switches paired with external magnets–position the magnet on a floating collar and the switch on an external rod.

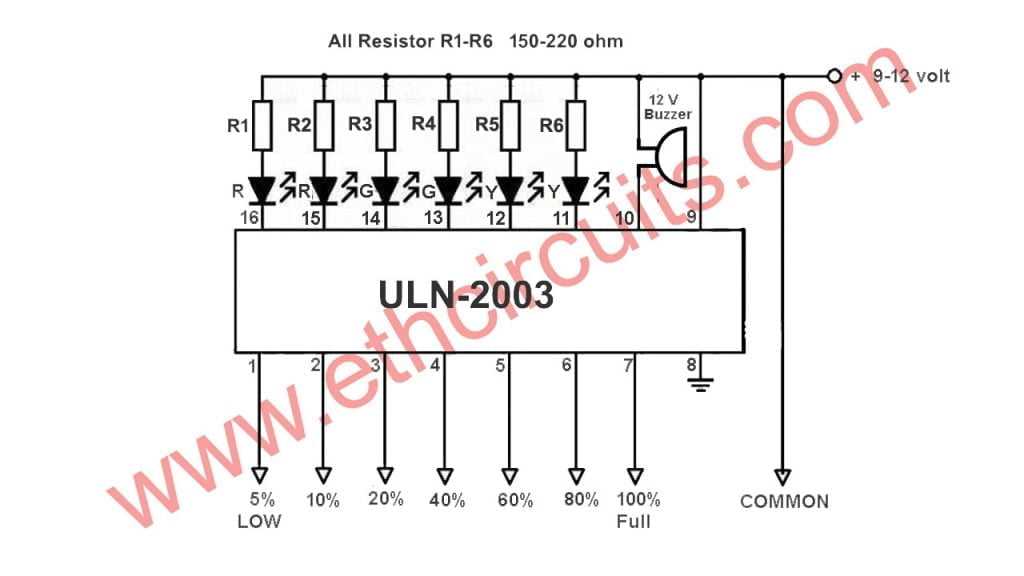

Pair the sensor with a multilevel LED array for immediate feedback. Assign each LED to a discrete height threshold (e.g., green for 25%, yellow for 50%, red for 90%). Drive LEDs via a ULN2003 Darlington array if sinking currents exceed 20mA per pin. For remote monitoring, transmit sensor data via UART to a Wi-Fi module (e.g., ESP8266) and log to a cloud endpoint (e.g., ThingSpeak) using HTTP POST requests. Format payloads as JSON with keys “height_cm” and “timestamp_unix”.
Avoid noise in analog setups by using a voltage divider with a 0.1µF capacitor to smooth readings from resistive probes. For AC detection, use an optocoupler (e.g., PC817) to isolate microcontroller inputs from high-voltage circuits. Calibrate all probes by measuring known volumes–calculate container geometry to convert linear height to volume (e.g., cylindrical tanks: V = πr²h). Document offset values in flash memory (EEPROM) to adjust for environmental factors (e.g., temperature, foam).
Fluid Height Monitoring Schematic Guide

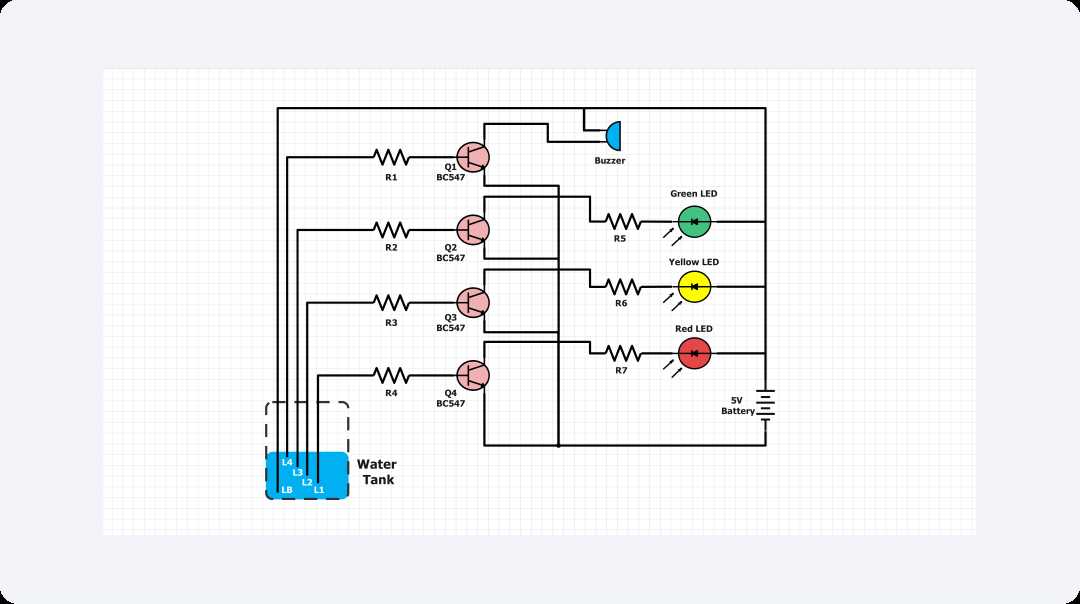

Start with a resistive method using bare copper wires as sensors. Position three probes at varying heights–low, medium, and high–in the tank’s interior. Attach a 4.7 kΩ pull-up resistor to each wire, linking them to a 5V DC supply. Ground the lowest sensor to the tank’s base. When fluid rises, conductivity drops voltage at the microcontroller’s input pins, triggering predefined alerts.
For microcontroller selection, an ATmega328P suffices for basic setups, while ESP8266 adds Wi-Fi reporting. Connect probes to digital pins D2, D3, and D4, using internal pull-ups if external resistors aren’t available. Calibrate sensor thresholds in code: map analog readings (0–1023) to liters based on tank geometry. Example: a cylindrical 50 cm diameter vessel holds ~19.6 liters per 10 cm height.
Component Precision Checklist
Verify probe spacing: irregular gaps skew readings. Use insulated copper wire (16–18 AWG) for corrosion resistance. Measure tank dimensions accurately–volume errors compound over distance. For irregular shapes, segment the tank into geometric primitives (cylinders, cuboids) and sum partial volumes. Label probes with heat-shrink tubing to prevent shorts from condensation.
Power regulation demands a 7805 voltage regulator if sourcing 12V. Add a 1000 µF capacitor across the input to smooth spikes. For battery operation, select a 9V alkaline with a 600 mAh capacity; expect ~50 hours runtime with continuous polling. Lithium-ion variants extend life but require a TP4056 charger module.
Optical isolation via PC817 optocouplers prevents noise from pumps or solenoids. Wire LEDs to the optocoupler outputs: red for critical, yellow for mid, green for safe. Mount LEDs on waterproof enclosures with 1N4007 diodes across coils to suppress back EMF. Test with a saline solution (5 g/L) to simulate real-world conductivity before final assembly.
Firmware must debounce sensor inputs: implement a 50 ms delay between reads to filter capacitance effects. Store calibration values in EEPROM–Arduino’s EEPROM.h handles this. Include hysteresis: alert thresholds should differ between rising and falling states to prevent LED flicker. Example: trigger high alert at 95%, disable at 80%.
Advanced Troubleshooting Steps
If false triggers occur, increase pull-up resistors to 10 kΩ to reduce sensitivity. For persistent issues, add a 0.1 µF ceramic capacitor between sensor inputs and ground. Corrosion-resistant probes (stainless steel 316) extend lifespan in saline environments but may require op-amp buffering (LM358) to maintain signal integrity.
For remote monitoring, serialize JSON payloads via ESP8266’s Wi-Fi. Transmit data every 30 seconds to a local MQTT broker. Example payload: `{“id”: “TankA”, “status”: 2, “volume”: 78.4}`. Ensure TLS encryption if exposing the broker to public networks–use Let’s Encrypt certificates for MQTT over WebSockets.
Selecting Optimal Parts for a Liquid Height Monitoring System
Begin with conductive probes–stainless steel rods or titanium alloy offer durability in corrosive environments. For typical household tanks (30–100 gallons), three probes (min, mid, max) spaced at 4–6 inch intervals ensure precise tracking. Avoid copper: it oxidizes quickly, distorting readings within weeks. Verify probe diameter (3–5 mm) for stability; thinner rods bend under liquid pressure.
Prioritize a low-power microcontroller–the ATtiny85 consumes 200 µA in active mode, ideal for battery-operated setups. ESP8266 excels for IoT integration but drains 70 mA; match energy needs to your power source (solar, 12V adapter). For high-voltage tolerance (>24V), add an optocoupler (PC817) to isolate sensitive logic from probe noise.
Signal amplification demands a LM358 op-amp in non-inverting configuration, with a gain of 10–50x to compensate for weak probe resistance changes. Bypass capacitors (0.1 µF ceramic) on all ICs prevent false triggers from AC ripple. Test resistor values (1 kΩ–10 kΩ) in a controlled environment–salinity and temperature skew signal integrity.
| Component | Key Spec | Recommended Model | Failure Risk |
|---|---|---|---|
| Sensor Rods | Corrosion resistance | 316L Stainless Steel | Oxidation |
| Transistor | Current handling | BC547 (100 mA) | Thermal runaway |
| Voltage Regulator | Input range | LM7805 (7–20V) | Overheating |
Load drivers must align with your alert mechanism–2N2222 transistors switch LEDs or relays but limit current to 800 mA. For remote alarms, GSM modules (SIM800L) add cellular alerts but require stable 2A power supplies. Test under full load; marginal cells depress performance.
Calibration resistors (trimpots) fine-tune probe sensitivity–use multi-turn (10-turn) for granular adjustments. Seal connections with heat-shrink tubing to prevent moisture ingress. For outdoor setups, conformal coating (acrylic spray) prolongs probe lifespan by 3–5 years. Avoid silicone-based coatings–they insulate probes, nullifying readings.
Power Source Constraints
Battery life dictates component selection: 9V alkaline lasts 30 days with ATtiny85, while lead-acid (12V/7Ah) powers an ESP32 for 6 months. Solar panels (6V/3W) suffice for low-draw systems but add a charge controller (TP4056) to prevent overloading. For mains-powered units, fuse all inputs (250V/5A) and add transient-voltage-suppression diodes (1.5KE series) to block surges.
Building a Simple Fluid Height Monitoring System: Assembly Guide
Begin by securing a 12V DC power supply, five probes (stainless steel rods or wires), and a 555 timer IC. Cut the probes to varying lengths–2 cm, 4 cm, 6 cm, 8 cm, and 10 cm–to correspond with desired detection thresholds. Solder each probe’s base to a separate 1KΩ resistor, then connect the resistors to pins 2, 4, 6, and 7 of the 555 timer, plus a common ground probe. Ensure probes are spaced at least 1 cm apart to prevent false triggers from fluid bridging.
- Attach the 555 timer’s output (pin 3) to a BC547 transistor’s base via a 470Ω resistor. Connect the transistor’s collector to a relay coil rated for 12V, and route the emitter to ground.
- Wire the relay’s normally open contact to an LED array (red for upper limits, yellow for mid, green for baseline) in series with a 220Ω current-limiting resistor.
- Encase the entire setup in a waterproof junction box, sealing entry points with silicone. Test probe functionality by submerging in a graduated container–LED activation should mirror fluid rise sequentially.
For calibration, adjust resistor values: increase to 2.2KΩ for slower LED response, decrease to 470Ω for faster switching. Avoid using aluminum probes–oxidation causes erratic readings within 72 hours. If long-term stability is critical, replace the 555 timer with a comparator IC (LM339) for hysteresis-free detection, though assembly complexity doubles.
Power Supply Choices for Low-Current Fluid Gauge Systems
For microcurrent sensing setups, a 9V alkaline battery provides 50–100 hours of continuous operation before voltage drops below 7V, sufficient for most floating-switch or conductive-probe arrangements. Replace with lithium cells for applications requiring subzero operation–they maintain 85% capacity at -20°C compared to 30% for zinc-carbon.
Linear regulators like the LM7805 deliver stable 5V output but waste energy as heat when input exceeds 7V. Swap for a buck converter (e.g., MP1584) to boost efficiency from 60% to 92% at 20mA load, dropping quiescent current to 12μA versus 5mA for linear variants.
Solar trickle charging works for outdoor tanks: pair a 6V 1W panel with a 1F supercapacitor instead of batteries during daytime use. The cap recharges fully in 30 minutes of direct sunlight and powers a 4mA gauge for 48 hours–eliminates recharge cycles that degrade lithium cells.
USB-powered solutions use an AP2204 or similar LDO to derive 3.3V from 5V busbars found on modern pumps or controllers, removing the need for dedicated AC adapters. Ensure input capacitors exceed 10μF to prevent brownouts during transient draws above 100mA.
Avoiding Common Pitfalls
Capacitive gauges with oscillator ICs (e.g., LM393) draw 3–5mA pulsed; average current drops if the microcontroller enters sleep between readings, extending battery life. Conversely, resistive probes see current spikes during moisture bridging–add a 10Ω series resistor to limit to 5mA, preventing dissolved-metal deposits on electrodes.
Cost-Effective Alternatives
Reuse CR2032 coin cells salvaged from expired PC motherboards: 220mAh capacity suffices for most hygrometric probes when duty-cycled at 1% (20ms per 2 seconds). For critical setups, string three AA NiMH cells with an MCP1700 LDO–1.2V droop threshold prevents false alarms during deep discharge.
