Start with a float-based mechanism for immediate feedback. A simple magnetic reed switch triggered by a rising or falling float ensures minimal delay–ideal for tanks holding 200–5000 liters. Use a pair of switches: one positioned at 85% capacity for auto-shutoff, another at 20% to restart the pump. Avoid mercury switches; they fail within 12–18 months under constant cycling.
Opt for a low-voltage DC relay (9–12V) rated for 10A contacts. A common 5VDC coil with a flyback diode (1N4007) prevents flyback spikes that corrode relay coils within weeks. Wire the float switches in parallel; redundancy ensures uninterrupted operation even if one switch sticks. Test contact bounce with an oscilloscope–anything exceeding 30ms risks erratic pump behavior.
Amplify signals with a transistor stage if voltage drop across long wires (>15m) risks false readings. A 2N2222 with a 470Ω base resistor provides clean 5V logic pulses. For AC pumps, isolate the logic side using an optocoupler (PC817). Keep the transistor saturation current below 10mA to prevent overheating–thermal degradation starts at 75°C.
Add a visual indicator (bi-color LED)–green when filling, red at cutoff. Position it near the reservoir access hatch. Use a 330Ω current-limiting resistor for 5VDC; anything lower burns LEDs within 500 hours. For outdoor tanks, waterproof the enclosure with IP67-rated seals–standard silicone gaskets degrade in UV within 9 months.
Calibrate thresholds with trimpots if tank geometry varies. For irregular shapes (e.g., conical), measure at three points–bottom (empty), mid-height, and overflow. Mark screw adjustments with paint; vibrations loosen settings by 1–2mm per month. Replace trimpots every 3 years–dust buildup alters resistance unpredictably.

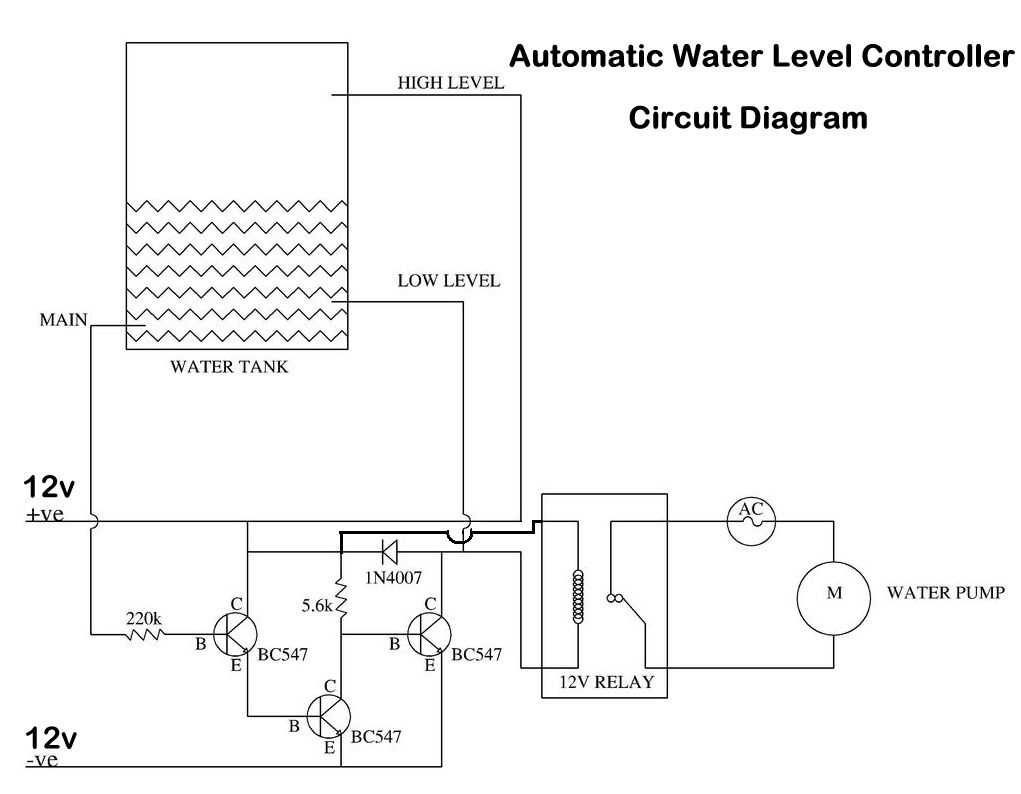

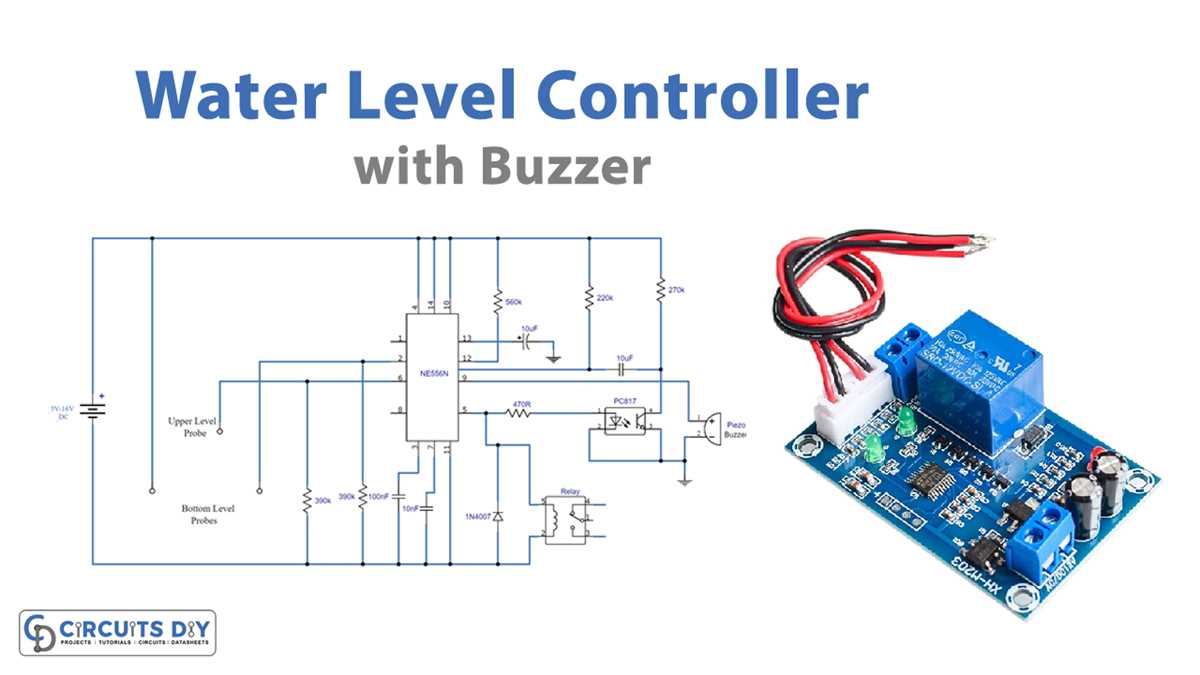

Automatic Tank Regulator Schematic Guide
Begin with a float switch rated for 12V DC or 220V AC, depending on power availability. Connect its common terminal to a relay coil (SPDT or DPDT) with matching voltage. Use 1N4007 diodes across the relay coil to suppress voltage spikes, protecting adjacent components from inductive kickback. Mount the switch at the desired high/low fill limits–ensure mechanical clearance of ≥5mm to prevent false triggers from turbulence.
Key Component Selection
- Relay: Choose a 5A-10A model for pumps under 500W; use a solid-state relay for silent operation in noise-sensitive environments.
- Transistor (if needed): A TIP120 Darlington handles 5A currents; base resistor 1kΩ balances sensitivity and power dissipation.
- Power Supply:Avoid cheap adapters; select a regulated 12V 1A brick with ≥1000µF smoothing capacitors to eliminate ripple.
- Sensors:Optical IR pairs or conductive probes can replace floats for corrosive liquids–use 316 stainless steel for probes.

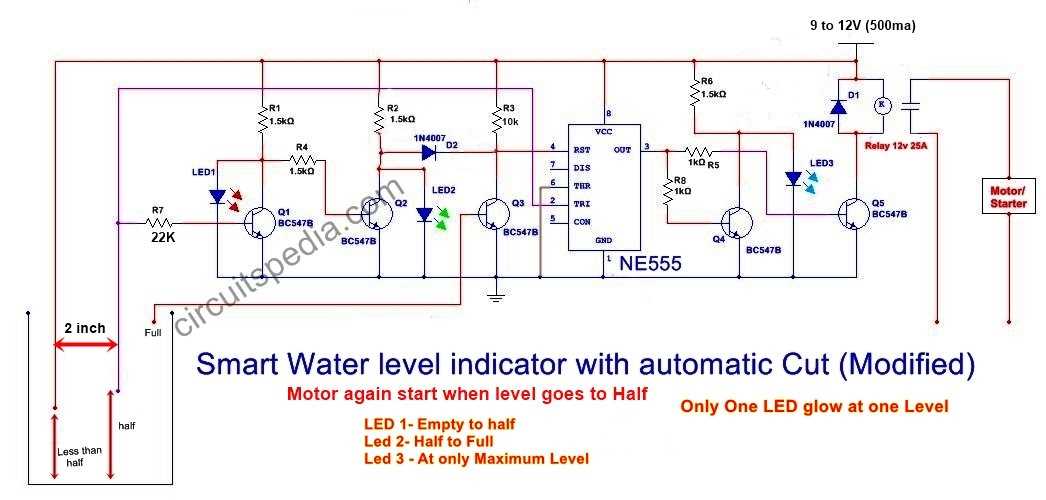

Wire the relay contacts in NO/NC configuration: active high to start the motor when liquid falls below the lower threshold, and low to halt filling at the top limit. Include a push-to-test switch bypassing the high sensor to verify pump functionality. Secure all connections with heat-shrink tubing (not electrical tape) for moisture resistance. Test with a multimeter in continuity mode before connecting the pump–erroneous wiring risks burnout or overflow.
Essential Parts for an Automated Reservoir Management System
Begin with a float switch–opt for models like the Honeywell LLE or Omron 61F with a 10A rating for reliable liquid detection. These must be paired with a 5V relay module (Songle SRD-05VDC-SL-C) to isolate low-voltage sensor signals from high-power pump loads. Include a 12V submersible pump (DC diaphragm type, max 2A draw) or a centrifugal AC unit for larger tanks, ensuring the relay’s contact rating exceeds the pump’s current by 30% to prevent overheating.
Microcontroller choice depends on application: for basic setups, an Arduino Nano (Atmega328P) suffices, while industrial uses demand an STM32 (Blue Pill) or Raspberry Pi Pico for faster analog input processing. Add optocouplers (PC817 or MOC3021) if interfacing with AC components to eliminate noise. For power, use a regulated 5V/1A supply (LM7805) or a buck converter (LM2596) for efficiency, paired with 1N4007 diodes to protect against reverse polarity. Include 10kΩ pull-down resistors for sensor inputs to avoid floating states.
Enclosure and miscellaneous: a waterproof junction box (IP66-rated) houses components, with silicone-sealed cable glands for entry points. Use 22AWG stranded wire for sensor connections and 18AWG for pump lines. Mount terminal blocks (Phoenix Contact UK 5-HESI) for secure, modular connections. Test continuity with a multimeter before deployment–focus on relay contacts and pump terminals to confirm resistance under load doesn’t exceed 0.5Ω.
Step-by-Step Assembly of Fluid Detection Electrodes
Begin by selecting two 6mm stainless steel rods, each 15–20cm long, ensuring they’re free of coatings or oxidation. Cut insulating sleeves–heat-shrink tubing or silicone–to 3cm shorter than the rods, leaving exposed tips for conductivity. Secure one end of each rod to a 22AWG stranded copper wire using a soldering iron at 350°C; apply rosin flux first to prevent cold joints. Slide the sleeves over the connections, then heat with a heat gun until snug. Test resistance between the wire and rod–values should read <1Ω to confirm conductivity.
Positioning and Environmental Sealing
Mount the probes vertically in the storage vessel, spacing them 5–7cm apart–align the lower tip of one probe with the minimum fill threshold, the other with the maximum. For corrosive environments, encapsulate wire junctions in epoxy resin (e.g., 3M Scotch-Weld DP420) and allow 12 hours to cure. Verify probe alignment by filling the vessel incrementally; expected behavior: the lower probe triggers at 30% capacity, the upper at 90%, with hysteresis preventing relay chatter.
Connecting the Relay and Motor in the Automation Setup
Start by identifying the relay’s coil terminals: these typically accept 5V, 12V, or 24V DC signals from the logic board. The common (COM) and normally open (NO) contacts will switch the motor’s power line. Use a multimeter in continuity mode to verify the relay’s pinout–miswiring risks shorting the output stage.
- 12VDC relays require a flyback diode (1N4007) across the coil to suppress voltage spikes.
- For AC motors, ensure the relay’s contact rating exceeds the motor’s locked-rotor current by 20-30%.
- Solid-state relays need heatsinks if switching loads above 2A.
Route the motor’s live wire through the relay’s COM-NO path. Use 16AWG stranded copper wire for currents up to 10A; upgrade to 12AWG for heavier loads. Secure connections with insulated crimp terminals or solder, then cover with adhesive-lined heat shrink tubing to prevent corrosion or vibration-induced loosening.
Ground the motor’s casing directly to the power supply’s earth terminal–never through the relay. Test the relay’s operation with a 9V battery before integrating it with the logic module; listen for a sharp clicking noise indicating proper engagement. If the relay chatters, check for insufficient coil voltage or a faulty switch.
- Label all wires before disconnecting existing components to trace circuits later.
- Bench-test the motor separately with a 12V bench supply to confirm direction and runtime.
- Measure the relay’s coil resistance (typically 50–200Ω); values outside this range suggest damage.
For three-phase pumps, use a contactor with a 24VAC coil instead of a relay. Wire the control signal from the automation unit to the contactor’s auxiliary contact, then route the main power lines through the contactor’s line and load terminals. Include overload protection rated at 115% of the pump’s full-load current.
Fine-Tuning Sensor Triggers for Optimal Reservoir Management
Set the lower activation point at least 5 cm above the tank’s base to prevent sediment interference. This clearance ensures debris–common in sump pits or storage containers–doesn’t falsely trigger refill cycles. For cylindrical vessels, calculate volume using V = πr²h, where h represents the 5 cm buffer; adjust sensors to activate only after this zone empties.
For conductive probes, calibrate resistance thresholds using saline solutions: 3.5% sodium chloride mimics typical impurities. Test sensor pairs at 3 cm spacing–record voltage drops across the range (table below). Use a trimmer potentiometer (10 kΩ) to dial in the precise trigger point, avoiding false positives from condensation or minor flow turbulence.
| Solution Conductivity (µS/cm) | Voltage Drop (V) at 5V Supply | Recommended Trigger (V) |
|---|---|---|
| 500 | 4.2 | 3.8–4.0 |
| 2,000 | 3.1 | 2.6–2.8 |
| 10,000 | 1.8 | 1.4–1.6 |
Hysteresis gaps prevent relay chatter. For capacitive sensors, set the “fill stop” point 2–3 cm above the “start refill” trigger. This lag compensates for pump inertia–particularly critical in ¼ HP motors where startup delay reaches 1.2 seconds. Use a Schmitt trigger IC (e.g., 74HC14) to enforce a 200 mV deadband between activation states.
Pressure switches offer an alternative for sealed systems. Configure the cut-in point at 0.15 bar (≈1.5 m head) and cut-out at 0.25 bar (≈2.5 m). Install a snubber (R-C pair: 100 Ω + 10 µF) across switch contacts to quell contact arcing–standard in mains-powered pumps rated above 500 W.
Floating ball mechanisms demand mechanical tuning. Align the lower magnet 10 cm from the tank’s inlet pipe; position the upper magnet 5 cm below the outlet orifice. This spacing ensures the supply halts before overflow risks emerge. For polyethylene tanks, use neodymium magnets (N42 grade); weaker variants fail under buoyant forces in densities exceeding 1 kg/L.
Ultrasonic modules (e.g., HC-SR04) require temperature compensation. At 40°C, sound velocity increases by 2.3 m/s–affecting distance calculations. Embed a DS18B20 sensor; apply the correction factor d = 0.0343 × √(T + 273) × t/2, where T is ambient °C and t is echo time in microseconds. Mount the module horizontally to avoid false echoes from sidewall reflections.
Optical liquid detection pairs (IR emitter + phototransistor) demand alignment within 2 mm. Misalignment causes false triggers due to ambient light interference. For opaque tanks, drill a 5 mm hole; fit a threaded collar to hold the sensor flush. Use a 38 kHz modulated signal to ignore steady-state infrared sources like direct sunlight.
Relay selection hinges on pump load. For submersible pumps drawing 8 A at 230 V, spec a 10 A SPDT relay (coil: 12 VDC, 40 mA). Avoid solid-state relays–they introduce voltage drop, starving induction motors. Instead, use a flyback diode (1N4007) across the coil to suppress back-EMF, extending contact life beyond 100,000 cycles.
