Begin by disconnecting the power supply at the mains before accessing any internal components. Verify absence of voltage using a multimeter across the input terminals–failure to do so risks fatal electric shock or damage to the device.
Identify the thermostat’s two primary connections: the reset switch (typically a red button) and the temperature control (a dial or screw adjustment). These regulate current flow to the resistance element. For safety, ensure the thermostat’s calibration matches manufacturer specifications–usually 120°C for standard models–before reassembly.
Trace the power feed from the breaker panel to the unit: a dedicated 20-amp circuit (for 120V variants) or 30-amp double-pole breaker (for 240V systems). Securely fasten 12-gauge copper wiring (or 10-gauge for higher loads) to prevent overheating. Label each conductor–black for hot, white for neutral (if present), and green or bare copper for ground.
Examine the heating coil’s wiring harness: two terminals for single-element configurations, four for dual-element models. High-wattage units (4500W+) require direct coupling to a junction box with wire nuts rated for 90°C. Avoid splices within insulated cavities–heat buildup accelerates wire degradation.
For digital control thermostats, reference the specific pinout in the manufacturer’s datasheet. Miswiring a 4-to-10mA signal loop can trigger erratic shutdowns or overheat conditions. Ensure firmware compatibility if integrating smart controllers–some aftermarket boards require voltage dividers to match resistive loads.
Grounding is non-negotiable. Connect the green or bare wire to the metallic tank’s grounding lug, then run a continuous path back to the service panel’s ground busbar. Use a torque screwdriver to tighten connections to 20 lb-in–loose terminals cause arcing, a leading failure point.
After assembly, energize the system and monitor for 30 minutes. Check for voltage drop across the element terminals (should match input voltage), and verify thermostat cycling aligns with set temperature. Abnormal readings indicate incorrect wiring or faulty components–retest before declaring readiness.
Electrical Schematic for Domestic Hot Supply Systems
Begin by installing a double-pole circuit breaker rated for 30 amperes at 240 volts directly into your service panel. This ensures adequate power delivery while maintaining safety for high-demand appliances. Label the breaker clearly to prevent accidental tripping during maintenance.
Use 10-gauge copper wiring with THHN insulation for the entire run from the breaker to the thermostat and heating element connections. Avoid aluminum conductors due to higher resistance and potential corrosion risks in moist environments. Secure all cable runs with staples every 4.5 feet and within 12 inches of any junction box.
Mount a surface-mounted junction box near the storage tank to house the thermostat and high-limit control switch. Position it at least 5 feet above floor level to comply with NEC Article 422 for appliance accessibility. Ensure the box has a minimum cubic inch capacity of 21.5 for accommodating two 10-gauge conductors plus grounds.

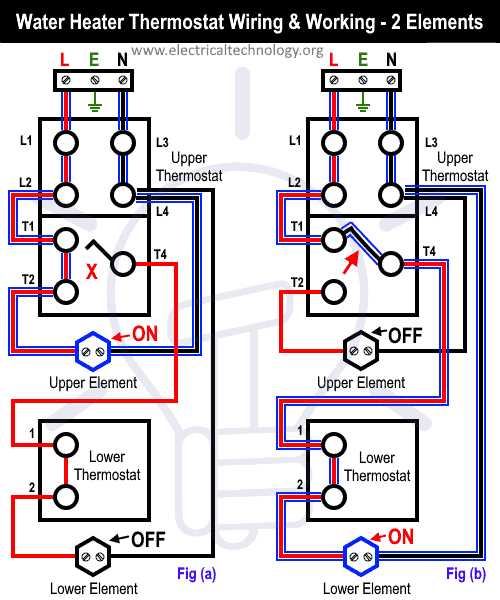

Connect the upper and lower heating elements in parallel, not series. This configuration allows independent operation when demand fluctuates. Wire the upper thermostat to the top element first, followed by the lower control to the bottom element. Verify correct polarity–connect black (hot) wires to brass terminals and white (neutral return) wires to silver terminals.
Critical Safety Components
Integrate a high-limit cutoff switch rated for 150°F (65°C) between the thermostat and upper element. This prevents overheating if the primary control fails. Install a separate ground wire from the tank’s metal casing to the service panel’s grounding bus bar–never rely on metallic water pipes for grounding.
Add a 125V, 20-amp dedicated GFCI outlet adjacent to the junction box. This provides power for pumps, recirculation systems, or future expansions without overloading the main circuit. Use weatherproof covers if installed in damp locations.
Test continuity across all connections using a multimeter before energizing the system. Check for voltage drop–acceptable readings should remain within 5% of 240V under load. If measurements exceed this threshold, inspect connections for loose terminals or corroded contacts.
Periodically inspect the anode rod every six months. Corrosion here protects the tank’s internal lining, extending operational lifespan. Replace the rod when 70% of its diameter shows degradation. Keep spare 10-gauge wire, thermostats, and elements on hand for rapid repairs.
Core Elements of a Typical Boiler Electrical Configuration
Ensure a dedicated 240-volt branch line with a minimum 10-gauge copper conductor for the heating appliance, fused with a double-pole 30-amp breaker. This isolates the unit from lighter circuits, preventing voltage drop that degrades performance and risks premature failure of thermostats or elements. Verify local codes–some regions mandate 8-gauge wire for prolonged draw exceeding 28 amps. Connect the neutral terminal solely if the design includes a powered mixing valve; otherwise, cap it and leave it floating to avoid unintended return paths.
Select thermostats rated for the specific wattage–most residential units require 5,500-watt elements, but commercial variants can demand 7,500 watts–ensure caps match the amperage: 150°C for 30-amp service, 200°C for 45-amp. Install high-limit switches as fail-safes, configured 10°F above the operational set point; these cut power if the primary control malfunctions, averting tank rupture. Ground the chassis via a green 10-gauge conductor directly to the main panel–never splice into conduit or rely on metal straps alone.
Route conductors through liquid-tight flexible conduit if exposed to moisture; rigid PVC Schedule 40 suffices indoors but replace it every five years in corrosive environments like basements. Label all wires at both ends and inside junction boxes with heat-resistant tags–standard tape melts at 180°F. Test continuity with a multimeter after installation: resistance across elements should read 10–16 ohms for 240V; readings outside this range indicate short circuits or open coils requiring immediate replacement.
How to Interpret an Electrical Schematic for Residential Hot Supply Units
Start by locating the power source lines–typically marked as L1 and L2 on industrial schematics or live and neutral on residential layouts. Verify the voltage rating next to these connections; most tank-based systems operate at 240V in North America, while European models often use 230V. Identify the double-pole breaker if present–this ensures both legs of the supply are disconnected during maintenance. Missing this detail risks incomplete isolation, leaving active current in segments of the wiring.
Trace the thermostat wires from the tank’s upper and lower control assemblies. The upper element usually has a red wire looping back to the thermostat, while the lower connects via a separate path. Look for temperature cutoff switches–often a small disc labeled “ECO” (Energy Cut-Off)–mounted on the tank’s side. This safety device interrupts current if internal temperatures exceed 190°F (88°C), preventing overheating. Confirm its status before proceeding, as a tripped ECO requires manual reset.
Key Components to Verify
Examine the heating elements: check for labels indicating wattage–common ratings include 3500W, 4500W, or 5500W. Higher wattage units demand thicker gauge wiring (typically 10 AWG for 30A circuits). Locate the pressure relief valve’s wiring, if integrated–some models include an alarm wire connected to a warning light or buzzer. Ignore decorative arrows or manufacturer logos; focus on symbols representing resistors (elements), switches (thermostats), and fuses (overcurrent protection).
Cross-reference the schematic with the physical layout using a multimeter. Set it to continuity mode and probe the terminals of each thermostat while adjusting the dial–audible beeps confirm proper operation. For elements, measure resistance across terminals: a reading between 10-20 ohms suggests functionality, while infinite resistance indicates a failed component. Document each step to avoid retracing identical paths, especially in systems with redundant high-limit switches.
Identify the grounding path–look for a green or bare copper wire leading from the tank’s chassis to the breaker panel or a designated ground bus. This critical safety feature diverts stray current during faults. In diagrams, grounding is often depicted as a dashed line or a symbol resembling an inverted “T” with three horizontal lines. Ensure the schematic matches local electrical codes; for example, NEC requires a separate grounding conductor in newer installations, while older systems might rely on conduit or metal piping as a return path.
Finalize by isolating individual segments of the layout. Test the upper and lower thermostats independently by simulating temperature changes–use a heat gun or infrared thermometer to raise the tank’s surface temperature incrementally. Observe the schematic’s predicted behavior: the upper thermostat should prioritize activation before the lower one engages. Discrepancies here suggest miswiring or a faulty control. Label wires with numbered tags during disassembly to ensure correct reassembly, as mismatched connections can damage components or create hazardous conditions.
