Begin by disconnecting the power at the circuit breaker before examining any internal connections. Most modern laundry devices operate on a 220-240V supply with a dedicated 15-20A circuit, requiring a double-pole breaker. Locate the terminal block–typically positioned at the rear base–where live (L), neutral (N), and earth (E) wires converge. Verify color coding: brown or red for live, blue or black for neutral, and green/yellow for earth. If colors deviate, cross-reference with the manufacturer’s manual to avoid misconnections.
Trace the main power cable from the wall outlet to the appliance’s internal control board. The live wire should first pass through a thermal fuse (rated ~250°C) or a suppressor, then split into branches feeding the motor, heating element, and timer. Use a multimeter to test continuity across these components–resistance values should read 20-50 ohms for the motor and 25-60 ohms for the heater. Deviations indicate faulty parts requiring replacement.
Inspect the door interlock switch: when engaged, it must complete the circuit to allow operation. Bypass testing (temporarily jumpering the contacts) confirms functionality but always restore safety mechanisms afterward. For electronic models, note the control module’s connection to a small transformer (12-24V output), which powers the display and sensors. If the unit fails to start, check for 240V at the transformer input and 12V at its output.
Grounding integrity is non-negotiable–ensure the earth wire connects directly to the chassis and not through intermediary connectors. Loose or corroded earth terminals can cause erratic behavior or pose fire risks. Replace any degraded cables immediately, using stranded copper wire (minimum 1.5mm² cross-section) for flexibility and durability. When reassembling, secure all wiring with zip ties to prevent vibration-related chafing.

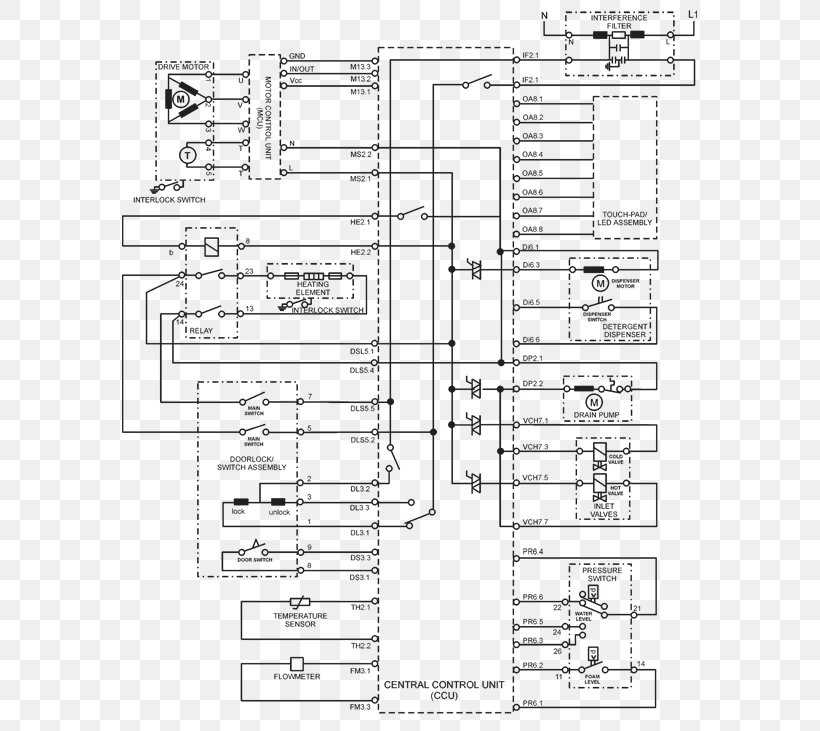

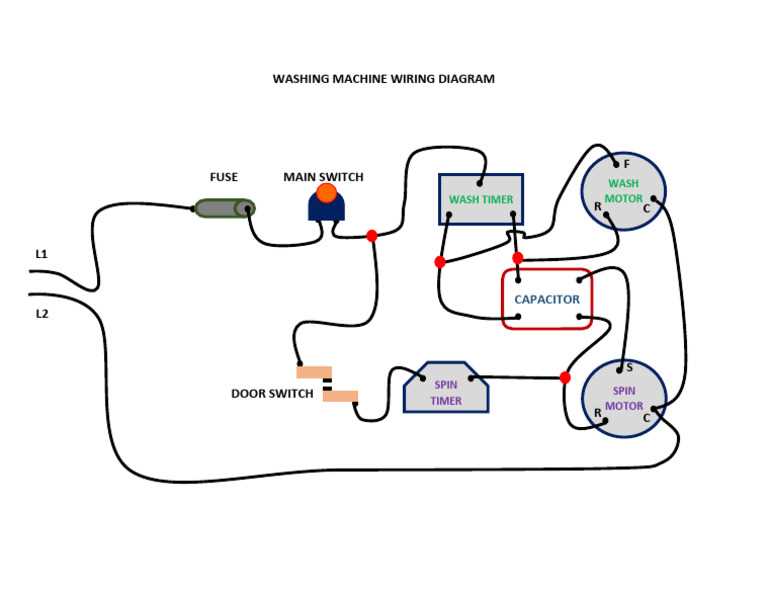

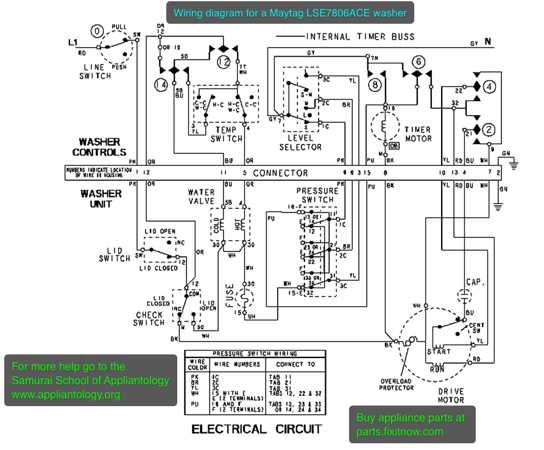

Electrical Schematic for Laundry Appliances
Disconnect power at the circuit breaker before inspecting any internal connections. Locate the terminal block–typically a white or gray plastic housing–mounted near the rear panel of the appliance. Verify the incoming supply matches local regulations: 120V/60Hz for North American models or 220-240V/50Hz for European configurations. Check the color coding of conductors: L (brown/black), N (blue/white), and PE (yellow-green). Use a multimeter set to AC voltage mode to confirm 0V across N and PE; stray voltage above 5V indicates a compromised ground.
- Inspect the motor relay (part #WH30X10051 or equivalent). Trace the control board’s signal wire–usually a thin purple or orange lead–to the relay coil. A worn relay emits a faint buzzing during spin cycles; replace if resistance exceeds 50Ω.
- Examine the door latch assembly (microswitch). A faulty switch prevents drum rotation; test continuity with probes on terminals 2 and 3 when closed–open circuit confirms failure.
- Identify the heater element (resistance ~20-60Ω). Unplug the spade connectors, then measure between terminals. Infinite resistance means an open circuit; replace per model-specific manual (e.g., LG WM3900HWA uses LG part #EBR69004701).
- Verify the pump’s impeller spins freely. Blockages trigger error E20 on Bosch units; access via front panel removal (unscrew 4 T20 bolts).
- Capacitors in the motor circuit (round or oval, ~10-20μF) degrade over time. Discharge safely with a 20kΩ resistor, then test with a capacitance meter. Tolerance: ±10%; outside range requires replacement.
Troubleshooting Sequence for Common Faults
- No power? Confirm the cord’s integrity (damaged sheath = instant discard). Test outlet with a known-working device–minimum 10A capacity required.
- Drum won’t agitate? Check the belt tension (deflection ~10mm) and rotor alignment (air gap 0.3-0.5mm for induction motors).
- Water leaks? Inspect the bellows seal (cracks = replace whole assembly) and drain hose clamps (tighten to 3 Nm torque).
- Noisy operation? Bearings fail first–remove drum pulley, strike shaft with a punch to detect play. Play >0.2mm mandates bearing kit installation (e.g., SKF 6204-2RS1).
- Overheating? Clean the condenser coils (front grille removal) and ensure ventilation clearance (minimum 50mm).
Core Elements in an Appliance Electrical System
Prioritize the motor as the primary power consumer in the circuit; its label typically specifies 200–500W for standard drum rotation and up to 800W for high-efficiency models. Verify the motor’s capacitor – a cylindrical component (usually 8–25µF) – which ensures smooth startup by providing phase shifts; failure here manifests as humming without rotation.
Locate the timer switch – often a rotary or digital control module – coordinating every cycle’s duration, water levels, and heating sequences. Test continuity across its contacts using a multimeter at each program setting; inconsistencies indicate corrosion or wear, necessitating replacement before sporadic operation damages other parts.
Heating elements demand attention: a 1800–2500W resistor submerged in the tub raises water temperature during specific phases. Measure resistance (approximately 20–50Ω cold); infinite readings signal burnout, while deviations suggest scaling or insulation failure. Disconnect power before probing to avoid electrocution.
The door interlock – a microswitch paired with a solenoid – prevents operation when the hatch is open. Bypass tests risk severe injury; instead, toggle the switch manually while observing for a distinct “click” and confirming voltage drop from live to neutral terminals during latch engagement.
Water level sensors – pressure switches utilizing a small diaphragm chamber – regulate fill cycles. Blow gently into the attached tubing while cycling through settings; audible clicks should align with each programmed level. Absence of response points to blocked tubing or a defective switch, leading to overfilling.
Relays and triacs manage high-current loads like pumps and heaters, typically rated for 10–16A at 230VAC. Inspect their solder joints for thermal stress cracks and verify control signals with an oscilloscope; erratic gate pulses accelerate wear on connected loads.
Thermal fuses act as fail-safes, interrupting power if temperatures exceed safe limits (usually 90–120°C). Mounted near the heater or motor, these one-time devices require testing by temporary shorting or replacement – never assume continuity. Neglected failures here can ignite lint or wiring insulation.
Control boards integrate signals from all sensors, dictating logic sequences via microcontrollers or discrete ICs. Diagnose by checking DC voltages at key pins (typically 5V or 12V) relative to ground; frozen displays or unresponsive buttons often trace back to swollen capacitors or oxidized solder pads on these boards.
Step-by-Step Guide to Decoding Electrical Schematics for Appliances
Locate the main power input at the top or left side of the schematic–this is where the live, neutral, and ground connections enter the system. Identify symbols marked L (line/hot), N (neutral), and a ground icon (⏚) to trace the primary circuit path. Use a multimeter set to continuity mode to verify connections between components if labels are unclear.
Follow colored lines to distinguish functional groups: red typically indicates active current flow, black or blue denotes neutral, while yellow/green stripes always mark safety grounds. Cross-reference the legend if colors deviate from standard conventions–some European schematics swap blue for neutral and brown for live. Create a quick reference chart for consistency:
| Color | Typical Function | Example Component |
|---|---|---|
| Red | Live/Active | Motor winding |
| Black/Blue | Neutral | Timer relay coil |
| Yellow/Green | Ground | Chassis connection |
Break the schematic into segments: power supply, motor assembly, control panel, and auxiliary circuits. Label each section with sticky notes or digital markers. Start with the power supply–check for fuses (depicted as a rectangle with a line through it) and thermal cutoffs (often shown as a bimetallic strip symbol). Measure resistance across these components; a blown fuse reads OL (open loop), while an intact one should show near 0 ohms.
Tracing Control Signals
Pinpoint the central processing unit (CPU) or timer module, usually represented by a square or rectangular block with multiple terminals. Count the pins from left to right or top to bottom as labeled (e.g., T1, T2, T3). Use a logic probe to test signal pulses–steady high/low indicates proper operation, while flickering suggests faulty connections. For electromechanical timers, observe the rotating disc symbols; each contact should close sequentially.
Examine sensor inputs (water level, door lock) as circular or diamond-shaped symbols connected to the control board. Water level switches often appear as two triangles facing each other, while door locks use a latch symbol. Test these with a multimeter in resistance mode: a closed door lock should read 0 ohms, an open switch shows infinite resistance. Replace any sensors reading outside tolerance (typically ±5% of expected values).
Verify output loads–motors, valves, and heaters–by tracing thick lines from the control module. Motors usually show as a coil with three terminals for start/run windings and a common. Measure across windings: identical resistance between terminals confirms functionality, while uneven readings indicate shorted coils. For 220V systems, expect 10-30 ohms across heaters; zero or infinite resistance means replacement is needed.
