Start by locating the battery terminals on your vehicle–typically a 12V system on most quad bikes. Use 8-gauge copper cables for optimal conductivity; thinner wires risk voltage drop under heavy loads. Secure connections with marine-grade crimp terminals to prevent corrosion from mud, water, or salt exposure.
Mount the solenoid relay within 30 cm of the battery to minimize resistance. Connect the relay’s positive input to the battery’s positive post via a 40-amp fuse–this protects against short circuits during high-torque operations. Ground the relay’s negative terminal directly to the vehicle’s frame using a minimum 6 AWG cable; avoid relying on painted or rusted surfaces.
Route the control wires (usually a 2-wire setup) through a weatherproof switch mounted on the handlebar or dashboard. Use silicone-jacketed wire rated for at least 105°C to withstand engine heat and UV exposure. Test the circuit with a multimeter before first use–voltage at the motor should read within 0.5V of the battery’s output; lower readings indicate poor connections.
For dual-battery setups, install a splitter diode to isolate auxiliary power sources. Ensure all splices are soldered and sealed with heat-shrink tubing containing adhesive liner–regular electrical tape will degrade under off-road conditions. Label each wire at both ends for future maintenance.
When towing loads exceeding 1,500 lbs, disengage the system immediately if the motor draws more than 250 amps continuously–this signals mechanical binding or a failing gearbox. Replace worn brushes every 50 operational hours if used in sandy or muddy environments. Store spare parts, including a 100-amp circuit breaker, in a sealed container on the vehicle.
Power Pull System Electrical Layout for Off-Road Vehicles
Connect the control solenoid’s positive terminal to a 30-amp circuit breaker mounted within 18 inches of the battery’s positive post; this prevents voltage drop during heavy-load recovery operations. Label each lead with heat-shrink tubing printed in 3 mm uppercase letters matching the legend on the vehicle’s service manual–yellow for battery input, red for motor output, blue for accessory, and black for ground.
Route all cables through a convoluted polyethylene conduit secured every 6 inches with stainless steel Adel clamps, avoiding sharp edges or components exceeding 120 °C, like exhaust headers or radiator tanks. If crossing a chassis member, drill a 1/4-inch hole, deburr, prime with zinc-based corrosion inhibitor, and install a nylon grommet to prevent chafing regardless of terrain vibration.
| Wire Gauge | Max Current Draw (A) | Recommended Length (ft) |
|---|---|---|
| 6 AWG | 60 | <12 |
| 8 AWG | 45 | 12–20 |
| 10 AWG | 30 | 20–30 |
Splice connections must use hydraulic crimp terminals rated for 150 % of nominal load–never solder alone; solder can fatigue under off-road impacts. Verify crimp integrity with a pull test of 20 pounds for 10 seconds; if the joint shifts, re-crimp and re-test. Apply dielectric grease to each connector before assembly, then seal with adhesive-lined heat-shrink tubing rated for SAE J1128 low-temperature flexibility down to -40 °C.
Install a dual-pole momentary rocker switch with a 20-amp illumination bulb inside a waterproof NEMA 4X enclosure mounted on the handlebar riser; orient the throw direction so “up” corresponds to “pull” regardless of rider position. Wire the switch’s common terminal to the solenoid’s trigger post, the normally open terminal to the positive battery feed through a 15-amp fuse, and the normally closed terminal directly to the battery’s negative post–this creates an instant emergency cutoff when released.
After final assembly, apply 12.6 VDC to the system and measure voltage drop across each connection point using a True RMS multimeter set to mV scale; any reading above 50 mV indicates an unacceptable resistance requiring immediate rework. Perform a dynamic load test by spooling 50 feet of 3/8-inch synthetic rope at full extension; recover a static load equivalent to 150 % of the vehicle’s gross weight–motor temperature should stabilize below 75 °C within 90 seconds.
Ground the system through a dedicated 8 AWG lead bolted to a bare chassis spot cleaned with a wire wheel and treated with conductive anti-oxidant compound; do not rely on the battery’s negative post as a single ground return, as galvanic corrosion on aluminum frames can increase resistance over time. Keep a spare 30-amp fuse and a 1-meter length of 6 AWG cable in the toolkit for field repairs.
Locating Critical Parts in Off-Road Vehicle Pulling Gear Electrical Schematics

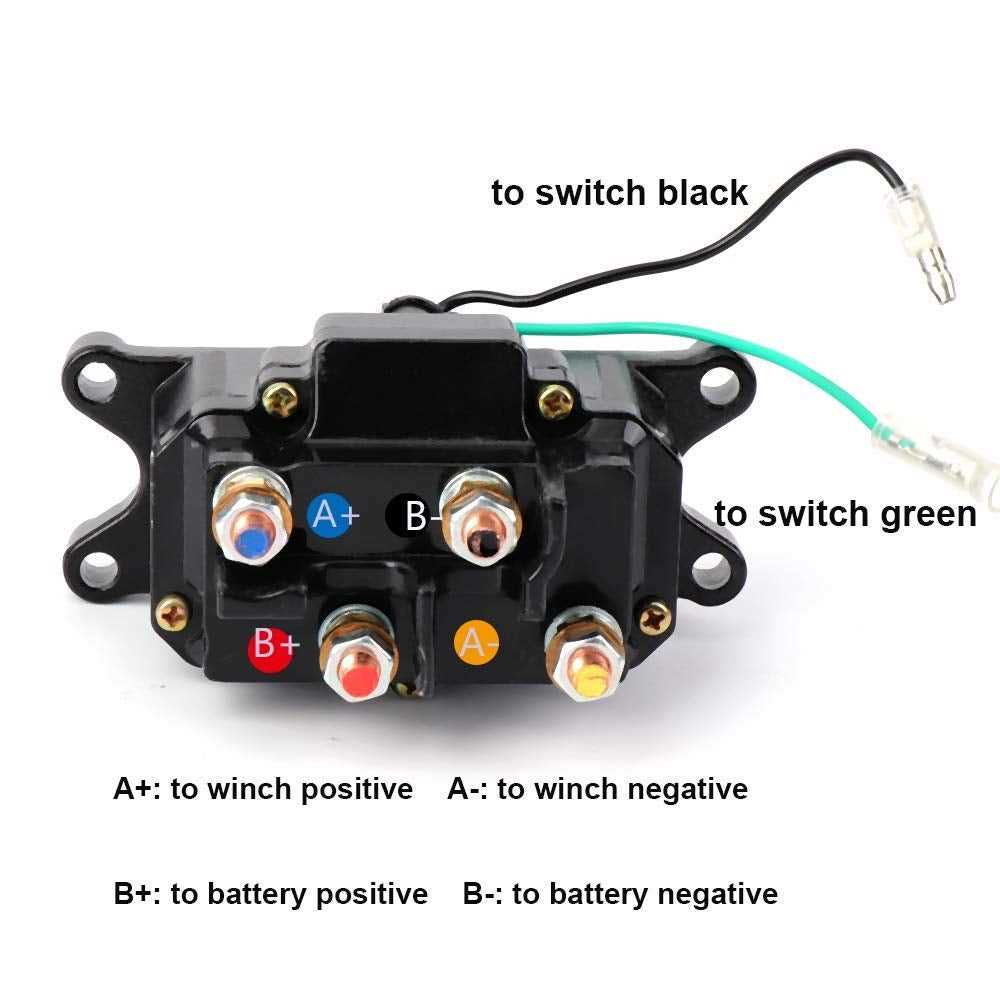

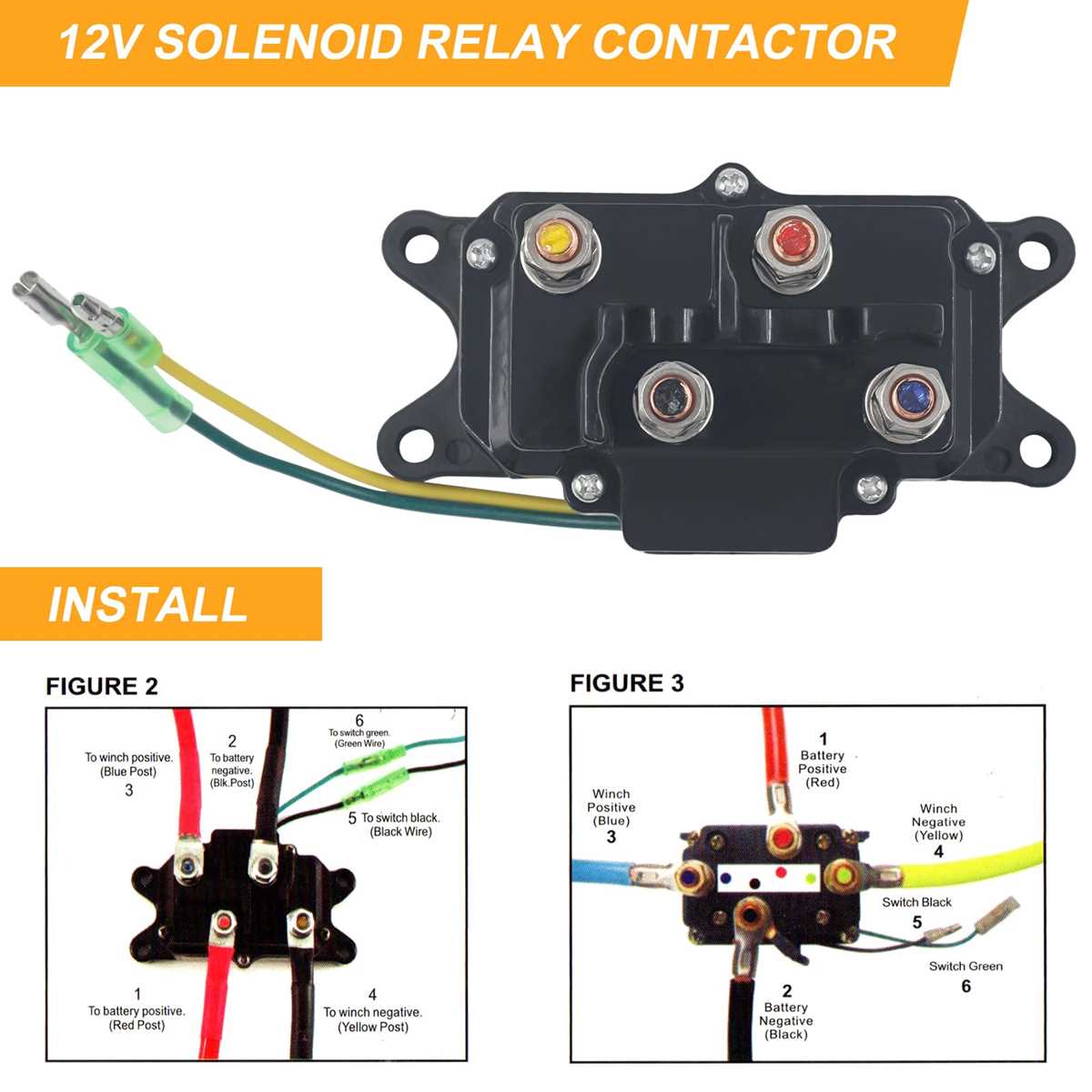

Start by isolating the solenoid assembly–typically a rectangular or cylindrical unit mounted near the motor. This component acts as the nerve center, directing current flow to engage the drum. Verify its terminals match the color codes: red for battery input, black for ground, and smaller yellow or blue leads for control signals. Corrosion on terminals causes intermittent failures; clean with a wire brush and apply dielectric grease during reassembly.
Examine the motor unit for magnetic interference patterns on the casing–signs of overheating or gear wear. Pulling devices rated above 3,000 lbs often include a thermal cutoff switch embedded in the windings; test continuity with a multimeter (resistance should read 0.5–2 ohms). If readings exceed 10 ohms, replace the motor. Never bypass this switch: doing so risks permanent gearbox damage.
- Contactors: Dual 200-amp relays handle high-amperage draws. Inspect for pitting on contact points–indicative of arcing. Replace if gaps exceed 0.3mm.
- Fuse Holder: Location varies: inline near battery, integrated into solenoid, or within dash panel. Use only time-delay fuses (e.g., 250A for 12V systems). Standard fuses will blow under normal startup loads.
- Remote Switch: Wired or wireless, verify voltage drop across terminals while activated (should be <0.2V). Higher drops signal corroded connections or undersized cables.
Trace power cables from drum to battery–routes should avoid sharp edges and exhaust manifolds. Secure looms with zip ties every 12 inches. Measure cable gauge: minimum 6 AWG for 3,000 lb units, 4 AWG for heavier loads. Smaller gauges create resistance, reducing pulling force by up to 40%. Always crimp terminals with a hydraulic press; solder alone fails under vibration.
How to Install a Recovery Gear Electrical System on Your Off-Road Vehicle
Before handling any electrical components, disconnect the battery terminals to prevent short circuits. Locate the positive and negative cables–usually marked red and black–and secure them away from the work area. Verify the voltage rating of your vehicle’s system (typically 12V for most models) to ensure compatibility with the recovery gear’s motor.
Identify the solenoid unit, often a small rectangular box with four terminals labeled A, F, B, and S. Terminal A connects to the battery’s positive lead, F to the motor’s field coil, B to the motor’s brushes, and S to the control switch. Use a multimeter set to continuity mode to confirm each terminal’s function–touch probes to A and F first; if the meter beeps, proceed to the next step. If not, check for loose connections or corrosion.
Mount the control switch within easy reach, preferably on the handlebar or dashboard. Route the wiring harness from the solenoid to the switch, using grommets or conduit to protect cables from abrasion. Strip ¼ inch of insulation from each wire end and crimp terminal connectors–match colors to the solenoid’s labels (e.g., green to S, blue to B). Avoid soldering unless necessary; crimped connections are less prone to failure under vibration.
Connect the battery cables last. Attach the positive lead to terminal A using a 4-6 gauge wire, securing it with a ring terminal tightened to 8-10 ft-lbs. The negative lead should ground directly to the vehicle’s chassis near the motor housing, using a clean, unpainted surface for optimal conductivity. If the gear includes a wireless remote, pair it now–most systems require holding the “up” and “down” buttons for 3 seconds until the LED flashes.
- Test the motor without load first: Engage the switch briefly to ensure the drum spins freely in both directions. If it hesitates or hums, check for voltage drops (use 12V at the solenoid terminals as a baseline).
- Lubricate the cable with dry graphite spray to reduce friction; avoid grease, which attracts dirt.
- Adjust the clutch to free-spool mode before winching; re-engage fully to prevent cable slippage during operation.
After installation, cycle the gear under light load (e.g., pulling 50 lbs) for 30 seconds to seat the cable evenly on the drum. Inspect all connections for heat or sparking–address loose terminals immediately. Store the remote in a waterproof pouch and keep spare fuses (20-30A) in the glovebox. For frequent users, add a secondary fuse block between the battery and solenoid to isolate high-current draws.
Key Errors During Off-Road Recovery Gear Installation and Prevention
Using undersized cables for power connections leads to voltage drops and overheating. Select wiring with a cross-section of at least 6 AWG for setups pulling up to 3,500 lbs. Thicker cables (4 AWG) handle heavier loads without resistance buildup. Always measure cable length precisely–excess slack increases resistance. Crimp connectors securely and solder joints to prevent corrosion.
Failing to fuse the circuit near the battery causes fire hazards. Install a fuse holder within 7 inches of the battery terminal, sized 10-15% above the device’s maximum current draw. For a 12V system drawing 200A, use a 225A fuse. Avoid glass fuses; opt for ANL or MIDI blade types for better vibration resistance in rough terrain.
Improper grounding creates unreliable operation and electrical noise. Attach the negative lead to a clean, bare metal point on the frame, away from painted surfaces or zinc coatings. Sand the contact area to bare metal and apply dielectric grease to prevent oxidation. Test continuity with a multimeter–resistance should read below 0.5 ohms.
Ignoring solenoid mounting location exposes it to moisture and debris. Position the control box above the axle level, angled downward to prevent water ingress. Use sealed connectors and apply silicone sealant around wire entries. For vented solenoids, face the vent hole away from direct splash zones.
Skipping polarity checks during wiring risks damaging the control module. Label wires before disconnecting the battery. Use a 12V test light to confirm positive and negative terminals–reverse polarity instantly fries sensitive electronics. Double-check with a multimeter in DC voltage mode (20V range) after installation.
Overtightening battery terminals damages posts and reduces conductivity. Torque to 8-10 ft-lbs; use a torque wrench for precision. Apply anti-corrosion spray or petroleum jelly after tightening. Inspect terminals every 50 hours of operation–corrosion increases resistance by up to 30%.
Using zip ties alone to secure wiring invites chafing and shorts. Route cables through protective sleeves and clamp them every 6 inches with adhesive-backed mounts. Avoid sharp edges–rubber grommets prevent wire abrasion. Test pull strength by yanking each wire firmly; loose connections vibrate free during trail rides.
