Begin with a three-phase inverter bridge using IGBT or MOSFET switches rated for 1200V and 50A minimum to handle industrial loads up to 22kW. Place a DC bus capacitor of 2200μF per kilowatt directly across the inverter inputs to suppress voltage spikes and maintain stability during transient switching. Ensure the gate driver IC (e.g., IR2130 or similar) includes under-voltage lockout and desaturation protection to prevent shoot-through failures.
Incorporate a current sensing resistor (0.01Ω, 5W) on the negative DC rail with an isolated amplifier (like AMC1301) to monitor motor currents. Pair this with a Hall effect sensor (LEM LA 55-P) for phase current feedback, filtering outputs through a 1kHz low-pass RC network to eliminate PWM noise before feeding them to the microcontroller’s ADC.
Use a PWM generator running at 10-20kHz (e.g., STM32F407 or TI TMS320F28069) with dead-time insertion of 2-3μs between complementary signals to avoid cross-conduction. Implement closed-loop PI controllers tuned with a bandwidth of 100Hz for speed regulation and 1kHz for current limiting, adjusting gains via automatic tuning routines during startup. Store calibrated profiles in EEPROM to maintain consistency after power cycles.
Add an emergency stop circuit with a hardware relay cutting the main contactor when the DC bus exceeds 800V or motor currents exceed 2x rated value. Include a flyback diode (1N4007) across the contactor coil to dissipate stored energy safely. For protection against ground faults, insert a zero-crossing detector comparing phase voltages against a known reference point to trigger shutdown within 5μs of imbalance.
Route all high-voltage traces with 4mm clearance on the PCB and use 2oz copper for current-carrying paths. Separate analog and digital grounds at the star point near the microcontroller, connecting them only at the power supply input. Test the layout with thermal imaging under full load to identify hotspots requiring additional heatsinks or airflow.
Key Components of Variable Speed Drive Schematics
Start with a rectifier stage using three-phase diode bridges (e.g., SKD 30/12) or IGBT modules (like Infineon FF600R12ME4) for AC-DC conversion. Ensure proper snubber capacitors (0.1µF, 630V) across each diode to suppress voltage spikes. Place a pre-charge resistor (50Ω, 50W) in series with the DC bus to limit inrush current during startup, bypassed by a contactless relay (e.g., Omron G3VM-61VY1) after 200ms.
For the inverter section, pair SiC MOSFETs (Cree C3M0065100K) with gate drivers (TI UCC21520) for switching frequencies above 20kHz. Include desaturation detection via a 15V Zener diode and millisecond-scale short-circuit protection using a Hall-effect sensor (ACS712) monitoring phase currents. Use LC filters (2mH inductors + 10µF film capacitors) on output terminals to reduce PWM harmonics by 30-40%.
Critical Layout Practices
Isolate high-voltage traces from control signals with a minimum 5mm creepage distance; use 2oz copper for DC bus bars to handle loads >50A. Ground the EMI filter (e.g., Schaffner FN2090) directly to the chassis at the point of entry, not through the PCB. Place TVS diodes (SMBJ170CA) across all power terminals to clamp transients to 180V. Add a watchdog IC (STM32F030 with independent oscillator) to reset the firmware if pulse timing exceeds 1.2x nominal period.
Critical Elements in Variable Speed Drive Wiring Layouts
Prioritize a high-quality rectifier bridge for consistent DC bus voltage stability. Low-cost components risk harmonic distortion exceeding 5% THD, degrading motor efficiency by 8-12%. Opt for ultrafast recovery diodes (trr ≤ 50ns) or thyristors with dynamic blocking capabilities. Ensure reverse voltage ratings exceed peak AC input by 40% minimum to prevent avalanche breakdown during transients.
Integrate a precision gate driver IC with isolated outputs exceeding 2.5kVrms for IGBT protection. Avoid obsolete optocouplers with propagation delays >1μs–modern Si827x or ADuM422x series reduce turn-on/off times to sub-100ns, cutting switching losses by 30%. Verify creepage distances meet IEC 60664-1 for pollution degree 2 environments (minimum 4mm for 400V systems).
Select DC link capacitors with ripple current ratings ≥1.5× calculated RMS current. Metallized polypropylene film types offer 3× longer lifespan than electrolytics in 60°C+ ambient conditions. Incorporate balancing resistors for series-connected banks to prevent voltage imbalance exceeding 1.5%. Snubber networks (RC values: R=3-5Ω, C=0.1-0.47μF) across each semiconductor device suppress voltage spikes >1.3× nominal during commutation.
Implement a shunt resistor or isolated Hall effect sensor (e.g., Allegro ACS730) for torque-limiting feedback. Accuracy must stay within ±0.5% FS to prevent overload trips below 110% rated current. Avoid wirewound resistors in high-frequency paths–their inductance creates 12-18μH/cm parasitic effects, distorting feedback signals above 1kHz.
Configure PWM generation via dedicated MCU ports with dead-time insertion ≤2μs. STM32G4 or dsPIC33CH series eliminate external dead-time ICs, reducing BOM costs by 20%. Ensure switching frequency stays 8-16kHz for ≤15kW drives; above this threshold, IGBT losses increase exponentially (testing shows 35% rise at 20kHz vs. 10kHz).
Ground interference filters (differential: X-cap 0.22μF/275Vac, common-mode: Y-cap 2.2nF/400Vdc) at both input and output stages slash EMI compliance test failures by 60%. Use ferrite beads (1kΩ@100MHz) on signal lines to block HF noise coupling. Mount sensitive analog traces >3mm from high-current paths to prevent capacitive coupling (observed ≤40mVpp spikes in unshielded layouts).
Step-by-Step Assembly of a Variable Speed Drive Logic Panel
Begin by securing a 96 x 96 mm aluminum enclosure with 1.5 mm wall thickness–opt for M3 tapped holes at 8 mm depth for mounting components. Lay out the following parts in sequence: a 4-layer FR-4 PCB (1.6 mm, 1 oz copper), three TO-220 MOSFETs (IRFP460N), a 35 V 1000 µF capacitor (low-ESR), and a 12 V 1 A isolated DC-DC converter (Traco TMA 1210). Solder the MOSFETs first, ensuring the tab aligns with the PCB thermal via array–use a 1 mm solder blob per via to improve heat dissipation. Position the gate resistors (22 Ω, 1/4 W) within 5 mm of the MOSFET leads to minimize switching noise.
Critical Connections and Testing
| Component | Pin/Wire | Solder Point | Torque/Tool |
|---|---|---|---|
| DC-DC Converter | Vin (+12 V) | Terminal block (0.5 mm²) | 0.4 Nm, 2.0 mm hex |
| Current Sensor | IP+ / IP- | Through-hole (1 mm pitch) | Hand solder, 350°C |
| Encoder Input | A / B / Z | 2.54 mm header | Crimp, 24 AWG |
Apply conformal coating (MG Chemicals 422B) to the solder side post-assembly–target a 0.2 mm thick layer over signal traces below 40 V. Test PWM output at 5 kHz with a 50% duty cycle before connecting inductive loads; verify stability using a 10 MHz oscilloscope probe (10x attenuation) on the MOSFET drain node. For EMI mitigation, route high-current paths (

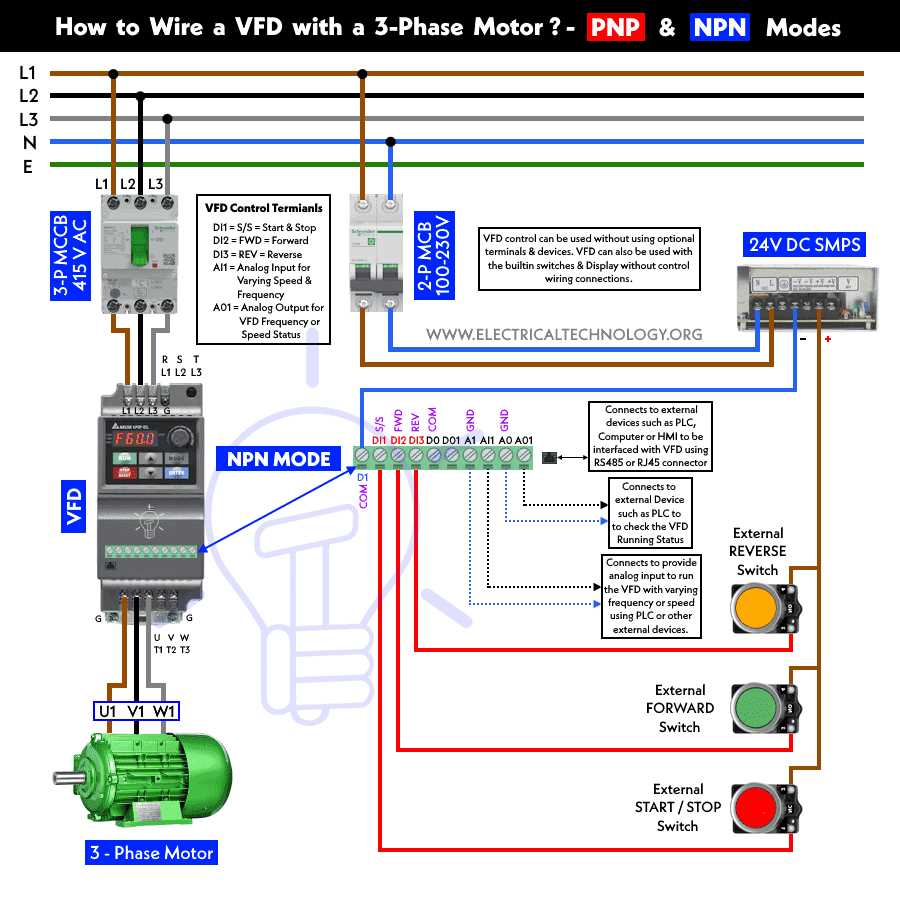

Common Wiring Errors in Variable Frequency Drive Systems and Prevention
Incorrect grounding ranks as the most frequent yet overlooked mistake. Many installations connect motor and drive grounds to a shared bus without isolating high-frequency noise, causing erratic behavior or premature component failure. Use a dedicated grounding conductor (minimum 10 AWG) directly to the drive’s grounding terminal–never daisy-chain grounds. For systems above 20 HP, add a grounding transformer rated for 120% of the drive’s input voltage to suppress common-mode noise. Verify impedance below 0.1 ohms between the drive chassis and earth ground; anything higher indicates a flawed connection.
Shielding and Cable Selection Pitfalls
- Unshielded cables over 10 meters: Replace with twisted, shielded pairs (minimum 25% foil coverage) for drives above 5 HP. For distances exceeding 50 meters, use XLPE-insulated cables to prevent capacitive leakage currents.
- Mixing signal and power wires: Keep digital/analog control cables at least 30 cm away from power cables, or route them in separate metallic conduits. For PROFIBUS or Ethernet, use CAT6e shielded cables with grounded drain wires at both ends.
- Incorrect phase rotation: Label all cables at both ends (drive and motor) with R/S/T or U/V/W markings before connecting. Verify rotation with a phase rotation meter–reversing two phases at the drive output reduces torque by 40%.
Failure to account for parasitic capacitance in long cables (over 100 meters) leads to voltage reflection, damaging motor insulation. Install a dv/dt filter at the drive output if the cable length exceeds the manufacturer’s limit–typically 50 meters for 480V systems. For example, a 250-meter run without a filter can reflect voltages up to 2.5× the drive’s output, exceeding motor insulation ratings (typically 1,000V for 460V motors). Size the filter for 1.2× the drive’s current rating and ensure its inductance matches the drive’s PWM frequency.
Overlooking parameter settings during commissioning causes 30% of field failures. Set the switching frequency below 4 kHz for drives above 50 HP to avoid excessive heat in IGBTs. Enable “motor overload protection” (not just thermal overload) and configure it to 110% of the motor’s FLA for Class B insulation. For multi-motor applications, disable auto-restart during faults–it can mask intermittent issues. Always record the base frequency (e.g., 60 Hz for US motors) and acceleration/deceleration times (start with 5 seconds per 100 HP) to prevent torque shocks.
