Begin by isolating the power stage from control logic in your layout–this prevents ground loops that degrade transient response. For a 12V-to-1.2V design, use a four-phase buck converter with interleaved switching (300-500kHz per phase) to reduce input ripple below 30mVpp. Select low-ESR ceramic capacitors (X5R or X7R dielectric, 22µF each) at the input, placing them within 15mm of the high-side MOSFET to suppress voltage spikes during load steps.
For gate drivers, opt for FETs with sub-20ns rise/fall times (e.g., Infineon BSC0906NS) to minimize switching losses. Use a dual N-channel topology with a bootstrap circuit for the high-side gate, ensuring the bootstrap diode (Schottky, 1A forward current) is rated for at least 1.5× the input voltage. Implement a soft-start sequence (ramp time: 5-10ms) to prevent inrush currents exceeding 2× nominal load, protecting sensitive downstream components.
Thermal management dictates placement: position low-side MOSFETs near the edge of the PCB, utilizing a 2oz copper pour with thermal vias (0.3mm diameter, 1.2mm pitch) connected to an internal ground plane. For current sensing, use 2mΩ shunt resistors in series with the low-side FETs, paired with a precision amplifier (e.g., TI INA286, gain: 20V/V) to achieve ±1% accuracy at 30A. Avoid routing high-current traces over signal layers–maintain 1.5mm clearance to prevent coupling.
Feedback loop stability requires a type-III compensation network: a 10kΩ resistor in series with a 1nF capacitor for the first zero (15kHz), followed by a 2kΩ resistor and 100nF capacitor for the second zero (100kHz). Place the PWM controller (e.g., Richtek RT8894) within 2cm of the error amplifier output to minimize noise susceptibility. For protection, integrate cycle-by-cycle current limiting (set to 120% of max load) and a thermal shutdown threshold at 125°C with a 10°C hysteresis.
Output filtering demands attention: combine bulk capacitors (100µF polymer tantalum, ESR high-frequency MLCCs (22µF X5R) directly at the load to handle di/dt events exceeding 1A/µs. Test the design with a 50% duty-cycle square wave load (1Hz-1kHz) to verify overshoot/undershoot stays within ±5% of nominal output. For debugging, probe the switching node with a differential probe (10× attenuation) to avoid ground loops that skew readings.
Designing a Stable Power Delivery Network: Hands-On Steps
Begin by selecting a multiphase controller with adaptive dead-time control to minimize switching losses. ICs like the IR35221 or TPS51218 handle dynamic load steps up to 50A/μs while maintaining ±3% voltage regulation under transient conditions. Match the controller’s PWM frequency to your buck converter’s inductor saturation current–typically 400kHz for 1μH cores or 600kHz for 0.47μH components. Higher frequencies reduce output capacitance needs but increase core losses; balance based on your thermal budget.
- For CPU/GPU rails, use high-side MOSFETs with RDS(on) < 2mΩ (e.g., FDMS86180) to cut conduction losses by 20-30%.
- Low-side FETs should prioritize gate charge (Qg < 15nC) to improve efficiency during light loads.
- Implement current-sense resistors (1mΩ, 1% tolerance) for precise droop control–critical for servers running Turbo Boost.
Position input capacitors (X5R/X7R ceramics) within 1cm of the high-side FET’s drain to suppress voltage spikes. For 12V rails, use 4x 22μF 16V capacitors in parallel; for 5V rails, 3x 10μF 6.3V suffices. Bulk capacitors (e.g., SPCaps 470μF 16V) should be placed at the voltage regulator’s input to handle inrush current during hot-plug events. Avoid polymer tantalums–their ESR rises dramatically below -20°C.
Route feedback traces as differential pairs, keeping them <2mm wide and away from switching nodes. For a 1% accuracy target, use a 1kΩ resistor divider with 0.1% tolerance (e.g., Vishay FC series). Add a 1nF ceramic capacitor to the VSENSE pin to filter high-frequency noise, but ensure its corner frequency stays >10x below the switching frequency to avoid phase-shift issues. Skip RC filters unless your load has >5mV ripple–excessive filtering delays transient response.
- Thermal vias: Place 4x 0.3mm vias under the MOSFET’s thermal pad, filled with solder to improve heat dissipation. Each via adds ~0.5°C/W thermal resistance.
- Ground plane splits: Keep digital and power grounds separate until the input capacitor’s negative terminal to prevent ground bounce.
- Probe points: Add 2.54mm headers near critical nodes (VOUT, VSENSE, switching node) for scope measurements–banana jacks create a lower-profile alternative.
For overcurrent protection, set the threshold to 110% of max load current (e.g., 60A for a 55A rated rail). Use the controller’s built-in hiccup mode–latched shutdown risks thermal runaway in high-power applications. For telemetry, integrate a PMBus-compatible ADC (e.g., ADM1066) to monitor efficiency, temperature, and load current in real time. Log data every 100ms; sudden current surges often precede component failure. Avoid software-based monitoring for safety-critical rails–hardware comparators react faster.
Key Components and Symbols in Voltage Regulator Layouts
Start by identifying the switching MOSFETs (Q1/Q2), typically marked as N-channel or P-channel transistors in schematics. Their symbols–usually a triangle with a line (source), a perpendicular line (gate), and an arrow (drain)–indicate directionality critical for tracing current flow. For example, an Infineon BSC0906NS will show thermal pads and low RDS(on) values (≤6 mΩ) in datasheets, which must match footprint dimensions in the layout. Misalignment here causes overheating–ensure copper pours under the drain tab exceed 50 mm² for 10A+ loads.
Next, verify the controller IC (e.g., TPS51218 or RT8897) and its supporting network. The IC’s symbol–a rectangle with labeled pins–connects to feedback resistors (RFB), compensation components (CCOMP, RCOMP), and inductors (L). Use this table to cross-check critical values:
| Component | Typical Value | Tolerance | Note |
|---|---|---|---|
| RFB1/RFB2 | 10 kΩ / 1.2 kΩ | ±1% | Sets output voltage: VOUT = 0.6V * (1 + RFB1/RFB2) |
| COUT | 22 µF (X5R/X7R) | ±20% | Place within 5 mm of load; add 1 µF MLCC per 1A output |
| L | 0.47 µH (12A) | ±15% | Shielded inductor (e.g., SLH6030); avoid coupling to sensitive traces |
| CCOMP/RCOMP | 1 nF / 10 kΩ | ±5% | Stabilizes loop; adjust based on load transient response |
For input capacitors (CIN), use at least two 10 µF ceramic capacitors (size 1206 or larger) rated for 25V minimum, positioned adjacent to the MOSFETs’ drain/source pads. Avoid electrolytics unless bulk storage is needed–for fast switching, ceramics reduce ESR-induced ringing. Monitor the bootstrap circuit (DBOOT and CBOOT), typically a 0.1 µF capacitor and a fast recovery diode (e.g., BAS21), critical for driving the high-side MOSFET gate. Omission here results in shoot-through failures.
Step-by-Step Power Delivery Network Tracing for Diagnostics
Begin with a thermal camera scan of the voltage regulator modules–identify hotspots exceeding 85°C under load, as these regions often correlate with failed capacitors, degraded MOSFETs, or solder joint fractures. Use a multimeter in diode mode to verify MOSFET gate-source thresholds; readings below 0.4V for high-side and above 0.7V for low-side devices indicate degradation. Probe inductor DC resistance–values deviating ±20% from datasheet specifications suggest internal winding damage. Cross-reference output voltage rails with the schematic’s target values: a 12V rail dropping to 11.5V under full load confirms insufficient phase current sharing.
Signal Path Isolation Techniques
Attach an oscilloscope with a 10x probe to the PWM controller output; switch-node ringing amplitudes exceeding 500mVpp imply insufficient gate drive resistance or parasitic inductance on the PCB trace. Measure phase current unbalance by calculating ripple amplitude ratios–differences above 15% across phases pinpoint faulty drivers or phase-shedding errors. For advanced tracing, inject a 1kHz sine signal at the error amplifier input and observe transient response; overshoot exceeding 10% signals compromised loop compensation. Replace ceramic capacitors in proximity to the switching nodes if ESR exceeds 5mΩ–this restores stability in high-switching-frequency designs.
Common Voltage Regulator Topologies in Power Delivery Schemes
For low-power applications requiring tight load regulation, the synchronous buck converter stands as the most efficient choice. Replace traditional Schottky diodes with low-RDS(on) MOSFETs (e.g., Infineon OptiMOS or TI CSD series) to reduce conduction losses by up to 30% at 12V input. Implement adaptive dead-time control to minimize body diode conduction during switching transitions–opt for controllers with

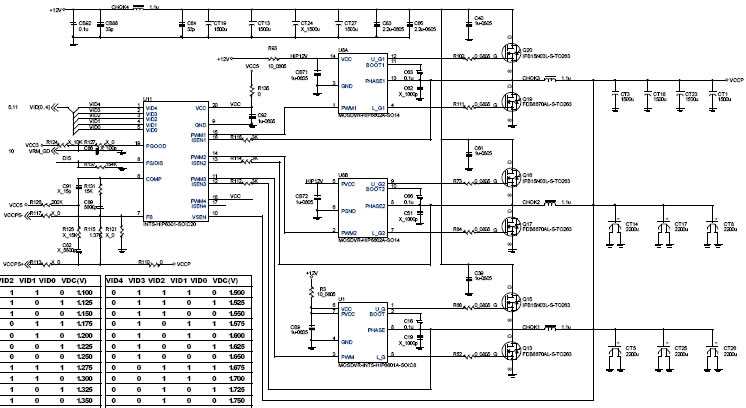

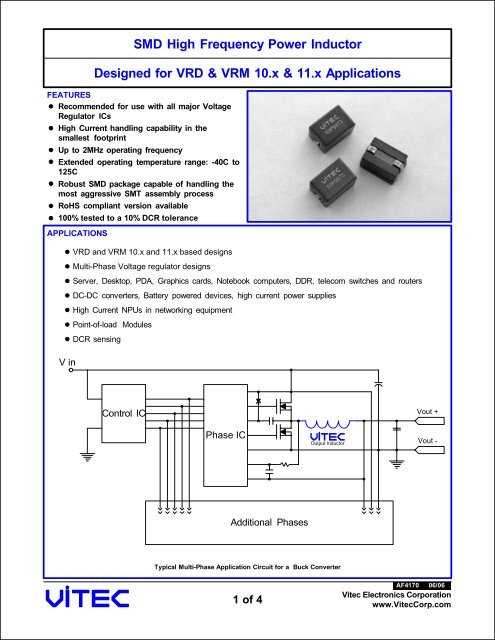

Multi-Phase Configurations for High-Current Demands
Distribute current across 2–6 interleaved phases with phase-shedding (e.g., TI TPS53681) to optimize efficiency curves–each phase should handle ≤30A to balance thermal stress and layout complexity. Use coupled inductors with a coupling coefficient of 0.8–0.9 to reduce ripple current by 40–60%, though ensure adequate air gaps to prevent saturation under transient spikes. For 1V/100A outputs, prioritize gallium nitride (GaN) FETs (e.g., Navitas NV6131) over silicon MOSFETs: their near-zero reverse recovery charge slashes switching losses at 1MHz+ frequencies, critical for miniaturized designs.

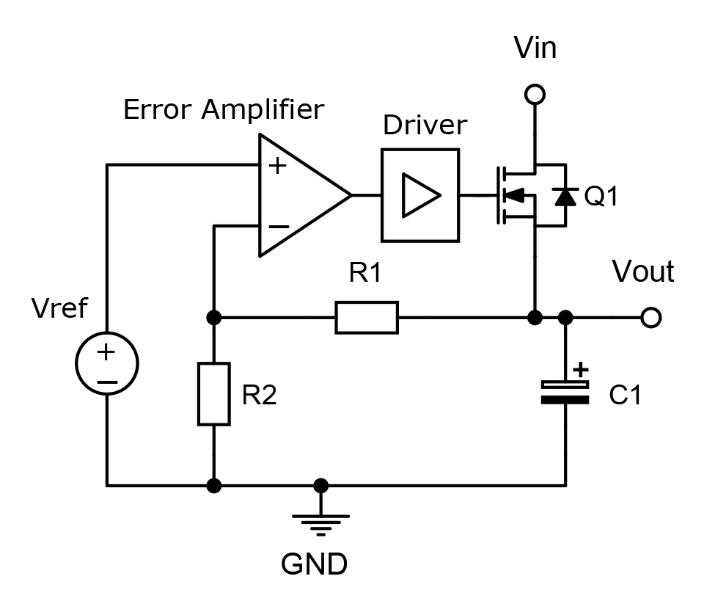

Linear regulators like LDOs remain viable for noise-sensitive rails (e.g., PLL or analog cores), but only for currents 10kHz. Avoid thermal runaway by adhering to a maximum power dissipation of PD(max) = (TJ(max) – TA(max))/θJA, where θJA must include PCB copper pours–neglecting this risks silent failures at ambient temperatures above 60°C.
