For overvoltage or undervoltage scenarios, integrate an automatic cutoff module with an adjustable comparator threshold. A proven setup combines an LM393 dual comparator IC with a p-channel MOSFET (such as IRF9540) or a solid-state switch rated for 20A+. The comparator’s reference voltage should be tied to a precision voltage divider (e.g., 1% tolerance resistors with values like 10kΩ and 2kΩ) to set trip points at ±10% of the nominal line level.
Critical paths include the feedback loop from the load side back to the comparator via an optocoupler (e.g., PC817) to isolate control signals from high-current paths. Bypass capacitors (0.1µF ceramic and 10µF electrolytic) must be placed within 5mm of the comparator’s power pins to suppress noise, especially when switching inductive loads. For 230V AC applications, a bridge rectifier (KBPC3510) followed by a 5V linear regulator (7805) ensures clean DC for logic components.
Calibration requires a variable bench supply and a multimeter. Start with the reference divider adjusted to trigger at 207V/253V (±10% of 230V). Fine-tune using a 10-turn potentiometer in place of the fixed resistor for millivolt accuracy. For three-phase systems, replicate the comparator stage for each phase and use a logic AND gate (CD4081) to coordinate tripping–preventing single-phase false positives.
Avoid thermal drift by mounting resistors on a copper-clad PCB or using metal-film types with . For battery-backed setups, add a supervisory IC (like MCP112) to handle brownouts below 4.5V, ensuring the MOSFET gate remains properly driven.
Designing an Automatic Switching Control for Electrical Monitoring
To detect abnormal fluctuations in line potential, integrate an operational amplifier (LM358) as the core comparator. Configure the inverting input at 2.5V reference using a precision voltage divider (e.g., 10kΩ resistors with a 5V supply), while connecting the non-inverting input to the monitored line via a 20kΩ scaling resistor. This setup triggers the comparator output when deviations exceed ±10% of nominal levels, activating downstream safeguards without delay.
For robust protection, pair the comparator with a TLP222G optocoupler to isolate the control side from high-current loads. The optocoupler’s LED side draws 5–10mA at 3V threshold voltages, ensuring minimal power loss while driving a G5LE-1A-E slim-form power switch. Select a coil rated for 12V DC and contacts handling 10A at 250V AC to prevent arcing during inductive load disconnections.
Store calibration values in an ATtiny85 microcontroller firmware to account for hysteretic behavior. Program the controller to sample the comparator output every 500ms, averaging three readings to filter transient spikes. Use I²C EEPROM (e.g., 24LC02B) to log threshold violations, timestampping events with 32-bit Unix time for diagnostics. Deploy pull-up resistors (4.7kΩ) on the microcontroller’s input pins to prevent floating states.
Mount varistors (V275LA40) across the monitored line and control switch contacts to suppress voltage surges exceeding 600V. Position snubber circuits (100Ω + 0.1µF in series) at the relay coil terminals to extend lifespan by dampening back-EMF spikes. Ground the circuit’s chassis via a 10Ω resistor to a dedicated earth terminal, mitigating ground loops in industrial environments.
Test the assembly under simulated conditions: inject +30%/-20% nominal potential deviation into the input while monitoring output response latency (target: ≤8ms). Validate load switching endurance by cycling 1HP compressor motors 10,000 times, confirming no contact welding occurs. Document failure modes (e.g., erroneous triggering, coil burnout) and refine hysteresis window to 15% of nominal for marginal stability margins.
Choosing Parts for an Automated Threshold Detection Setup
Opt for a comparator IC with a narrow hysteresis window to reduce false triggering in noisy environments. The LM393 or TLV3501 are reliable choices–select based on the operational thresholds needed. The TLV3501 handles lower differentials accurately, while the LM393 tolerates wider input swings.
Pick a switching element that matches load demands. For small inductive loads up to 2A, a 2N2222 or BC547 transistor suffices. Higher currents require a MOSFET like the IRFZ44N, which supports 49A at 55V with a gate threshold of 2–4V. Ensure the power dissipation aligns with the heatsink capabilities.
Critical passive components:
- Resistors: Use 1% tolerance metal film types. A 10kΩ for feedback and 1kΩ for the comparator’s reference divider ensures stability. Avoid carbon film–they drift under thermal stress.
- Capacitors: A 100nF ceramic decouples supply noise; a 10µF electrolytic smooths transient spikes. Select X7R or X5R dielectric for temperature resilience.
- Diodes: A fast 1N4148 clamps flyback voltages from coils; for higher energy, use a UF4007 (1A, 1000V).
Precision Matters for Reference Voltages

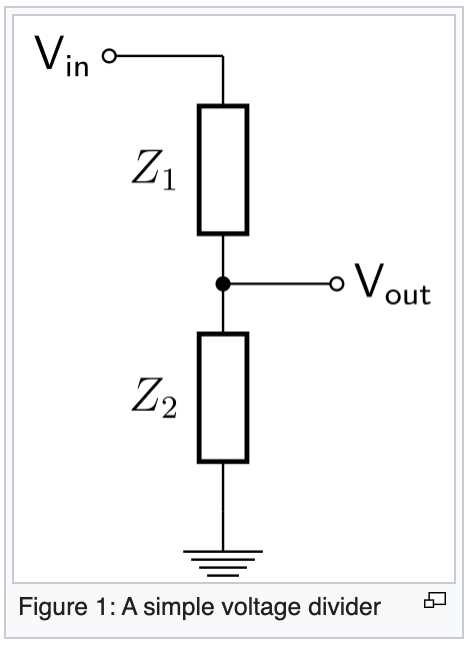

A voltage divider defines detection accuracy. Use a 25ppm/°C precision resistor network (e.g., Vishay PTF56) to maintain a stable reference. For adjustable setpoints, a 10-turn 10kΩ potentiometer (Bourns 3590S) allows fine-tuning without drift. Avoid single-turn pots–they introduce hysteresis errors.
Load Protection and Isolation
Isolate the control side from high-current paths using an optocoupler like the PC817. It separates logic-level signals from 24V or 230V mains, preventing ground loops. Add a varistor (MOV) across the switching element if driving motors or transformers; a V20E13P handles 130V surges. Fuse the output path–250mA slow-blow for delicate loads, 5A quick-blow for robust applications.
Step-by-Step Wiring of an Automatic Fault Monitor
Begin by securing an isolated power supply rated for the maximum load of your system–typically 12V DC or 24V AC for most industrial setups. Connect the positive terminal of the supply to the common input terminal of the control module. Ensure the wire gauge matches the current draw: 18 AWG for loads under 10A, 14 AWG for 10-20A, and 12 AWG for heavier demands. Failure to match gauge to load risks overheating and false tripping.
Attach the secondary conductors–red for alert outputs, black for neutral returns–to the module’s fault detection ports. Use twist-on wire connectors or crimp terminals, then reinforce with heat-shrink tubing to prevent corrosion. Verify polarity before energizing: reversed connections can fry the detection logic or cause intermittent failures. Label every terminal immediately after wiring to avoid confusion during troubleshooting.
Grounding and Signal Isolation
Route the ground conductor directly to the chassis or a dedicated earth busbar with a resistance below 0.5 ohms. Avoid daisy-chaining grounds, as shared paths introduce noise that disrupts threshold accuracy. For precision applications, add a 100nF ceramic capacitor between the signal input and ground to filter high-frequency interference, especially in environments with variable-speed drives or switching power supplies.
Insert a 1N4007 diode across the primary detection coil to suppress back EMF spikes when the coil de-energizes. This prolongs component life and prevents nuisance trips. Set the trip threshold using a multimeter: adjust the onboard potentiometer until the output flips at ±5% of your target reference–commonly 220V AC or 48V DC–then lock the setting with thread sealant. Document the exact adjustment for future reference.
Test the assembly with a dimmable load simulator or variac. Ramp the input slowly and observe the output state at each 10V increment. Confirm the module responds within 50ms of crossing the threshold; slower response indicates loose wiring or degraded semiconductors. Once verified, seal the enclosure and mark it with the trip value, date, and technician initials for compliance and maintenance tracking.
Fine-Tuning Trigger Points in Automated Power Oversight Systems
Begin calibration by identifying the operational band of your connected load–measure the highest and lowest permissible values under real-world conditions, not just spec sheet ranges. For AC networks, use a true RMS multimeter to capture waveform irregularities; inaccuracies here propagate into erratic cut-in/out events. DC systems require accounting for ripple from switching regulators–typically 5-20% of nominal value–to prevent false trips during transient spikes.
Potentiometers in threshold adjustment modules should be set with 1% tolerance resistors in series to improve stability; ceramic trimmers oxidize over time, requiring periodic checks with a 1kHz sine wave signal generator. For precision applications under 10V, opt for multi-turn wirewound trimmers–these minimize thermal drift by 70% compared to carbon counterparts. Always verify settings under both no-load and full-load scenarios; hysteresis gaps below 3% risk chatter near trigger points.
Microcontroller-based overseers benefit from firmware-defined hysteresis bands–programmatic offsets eliminate hardware tolerances. A 2.5V reference IC alongside an 8-bit ADC achieves ±15mV resolution, sufficient for most 12-48V applications. Implement software filtering: a moving average over 16 samples smooths transient noise while maintaining sub-50ms response times. Off-the-shelf supervisors like the TPS382x series simplify this but lock you into fixed ratios–custom solutions allow granular control.
High-power industrial setups demand separate CT (current transformer) feedback loops to cross-validate potential differences; voltage-only safeguards fail during brownout conditions where amperage surges unnoticed. For 3-phase systems, synchronize threshold adjustments using a zero-crossing detection circuit–misaligned phases cause asymmetric trips. Torque-sensitive loads (motors, pumps) require dynamic adaptation; raise thresholds during acceleration phases, then taper back to nominal once steady-state is reached.
Field-specific bands: medical (-15%/+10%), IT servers (-10%/+5%), LED lighting (-20%/+20%). Document all adjustments in a passthrough log–timestamped entries revealing trends before failures occur. Replace electrolytic smoothing capacitors every 24 months to prevent drift from equivalent series resistance creep. Always validate with a calibrated source; laboratory-grade PSUs introduce less than 0.01% error, far below consumer-grade adapters.
