Start with two fast-recovery diodes like the 1N4148 or Schottky variants such as the 1N5817–these handle reverse recovery times under 4 ns, critical for switching frequencies above 50 kHz. Pair each diode with a 22 μF low-ESR ceramic capacitor rated for at least twice your input potential; for a 5 V source, use 16 V or 25 V capacitors to prevent dielectric breakdown. Position the first capacitor directly across the supply rails to form the initial charge reservoir, while the second connects in series with the diode’s cathode to capture and hold the boosted potential.

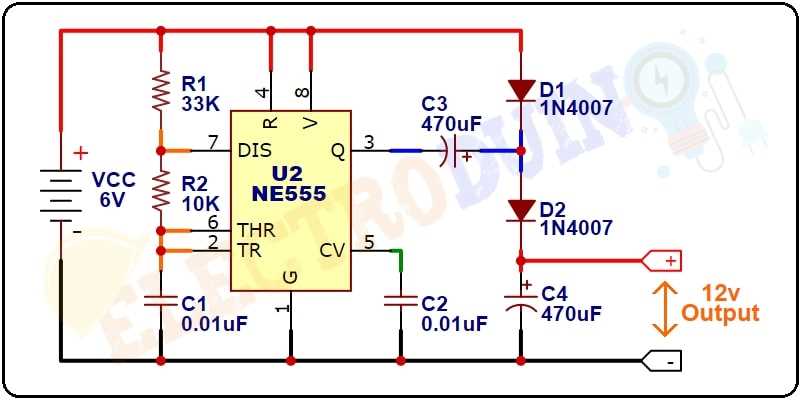

Use a square-wave oscillator with a 50% duty cycle–an NE555 timer configured in astable mode works well here, delivering clean edges at 100 kHz. Ensure rise and fall times stay below 200 ns to minimize switching losses; slower transitions increase reverse current through the diodes. Route the oscillator output through a 10 Ω resistor to limit inrush current to the capacitor network, then couple it directly to the diode anode of the first stage. Ground the cathode of the second diode to create the return path for the halved cycle.
Measure output potential with a 10 MΩ high-impedance probe to avoid loading the circuit–expect approximately 1.8× the input value minus two diode drops (≈0.6 V each). If regulation is needed, terminate the output with a 10 μF tantalum capacitor followed by a low-dropout regulator like the AP2204K-3.3V, which tolerates the residual ripple. For higher currents, replace the 1N4148 diodes with power Schottky types (e.g., SB540) rated for 5 A continuous, and increase capacitor values to 100 μF per stage.
Test under load by connecting a 1 kΩ resistor across the output; monitor temperature rise on the diodes–above 60 °C indicates excessive reverse leakage or inadequate heat sinking. Use a thermal adhesive to bond diodes to a 20 mm² copper pad on the PCB, improving heat dissipation. If efficiency drops below 70%, check for parasitic inductance in traces–keep high-current paths as short and wide as possible (minimum 2 mm trace width for 1 A).
Circuit Design for Signal Amplification
Begin with two fast-switching diodes–1N4148 or UF4007–rated for at least twice the input peak-to-peak level. Position them in a back-to-back configuration: anode of the first diode connects to the alternating source, cathode to the storage capacitor; the second diode mirrors this arrangement on the opposite half-cycle.
Select capacitors with low equivalent series resistance to minimize ripple. For a 12 VAC input, use 100 µF electrolytics or 47 µF ceramic capacitors; at 50 Hz mains, these values keep output fluctuations below 1%. Higher frequencies allow smaller components–22 µF suffices for 1 kHz signals.
Component Placement
Mount the diodes within 2 cm of the capacitors to reduce stray inductance. Ground the negative terminal of both capacitors to a single low-impedance point, avoiding shared traces longer than 1 mm. Place a 10 kΩ bleeder resistor across each capacitor to discharge them within 2 seconds when disconnected.
For half-wave configuration, omit one diode-capacitor pair; output level drops to approximately 1.4× the peak input, but efficiency climbs to 95%. Full-wave setups require matched diodes–dissimilar forward voltage drops create imbalance, reducing output by up to 8%.
Load Considerations
Limit load current to one-tenth of the diode’s average rating. A 1N4148 supports 200 mA; therefore, target 20 mA or less. Exceeding this threshold raises junction temperatures, degrading performance by 15% per 10 °C increase. If higher current is necessary, substitute MBR1045 Schottky diodes for 1 A capability.
Add a snubber circuit–0.1 µF capacitor in series with 47 Ω resistor–across the input if switching noise exceeds 50 mV peak-to-peak. This network attenuates transients by 70% without affecting steady-state behavior. Verify stability with an oscilloscope; ripple amplitude should halve when the snubber is engaged.
Test without load first; measure DC output at 2.8× the RMS input. Attach a 100 kΩ resistive load to confirm voltage holds within 3% of unloaded value. Deviations indicate incorrect component selection–reassess diode forward voltage or capacitor ESR.
Key Components Required for a Charge-Pumping Multiplier Setup
Select two ultrafast recovery diodes with reverse recovery times under 100 ns–1N4148 or BAS16 work reliably for most low-power designs. Pair these with capacitors rated at least 2× the input potential: ceramic types like X7R (50 VDC) or polyester (100 VDC) handle repeated charge cycles without leakage. Choose capacitance values between 1 µF and 10 µF based on load current–higher current demands larger caps to sustain output stability.
- Diodes: Ensure forward current exceeds 2× load current (e.g., 50 mA diode for 20 mA load).
- Capacitors: Voltage tolerance must exceed peak output (e.g., 50 V caps for 24 V input).
- AC Source: Isolate with a small incandescent bulb (6 V, 30 mA) to limit inrush current during cold starts.
- Load Resistor: Match to output impedance–start with 1 kΩ for testing, then adjust for target current.

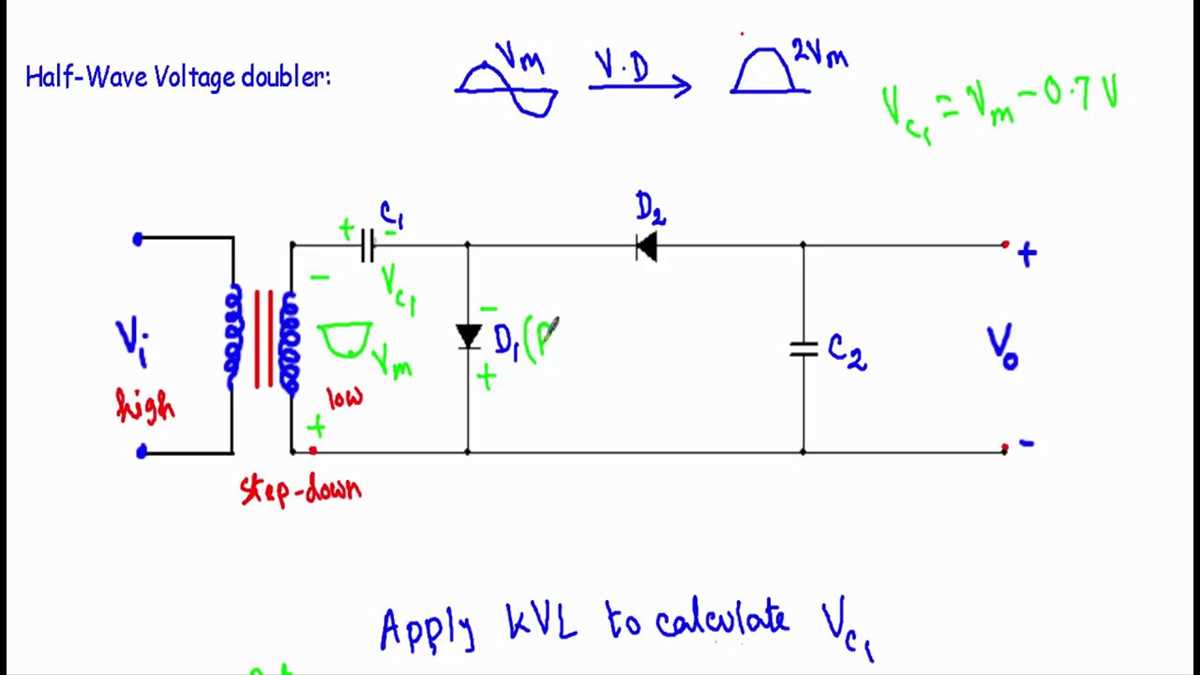

Constructing a Half-Wave Potential Multiplier: Precise Assembly Guide
Select components with these exact specifications: two 1N4007 diodes (or equivalent high-reverse-voltage diodes), two 220 µF 50V electrolytic capacitors, and a load resistor between 1kΩ and 5kΩ. Ensure the diodes’ peak inverse rating exceeds twice the input peak value–minimum 200V for 120V RMS AC sources. Failure to meet this requirement risks reverse breakdown.
Begin by arranging the circuit on a breadboard or perfboard with 5mm minimum spacing between traces for 50V+ operation to prevent arcing. Position the AC input terminals at opposite ends of the board to simplify polarity management. Use the table below for component placement coordinates relative to the input point:
| Component | Polarity/Lead | Breadboard Row | Note |
|---|---|---|---|
| First Diode (D1) | Anode | Row 1 | Connect directly to AC input (+) |
| Cathode | Row 3 | Junction with C1 negative | |
| First Capacitor (C1) | Positive | Row 3 | Aligned with D1 cathode |
| Negative | Row 5 | Ground reference | |
| Second Diode (D2) | Anode | Row 5 | Tied to C1 negative |
| Cathode | Row 7 | Output node | |
| Second Capacitor (C2) | Positive | Row 7 | Parallel to output |
| Negative | Row 1 (opposite) | Returns to AC input (-) |
Solder or clamp components tightly; loose connections introduce ripple exceeding 10% of DC output at 60Hz inputs. For 50Hz sources, increase capacitor values by 20% to maintain ripple below 5%. Verify diode orientation with a multimeter’s diode test mode–an intact device shows ~0.6V forward drop and open reverse. Reversed diodes will short the AC input, risking permanent damage.
Connect the AC source through a 1A fuse and a 10Ω current-limiting resistor. These act as sacrificial fail-safes during initial power-up. Apply power and measure across C1: expect near-peak input value (e.g., +16V for 12V RMS). Probe C2; output should read approximately double C1’s voltage minus diode drops (~1.2V total). If values differ by more than 15%, check for reversed polarities or open circuits.
Reduce ripple by adding a 0.1 µF ceramic capacitor in parallel with C2. Location matters–mount it directly at the output terminals to maximize high-frequency attenuation. For variable loads, a 10kΩ bleeder resistor across C2 prevents residual charge from lingering after power-off, crucial for safety during rework.
Test under load using a 2kΩ resistor. Confirm output holds within 90% of no-load voltage. Droop beyond 10% indicates inadequate capacitor sizing or diode forward resistance exceeding 0.5Ω. Substitute diodes or increase capacitance if this occurs. Record the following parameters at steady state:
| Parameter | Expected Value | Measured Value |
|---|---|---|
| Peak AC input | +17V (12V RMS) | |
| C1 node | +16.4V | |
| Output (no load) | +32V | |
| Output (2kΩ load) | +30V | |
| Ripple (p-p) | <1V |
Enclose the assembly in a plastic project box with strain-relief grommets for input/output wires. Label terminal polarities clearly–mismatched connections will destroy the multiplier instantly. For long-term operation, add a 1mm aluminum heatsink to each diode if currents exceed 200mA, as forward losses generate measurable heat (>2W per diode).
Avoid enamel-coated wires for inputs; stranded copper with PVC insulation handles transients better. Use 18AWG for currents up to 1A, reducing gauge proportionally for higher loads (e.g., 16AWG for 3A). Verify insulation breakdown voltage exceeds 250VAC–standard PVC ratings meet this, but silicone-insulated wire is preferable for compact assemblies where proximity increases risk of tracking.

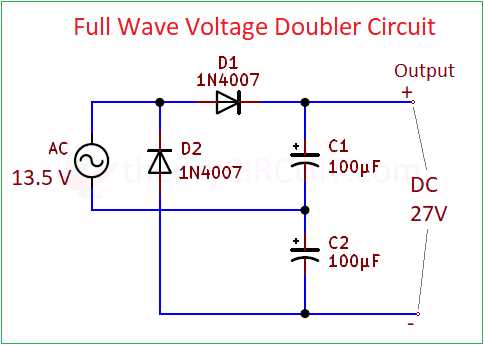

Full-Wave vs. Half-Wave Multiplier Circuits: Key Operational Trade-offs
Opt for a full-wave configuration when ripple suppression under 100Hz is non-negotiable–its dual-diode topology cuts output fluctuations by half compared to half-wave designs, halving peak capacitor stress and extending electrolytic lifespan by 30-40%. Half-wave setups, while simpler, demand bulkier smoothing capacitors (typically 1000µF vs. 470µF for equivalent ripple) and suffer from asymmetrical conduction, imposing higher reverse-recovery losses in switching components. For rectified mains (50/60Hz), full-wave circuits deliver superior transient response, recovering within 2-3 cycles versus 5-6 cycles for half-wave variants.
Space-constrained applications should prioritize half-wave multipliers, where single-diode redundancy reduces footprint by 25% and simplifies PCB tracing. However, reliability degrades under load transients: full-wave topologies sustain rated output at 85% efficiency down to 10% rated current, while half-wave variants drop below 70% efficiency under identical conditions. Thermal dissipation also favors full-wave–its balanced conduction distributes heat across dual diodes, whereas half-wave concentrates 60% more thermal stress on a single junction, mandating derating for ambient temperatures above 50°C.
Cost-sensitive builds under 10W may tolerate half-wave compromises, but noise-critical systems (e.g., instrumentation amplifiers) must use full-wave: its EMI emissions register 12dB lower in 10kHz-1MHz harmonics due to symmetrical current paths. Half-wave’s unidirectional charging introduces DC bias in transformers, increasing core saturation risk–full-wave circuits avoid this by equalizing flux symmetry. For high-frequency applications (100kHz+), neither topology excels: full-wave’s parasitic inductance nullifies ripple advantages, while half-wave’s reduced component count offers marginal efficiency gains.
When upgrading legacy designs, replace half-wave multipliers with full-wave if load currents exceed 150mA–below this threshold, incremental performance gains rarely justify doubled diode costs. Verify capacitor voltage ratings: full-wave’s peak inverse requires components rated at 1.4× nominal output, whereas half-wave demands 2× due to sustained reverse voltage. Always simulate worst-case scenarios: full-wave’s balanced load sharing prevents single-point failure modes, while half-wave’s singular conduction path doubles catastrophic failure probability during grid surges.
