Start by locating the main fuse box under the dashboard on the driver’s side–this is the hub for most circuits in earlier production runs (1968–1977). Pin 30 connects directly to the battery positive via a 16-gauge red wire, while pin 15 feeds ignition-switched power through a thinner 18-gauge black-red conductor. If the headlights or turn signals fail, trace these two lines first; corrosion at the bullet connectors near the rear tail assembly is a frequent culprit.
For the 1973–1979 variants, the hazard flasher relay sits on a separate bracket above the glove compartment door. Remove the upper instrument panel cover–no screws, just plastic clips–to access the relay. Swap it with a known-good unit if the blink rate exceeds 120 pulses per minute; the thermal element degrades over time. Label each wire with masking tape before disconnecting: the brown-white wire carries ground, while the green-yellow stripe feeds the relay coil.
The charging system wiring in pre-1967 models differs from later versions. The generator’s D+ terminal outputs 13.8V through a 10-gauge brown wire, routed directly to the voltage regulator’s D+ post. Use a multimeter set to DC volts; readings below 12.4V at the battery terminals during idle indicate regulator failure or a broken brown wire inside the main harness loom. Splice in a temporary jumper wire between D+ and the battery positive to confirm before replacing components.
Color-coding remains consistent across years:brown is ground, red is battery positive (always hot), black-red is ignition-switched power, and green-yellow carries turn signal and hazard flashers. Keep a roll of 20-gauge wire in these colors for repairs; crimp connectors should match the original 4.8mm width. Avoid solder on high-current paths–heat shrink crimps prevent vibration-induced breaks.
Internal instrument lighting relies on a series circuit: bulb current flows through the dimmer switch then splits to each gauge bulb via the tan-white wire. If only one gauge stays dark, check the 5W wedge-base bulb first; if multiple gauges fail, test the dimmer switch by probing the tan-white wire at the back of the speedometer with a 12V test light. Replace the switch if the light flickers when the dimmer knob is rotated.
For the heating system, the blower motor’s high-speed tap connects to a 12-gauge black wire via a separate relay under the center console. Remove the rear seat cushion to access the relay–the plastic clip breaks easily, so pry carefully with a flathead screwdriver. The relay coil draws power from the green-yellow wire, controlled by the blower switch. If the motor runs only on low speed regardless of switch position, the relay contacts are welded closed; replace the unit.
Fuel gauge inaccuracies often stem from the sender unit. Locate the sender in the fuel tank–accessed through the rear trunk floor panel–and detach the single black wire connector. Measure resistance across the sender terminals: empty should read 0 ohms, full should be 180 ohms. Deviations indicate a faulty sender; clean the float mechanism with contact cleaner before condemning it. Reattach the wire with dielectric grease to prevent future corrosion.

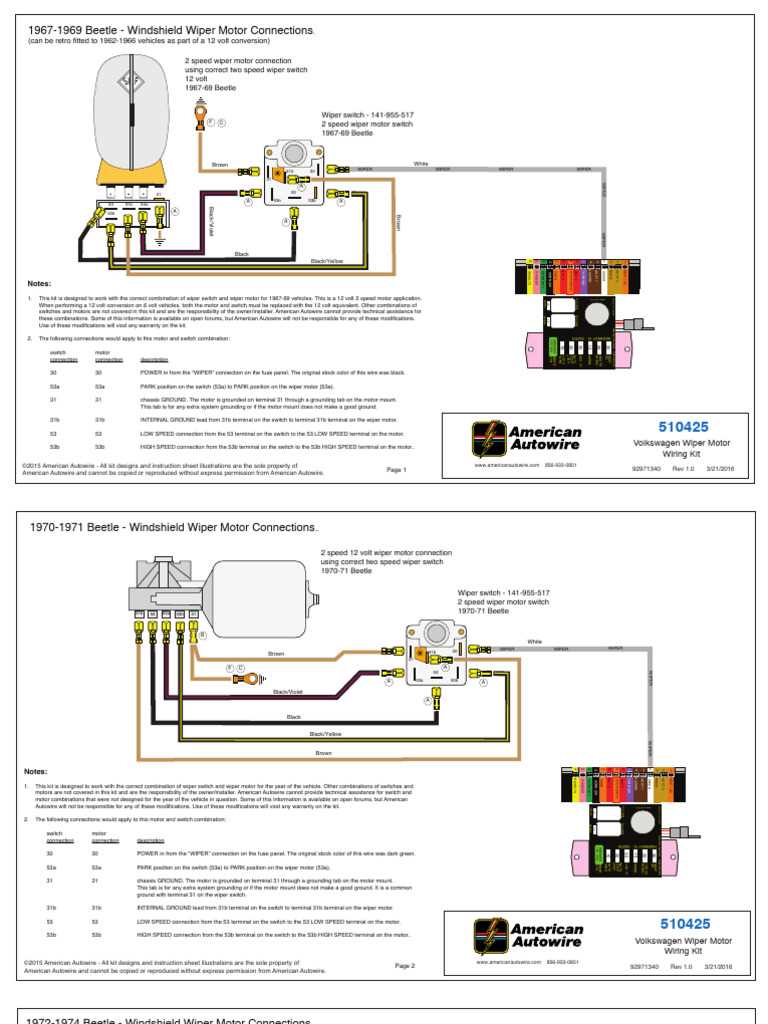

Electrical Schematic for Classic Air-Cooled Models
Begin repairs by locating terminal 15 on the ignition switch harness–red/black stripe indicates the primary feed for dashboard instruments and headlight circuits. Verify continuity with a multimeter before proceeding; resistance above 0.5 ohms suggests corroded connectors needing cleaning with electrical contact spray.
Trace the brown earth strap from the battery negative post to its chassis ground near the left front fender. Rust buildup here causes intermittent power loss; sandpaper and dielectric grease restore connection reliability. Ignore aftermarket ground kits that relocate this strap–the factory position ensures consistent current return.
Headlight high/low beam operation relies on the three-prong bulb socket labeled H4. Twin white wires carry low beam, while a single yellow lead switches high beam; swap bulbs if one filament fails rather than adjusting the sub-harness inside the headlight bucket.
Fusible Link Replacement
A melted fusible link–visible as a bulging segment in the red wire between starter solenoid and junction box–requires exact gauge replacement: 12 AWG for 1970-73 models, 10 AWG for later years. Crimp connectors destroy these links; solder only or risk overheating the firewall grommet.
Interior courtesy light timing depends on the door jamb microswitches. Test each switch by bridging its terminals temporarily–constant illumination confirms switch failure, while flickering indicates a frayed wire inside the door hinge harness. Replace the entire harness if continuity drops below 1.5 ohms when doors open/close repeatedly.
Blower motor circuits use a three-speed resistor block mounted to the heater box. Burnt resistors often melt adjacent plastic–replace the entire block rather than individual components to prevent future short-circuits. Purple and green wires handle medium and low speeds; ensure they’re routed away from exhaust components.
Spark plug wires follow a non-sequential firing order: 1-4-3-2. Route the longest (cylinder 3) wire under the distributor first to avoid signal interference; silicone boots prevent crossfire between adjacent cylinders. Replace wires as a set every 30,000 miles regardless of visible wear.
Understanding Core Electrical Pathways in Classic Compact Car Harnesses
Begin by locating the battery positive cable–typically a thick red lead–traced directly to the starter solenoid. This primary feed splits into the main fuse block, often positioned near the dashboard firewall on the driver’s side. Verify continuity with a multimeter before proceeding, as corrosion at the battery terminals is a frequent failure point.
From the fuse block, follow the central bus bar to its first major junction: the ignition switch. This component distributes power to three critical circuits:
- Accessory (radio, wipers)
- Ignition (coil, distributor)
- Starter engagement
Use a test light at each terminal while cycling the switch to confirm live outputs. If voltage drops below 10.5V at any terminal, inspect the switch contacts for pitting.
The ignition circuit feeds the coil through a thin purple wire, then branches to the distributor via a condenser and points. Trace this path carefully–any splice or crimp here can introduce resistance, causing misfires. The condenser lead should connect directly to the distributor body; a loose ground here mimics point failure.
Lighting circuits originate from a separate fuse (usually 8-12A) and split into front and rear clusters. Front turn signals share a common hot lead with the headlamp low beams, switched via the steering column stalk. Rear lights–tail, brake, and reverse–use a combined bulb socket; test each filament individually by jumping 12V to the socket terminals.
Ground Distribution Nodes
Three primary ground points handle 80% of return paths:
- Battery negative terminal (engine block)
- Dashboard firewall (driver’s side, behind instrument cluster)
- Rear passenger side (near taillight assembly)
Clean all ground surfaces with a wire brush and apply dielectric grease. A weak dashboard ground can cause erratic gauge readings–symptoms include flickering fuel or temperature indicators.
For auxiliary systems (horn, wipers, heater fan), locate the auxiliary relay near the fuse block. This relay receives a switched 12V feed from the ignition circuit and distributes power through thinner gauge wires (typically 16-18 AWG). Test by manually triggering the relay with a jumper wire–if the horn sounds, the switch is faulty; if not, inspect the relay coil resistance (should measure 60-120Ω).
Troubleshooting Hidden Current Draw
After eliminating obvious consumers, disconnect the ground cable overnight and measure parasitic drain with an ammeter. Acceptable baseline is under 50mA. Higher readings indicate:
- Sticky solenoid contacts
- Faulty alternator diode bridge
- Short in the dash warning light circuit
Isolate culprits by removing fuses sequentially, monitoring the ammeter drop each time. The alternator case often hides corroded connections–remove the protective cover and inspect the diode trio for heat damage.
Final verification involves a full system voltage map under load. With engine running at 2,000 RPM, measure:
- Battery terminals: 13.8-14.4V
- Coil positive: 12.8V+ (should match battery)
- Headlamp socket: 13.2V+ (with lights on)
Any deviation over 0.5V between points indicates resistance in connectors–repair with soldered joins, not crimp splices. Store a detailed resistance chart for future reference, noting expected values for each wire gauge (e.g., 10 AWG: 1Ω per 10 ft).

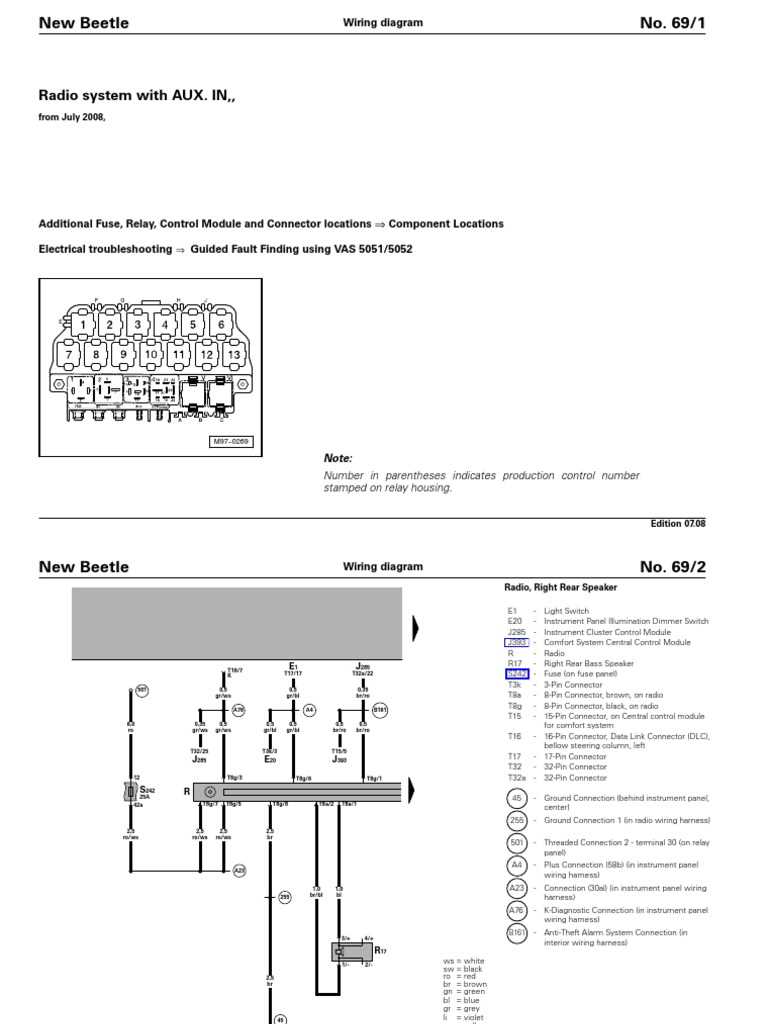

Identifying Fusebox Positions and Their Assigned Electrical Pathways
Locate the primary fuse panel beneath the dashboard on the driver’s side, adjacent to the steering column’s lower housing. Remove the plastic cover by pressing the retaining clips inward and sliding it downward–no tools required. This compartment typically houses 25–30 blade-style protectors, each assigned to distinct vehicle functions. Verify the panel’s printed legend on the reverse of the cover, though faded markings may necessitate cross-reference with a digital schematic for precision.
The front compartment fuse array, often overlooked, sits near the battery tray behind a small access door on the left side of the engine bay. This setup contains six to eight high-current protectors regulating critical powertrain circuitry: ignition coil, fuel pump relay, and cooling fan. Use a flashlight to inspect the labels–ambient heat can distort markings over time. For exact amperage values, consult the service manual’s table rather than relying on visual identification alone.
| Fusebox Location | Protector Slot | Circuit Assignment | Amperage Rating |
|---|---|---|---|
| Driver’s side dash | #5 | Headlamp low beam | 10A |
| #12 | Instrument cluster illumination | 7.5A | |
| #19 | Turn signal lights | 15A | |
| #24 | Windshield wiper motor | 25A | |
| Engine bay left side | #1 | Powertrain control module | 10A |
| #3 | Fuel injection system | 15A | |
| #6 | Cooling fan motor | 30A |
On models equipped with rear defrosters, a secondary in-line fuse resides in the trunk area, behind the right-side trim panel near the taillight assembly. Trace the defroster grid’s positive lead back to its termination point–a cylindrical cartridge protector concealed within a black plastic sleeve. This single 20A unit often fails silently; check continuity with a multimeter if the grid remains inactive after switch engagement.
For interior accessories like power windows or optional stereo amplifiers, inspect the relay block mounted behind the glove compartment. Remove the right-side kick panel for access–three screws secure it. This block organizes relays and mini-fuses in a modular arrangement, with each slot numbered and color-coded. Blue = 15A, red = 10A, yellow = 20A; correlate these to the vehicle’s option code sticker found in the spare tire well to avoid misidentification.
Ground distribution points frequently serve as fuse-equivalent failures. Check the chassis grounding strap near the battery’s negative terminal, and the body grounding point beneath the rear seat cushion. Corrosion at these junctions mimics blown protector symptoms–clean connections with a wire brush and apply dielectric grease during reassembly. For transient electrical faults, substitute a known-good fuse of identical rating rather than assuming protector integrity.
When diagnosing intermittent glitches (e.g., flickering dashboard lights), bypass the suspected fuse holder by inserting a test light probe into the output terminal while the circuit is live. If the light illuminates, the protector is functional–search downstream for loose connections, especially at bulb sockets and switch contacts. Always disconnect the battery’s negative terminal before handling bare conductors to prevent accidental shorts.
