Begin by locating power management IC pinouts on page 12–MT6359P marking confirms main PMIC assignment. Trace BAT+ line through Q301 (AO4415) MOSFET; verify gate drive via R302 (10kΩ) before proceeding. U301 (MT6251) handles USB-C PD negotiations–check EN_SINK (pin 11) toggle during 9V/12V fast-charge cycles.
RF section demands attention to WTR5940 (U101) front-end module. Band 4/5/8 LNA inputs feed directly from antenna switch bank; mismatch here causes -3dB TX power drops. PA_EN signals (pins 3, 6, 17) must align with modem firmware clocks–or risk SAR limit violations. Measure VCC_RF (pin 32) at 3.8V±2% with 6.78MHz load; deviation indicates faulty buck regulator.
Display interface centers on NT36672E (U501) touch controller. LCD_RESET (pin 4) pulse width must exceed 1.5ms; shorter durations corrupt MIPI-DSI lanes. Backlight driver (MT6370) requires VLED string voltage below 24V–use 10kΩ feedback resistor R505 to adjust. Failure to stabilize causes flickering at 70% brightness.
Baseband processor MT6769 (U800) critical signals: AUD_CLK (pin B12) drives 26MHz to codec–missing clock kills audio subsystem. DDR4 traces (pins A2-B9) require impedance matching–use 47Ω series resistors for 667MHz operation. Shorting between layers 4-5 during solder rework guarantees memory corruption.
Troubleshooting flowchart: isolate AP_RESET (pin C1) high-impedance state, then verify PMIC_INT (pin L16) edge-triggered interrupt. Common failure points include blown C802 (4.7µF) filtering cap on VDD_CORE and cold solder joints at J400 flex connector. Always measure ESR on C201-C204 (0.1Ω max) before declaring power rails dead.
Practical Guide to the Mobile Device Circuit Blueprint
Locate the power management IC (PMIC) on the board layout first–it’s typically marked U1001 or similar near the charging port. Trace its pins to identify connections for buck converters (e.g., 3.3V, 1.8V outputs) and verify continuity with a multimeter. If the device fails to power on, check for short circuits on these lines, especially around capacitors C102 and C203, where voltage drops below 0.1V indicate faulty components. Replace the PMIC only after confirming no shorts remain, as residual damage can destroy the new chip.
Signal Path Troubleshooting
For no-signal issues, focus on the RF transceiver (usually labeled U400). Test its TX/RX paths by measuring resistance between antenna connectors and the chip’s matching network–readings should range between 20-50 Ohms. If values exceed 100 Ohms, inspect filters FL101 and FL202 for corrosion or solder bridges. Reballing the transceiver requires a stencil aligned with the chip’s 0.4mm pitch pads; use leaded solder paste (Sn63/Pb37) for better reflow control.
When diagnosing touchscreen failures, probe the digitizer flex connector (CN301) pins for correct voltage levels–TP_VCC should output 3.0V, TP_INT must toggle between 0V and 1.2V during interaction. If static readings appear, isolate the flex cable and clean the connector pads with isopropyl alcohol (99%). For persistent issues, replace the IC located beneath the LCD (marked U300) using a hot-air station set to 350°C with medium airflow to avoid overheating adjacent components.
Locating the Technical Blueprint for the Mid-Range Handset Model
Official service centers provide verified circuit layouts upon request through authorized partner portals. Access requires entering the device’s serial number on the manufacturer’s technical support hub–typically under “Resources” or “Repair Documentation”. Partners with active contracts receive immediate downloads; third-party technicians may face approval delays of 3–5 business days.
Certified repair forums like GSM Forum, XDA Developers, and Repairiix archive scanned blueprints uploaded by contributors. Search threads using the model’s FCC ID (e.g., LMXB86) or board variant (MB-2023-QC) to filter irrelevant results. File sizes range from 12–45 MB; verify checksums against posted hashes to detect corrupted uploads.
| Portal | Access Requirements | Typical File Format | Update Frequency |
|---|---|---|---|
| Manufacturer’s Service Hub | Account + Serial Verification | PDF (Proprietary) | Quarterly |
| GSM Forum | Free Registration | PDF/JPG | Irregular |
| Repairiix | Paid Membership | PNG + Gerber | Biweekly |
| Electro-Tech-Online | No Restrictions | TIFF | Annual |
Paid schematic repositories (AllRepairTech, MobileSchematics) offer instant access via subscription models starting at $19.99/month. These platforms index files by chipset (Qualcomm Snapdragon 695) and power management IC (MT6359V), bypassing model-specific searches. Bulk downloads include component placement maps and jumper wire guides–critical for water-damaged units.
Hardware engineer Discord servers and Telegram channels distribute OEM leaks within hours of release. Channels like @SchematicLeaks and #hardware-repair on Discord archive high-resolution scans organized by SoC architecture. Members often cross-reference board layouts with teardown videos from TechInsights to identify undocumented test points.
For offline use, purchase pre-loaded USB drives from electronic marketplaces (Taobao, AliExpress) containing collections of service manuals and circuit maps. Sellers categorize files by regional variants (Global/EU/IN) and include bonus materials like EMI shielding patterns and flex cable pinouts. Avoid counterfeit drives by checking seller ratings for corroborated file lists.
Manually reconstruct partial schematics using a multimeter in continuity mode and comparing readings against known-good boards. Focus on critical sections–charging circuit (VBUS to PMIC), display interface (MIPI lanes), and RF front-end (QFE paths). Document measurements in KiCad or Altium Designer to generate a reverse-engineered draft, then cross-check with leaked partial diagrams for discrepancies.

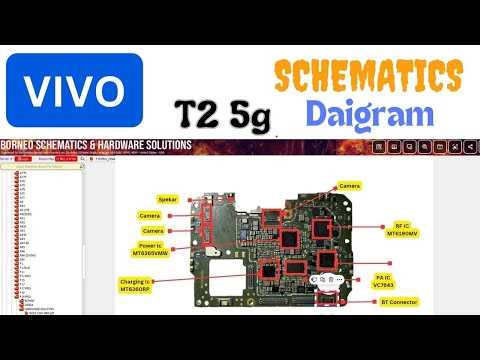

Key Components Identified in the Mobile Device PCB Layout
Examine the power management IC (PMIC) first–located near the battery connector–it regulates voltage distribution across subsystems. Faults here manifest as overheating, random reboots, or failure to charge. Verify input/output capacitance values against reference designs; deviations above 10% indicate degraded performance or imminent failure.
Identify the application processor (AP) cluster, typically paired with LPDDR4X RAM modules. Signal integrity checks should prioritize impedance matching on data lanes–a 5% impedance mismatch causes data corruption. Use a high-resolution thermal camera to detect hotspots during benchmark tests; temperatures exceeding 85°C under load accelerate silicon degradation.
Trace the RF front-end module (FEM) paths, including power amplifiers and low-noise amplifiers. Check for parasitic capacitance on antenna feed lines–values above 1.5pF degrade signal strength by 3dB per 0.5pF increment. Replace corroded connectors immediately; even minor oxidation increases insertion loss by 0.3dB.
Critical Signal Paths and Testing Protocol
- Clock signals: Measure jitter on the 26MHz crystal output–values above 20ps peak-to-peak disrupt baseband processing.
- MIPI lanes: Validate lane-to-lane skew; deviations above 50ps require recalibration of the display driver IC.
- USB-C interface: Test CC pin resistors (5.1kΩ) for compliance; incorrect values disable fast charging.
- Sensor hub: Verify I2C pull-up resistors (2.2kΩ); weak pull-ups cause intermittent sensor readouts.
Inspect the flash storage (UFS 2.1) and its companion controller. Data retention issues often stem from poor solder joints on BGA packages–reflow profiles must adhere to a peak temperature of 260°C for 10 seconds. Run sequential read/write tests using specialized tools; speeds below 450MB/s indicate degraded NAND cells.
Check the touchscreen controller IC for firmware corruption. Reflashing via JTAG requires precise timing; improper sequences brick the device. Noise filtering capacitors (0402 package, 0.1µF) near the controller must be matched to the schematic–mismatches introduce ghost touches.
Evaluate the camera module flex connectors for micro-fractures. Use a multimeter in continuity mode to verify all 24 pins; broken traces reduce image resolution by 30%. Replace the flex if resistance exceeds 0.5Ω per line. Sensor initialization failures often trace back to incorrect I2C addressing–confirm register values match the reference manual.
Power Integrity and Thermal Management Features
- Buck converters: Verify output ripple stays below 20mVpp; higher values cause erratic behavior in downstream components.
- LDOs: Bypass capacitors (1µF) must be placed within 2mm of the IC to prevent noise coupling.
- Thermal vias: Ensure copper fill density exceeds 40% for efficient heat dissipation from the AP.
- Battery charging: Measure charge termination voltage–cutoff below 4.2V reduces capacity by 15% per 0.1V decrement.
Tracing Power Delivery Networks in PCB Documentation
Locate the main power IC–typically marked as PMIC or charger controller–on the board layout files. Use its output pin labels (e.g., VBAT, LDO_3V3, BUCK_1V8) to follow copper traces or net names toward downstream components. Cross-reference each node against the bill of materials to confirm capacitor, inductor, and MOSFET placements; these components form critical junctions where voltage rails split or stabilize. Annotate every branch point with the measured voltage value from the design notes–common rails include 5V, 3.3V, 1.8V, and 1.2V–to verify correct distribution sequences.
- Identify the PMIC’s enable pins (
EN,PS_HOLD) and trace their upstream connections to system-level controls like the application processor or reset supervisor. These lines often carry 1.8V logic and may toggle power states–verify their net names against boot sequence timing diagrams. - Isolate switching regulators by spotting inductors (coil symbols) downstream of the PMIC’s buck converters. Each inductor output node should connect to an output capacitor (10 µF–100 µF) before branching to load ICs; use an oscilloscope to check for 20–200 kHz ripple under full load.
- Check thermal vias beneath high-current rails: copper planes underneath the PMIC and MOSFETs should link to internal ground layers via multiple vias (minimum 8 mil diameter) to prevent hot spots–thermal camera readings should not exceed 85°C at 1A continuous current.
External ports (USB, battery connector, wireless charging coil) introduce unique rails: trace USB VBUS through a protection IC (typ. TPD diode array) and a current-sense resistor before merging with the 5V rail. Battery lines run through a fuel gauge IC (check SDA/SCL for I²C communication) and fuse (1A–3A) before reaching the PMIC; probe these nodes with a DC load to confirm no more than 50 mV drop at 1C charge rate. Record all intermediate test points in a spreadsheet, matching each measured voltage against expected values (±5%) listed in the hardware design guide.
