For optimal performance in dual-battery setups, connect the input terminals to the primary 12V or 24V source with 4 AWG cables, ensuring minimal voltage drop. Use a 150A fuse within 7 inches of the supply battery to protect the circuit. Ground the negative terminal directly to the chassis with the same gauge as the positive lead to maintain stability under load.
Attach the output to the secondary battery through a 6 AWG cable rated for continuous 50A draw. Install a 60A circuit breaker between the converter and the auxiliary battery to isolate faults. If integrating a solar panel, splice a 10 AWG wire into the output line, adding an inline 20A fuse to prevent reverse current at night.

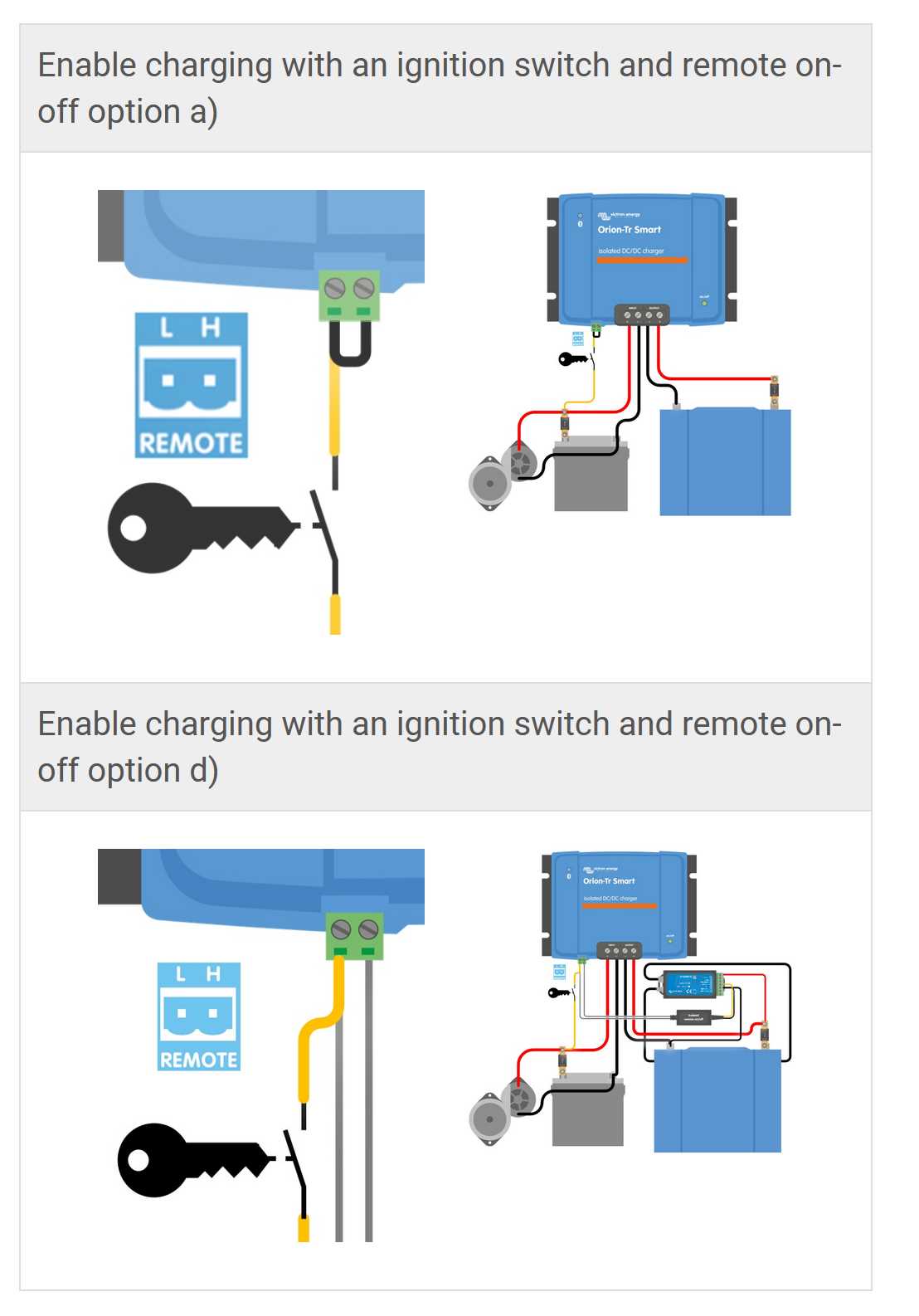

Enable the remote on/off switch by connecting a 16 AWG wire to the ignition source–verify voltage compatibility to avoid false triggers. For temperature-compensated charging, secure a 1kΩ NTC thermistor near the auxiliary battery’s terminal; failure to do so risks overcharging in cold conditions. Label all wires with heat-shrink tubing to simplify troubleshooting.
Test the setup under load: measure input voltage at 13.2–14.4V, output at 13.8–14.6V, and confirm no more than 0.3V drop during a 30A draw. Exceeding these thresholds indicates undersized cables or improper grounding–reevaluate connections before finalizing the installation.
Power Conversion Device Connection Guide
Connect the input terminals of the energy converter to the primary battery bank using 6 AWG cables or thicker, depending on the model’s current rating–consult the manual for exact specifications to prevent voltage drop. Ensure the positive lead from the source battery is paired with an inline fuse (typically 50A for 12V systems) no farther than 15 cm from the battery terminal. Ground the device directly to the chassis or a dedicated negative bus bar using the same cable gauge to minimize resistance and avoid ground loops.
Secondary Battery Integration Details
For isolated configurations, route the output cables from the converter’s load terminals to the auxiliary battery’s positive and negative posts, again matching the input gauge–undersizing risks overheating. Install a battery monitor shunt between the converter’s negative output and the secondary battery’s negative terminal to track current flow accurately. Use heat-shrink tubing on all connections and apply dielectric grease to terminals exposed to moisture or corrosive environments.
Polarity-sensitive relays or battery combiners should be bypassed when installing this equipment, as it includes built-in algorithms for multi-stage charging profiles. Avoid connecting inductive loads (e.g., motors, inverters) directly to the output–this can disrupt charge regulation. Instead, use a dedicated bus bar for distribution, separating high-draw devices from the charging circuit.
Test all connections with a multimeter before powering on: measure zero volts across open terminals and verify the source battery’s voltage at the converter’s input (e.g., 12.6V for a fully charged lead-acid cell). If voltages differ by more than 0.2V, recheck connections for loose crimps or oxidized contacts. Enable temperature compensation only if the device is within 30 cm of the battery–otherwise, disable it to prevent erratic charging behavior.
Essential Parts to Recognize Before Connecting a Dual-Battery Power Converter
Start by locating the input and output terminals on the converter unit. Most models include labeled ports: BAT or IN for the primary power source (e.g., starter battery) and OUT or LOAD for the secondary system (e.g., auxiliary battery). Verify voltage ratings–common configurations support 12V, 24V, or 48V–matching both source and target battery banks. Mismatched voltages risk overheating or device failure.
- Primary fuse: Install a fuse rated 10-20% above the converter’s max current draw (e.g., 50A for a 40A unit) between the starter battery and the device. Position it within 15 cm of the battery terminal to protect against short circuits.
- Ground connection: Use a dedicated 8-10 AWG cable from the converter’s GND terminal to the vehicle chassis. Avoid shared grounds with high-current devices like winches; corrosion or loose connections cause erratic operation.
- Temperature sensor: If included, attach the sensor to the auxiliary battery’s negative terminal using thermal paste. Incorrect placement leads to premature charging cutoff or overcharging.
Confirm the converter’s operational mode. Three-state models switch between:
- Buck: Steps down voltage (e.g., 24V starter → 12V auxiliary).
- Boost: Steps up voltage (rare, e.g., 12V → 24V).
- Bidirectional: Adapts dynamically based on battery state. Check dip switch settings; incorrect configuration voids warranty.
Measure source voltage under load–fluctuations below 10.5V (for 12V systems) trigger low-voltage shutdown.
Prepare termination points with tinned copper lugs sized for the cable gauge (e.g., 6 AWG for 50A converters). Use a crimping tool; solder-only joints weaken under vibration. For lithium auxiliary batteries, enable LiFePO4 mode via configuration software–default lead-acid settings reduce lifespan. Test connections with a multimeter: continuity between terminals and 0V across open circuits. Finalmente, secure all cables with adhesive-lined heat shrink tubing–not electrical tape–to prevent chafing against sharp edges.

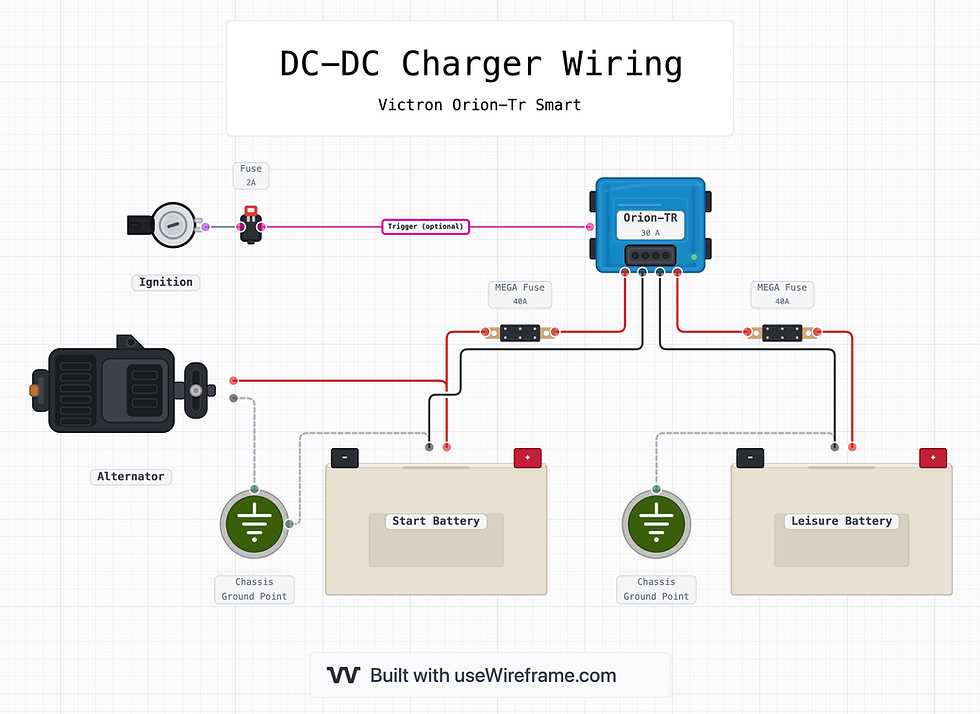

Step-by-Step Connection Guide for Orion-Tr Smart Models
Begin by securing the input cable to the battery bank with at least 16 mm² copper conductors for 12 V systems or 10 mm² for 24 V setups, ensuring terminals are torqued to 8 Nm for M8 bolts or 4 Nm for M6. Connect the negative lead to the chassis ground only if the battery bank lacks a direct ground link; otherwise, route it directly to the negative terminal to prevent stray current corrosion in marine or vehicle environments.
| System Voltage | Input Cable (mm²) | Output Cable (mm²) | Torque (Nm) |
|---|---|---|---|
| 12 V | 16 | 25 | 8 (M8) / 4 (M6) |
| 24 V | 10 | 16 | 8 (M8) / 4 (M6) |
| 48 V | 4 | 6 | 8 (M8) |
Attach the output to the load or secondary battery using fused conductors–25 mm² for 12 V or 16 mm² for 24 V–positioning the fuse within 20 cm of the battery terminal. Enable Bluetooth monitoring via the manufacturer’s app, then verify input/output polarity with a multimeter before powering on; reverse polarity protection activates only after 100 ms, risking brief arcing. For parallel configurations, stagger connections by at least 50 cm to prevent circulating currents, and use identical cable lengths to balance resistance.
Common Installation Errors and Prevention Methods
Reversing input and output polarities destroys power conversion modules instantly. Double-check battery terminal markings before connecting leads–positive (red) must align with the source’s positive terminal, and negative (black) with ground. Use a multimeter in continuity mode to verify no accidental short circuits exist between cables before energizing the system. Label both ends of each wire with heat-shrink tubing to eliminate ambiguity during maintenance or future expansions.
- Undersized cables create voltage drops exceeding 3% over distances longer than 1 meter. Calculate required cross-section using the formula A = (I × L × 0.0175) / (V × 0.03), where A is the area in mm², I the current in amperes, L the length in meters, V the system voltage. Example: for 20A at 12V over 3 meters, minimum cable gauge is 16mm².
- Loose terminals cause heat buildup–torque all connections to 4 Nm using a calibrated driver. Apply dielectric grease to prevent corrosion, especially in marine or humid environments.
- Ignoring ground loops introduces noise into sensitive electronics. Isolate communication lines (VE.Can, USB) from power circuits using shielded twisted pairs, grounding the shield at a single point near the controller.
Failing to test the setup under load risks undetected faults. Run the system at 50% of rated current for 30 minutes after initial commissioning, monitoring temperatures at all connection points with a thermal camera or laser thermometer. Abnormal heating (>60°C) indicates poor contact or undersized conductors–disconnect immediately and re-evaluate.
Syncing a Power Tracking Device with Your DC Power Conversion System
Connect the shunt between the negative terminal of your primary energy storage and the input of the current regulation unit. Use 2 AWG cable or thicker for runs exceeding 3 meters to minimize voltage drop–critical for accurate state-of-charge readings. The shunt’s secondary port must link directly to the monitor’s dedicated data interface; avoid sharing this path with auxiliary loads, as even minor ground loops introduce measurement errors up to 15%. Verify polarity before energizing: incorrect wiring risks damaging the measurement module’s internal circuitry, voiding calibration.
Configure the tracking device’s battery parameters–chemical type, nominal voltage, and cell count–before first use. Lithium-iron-phosphate systems require a Peukert exponent of 1.05; lead-acid demands 1.2. If hysteresis exceeds 0.2V during absorption, adjust the charge regulator’s voltage setpoint or shorten the absorption duration to 30 minutes. Log discharge curves at 0.2C intervals to identify irregularities; a sudden 0.5V drop under load indicates a failing cell or undersized cabling.
Route the communication cable away from high-frequency switching sources–keep at least 15cm separation from inverters or buck-boost converters. Use shielded twisted-pair (STP) cable terminated with ferrite cores if interference persists; RS-485 networks tolerate up to 1200m at 19.2k baud without repeaters. Set the network address below 10 if integrating multiple devices; conflicting IDs cause data collisions and false low-voltage alarms. Calibrate the monitor after installation: fully charge and discharge the storage bank while logging, then correct the tracking device’s amp-hour offset via the built-in compensation function.
