Adjustable Power Supply Design with Circuit Schematics and Voltage Control

Begin with a linear regulator configuration using an LM317 IC for outputs between 1.2 V and 37 V. Place a 240 Ω resistor between the output and adjust terminals to ensure stable operation. For fine control, pair it with a 5 kΩ potentiometer wired as a voltage divider–this allows precise tuning of the output level. Add a 10 µF electrolytic capacitor at the input and a 1 µF tantalum capacitor at the output to suppress noise and prevent oscillations.

For higher current demands (up to 5 A), replace the LM317 with a LM338 or LT1083. Increase the heat sink size–thermal resistance should not exceed 1.5 °C/W. The feedback loop must include a 1 kΩ resistor in series with the potentiometer to prevent thermal runaway. Verify stability by monitoring ripple with an oscilloscope: target <20 mV peak-to-peak at full load.

Switched-mode designs yield better efficiency for inputs above 24 V. Use a buck converter module (e.g., XL4015) with a 47 µH inductor and Schottky diode (SR360). The switching frequency should be set to 150 kHz to balance size and performance. For adjustable outputs, connect a 10-turn 10 kΩ potentiometer to the feedback pin–this enables 0.1% resolution in output tuning.

Safety requires a polyfuse (500 mA) on the input side and a TVS diode (P6KE20A) across the output to clamp surges. Ground loops must be avoided–use a star grounding scheme with all return paths converging at a single point near the regulator. Test under full load for 30 minutes; case temperature must stabilize below 60 °C.

Adjustable Output Regulator Design Guide

Begin with a linear regulator IC like the LM317 for simplicity and reliability in low-current setups up to 1.5A. Connect the IC’s input pin to a raw DC source (12–35V) with a 0.1µF bypass capacitor to suppress high-frequency noise. The output pin should feed a 1µF tantalum capacitor to stabilize load fluctuations while the adjust pin connects to a resistive divider. For precise control, use a 240Ω resistor from the output to the adjust pin and a 5kΩ potentiometer between the adjust pin and ground–this configuration yields an output range from 1.25V to approximately 25V.

Incorporate a PNP pass transistor (e.g., TIP32A) if current demands exceed 3A, expanding capability without overheating the regulator. Mount the transistor on a heatsink rated for at least 20°C/W and attach it thermally to the regulator via a shared pad, ensuring electrical isolation with mica or silicone thermal pads. Add a 1N4007 flyback diode across the transistor’s emitter-collector junction to protect against inductive load spikes. The base of the transistor connects to the raw DC source through a 1kΩ resistor, while the emitter links directly to the regulator’s input–this arrangement distributes heat and current evenly.

Replace fixed resistors in the divider network with a precision multiturn potentiometer (Bourns 3590S) to fine-tune the output without drift. Insert a 10µF electrolytic capacitor in parallel with the lower leg of the divider to smooth transient responses when adjusting the potentiometer. For digital monitoring, add an INA219 current/voltage sensor between the output and load–it communicates via I²C, allowing real-time readings with ±1% accuracy. Calibrate the sensor using a 0.1Ω shunt resistor and configure the microcontroller’s ADC reference to the regulator’s 1.25V internal reference for consistency.

Shield sensitive components from electromagnetic interference by routing traces with a minimum width of 1.5mm for currents above 1A and keeping high-current paths short. Enclose the assembly in a grounded aluminum chassis, ensuring the chassis connects to the input ground via a 10nF capacitor to break ground loops. Use a two-stage filtration system: upstream, a 1000µF electrolytic capacitor smooths rectified AC, followed by a 10µF ceramic capacitor on the IC’s input to eliminate residual ripple below 10mVpp. For noise-critical applications, insert a ferrite bead (e.g., Fair-Rite 2643002402) in series with the input line to attenuate frequencies above 1MHz.

Test load regulation under dynamic conditions by toggling a 10W dummy load (e.g., a MOSFET-driven resistor bank) at 10Hz. Measure output deviation with an oscilloscope–ideal response should settle within 50µs with overshoot under 5%. If oscillations occur, increase the output capacitor’s ESR by replacing the 1µF tantalum with a 47µF aluminum electrolytic or adding a 0.1Ω resistor in series. Document thermal performance by logging temperatures at the regulator and pass transistor under full load for 30 minutes; thermal shutdown should not activate below 125°C if heatsinks are properly sized.

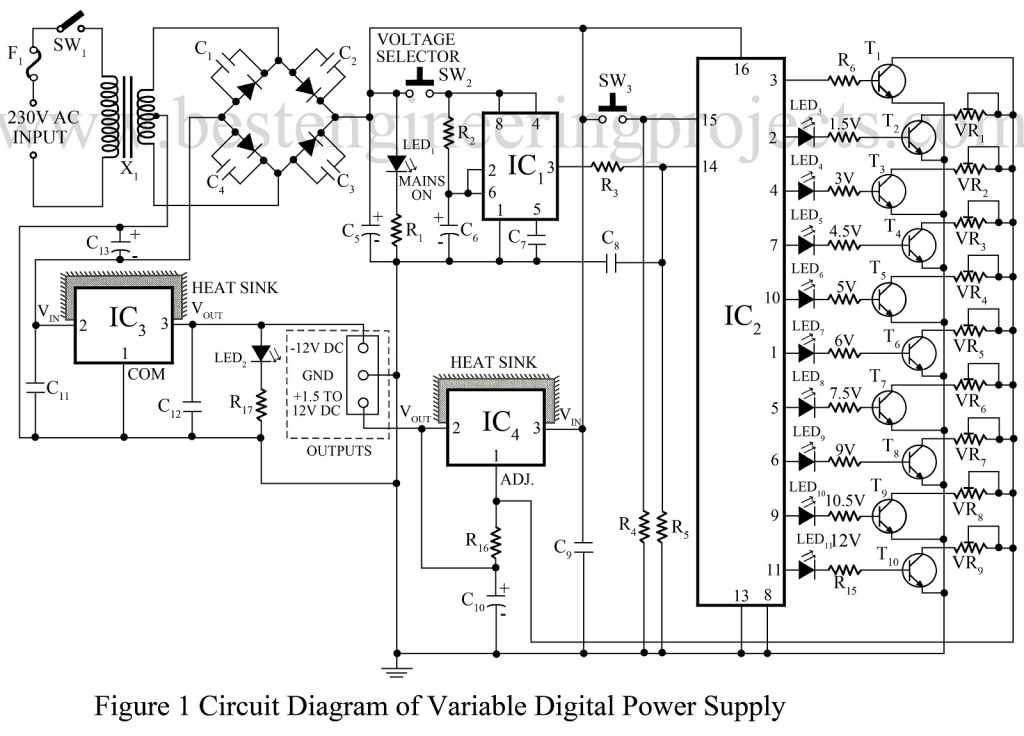

Core Parts Required for an Adjustable Regulated Source

The foundation of any regulated source is a transformer with a secondary tap matching your target range. For most bench applications, a 24V AC secondary suffices–this allows adjustment between 3V and 20V DC after rectification. Lower taps risk sag under load, while higher ones demand larger heat dissipation. Toroidal cores reduce hum but add bulk; EI-types balance cost and performance.

A bridge rectifier rated at least 50% above peak secondary current prevents conduction loss. Typical 3A units suit 1A outputs, but 10A bridges handle transient loads better. Consider Schottky diodes for low-drop (~0.2V) if linear regulation follows; standard silicon (~0.7V) works for switching stages. Film capacitors (2200µF/50V) after rectification smooth ripple–electrolytics age poorly under heat.

The adjustable regulator dictates precision. LM317 variants hold 1% tolerance at 1A, but LM338 handles 5A at 1.2–32V. TO-220 packages need heatsinks above 0.5W dissipation; TO-3 types are overkill unless >3A. For negative rails, LM337 mirrors the setup. Always bypass input/output pins with 0.1µF ceramics to stop HF oscillations.

Resistors set output with Ohm’s law: R2 = R1 × (Vout/Vref − 1), where Vref = 1.25V for most regulators. Use 1% metal-film resistors–carbon films drift 5% under load. Potentiometers add flexibility: 10-turn trimmers offer finer control than single-turn types. Wirewound variants handle power surges better but introduce inductance.

A current-limiting feature protects loads. Add a low-value resistor (0.1–0.5Ω, 5W) in series with the output; a comparator trips below a set threshold. Alternatively, adjustable regulators like LT1083 include internal foldback–consult datasheets for thermal derating. Always fuse the primary or regulate inrush with NTC thermistors if transformer surge exceeds 2× rated current.

Output filtering matters for sensitive loads. Parallel inductors (10–100µH) with capacitors (100µF) reduce switching noise from regulators. Ground planes on PCBs prevent ground loops; star grounding minimizes cross-talk. For bipolar outputs, dual supplies use symmetrical transformers–center-tapped secondaries halve winding count but increase ripple current.

Step-by-Step Assembly of a Linear Adjustable Output Source

Begin by securing a LM317 or equivalent linear regulator IC on a heat sink rated for at least 15W dissipation. Apply thermal paste between the regulator’s metal tab and the sink, then fasten with a screw torque of 0.5–0.7 Nm to prevent overheating during prolonged operation at high currents. Connect the input terminal to a DC source providing 8–35V–ensure the source can deliver 1A continuous without sagging below 3V above the desired output.

1. Solder a 240Ω resistor between the regulator’s adjustment pin and output pin to establish a stable reference current (5mA).
2. Attach a 5kΩ potentiometer between the adjustment pin and ground; this sets the scalable output range from 1.25V up to V_in – 1.5V.
3. Place 0.1µF ceramic capacitors within 5mm of both input and output pins to suppress high-frequency noise.
4. Add a 10µF electrolytic capacitor on the output to improve transient response under load swings > 200mA.
5. Verify connections with a multimeter before applying input: resistance between adjustment pin and ground should read 1.2–1.3kΩ.

Shield adjacent traces with 1oz copper pour connected to ground to reduce EMI when operating above 12V. For currents > 500mA, mount the regulator on a 3.5×4.5cm aluminum board or use forced-air cooling with a 25mm fan running at 5V.

Selecting Resistor Values for Target Output Adjustment

Begin by identifying the feedback network in your regulator–typically a pair of resistors forming a voltage divider. The reference node (often labeled VREF or ADJ) sits between them. For a linear adjuster like the LM317, this node hovers around 1.25 V. Use Ohm’s law with this baseline: R1 (upper resistor) and R2 (lower resistor) determine the output span.

For a 1.8–12 V adjustable span, fix R2 at 240 Ω (standard for 1.25 V reference). Calculate R1 for the upper bound: (12 – 1.25) × 240 / 1.25 ≈ 2,090 Ω. Round to 2.2 kΩ for practical tolerances. Validate with VOUT = 1.25 × (1 + 2200/240) ≈ 12.1 V, confirming the ceiling. Reverse the process for the lower threshold: 1.8 = 1.25 × (1 + R1/240) yields R1 ≈ 105 Ω, which you’d pair with a 100 Ω resistor–or use a trimmer potentiometer for fine tuning.

Common pitfalls include overlooking current flow requirements. Ensure the divider draws at least 5–10 mA through R2 to maintain regulation stability. For R2 = 240 Ω, this translates to 1.25 / 240 ≈ 5.2 mA, sufficient for most small-scale designs. If sourcing higher loads (e.g., 1+ A), consider reducing R2 to 120 Ω (1.25 / 120 ≈ 10.4 mA) to offset quiescent current losses in the regulator.

• For 3.3 V fixed output: R1 = 360 Ω, R2 = 240 Ω. Verification: 1.25 × (1 + 360/240) ≈ 3.3 V.
• For 5 V output: R1 = 720 Ω, R2 = 240 Ω or R1 = 1.2 kΩ, R2 = 390 Ω for marginal trade-offs in quiescent current.
• For 9 V output: R1 = 1.5 kΩ, R2 = 240 Ω. Cross-check: 1.25 × (1 + 1500/240) ≈ 9.06 V.

Temperature and Load Drift Adjustments

Resistor tolerance impacts precision. Using 1% metal film resistors cuts voltage deviation to ±0.5% across a 1–10 V span. For trimmer potentiometers (e.g., 10-turn 5 kΩ), parallel a fixed resistor (R2) to anchor the lower bound. Example: R2 = 240 Ω in parallel with a 5 kΩ trimmer yields an effective R2 ≈ 228 Ω at midpoint, tightening control over the output.

Account for thermal drift by matching temperature coefficients. Pairing a 240 Ω 1% resistor (±50 ppm/°C) with a carbon film trimmer (±200 ppm/°C) risks output shifts exceeding 20 mV/°C at extremes. Opt for C0G/NP0 capacitors in the feedback loop if stability under 30 ppm/°C is required.

Load regulation degrades when R1 exceeds 5 kΩ. For a 12 V/1 A configuration, replace R1 = 2.2 kΩ with R1 = 1.8 kΩ to minimize sag under full load. The trade-off–slightly higher quiescent current (~7 mA)–is negligible for mains-powered sources but merits consideration in battery-driven designs. Use the formula ΔVOUT ≈ ILOAD × RESR to quantify worst-case dropout, substituting RESR with the datasheet’s specified value (e.g., 0.5 Ω for LM317).

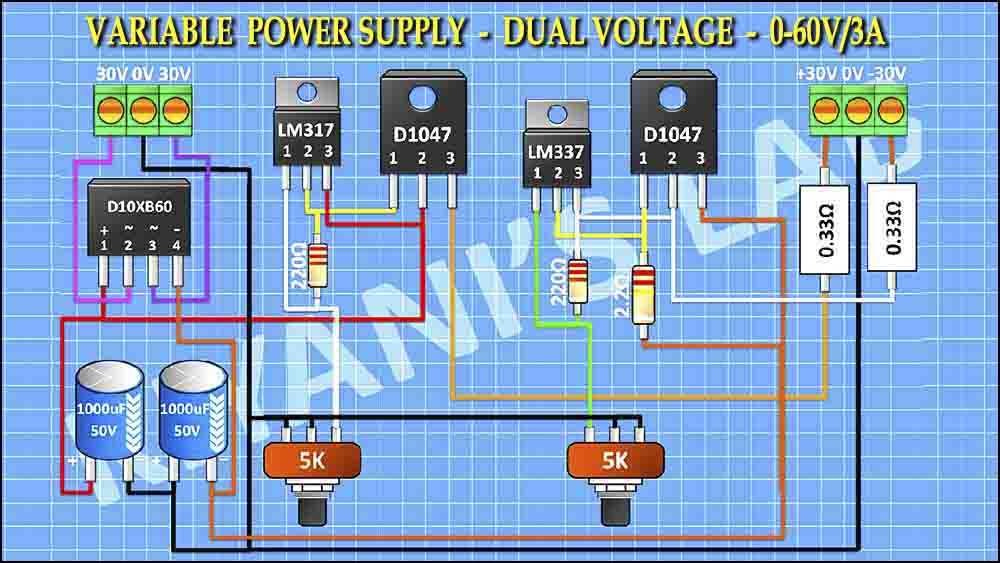

For dual-rail designs (e.g., ±15 V), mirror calculations on the negative regulator (e.g., LM337). Here, the reference swings to –1.25 V, but resistor ratios remain identical: –15 = –1.25 × (1 + R1/240) → R1 ≈ 2.6 kΩ. Cross-regulate rails by tying adjust pins together through diodes (1N4148) to prevent latch-up during power sequencing. Precision demands isolating each rail’s feedback network to avoid crosstalk.
