Begin by identifying pin assignments in reversible 24-pin interfaces–Configurations CC1/CC2 handle orientation detection (5.1 kΩ pull-down resistors), while VCONN supplies power to electronically marked cables (3.3–5.5 V, max 1 W). SBU1/SBU2 alternate for audio or sideband signals depending on protocol (eDP, Thunderbolt). Verify differential pairs: TX+/TX– and RX+/RX– (90 Ω impedance) carry high-speed data (10 Gbps+), shielded individually to prevent crosstalk.
For power delivery (PD), ensure VBUS supports 5–20 V (up to 5 A) with current-limit resistors (Rp/Rd). Ground pins (GND) must form a low-resistance path–connect all four pins in parallel (≤ 10 mΩ) to handle 3 A+ without voltage drop. Omit series capacitors on VBUS if using fast-charging (≤ 10 μF to avoid overcurrent spikes).
Isolate control lines with ferrite beads (600 Ω @ 100 MHz) or common-mode chokes for EMI suppression. For alt modes (DisplayPort, HDMI), repurpose TX/RX pairs–validate signal integrity with eye-diagram tests at 1.62–8.1 Gbps. Terminate SBU pins with 100 kΩ pull-ups if unused, preventing floating states. Check cable assembly specs–active cables integrate re-drivers (retimers) for lengths > 1 m (redriver ICs: PS8802A, TUSB1046).
Debugging steps: Use a protocol analyzer (Total Phase Beagle) to trace PD negotiations; scope differential pairs (200 MHz+ bandwidth) to spot impedance mismatches or reflections. Replace USB-C breakout boards with test fixtures (e.g., FTDI UMFT4222EV) for controlled probing–avoid soldering wires directly to pads (fragile thermal reliefs).
Understanding the Reversible Interface Pinout Layout

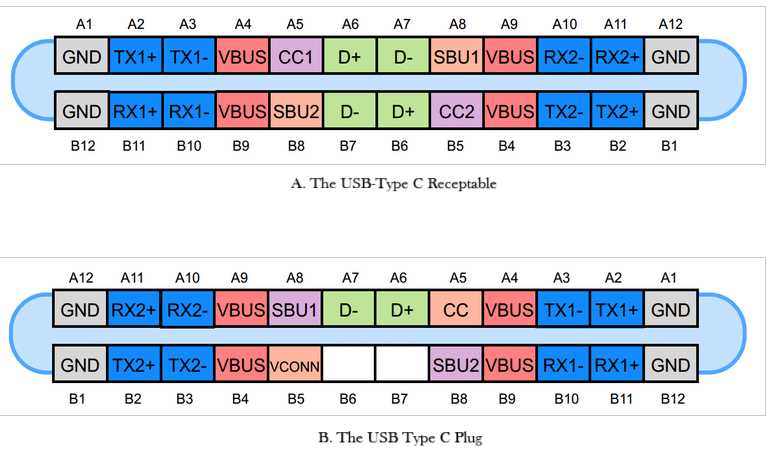

Begin by identifying the 24-pin configuration in a symmetric arrangement: A1–A12 and B1–B12. Pins A4/B4 (Vbus) require a direct link to a power delivery controller supporting 5V–20V at 1.5A–5A via CC logic. Ensure A5/B5 (CC lines) connect to a pull-down resistor (5.1kΩ) for sink detection and orientation sensing. Data lanes (A6/A7 and B6/B7 for SuperSpeed pairs) demand shielded differential pairs with 90Ω impedance–avoid vias between these traces to prevent signal degradation. Ground pins (A1/A12/B1/B12) should tie to a common plane with no more than 3.2mm trace separation from the shield for EMI suppression.
- Route CC lines with minimal stubs–excess length causes false orientation detection.
- For power roles, swap A5/B5 resistors (1kΩ pull-up for source, 5.1kΩ pull-down for sink).
- Terminate untwisted SuperSpeed pairs with AC coupling capacitors (0.1µF) at the transmitter side.
- Isolate analog audio pins (A2, A3, B2, B3) with LC filters if unused to reduce noise.
- Test VBUS lines for 5% voltage tolerance under 5A load before finalizing PCB traces.
Pinout Configuration and Signal Assignment for USB-C Interface
Prioritize verifying power roles on VBUS and CC lines before signal routing. A misconfigured CC pin (A5/B5) can disrupt power negotiation, leading to unexpected device behavior or failure to charge. Use a 5.1 kΩ pull-down resistor for sink devices and a 56 kΩ pull-up for sources; deviations outside ±5% may cause detection errors. Always check orientation–flipping the plug reverses CC1/CC2 roles, requiring dual-compatible designs for reliable operation.
Differential pairs superspeed TX/RX (A2/A3, B2/B3 for TX; A10/A11, B10/B11 for RX) demand controlled impedance of 90 Ω ±10%. Shield integrity is non-negotiable: connect both GND (A1, A12, B1, B12) and shield pins directly to the ground plane without daisy-chaining. For high-speed data, route traces with minimal vias, matching lengths within 5 mm to prevent signal skew. Decouple VBUS (A4/B4) with a 1 µF capacitor close to the pin to suppress noise during current spikes.
Alternate Modes and Sideband Signals
Alternate Mode signals (SBU1/SBU2, A8/B8) require multiplexing logic to avoid conflicts with standard operation. For DisplayPort, map AUX+ and AUX- to SBU1/SBU2 while ensuring lane mapping (TX1/RX2 or TX2/RX1) aligns with the DP sink’s expectations. Use an analog switch with sub-50 Ω on-resistance for seamless mode transitions; delays exceeding 10 ms may cause display flickering. Keep SBU traces short and away from noisy components to prevent crosstalk.
For debug or custom protocols, leverage the D+/D- (A6/A7 or B6/B7) pair cautiously–these support legacy 2.0 speeds but are often repurposed in modern designs. Avoid sharing these lines with high-speed signals, as impedance mismatches or stubs can degrade performance. If unused, terminate with 22 Ω resistors to ground to minimize reflections. Power delivery (PD) messages rely on the CC line; ensure the protocol stack supports fast role swap (≤15 ms) to comply with USB PD 3.0 specs.
Thermal management dictates trace width: 1 A requires ≥0.25 mm for internal layers, ≥0.5 mm for outer layers. VBUS traces should handle 5 A continuously with 2 oz copper; exceeding these parameters risks overheating. For connectors rated at 20 V/5 A, use dual VBUS pins (A4/A9) to distribute load and reduce contact resistance. Test all configurations under worst-case scenarios–unpowered host, sudden disconnection–to validate transient response and firmware recovery.
Power Delivery (PD) Schematic and Voltage Negotiation Paths
Integrate a TPS65987D or FUSB302B controller in your design to handle PD protocols efficiently. These chips manage voltage negotiation, current limits, and communication with minimal external components–ensure pull-up resistors (5.1kΩ) on CC1/CC2 pins for proper detection and orientation. For higher power (up to 100W), pair the controller with a synchronous buck-boost converter like the LM5175 to regulate output dynamically.
Voltage negotiation follows a strict state machine: Source Capabilities (5V, 9V, 15V, 20V) are advertised via BMC-encoded messages over the configuration channel. The cable’s e-marker (if present) overrides default limits–verify compatibility with Electronically Marked Cables (EMC) to avoid unexpected drops. Debugging requires a protocol analyzer (e.g., Total Phase Beagle) to capture PDO exchanges; filter for SOP* packets to isolate cable communication errors.
Design the VBUS path with 20A-rated traces (minimum 70µm copper) and polyfuse protection (0.75A hold, 1.5A trip) to prevent thermal runaway. Route CC lines separately from high-speed pairs (SBU, D+/D-) to minimize crosstalk; keep impedance at 50Ω ±10%. For alternate modes (e.g., DisplayPort), pull SBU1/SBU2 high via 10kΩ resistors if not in use to avoid false triggering.
Implement overvoltage protection using TVS diodes (e.g., SMF4L) on VBUS, sized for 24V clamping (peak pulse power >400W). Place decoupling capacitors (10µF X7R, 0805) near the controller’s power pins to stabilize transients during PD renegotiation. For fast role swap, ensure VCONN is enabled on the correct CC pin–reverse polarity can damage cables lacking e-markers.
Test voltage negotiation paths by forcing PDO requests via host software (e.g., STM32Cube PD stack) and monitoring VBUS with an oscilloscope. Expect a 15ms delay for 5V → 20V transitions; longer delays indicate excessive EMC noise or weak pull-ups. For low-power devices (input capacitor (33µF) can handle inrush current.
Avoid grounding CC lines through shared vias–route them as differential pairs with 4mil spacing to meet IEC 62368-1 EMC requirements. For galvanic isolation, use a capacitive coupler (e.g., ISO7731) on CC to prevent ground loops in industrial applications. Always verify PD sink capabilities against the maximum cable resistance (0.2Ω) to prevent undervoltage lockouts during high-current draw.
Differential Pair Routing for High-Speed Data Lanes (TX/RX)
Keep trace lengths for differential pairs matched within ±5 mils to prevent skew exceeding 1 ps. For lanes operating at 5 Gbps or higher, this tolerance tightens to ±2 mils to maintain signal integrity.
Use a controlled impedance of 90Ω ±10% for each pair. Fabricate PCB stackups with prepreg and core materials rated for Dk ≤ 3.7 and Df ≤ 0.005 at 10 GHz, such as Isola I-Tera MT40 or Panasonic Megtron 6.
Maintain a minimum spacing of 3× trace width between adjacent pairs to reduce crosstalk. For 4-layer boards, route pairs on an outer layer with an adjacent solid reference plane beneath to minimize via transitions.
Apply teardrop pads at via connections to reduce impedance discontinuities. Limit via count per pair to one per 50mm of trace length; excessive vias degrade rise times by 12-15% at 10 Gbps.
Critical Ground Return Paths
Place ground stitching vias no farther than 200 mils apart beneath differential pairs. Ensure vias connect all reference planes (ground and power) to prevent return current loops, which can increase jitter by 0.3 UI.
Avoid routing pairs near split planes or voids. If crossing a split is unavoidable, add decoupling capacitors (≥100 nF) within 50 mils of the split edge to stabilize return paths. Use X7R dielectric for capacitors to maintain performance across temperature variations.
Optimize serpentine routing for intentional length matching. Use arc segments instead of sharp 90° corners to reduce reflections. For each 1 mm of serpentine, add 6 ps of delay; simulate with ANSYS HFSS or Keysight ADS to verify timing margins.
Termination and Test Point Considerations
Terminate each pair with 100Ω ±1% resistors on the far end. Place resistors within 10 mm of the receiver IC to minimize stub effects. Avoid test points for differential pairs; if mandatory, use high-impedance probes with to prevent loading.
