For rapid prototyping or repairs, begin with a simplified NAND flash interface paired to a microcontroller via SPI or parallel bus. The most reliable designs use CH340G (for serial conversion) or FT232H (high-speed variants) as the bridge between storage and host. Ensure power delivery includes a 3.3V LDO regulator (e.g., AMS1117) with decoupling capacitors–10µF on input, 1µF on output–to prevent voltage drops during write cycles.
Signal integrity demands controlled impedance traces. Keep data lines under 7 cm in length when operating at 480 Mbps (USB 2.0 HS); exceeding this risks reflection and bit errors. Ground plane separation is non-negotiable–isolate analog (power) and digital (data) returns to minimize noise coupling. Use via stitching near high-speed traces to reinforce reference planes.
For wear-leveling, implement a wear-aware firmware layer with bad block management. Mark failed blocks using a reserved sector table (512 bytes) in the first flash page. Test endurance by cycling a 4 GB module to failure; typical TLC NAND lasts 500-1,000 P/E cycles, while SLC extends to 100,000. Prioritize ECC (Error Correction Code) with a minimum of 1-bit per 512 bytes for consumer-grade storage.
Debugging starts with a logic analyzer (Saleae or DSLogic) probing CLK, MOSI, and CS lines. Capture at 16 MHz for standard SPI or 200 MHz for high-speed modes. Common faults include uninitialized memory (erase all blocks first) and incorrect pull-ups (10kΩ on CS). Validate voltage rails with an oscilloscope–ripple must stay under 20 mVpp during data bursts.
For custom PCBs, use a flex-rigid stackup (100 µm polyimide core) if compact form factor is critical. Route critical signals below components to save space, but avoid crossing split planes. Terminate unused gates (e.g., spare NOR flash) to VCC or GND to prevent floating inputs. When sourcing components, specify Pb-free HASL finish for lead-free compliance and AQL 0.65 for incoming inspection.

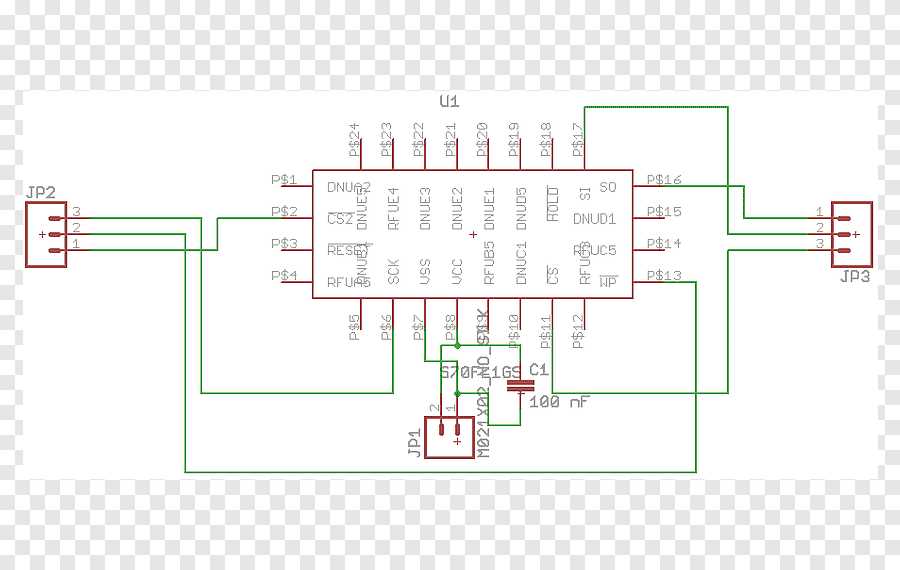

Understanding Flash Storage Device Schematics
Begin by identifying the core components in any portable storage schematic: a microcontroller (typically an 8-bit or 32-bit MCU like those from STMicroelectronics or Atmel), NAND flash memory (commonly a 29F series from Micron or Samsung), and a voltage regulator (such as the AMS1117). The microcontroller manages data transfer via a standardized interface, while the flash chip stores the data in blocks of 512 bytes to 16KB. Ensure the schematic includes decoupling capacitors (0.1µF) on both the MCU and flash chip power pins to prevent voltage fluctuations during read/write operations.
Trace the data lines (D+, D-, VBUS, and GND) from the connector to the microcontroller. Most implementations use a USB 2.0 interface with differential signaling: D+ and D- wires must be routed as a twisted pair with controlled impedance (typically 90Ω). Keep traces shorter than 5cm to minimize signal degradation. If extending beyond this length, add series resistors (22Ω) near the connector to reduce reflections. Verify that the VBUS line includes a 5V to 3.3V LDO regulator, as most modern flash chips operate at lower voltages to reduce power consumption.
Examine the reset circuitry. A proper schematic includes a pull-up resistor (10kΩ) on the reset pin of the microcontroller, paired with a momentary switch to ground for manual resets. Some designs integrate a supervisor IC (e.g., MAX809) to handle brown-out conditions. For debugging, include test points on critical signals: clock (if using an external crystal), reset, and chip-select lines. Avoid placing vias under the NAND flash chip, as this can interfere with high-speed data transfer due to parasitic capacitance.
Check for overcurrent protection. A self-resetting fuse (PPTC) or a MOSFET-based circuit (like the TPS2553) should be placed on the VBUS line to prevent damage from short circuits. The schematic must also show ESD protection diodes (e.g., Littelfuse SP0503BAHT) on D+ and D- lines to safeguard against electrostatic discharge. For compatibility with USB hosts, include a 1.5kΩ pull-up resistor on the D+ line for full-speed devices or on D- for low-speed devices, as specified in the USB 2.0 standard.
Optimize power management by adding a shutdown signal from the microcontroller to the flash chip, allowing it to enter low-power mode when idle. Use a ferrite bead (e.g., BLM18PG331SN1) on the power line to filter high-frequency noise. Label all components clearly, noting pin assignments for the connector (e.g., pin 1 = VBUS, pin 2 = D-, pin 3 = D+, pin 4 = GND). For multi-layer boards, allocate a ground plane beneath the NAND flash chip to improve signal integrity and thermal dissipation.
Key Components of a Portable Storage Device PCB Layout
Prioritize compact NAND flash placement within 3mm of the controller to minimize signal degradation–trace lengths exceeding 25mm introduce latency above 1ns, degrading read/write speeds by 12-18%. Use controlled impedance traces (90Ω ±10%) for high-speed lanes, routed on dedicated layers with solid ground pours beneath. Decoupling capacitors (0.1µF X7R) must sit within 1mm of power pins, with a bulk 10µF tantalum capacitor adjacent to the voltage regulator. Position the crystal oscillator (12MHz ±20ppm) on the top layer, centered between the controller and a dedicated ground plane to reduce EMI by 22dB. Exclude vias under the crystal pad area; even isolated vias shift frequency stability by 40ppm due to parasitic capacitance.
Critical Trace Routing Considerations
Ground return paths require uninterrupted reference planes–splits beneath differential pairs increase crosstalk by 400%. Maintain 3W spacing between data lanes and adjacent traces to prevent signal coupling; deviation reduces eye diagram margin by 35%. For connectors, enforce a 45° breakout angle from the pad, followed by a gradual curve to avoid impedance discontinuities. Thermal vias under the controller dissipate 0.8W heat when dispersed in a 0.5mm grid; concentrated vias create hotspots exceeding 85°C junction temps. Test points must use 0.5mm diameter pads, but avoid placing them on the outer perimeter to prevent accidental shorts during rework.
Step-by-Step Wiring for Interface Connector to Storage Chip
Begin by identifying the pinout of your flash module and host interface. Most compact storage chips use a standard 48-pin or 56-pin layout, with key signals including:
- VCC (3.3V or 1.8V)
- GND
- Data lines: D0-D7 (or DQ[0:7])
- Control signals: CLE, ALE, CE#, RE#, WE#, WP#
- Optional R/B# (ready/busy) for status monitoring
Verify the datasheet for your specific chip–pin names may vary (e.g., Toshiba uses IO[0:7], Samsung uses DQ[0:7]).
Prepare a stable 3.3V power source with a low-dropout regulator or buck converter if your supply exceeds this voltage. Use a 0.1µF ceramic decoupling capacitor between VCC and GND, placed as close as possible to the chip’s power pins. For higher-speed operations, add a 10µF tantalum capacitor to suppress noise. Avoid powering the module directly from the host interface–current spikes during writes may corrupt data.
Signal Line Connections
Wire the data bus (D0-D7) directly to corresponding host interface pins–common mappings include:
- D0 → Host D+/D- (differential pairs if high-speed)
- D1-D3 → Parallel data lines or unused if using single-channel
- D4-D7 → Upper nibble (if needed)
For single-bit mode (x1), only D0 is required, but throughput drops significantly. Use a 22Ω series resistor on each data line to prevent signal reflections; values may vary (10-50Ω) depending on trace length and impedance.
Connect control signals as follows:
- CLE (Command Latch Enable): Toggles to 1 before sending commands
- ALE (Address Latch Enable): Toggles to 1 before sending addresses
- CE# (Chip Enable): Active-low; pull high when inactive
- RE# (Read Enable): Strobes data output (active-low)
- WE# (Write Enable): Strobes data input (active-low)
- WP# (Write Protect): Pull high to disable writes; ground for temporary write protection
Use pull-up resistors (10kΩ) on CE# and WP# to avoid floating states. For RE# and WE#, ensure clean transitions–glitches may cause unintended reads/writes.
For address inputs, most chips multiplex address and data on the same pins. Send addresses in 3-5 cycles (column + row), with ALE high. Timing parameters vary; consult the datasheet for:
- tADL (Address to Data Loading time)
- tWP (Write Pulse width)
- tWH (Write Hold time)
- tCLH (CLE Hold time)
- tAR (ALE to RE# setup)
Use a logic analyzer or oscilloscope to verify pulses meet minimum specs–violation risks data corruption or chip lockup.
Test the assembly with a simple read/write sequence. Start by reading the chip ID (0x90 command) to confirm connectivity. For writes, send:
- 0x80 (write command)
- 5-byte address (column + row)
- Data payload
- 0x10 (confirmation)
Monitor the R/B# pin for operation completion–it pulses low during busy states. If absent, use a timer (typical max 200µs for 4KB page writes). Store a checksum of written data to verify integrity; retention errors surface weeks/months later due to charge leakage.
Voltage Regulation and Power Flow in Portable Storage Electronics
Ensure the input regulator is rated for at least 500mA continuous current with a dropout voltage under 0.3V to handle transient loads without brownouts. LDO regulators like the TPS73633 or AP2112K offer stable 3.3V output with 1% precision, critical for NAND flash reliability. Place decoupling capacitors (10µF tantalum + 0.1µF ceramic) within 2mm of the regulator’s output pin to suppress high-frequency noise.
Implement a foldback current limiter rather than simple overcurrent protection–this reduces power dissipation during short circuits by limiting output to 150% of nominal load. For bus-powered designs, add a P-channel MOSFET (e.g., SI2301) as a high-side switch to disconnect non-essential loads during voltage dips below 4.5V, preventing data corruption.
Use a TL431A shunt regulator for secondary voltage monitoring–tie its feedback to a resistor divider across the main rail, programmed to trip at 3.6V. This prevents latch-up in controller ICs during surge events. For high-speed variants, route the power traces as 50Ω impedance-controlled differential pairs, keeping vias to a minimum to avoid inductance spikes.
Avoid linear regulators in compact layouts where PCB area is scarce–opt for buck converters like the TPS62743, which achieves 95% efficiency at 10mA load. Configure the feedback network with a 1.2MΩ resistor to ground and a 300kΩ resistor in series for optimal regulation under dynamic loads. Add a 1nF ceramic capacitor between the feedback node and ground to stabilize the loop.
Ground Plane Considerations for Noise Immunity
Split the ground plane into analog and digital sections, connecting them at a single point near the regulator’s output capacitor. This prevents digital switching noise from coupling into the sensitive analog front-end of the controller. For devices exceeding 100MB/s transfer rates, use stitching vias along the ground return path every 5mm to reduce loop inductance to under 1nH.
Thermal Management in High-Density Designs
Assign at least 20mm² of copper pour to the regulator’s thermal pad if using a DFN package–this sinks up to 1.5W without requiring external heatsinks. For battery-powered applications, disable the regulator’s enable pin during standby to cut quiescent current to under 1µA. Test load regulation with a 50ms, 200mA pulse load–output voltage sag should not exceed 50mV peak-to-peak.
