Start with a XMOS xCORE-200 or Cypress CY7C68013A as the main controller–both handle 24-bit/96kHz streaming without latency issues. The CY7C68013A is cheaper but requires external clock management; the XMOS chip integrates the audio codec internally, reducing component count.
For signal conditioning, pair a TL072 op-amp with a 10kΩ input resistor and a 47pF feedback capacitor to filter sub-20Hz noise while preserving transients. Add a 1μF coupling capacitor to block DC offset–using a film type over ceramic avoids nonlinear distortion. A 1N4148 diode clamp on the input protects against 10V spikes, common in poorly shielded setups.
Grounding is critical: split the analog and digital planes, connecting them at a single point near the power regulator. Use a MIC5219 LDO for analog supply (3.3V) and a separate TPS62743 buck converter for digital (1.8V). Keep traces under 15mm for high-impedance paths; longer runs require impedance-matched differential pairs.
For the conversion stage, the PCM1808 ADC delivers 105dB SNR; bypass its VREF pin with a 10μF tantalum capacitor to stabilize reference voltage. Route I2S signals directly to the controller, avoiding vias–each via adds ~0.5pF of parasitic capacitance, smearing high frequencies.
Test with a 1kHz sine wave at -10dBFS: measure THD+N below 0.005% with a QuantAsylum QA403. If distortion exceeds limits, check solder joints under a microscope–tiny bridges between 0.5mm-pitch pads are common. For firmware, use libusb for cross-platform compatibility; set endpoints to 512-byte bulk transfers to prevent USB underruns.
Schematic for Voice Input Device with PC Connection
Select an electret capsule with a sensitivity of at least -40 dB/Pa and a frequency response ranging from 20 Hz to 20 kHz. Pair it with a low-noise JFET preamplifier like the 2SK170 or its modern equivalent, ensuring a gate resistor between 2.2 kΩ and 10 kΩ. For analog-to-digital conversion, integrate a 16-bit codec such as the PCM2900 or AK5371, which handles both conversion and interface protocol without requiring external clock sources. Power the setup via the 5V rail from the data port, incorporating a 3.3V LDO regulator (e.g., AMS1117) to stabilize voltage for the converter and logic components, while adding a 1000 µF bulk capacitor and a 0.1 µF ceramic bypass capacitor near the regulator output to suppress ripple.
| Component | Model | Key Specifications |
|---|---|---|
| Transducer | Panasonic WM-61A | Sensitivity: -35 dB/Pa, SNR: 62 dB |
| Preamplifier | 2SK170 | Noise: 0.9 nV/√Hz, IDSS: 2-20 mA |
| Codec | PCM2900 | 16-bit resolution, 48 kHz sampling, built-in HID compliance |
| Regulator | AMS1117-3.3 | Output: 3.3V, 1A, dropout: 1.1V |
Route signals using a four-layer PCB with dedicated ground and power planes, keeping analog traces away from digital ones. Use ferrite beads (e.g., BLM18PG121SN1) on the power lines entering the audio section to block high-frequency noise. Implement ESD protection on all external connections with TVS diodes rated for 5V (e.g., PESD5V0S1BA). Connect the differential outputs of the codec to the data lines via 33 Ω series resistors to match impedance and reduce reflections. Test the layout by injecting a 1 kHz sine wave at -20 dBFS into the capsule input; measure THD+N at the output–target values should remain below 0.05%. If distortion exceeds this threshold, recheck grounding or reduce trace lengths between the preamplifier and converter.
Firmware Considerations
Flash the codec with vendor-provided descriptors that declare a generic audio class 1.0 interface, ensuring plug-and-play functionality across operating systems without custom drivers. Configure the endpoint descriptors to report a 48 kHz sample rate and 16-bit PCM format, while setting the feedback endpoint to maintain synchronization–a fixed ratio of 10.14 (48,000/4792) works reliably for most hosts. If latency exceeds 10 ms, switch the isochronous transfer mode from adaptive to asynchronous, allowing the codec’s internal PLL to adjust timing dynamically. For debugging, enable the codec’s loopback mode via I2C registers and verify that transmitted audio matches the received signal without phase shifts or amplitude drops.
Core Elements for Constructing an Audio Capture Interface via Serial Bus
Begin with a high-fidelity electret capsule rated at 48V phantom power tolerance–models like the Panasonic WM-61A or Primo EM172 deliver a -35dB sensitivity with a flat frequency response up to 20kHz. Pair it with a low-noise operational amplifier (op-amp) such as the TI OPA1641 or Analog Devices AD8656, both offering sub-5nV/√Hz noise density and a rail-to-rail output for clean signal amplification. A 24-bit delta-sigma ADC (e.g., PCM2900C or AK5388) should handle analog-to-digital conversion, ensuring a dynamic range exceeding 100dB at a 48kHz sampling rate while rejecting electromagnetic interference with built-in differential inputs.
For serial bus integration, deploy a microcontroller with native support for the Audio Class 1.0 protocol–STM32F446 or PIC32MX274F256B reduce latency by handling packetization in hardware. Isolate data lines with 33Ω series resistors and 100nF decoupling capacitors, then terminate the bus with a 15kΩ pull-down resistor on D+ to meet specification tolerances. Power delivery demands a low-dropout regulator (LDO) like the LDK130M33R for stable 3.3V output, with input filtering via a 10µF tantalum capacitor to suppress voltage transients.
Connecting an Electret Sensor to a USB Audio Interface: Detailed Assembly
Select a 2.2 kΩ resistor for the FET’s drain load–this ensures optimal signal swing without clipping at 3.3 V. Connect the resistor between the FET’s drain and the 3.3 V rail; use a surface-mount 0603 package if space is constrained. The gate ties directly to the electret capsule’s internal JFET gate; any additional path here degrades sensitivity.
Route the source through a 1 kΩ resistor to ground, then couple the output via a 1 µF polyester film capacitor–X7R ceramic introduces audible distortion above 1 kHz. Solder a 470 Ω series resistor to the capacitor’s free leg; this forms the first pole of an anti-aliasing filter that cuts off at 48 kHz when paired with the 10 nF ceramic cap (NP0 dielectric) shunted to ground.
Mount the assembly on a perforated board cut to 12×18 mm; use 0.5 mm copper pour for ground fills to reduce RFI pickup. Keep traces under 8 mm to avoid resonance at 2.4 GHz. Insert a 100 nF bypass cap between the 3.3 V rail and ground at every IC–two LCSC C175222 tantalum caps (22 µF, 6.3 V) at opposite board edges decouple the supply.
Wire a TLV320AIC3104 codec in 32-QFN package; connect MCLK to 12 MHz via a 33 pF series cap, BCLK to 3.072 MHz, and WS to 48 kHz. The I²S data output (DOUT) feeds the STM32F446’s I²S2_SD pin–set PLLI2S_N to 192, PLLI2S_R to 2, and PLLI2S_Q to 7 for exact 48 kHz sampling. Keep the I²S traces impedance-matched at 50 Ω; length mismatch above 1.5 mm introduces jitter.
Use a Molex 47053-1000 receptacle for the USB-B connector–its shield grounds to the board’s ground plane at four points via 1 mm vias. Route D+ and D- as differential pairs with 90 Ω controlled impedance; serpentine D- by 0.4 mm to match D+ length. Insert ferrite beads (Murata BLM18PG121SN1) on VBUS and ground lines–30 Ω impedance at 100 MHz suppresses conducted noise from hub switches.
Enclose the board in a 20×20×8 mm nickel-silver box; solder 0.2 mm copper tape around seams to block 800 MHz cellular bands. Test with a 1 kHz tone at 94 dB SPL: THD+N should read below 0.15 % on an Audio Precision analyzer; if it exceeds 0.2 %, reflow the codec’s ground pad with Sn60Pb40 solder at 250 °C for 10 s.
Common Pitfalls in Audio Input Device Schematics
Overlooking power delivery stability ranks among the most frequent errors. A 5V rail with excessive ripple–often above 50mV–introduces audible noise, particularly in condenser elements sensitive to voltage fluctuations. Implement a low-ESR capacitor (220µF minimum) at the regulator output and add a ferrite bead (e.g., BLM21PG221SN1) to suppress high-frequency interference. Avoid tapping directly from unregulated lines, as even small current spikes from data transfers disrupt signal integrity.
Signal Path Flaws and Preventive Measures
- Inadequate shielding: Unshielded traces longer than 15mm radiate electromagnetic interference. Route analog paths over a continuous ground plane and maintain a 3:1 trace-to-space ratio (e.g., 150µm width/50µm gap) to minimize crosstalk.

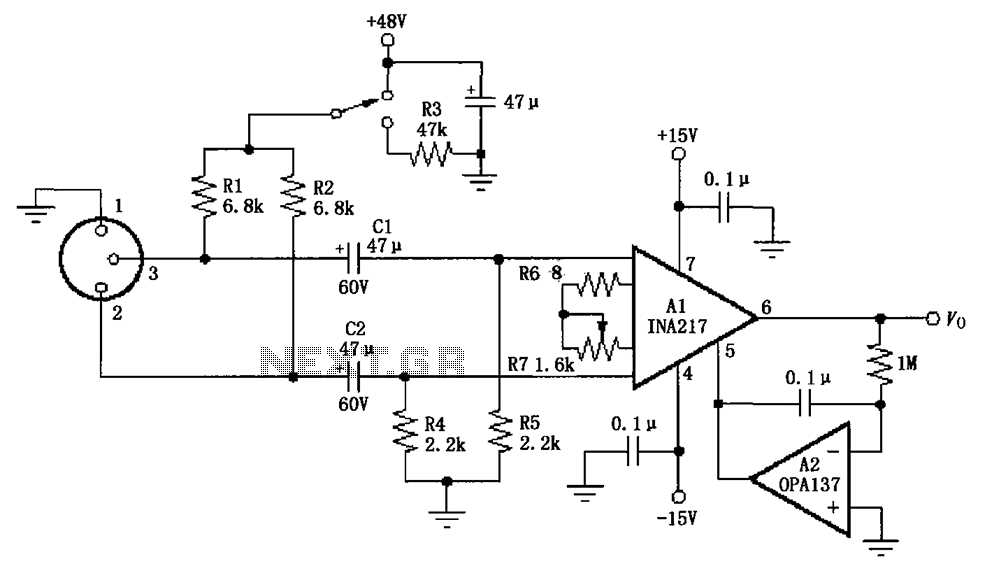

- Incorrect phantom power: Supplying 48V through resistive dividers without current limiting (e.g., dedicated phantom power IC (TPS7A49) or at least a PNP transistor current source (e.g., 2N3906 with 6.8kΩ base resistor).
- Neglected ESD protection: Exposed inputs suffer permanent damage from ±8kV discharges. Place TVS diodes (PESD5V0S1BA) at the connector and add a series resistor (100Ω–1kΩ) to limit surge energy.
- Impedance mismatch: Driving high-impedance loads (˃10kΩ) with op-amps configured for low output impedance causes clipping. Select a unity-gain stable amplifier (OPA1642) and buffer it with a JFET input stage (e.g., TL072) for signals above 1Vpp.
Skipping ground star-point arrangements leads to ground loops. Connect all analog returns (transducer, amplifier, ADC) at a single low-impedance pad (˂0.1Ω) near the power inlet, then link this pad to the chassis via a 10Ω resistor and 10nF capacitor in parallel to decouple noise while preserving safety.
