Begin by referencing pinout specifications based on the standard revision–Type-A and Type-B connectors follow distinct wiring configurations. For a host-to-device configuration, ensure VBUS (pin 1) delivers a stable 5V supply with a minimum current rating of 500mA for basic compliance. Ground (pin 4) must maintain continuity with the power return path to prevent voltage fluctuations. Data lines D+ (pin 2) and D− (pin 3) require a 27Ω series termination resistor on each line to match impedance and minimize signal reflection, especially in cables exceeding 1.5 meters.
For power delivery (PD) applications, verify the inclusion of CC (Configuration Channel) pins if using Type-C layouts. The CC line requires a 56kΩ pull-down resistor to initiate negotiation, enabling higher current output (up to 3A at 5V). Omit this resistor in legacy designs, but expect reduced power capabilities. Shielding braid should connect to the ground plane at both ends, though single-ended termination (device-side only) is acceptable for shorter connections to reduce ground loops.
When designing embedded systems, opt for a four-layer PCB to separate signal traces from power planes. Route data pairs (D+/D−) symmetrically with a consistent separation of 0.15mm to maintain 90Ω differential impedance. Use vias sparingly near differential pairs–stagger them if unavoidable to avoid impedance discontinuities. For micro or mini connectors, confirm pin assignments, as they reverse VBUS and ground positions compared to standard configurations.
Test continuity with a multimeter before soldering: measure VBUS-to-ground (5V ±5%) and D+-to-D− (high impedance when idle). For host-side implementations, include a 15kΩ pull-down on D+ (full-speed) or D− (low-speed) to establish device detection. Debugging tools like a protocol analyzer should capture packet acknowledgments (ACK/NAK) to confirm signal integrity at the 12Mbps or 480Mbps rates.
Constructing a Peripheral Interface Blueprint for Hardware Projects
Begin with the connector pinout: assign VBUS (5V) to Pin 1, D- to Pin 2, D+ to Pin 3, and GND to Pin 4. Use a 22Ω resistor on each data line to match impedance–critical for high-speed signaling. For self-powered devices, isolate VBUS from the internal supply to prevent backflow; a Schottky diode (e.g., BAT54) on the input safeguards against reverse polarity.

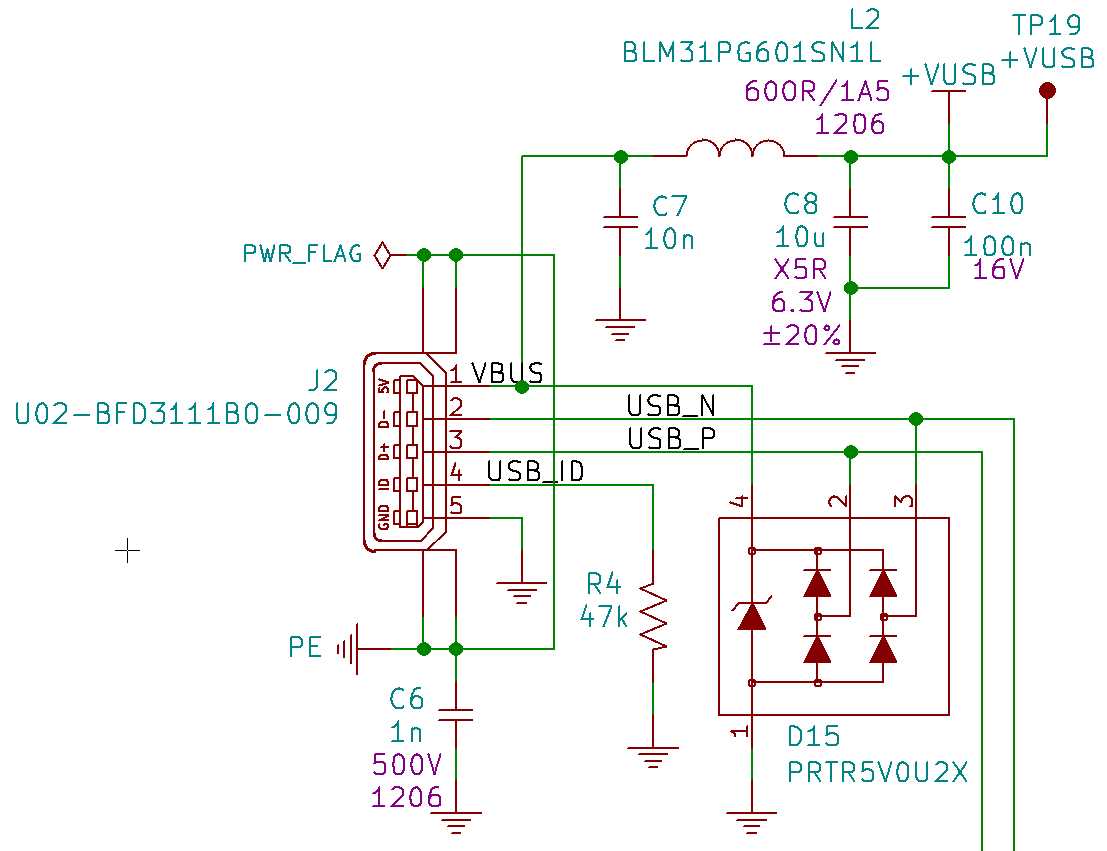

Integrate ESD protection near the connector. Dual transient voltage suppression diodes (e.g., PESD5V0S1BA) placed between D+/D- and GND clamp spikes below ±15kV (IEC 61000-4-2 standard). For microcontroller-based implementations, route data lines directly to dedicated hardware modules–avoid software bit-banging, as timing jitter corrupts protocol handshakes. Capacitance on VBUS should not exceed 10µF unless using inrush current limiting (e.g., a 1Ω series resistor).
Power Delivery and Signal Integrity Considerations
For devices exceeding 500mA, implement power negotiation via a dedicated controller chip (e.g., TPS2553). Without it, host ports may throttle or disconnect. Keep trace lengths for D+ and D- under 5cm to minimize signal degradation–differential pairs must be symmetrically routed on the PCB with a controlled impedance of 90Ω (±10%). Decouple VBUS with a 1µF tantalum capacitor and a 0.1µF ceramic cap as close to the connector as possible to filter noise.
Test the layout with an oscilloscope before prototyping. Trigger on SE0 (both data lines low) to verify bus release timing during reset sequences. For low-speed modes, ensure D- is pulled up to 3.3V via a 1.5kΩ resistor; high-speed devices require a pull-down resistor on D+ instead. Never omit ferrite beads on VBUS for medical or industrial applications–ANSI/AAMI ES60601-1 mandates ≤300µA leakage current.
Understanding Pinout Configurations for Different Connector Types
Start by identifying the physical layout of A-type, B-type, micro, and mini connectors before attempting any modifications or repairs. Each variant serves distinct power and data transmission roles, and miswiring can damage devices permanently. A-type connectors feature four pins in a flat rectangular shape: Vbus (5V), D-, D+, and GND. Always verify pin polarity with a multimeter if markings are unclear.
Micro and mini connectors add complexity with five pins, introducing an ID signal for OTG (On-The-Go) functionality. The standard arrangement is:
- Pin 1: Vbus (5V)
- Pin 2: D-
- Pin 3: D+
- Pin 4: ID (floating for host mode, grounded for device mode)
- Pin 5: GND
ID pin behavior differs between devices–check the device’s technical specifications before connecting peripherals.
C-type connectors double the pin count to twenty-four, arranged symmetrically for reversible plug orientation. Key pins include:
- Power: Vbus (5V), GND, and additional high-power pins (VBUS, CC1, CC2)
- Data: TX/RX pairs for SuperSpeed signaling (four differential pairs)
- Configuration: CC (Configuration Channel) pins manage power delivery and role detection
Always isolate CC pins when prototyping–accidental shorts trigger overcurrent protection.

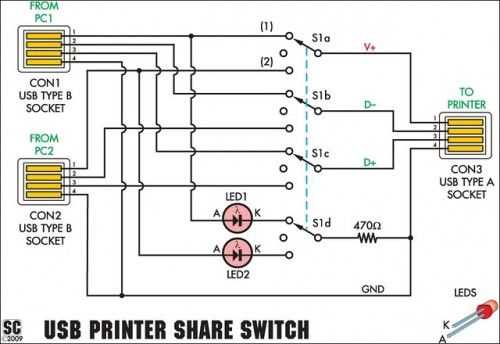

For power-only applications, avoid connecting data lines unnecessarily. B-type connectors (e.g., printer ports) often omit D- and D+ if unused, but check for pull-up resistors on D+ (typically 1.5kΩ to Vbus) in host devices. Use a breakout board to safely test unknown configurations–direct soldering risks damaging the controller IC.
When debugging cable assemblies, prioritize continuity testing on GND and Vbus first. Signal integrity issues from poor solder joints or damaged traces manifest as erratic behavior or failed enumeration. For high-speed variants (e.g., SuperSpeed), impedance matching on differential pairs is critical–maintain 90Ω ±5% for reliable operation.
Troubleshooting Pinout Mismatches
- Verify pin assignments against the device’s datasheet–manufacturer deviations exist (e.g., proprietary power schemes).
- Measure voltage levels: Vbus should read 4.75–5.25V; lower values indicate weak power delivery.
- Inspect for cold solder joints or broken traces using magnification–hairline fractures cause intermittent failures.
- Test data lines with a logic analyzer or oscilloscope–expected differential voltage swing is 400–800mV for full-speed signaling.
- For OTG devices, confirm ID pin voltage floats (host mode) or pulls to GND (device mode) with a 10kΩ resistor.
Special Cases and Exceptions
Apple’s Lightning connector uses an 8-pin proprietary layout with dynamic pin reassignment handled by the controller. Aftermarket cables must replicate this behavior precisely–reverse-engineered schematics show:
- Pins 1–4: Power and GND
- Pins 5–8: Data (D+/D-) and accessory identification signals
Attempting repairs without specialized tools voids device authentication.
Industrial connectors (e.g., M12) repurpose standard pinouts for ruggedized environments, often combining power and CAN bus signals. Always cross-reference with the specific interface standard–M12 Type A typically assigns:
- Pin 1: V+
- Pin 2: CAN_H
- Pin 3: GND
- Pin 4: CAN_L
Extended temperature ratings and waterproofing require conformal coating on solder joints to prevent corrosion.
Creating a Custom Connector Layout from Scratch
Begin with pinout identification. For standard Type-A or Type-C interfaces, note the four core contacts: Vbus (5V, red), D- (white), D+ (green), and GND (black). Type-C adds additional high-speed pairs and configuration channels–label each position on paper before touching wires. Verify wire colors against the spec sheet; some manufacturers swap green and white on data lines, risking signal corruption if misconnected.
- Cut each conductor to exact length with wire strippers, exposing 2–3 mm of copper. Avoid excess bare wire that could bridge adjacent contacts.
- Tin exposed ends with a soldering iron at 350°C, using
- Align tinned ends to the connector housing, referencing the pinout map. For Type-C, cross-check SBU1/SBU2, CC1/CC2, and TX/RX pairs–misalignment here disables power negotiation or alternate modes.
Use a multimeter in continuity mode to confirm every path before soldering. Check for shorts between adjacent pads; bus and measure 4.75–5.25V at the far end, accounting for voltage drop across 28–24 AWG wires. Data lines require differential resistance checks: D+ and D- should read 90 Ω (±5%) when probed together.
- Type-A shielding braid connects to the outer shell via a 360° crimp or solder joint. Leave no gaps–gaps act as EMI antennas.
- For Type-C, verify CC line pull-up/down resistors (5.1 kΩ) with a resistor tester. Incorrect values force fallback to USB 2.0 speeds.
- Final step: encase joints in heat-shrink tubing. Apply heat at 120°C until tubing forms a tight seal around wires, preventing moisture ingress.
Validate the finished assembly by connecting it to a known-good port and running a loopback test. Use a tool like sigrok or a simple Python script to send/test bulk transfers. If speeds deviate from 480 Mbps (HS) or 5 Gbps (SS), recheck data pair soldering–cold joints introduce jitter detectable only at high frequencies. Document every step with photographs; annotated images serve as future troubleshooting references.
Diagnosing Interface Data Flow Failures with Circuit Layout Review
Start by isolating the signal lines on the connection layout. Trace D+ and D- pathways from the host controller to the peripheral port pins using an oscilloscope calibrated to 100 MHz bandwidth. Measure voltage swings: differential signals should toggle between 0 V and 3.3 V ±100 mV. If swings exceed 3.6 V or drop below 3.2 V, suspect incorrect termination resistors (typically 27 Ω–33 Ω) or shorted vias.
Check the VBUS line for parasitic drops under load. Attach a load resistor (10 Ω, 5 W) between VBUS and ground, then measure voltage at the connector. A drop below 4.75 V indicates insufficient trace width–minimum 70 μm for 500 mA current. Verify decoupling capacitors: 10 µF tantalum near the power entry point and 1 µF ceramic at the farthest peripheral device.
| Parameter | Expected Value | Deviation Troubleshooting |
|---|---|---|
| D+/D- differential impedance | 90 Ω ±15 Ω | Recalculate trace spacing; adjust PCB stackup if FR4 εr ≠ 4.3 |
| VBUS ripple (20 MHz BW) | <50 mVpp | Add 4.7 µF polymer capacitor if ESR >5 mΩ |
| Ground bounce (hot plug) | <100 mV | Reduce ground loop inductance; use 12 mil vias for ground stitching |
Inspect the ESD protection diodes on the data lines. Use a curve tracer to verify forward voltage (0.3 V–0.5 V) and reverse leakage (<1 µA). Shorted diodes will clamp differential signals to 0 V; replace with PESD devices rated ≥5 kV contact discharge.
Validate the crystal oscillator circuit driving the host controller. Measure at the oscillator output pin: 48 MHz ±0.1% for full-speed peripherals, 12 MHz ±100 ppm for low-speed. Unstable frequencies suggest incorrect load capacitors (standard 12 pF–22 pF) or PCB contamination–clean with isopropyl alcohol ≥99%.
Probe the shield-to-ground connection. Shield resistance should measure <0.5 Ω with a multimeter. High impedance (>1 Ω) causes radiated emissions and data corruption–reflow shield solder joints or replace corroded cables.
Advanced Signal Integrity Checks
For intermittent failures, capture eye patterns at the farthest device connector. A compliant eye diagram must show >150 mV vertical opening and >800 ps horizontal opening at 10^-12 BER. Violations indicate excessive trace length–reduce to <2.5 m or insert redrivers every 1 m. Use controlled impedance connectors; mismatched impedance (>±10%) reflects energy back to the host.
