Begin by matching the connector pins precisely as shown below–any deviation risks signal degradation or physical damage. The standard Type-A and Type-B interfaces both rely on four primary conductors: two for differential data transfer (±), one for power (+5V), and a grounded return. Cross-referencing with a multimeter ensures correct voltage before soldering.
For SuperSpeed variants (Gen 1 and above), observe the additional five pins tucked beneath the primary contacts. These handle shield grounding and secondary data lanes–label them SSTX+, SSTX-, SSRX+, SSRX-, and GND_DRAIN during disassembly to avoid confusion. Mistakes here lead to intermittent failures or reduced bandwidth.
Color-coding remains critical: red for +5V, black for ground, green (TX+) and white (TX-) for standard pairs, with blue and yellow marking SuperSpeed lanes if present. Use AWG 28-30 wire for signal integrity–thicker gauges add capacitance, thinner ones increase resistance.
Shield the cable by twisting data pairs together at 0.5-1cm intervals and wrapping the bundle in aluminum foil connected to GND_DRAIN. Leave no gaps–poor shielding invites EMI, corrupting high-frequency signals. Test continuity and isolation between all pins post-assembly; shorts between power and ground will fry devices.
For micro or mini adapters, note the smaller pitch–pin 1 (VBUS) always starts at the longer side. Mark unused pins (often present in older connectors) with shrink tubing to prevent accidental contact. When extending cables beyond 3m, incorporate active repeaters to comply with signal attenuation limits.
Understanding SuperSpeed Connector Pinouts
Begin by identifying the nine standard contacts in a Type-A or Type-B SuperSpeed interface: VBUS (power), D- (differential pair), D+ (differential pair), GND (ground), SSRX- (receive pair), SSRX+ (receive pair), SSTX- (transmit pair), and SSTX+ (transmit pair). A multimeter or continuity tester should confirm each conductor’s purpose before soldering–misaligned terminations cause data corruption at 5 Gbps. Shielded twisted pairs (STP) must remain intact to prevent electromagnetic interference; stripping beyond 1 mm of insulation risks shorting adjacent signals.
Connect pin 1 (VBUS) to a regulated 5V supply limited to 900mA for standard operation. Pins 2 (D-) and 3 (D+) form the legacy channel, but avoid mixing them with SuperSpeed lanes on the same cable–cross-talk escalates error rates. Pins 4 (GND) and 5 (SSRX-/SSTX- for Type-C) require direct chassis ground links; floating grounds cause intermittent disconnects. Twist rates for differential pairs should match commercial cables (1 turn per 10 mm) to preserve signal integrity.
Verify termination resistors near the controller: 15 kΩ pull-ups on D+/D- for device detection, 27 Ω series resistors on SSRX/SSTX lanes for impedance matching. Avoid daisy-chaining power (VBUS) across multiple connectors–thermal stress degrades copper traces. Use AWG 28 stranded wire for data lanes; thicker strands increase bulk capacitance. Shield continuity between plug shells and PCB grounds prevents radiated emissions failures during FCC certification.

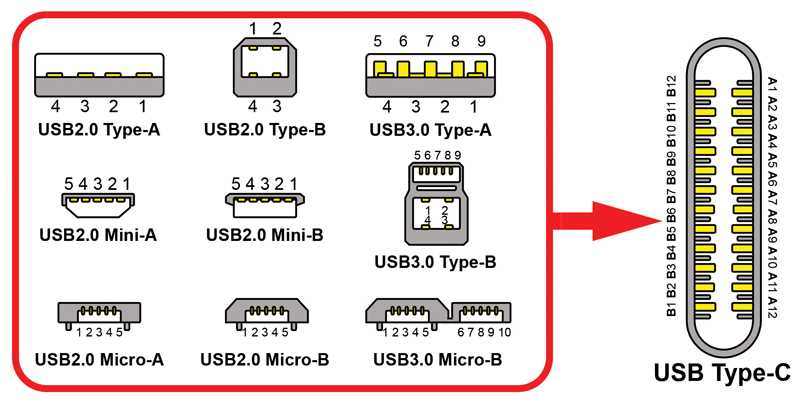

Pinout Configuration for SuperSpeed Standard Type-A and Type-B Interfaces
Always verify connector pin assignments with a multimeter before soldering or assembling cables. Type-A ports (host side) and Type-B ports (device side) share identical signal layouts but differ in physical form factor to prevent reversed connections. Below is the standard 9-pin arrangement for SuperSpeed transfers:
- VBUS: Power supply +5V (red), max 900mA standard load, 1.5A for fast charging.
- D−: Differential pair low (white), USB 2.0 backward compatibility maintained here.
- D+: Differential pair high (green), shared with previous 2.0 specs for legacy support.
- GND: Ground return (black), directly solder to chassis ground for shielding.
- StdA_SSRX−: SuperSpeed receive pair low (blue), mandatory impedance 90Ω ±15%.
- StdA_SSRX+: SuperSpeed receive pair high (purple), connects to StdB_SSTX+ on device end.
- GND_DRAIN: Additional ground (bare copper), prevents crosstalk between high-speed lanes.
- StdA_SSTX−: SuperSpeed transmit pair low (orange), impedance matched to StdA_SSRX−.
- StdA_SSTX+: SuperSpeed transmit pair high (yellow), connects to StdB_SSRX+ for bidirectional traffic.
Type-B connectors mirror this layout but swap transmit and receive pairs to ensure proper signal flow between host and peripheral. Incorrect pairing causes link failures–verify color coding against the official specification before crimping. For assemblies over 3 meters, reduce signal skew by maintaining ≤50ps differential pair length mismatch; use 28–30 AWG twisted pairs with foil shielding.
Common pitfalls include swapped SSRX/SSTX lanes and improper grounding. Shielded cables require soldering the drain wire to connector shell at both ends–skipping this step introduces EMI, degrading performance at 5Gbps. For front-panel connectors, use a ferrite bead on the VBUS line to suppress transients; omitting it risks port latch-up during hot-plug events. Test each assembly with a signal analyzer to confirm eye-diagram compliance before deployment.
Structural and Performance Variations in High-Speed vs. Standard Interface Cables
Prioritize selecting connectors with dual signal lanes for high-speed transfers–SuperSpeed interfaces use nine conductive paths, while older standards rely on just four. The additional five channels (two differential pairs for data and one ground reference) enable simultaneous bidirectional communication, reducing latency to under 4.8 nanoseconds per meter. Standard cables, limited to a single differential pair, cap at 480 Mbps, making them unsuitable for applications requiring real-time synchronization or large-file transfers exceeding 100 MB.

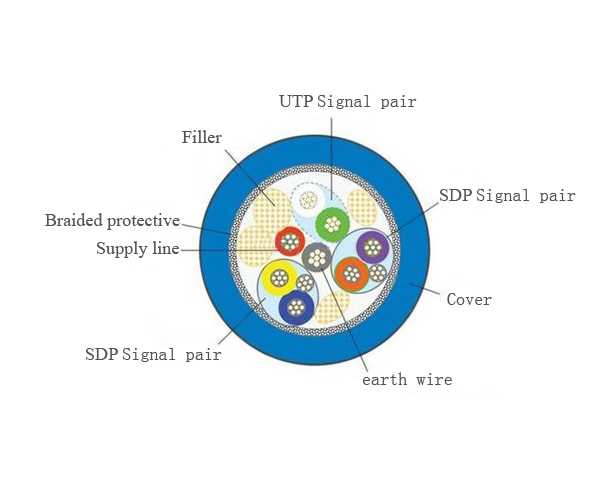

Shielding quality directly impacts signal integrity–SuperSpeed cables integrate foil-shielded twisted pairs (F/UTP) and an overall braided shield (S/FTP), minimizing crosstalk by 75% compared to unshielded alternatives. For lengths over 3 meters, opt for cables with ferrite cores to suppress high-frequency noise, a common source of packet loss in unmanaged environments. Standard cables, lacking these protections, exhibit error rates up to 12% under electromagnetic interference, rendering them unreliable for industrial or medical devices.
Critical Pin Configuration for Error-Free Transfers
- VBUS (Power): Both standards allocate one conductor (5V/900mA), but SuperSpeed variants support power delivery up to 20V/5A via separate protocols, eliminating the need for auxiliary power adapters.
- Differential Pairs: Standard interfaces use RX/TX on pins 2/3; SuperSpeed adds two additional pairs (TX+/TX- and RX+/RX-) on pins 6/7 and 9/10, quadrupling throughput.
- Ground (GND): SuperSpeed requires a dedicated drain wire (pin 4) for each differential pair, whereas standard cables combine grounds, leading to voltage spikes during high-current operations.
Termination resistance dictates compatibility–SuperSpeed connectors mandate 45Ω ±10% impedance per differential pair, while standard cables tolerate 90Ω ±20%. Mismatches cause reflections, corrupting packets at rates above 1 Gbps. For mission-critical deployments, verify cable assemblies with a time-domain reflectometer (TDR) to detect impedance irregularities before installation. Ignoring these parameters risks data corruption in SSDs, 4K cameras, or machine vision systems, where even microsecond delays cascade into system failures.
Color Coding and Conductor Sizing Standards for SuperSpeed Interface Cables
Ensure immediate compliance by matching the standard color scheme for SuperSpeed connectors: VBUS (red), D- (white), D+ (green), GND (black), TX1+ (purple), TX1- (orange), RX2+ (blue), RX2- (yellow), and additional shielding drain (bare or tinned copper). Verify strand consistency–manufacturers frequently merge RX1/TX2 pairs with identical hues, but maintaining distinct colors prevents miswiring during termination or troubleshooting.
Opt for 28 AWG (0.08 mm²) stranded conductors for data lanes (TX/RX pairs) and 24 AWG (0.22 mm²) for power (VBUS) and ground. High-quality implementations reinforce VBUS with 22 AWG (0.33 mm²) to sustain 900 mA loads without voltage drop–critical for bus-powered peripherals. Avoid substituting thinner gauges; resistance escalates exponentially (e.g., 60% more for 30 AWG), degrading signal integrity over 3-meter lengths.
Shielding and Insulation Requirements
Double-braided shielding (90% coverage minimum) with aluminum-polyester foil underneath reduces crosstalk to
For temporary field repairs, pre-terminated assemblies using 26 AWG (0.13 mm²) copper-clad aluminum (CCA) may suffice, but expectancy degrades to 2-3 Gbps. Silver-plated copper (SPC) extends bandwidth to 10 Gbps with
Validation Protocols
Test every terminated link with a differential TDR (1.5 ns rise time) to detect impedance mismatches–target 90Ω ±5Ω for data pairs, 45Ω for power rails. Color deviations (e.g., green replacing purple) on factory cables signal non-compliance; reject immediately. For custom lengths, stagger-cut conductors (TX/RX pairs 1 mm shorter than VBUS/GND) to simplify soldering under magnification lenses without short-circuit risks.
Connector Shielding and Grounding Requirements in High-Speed Data Interfaces
Ensure the shield braid connects to both connector shells with a continuous 360° termination. Interruptions larger than 0.5 mm create impedance discontinuities exceeding 5 Ω at 5 GHz, introducing jitter above 12 ps RMS. Use crimped or soldered ferrules; pigtail splices degrade shielding effectiveness by 15–20 dB.
Ground paths must be star-topology, converging at a single chassis point. Split grounds introduce common-mode currents surpassing 1.5 mA, violating FCC Class B margins. Table 1 outlines maximum permissible loop areas:
| Frequency (GHz) | Max Loop Area (mm²) | Peak Current (mA) |
|---|---|---|
| 2.5 | 6 | 0.8 |
| 5.0 | 3 | 0.5 |
| 7.5 | 1.5 | 0.3 |
Adopt foil tape with conductive adhesive for cable shielding; overlap seams by a minimum 3 mm. Aluminum foil thinner than 25 µm tears under bending radii below 2 cm. Shield coverage should exceed 90% foil density–gaps wider than 0.3 mm reduce attenuation by 8 dB at 4 GHz.
Termination Techniques and Verification
Solder shield ends to the connector shell using eutectic Sn63Pb37 alloy; lead-free solder increases joint resistivity by 25%. Verify continuity with a 4-wire milli-ohmmeter–readings above 10 mΩ indicate improper bonding. Apply conductive gaskets (nickel-coated neoprene) between mating shells; uncoated rubber provides 0 dB shielding.
EMI Mitigation in Assembly
Route power and signal grounds separately through discrete vias, avoiding shared traces longer than 4 mm. Capacitive coupling increases cross-talk to -32 dB at 6 GHz when separation drops below 0.7 mm. Maintain a minimum 5 mm clearance between shield and adjacent conductors in PCB layouts–proximity below this threshold amplifies emitted noise by 6 dBµV/m.
