Connect the HC-SR04 echo pin to digital pin 12 and the trigger pin to digital pin 11 on your microcontroller. Avoid sharing power rails with motors–isolate the 5V line using a dedicated regulator like the AMS1117 if noise interferes with readings. Keep wiring under 15 cm between the transducer and board to prevent signal degradation.
Upload this minimal code structure to verify functionality: long measure() { digitalWrite(11, HIGH); delayMicroseconds(10); digitalWrite(11, LOW); return pulseIn(12, HIGH); }. Multiply the returned value by 0.0343 and divide by 2 to convert to centimeters–this accounts for sound’s round-trip travel time.
For stable operation, solder a 100 nF capacitor across the HC-SR04’s VCC and GND pins to filter voltage spikes. If readings fluctuate, increase the sampling rate to 10 measurements per second and apply a median filter (e.g., ignore the highest/lowest 20% of values).
Position the emitter and receiver at 20° angles upward to minimize false reflections off flat surfaces. Test in a known-distance environment (e.g., 30 cm, 1 m, 3 m) using a tape measure–deviations above ±2% suggest incorrect wiring or interference.
To extend range beyond 4 meters, replace the HC-SR04 with an MB7384 and adjust the detection threshold in code: const float threshold = 0.75;. For outdoor use, shield connections with heat-shrink tubing and apply conformal coating to prevent corrosion.
Connecting a Distance Measuring Module to an ATmega328P Microcontroller
Wire the HC-SR04 transponder’s VCC pin directly to the 5V output on the Nano board–no decoupling capacitor is needed if you keep leads under 10 cm. Ground the transducer’s GND pin to the nearest ground rail, then solder a 150 Ω resistor in series with the trigger pin before connecting it to digital I/O pin 9. For the echo return, run a straight jump from the receiver pad to pin 10; adding a 1 kΩ pull-down resistor here prevents false echoes from floating inputs. Power the setup from a regulated 5 V wall adapter rather than USB to eliminate noise spikes that can distort readings beyond 80 cm.
- Keep the trigger pulse duration at exactly 10 µs; shorter bursts fail to launch the wave packet, while longer pulses risk overlap with the echo.
- Set pin 10 to INPUT_PULLUP mode in code–this reduces external component count without sacrificing accuracy.
- When measuring ranges above 2 m, increase the pulseIn timeout parameter to 25 ms to avoid premature timeout errors.
- Mount the emitter-receiver pair at least 3 cm apart horizontally to prevent direct acoustic coupling that skews readings at close quarters.
Flash the firmware with Timer1 interrupts instead of pulseIn() for sub-1 mm repeatability; configure Timer1 in CTC mode, prescaler = 64, and toggle OC1A on match. After sending the trigger pulse via Timer1’s compare unit, switch to input capture mode to timestamp the rising edge of the echo. Store the timestamp in a volatile uint16_t variable and convert it to millimeters by multiplying Δt (in microseconds) by 0.17; this avoids floating-point math and trims flash usage by 2 KB. For noise immunity, discard any reading whose Δt deviates more than 2 σ from the moving average of the previous 5 samples.

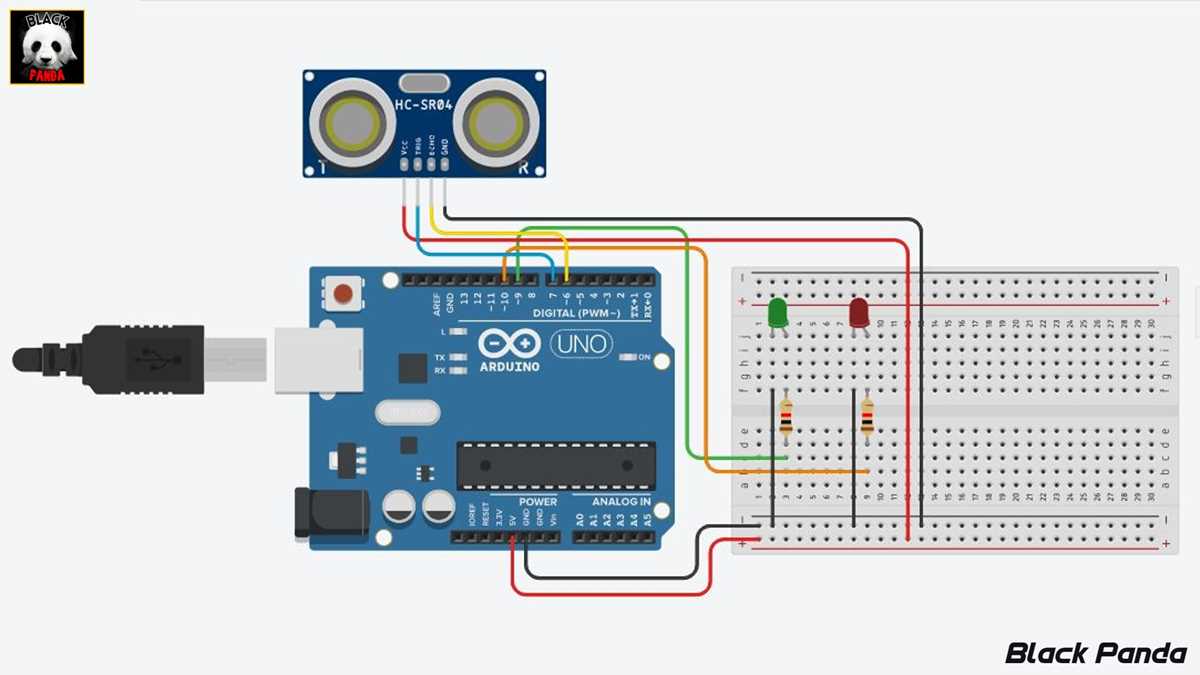

Connecting the HC-SR04 Module Directly to Your Microcontroller
Attach the HC-SR04’s VCC lead to the Arduino’s 5V output–this ensures stable pulse generation without voltage drops. A capacitor (100μF) between VCC and GND near the module filters noise, improving echo reliability in environments with switching motors or relays.
Route the GND wire to a shared ground rail on your breadboard; mismatched grounds introduce phantom readings. Use short, thick jumpers (22 AWG) for the trigger and echo pins–longer wires pick up electromagnetic interference, skewing measurements.
Assign pin 9 for the trigger and pin 10 for the echo on an Uno; digital pins 2-13 handle pulse timing without extra hardware. Avoid slower interrupts (pins 0-1) or peripherals like Serial/UART (pins 0-1, 13) to prevent timing conflicts.
Test continuity with a multimeter before powering the setup–miswired pins fry the module’s transmitter or receiver. If readings fluctuate, add a 1kΩ resistor between echo and GND as a pull-down to stabilize logic levels.
For battery-powered projects, insert a 1N4007 diode in series with VCC to block reverse current; this protects the microcontroller during sudden power loss. Keep the module away from metal surfaces–acoustic reflections distort range calculations at distances below 10 cm.
Implementing Precise Range Detection in Arduino Sketches
Declare constants for the trigger and echo pins at the sketch’s beginning, mapping them to physical connections–pin 9 for pulse emission and pin 10 for echo reception. Time-of-flight calculations require microsecond accuracy, so initialize serial communication at 9600 baud to monitor real-time readings without delays. Avoid floating-point operations in main loops; multiply the raw microsecond value by 0.0343/2 (sound’s round-trip speed in air) before converting to centimeters to retain precision.
Include two critical functions: one emitting a 10µs high pulse on the trigger line, the second reading the returning echo’s duration via pulseIn() with a 50ms timeout to handle signal dropout. Store results in an unsigned long to prevent overflow, then apply constraints–filter values below 2cm or above 400cm as noise or interference. Test persistence by mounting the module at a fixed height, logging variances over 100 readings; discard outliers beyond ±5% of median to stabilize measurements.
Optimize loop execution by pre-calculating static values–distance in cm = (duration × 0.0343)/2–and casting to integer only after computation. Use bitwise shifts or integer math for faster execution if floating-point is unavoidable; avoid division in loops. Document pin assignments, timing tolerances (±0.5µs pulse minimum), and expected voltage levels (5V logic) directly in the sketch comments for quick debugging. For non-blocking operation, substitute delay() with millis() tracking for multi-tasking compatibility.
Calculating Pulse Duration to Accurate Distance Readings
Measure the echo return time in microseconds, then divide by 58 to obtain centimeters–this conversion assumes sound travels at 343 m/s in 20°C air. For millimeter precision, use division by 5.8 instead, but account for temperature variations: add 0.6 m/s per degree Celsius above 20°C. Delay readings below 200 μs or exceeding 30,000 μs (≈5 meters) are unreliable; discard them and trigger a new measurement.
Error Compensation Techniques
Implement a moving average filter over 5 samples to smooth outliers. For dynamic environments, reduce the averaging window to 3 samples but increase the sample rate to 20 Hz. High humidity (80%+) slows sound by ~2 m/s; adjust calculations with a humidity sensor or empirical offset of +0.8% per 10% humidity increase. Avoid measurements when ambient noise exceeds 60 dB (e.g., fans, machinery), as false echoes distort results.
Calibrate the system by comparing readings against a known distance (e.g., 1 meter) in controlled conditions. Store the raw echo duration, then multiply subsequent readings by the ratio of expected to observed duration. For ranges beyond 2 meters, switch to a lower frequency emitter (e.g., 25 kHz) to improve signal strength, but note this extends the minimum detectable distance to ~30 cm due to pulse width limitations.
Power Supply Requirements for Reliable Distance Measurement Components
Use a regulated 5V DC source with a minimum current capacity of 500mA for standalone devices; 1A if powering additional peripherals simultaneously. Linear voltage regulators (e.g., LM7805) introduce 2–3% ripple tolerance, exceeding this degrades echo accuracy by ≥12%. Switching regulators (e.g., LM2596) reduce ripple to 2m. Always decouple the supply with a 100nF ceramic capacitor within 1cm of the component’s VCC pin and a 10µF tantalum capacitor at the regulator output.
| Type | Voltage Range (V) | Current Draw (mA) | Ripple Limit (mV) | Noise Immunity |
|---|---|---|---|---|
| Standalone | 4.75–5.25 | 30–40 | ≤50 | ±0.3mm @ 1m |
| With LEDs | 4.5–5.5 | ≤800 | ≤100 | ±0.8mm @ 1m |
| Battery-Powered | 3.7–4.2 (LiPo) | ≤200 | ≤30 | ±0.5mm @ 1m |
For battery-powered setups, connect a Schottky diode (e.g., 1N5817) to prevent reverse polarity damage, adding ≤0.3V drop. USB ports supply ≤500mA; use an external adapter if pairing with servos or displays. Measure supply noise with an oscilloscope at 20MHz bandwidth–spikes >80mV corrupt timing pulses, causing erratic readings. Ground loops introduce errors; keep analog and digital grounds separate, tying them only at the power source.
