Begin with the common cathode configuration for reliable current sinking. Connect the load resistors directly to the collector pins (1–7) of the IC, ensuring each resistor matches the load’s impedance–typically 470Ω to 1kΩ for standard 5V logic signals. The emitter (pin 8) must tie to ground, but avoid a direct short; use a 10µF decoupling capacitor between VCC and ground to suppress voltage spikes.
For motor or relay control, wire the input pins (9–16) to your microcontroller’s GPIO, but insert a 220Ω series resistor to limit base current. Verify the internal flyback diodes (built into each channel) by probing with a multimeter in continuity mode–expect ~0.7V forward drop. If driving inductive loads, add a 1N4007 diode in parallel to the load for extra protection.
Test each channel sequentially: apply a 3.3V/5V logic pulse to an input, and measure the output voltage at the corresponding collector. A functioning channel should show near 0V when active and VCC (minus load drop) when off. For high-current applications (exceeding 500mA), heatsink the IC or use a TO-220 package variant with thermal paste.
Isolate power supplies when mixing logic and load voltages: connect the array’s VCC (pin 10) to the load voltage, while keeping control signals on a separate, lower-voltage rail. For debugging, monitor voltage drops across load resistors–values below 0.2V indicate insufficient drive current, often resolved by reducing the base resistor to 150Ω.

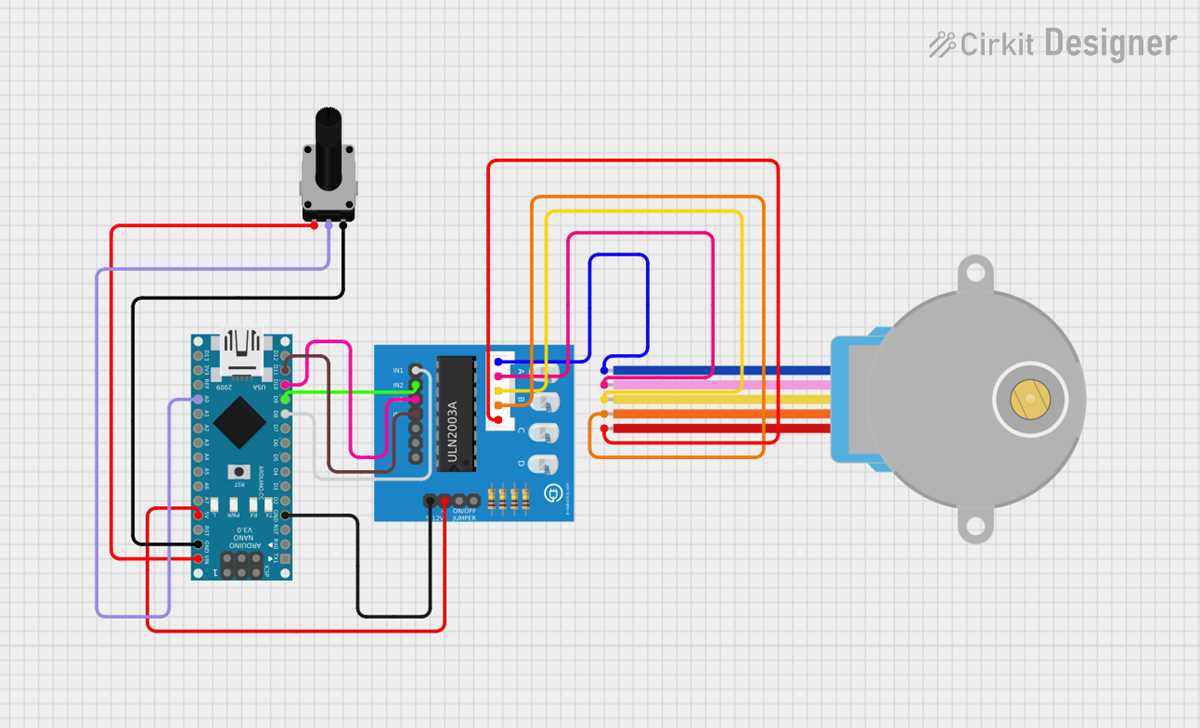

Stepper Motor Driver Array Connection Blueprint
Always connect the common cathode pin to the supply voltage through a diode with reverse polarity protection. Use a 1N4007 diode for 12V systems; it handles 1A continuous current and 30A surge. Without this, back EMF from inductive loads will destroy the Darlington pairs.
For parallel applications, distribute load across multiple channels. Each channel in the IC array handles 500mA; exceeding this degrades performance. Test thermal rise with a thermocouple after 5 minutes of operation. If temperature exceeds 60°C, reduce current or add a heatsink.
Key Pin Configuration
| Pin | Function | Max Rating | Critical Note |
|---|---|---|---|
| 1 | Input 1 | 30V | Requires 1kΩ resistor for TTL compatibility |
| 9 | Common cathode | 50V | Connect to V+ via diode; omit for open-collector |
| 10 | Output 1 | 500mA | Internal clamp diodes share this node |
When interfacing with 3.3V logic, insert a 470Ω series resistor between the logic output and array input. This prevents input current from exceeding 2mA, which violates the IC’s specifications. For 5V logic, a 330Ω resistor suffices.
Ground the unused inputs through a 10kΩ pull-down resistor. Floating inputs pick up noise, causing erratic output behavior. Verify with an oscilloscope; noise should not exceed 50mV peak-to-peak.
Troubleshooting Fault Conditions
If output stays high when disabled, check for shorted input pin. Use a multimeter in diode test mode; a reading below 0.4V indicates a short. Replace the IC if confirmed. For intermittent failures, probe the supply line with an AC-coupled oscilloscope; ripple above 100mV suggests insufficient decoupling. Add a 100μF electrolytic and 0.1μF ceramic capacitor near the power pins.

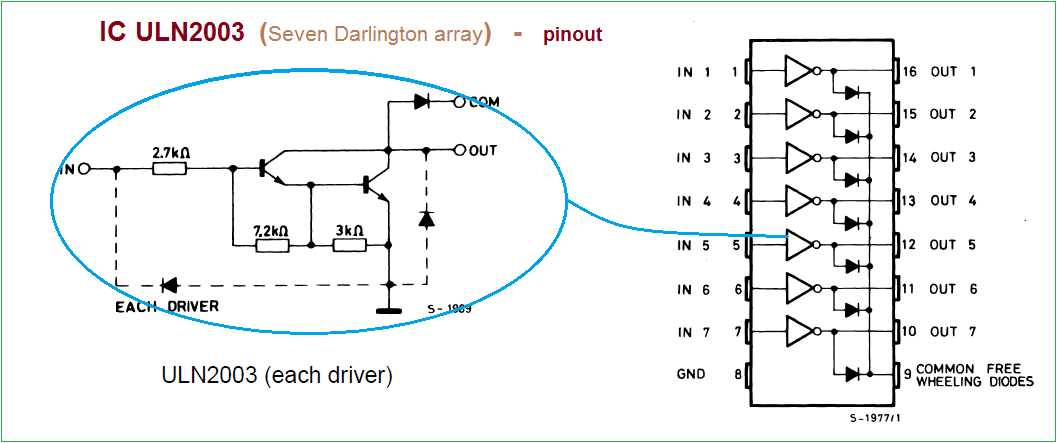

Pin Configuration and Functionality of the Darlington Array IC for Stepper Motor Control
Connect input pins 1 through 7 (IN1–IN7) directly to your microcontroller’s GPIO outputs, ensuring each pin drives a single channel. Active-low logic demands a pull-up resistor (10kΩ) on unused inputs to prevent false triggering, as the internal clamp diodes alone are insufficient for noise suppression.
Output pins 16 through 10 (OUT1–OUT7) sink current for inductive loads; wire each to one coil of a 5-wire unipolar stepper. Maximum sink current per channel is 500 mA continuous, derate linearly above 80°C. Exceeding 600 mA risks thermal shutdown within milliseconds, so insert a 1 A PolySwitch fuse in series with the motor common wire.
Supply and Ground Considerations
Pin 9 (COM) must be tied to the stepper’s common voltage rail–typically +12 V for standard NEMA 17 motors–through a low-ESR capacitor (22 µF, 25 V). Omitting this capacitor causes voltage spikes during coil turn-off, degrading torque and inducing erratic step sequencing. Pin 8 (GND) should be star-grounded back to the microcontroller’s GND pin, avoiding shared traces longer than 2 cm.
Use 0.1 µF decoupling capacitors between VCC (pin 8) and ground for each channel pair; solder them within 3 mm of the package. For motors exceeding 300 mA per phase, add 100 µF bulk capacitance on the motor supply line to absorb commutative energy and smooth PWM-induced ripple.
Enable internal suppression diodes by leaving COM unconnected at startup; however, for bipolar configurations, connect COM to the motor’s negative supply rail via a 1N4007 diode, cathode to COM. This prevents back-EMF from exceeding VCC + 0.7 V, which would otherwise forward-bias the substrate isolation junction.
Thermal and Load Management
Mount the IC on a copper pour of at least 10 mm² per channel, extending 5 mm beyond the package outline. Ambient temperatures above 50°C necessitate a 4 °C/W heatsink, attached with thermal adhesive and electrically isolated. Without heatsinking, continuous current must not exceed 350 mA per channel at 60°C ambient.
PWM frequencies above 20 kHz require additional snubber networks–series RC (10 Ω, 10 nF) across each coil–to dampen ringing. Omit snubbers for step rates below 500 steps/s unless audible noise is intolerable; instead, reduce PWM frequency to 1–2 kHz for optimal torque linearity.
For 4-phase steppers, wire OUT1–OUT4 sequentially, leaving OUT5–OUT7 disconnected. Daisy-chain IN5–IN7 in software as mirrored copies of IN1–IN3 to maintain synchronised step sequencing without hardware changes. Never leave output pins floating; terminate unused outputs to ground via 1 kΩ resistors to prevent leakage current from energising unintended coils.
Connecting the Darlington Transistor Array to Arduino for DC Motor and Relay Management
Use pins 1–7 as input channels from Arduino digital outputs. Each base pin accepts 5V logic signals without additional resistors, as the internal protection diodes handle current limiting. Connect Arduino D2–D8 sequentially to pins 1 (IN1) through 7 (IN7) to drive up to seven separate inductive loads simultaneously.
Ground the common cathode (pin 8) directly to Arduino’s GND and link the VCC (pin 9) to a voltage source matching load requirements–typically 5V for low-power devices or 12V for larger relays. Avoid leaving pin 9 unconnected; it disrupts flyback diode functionality and risks damaging the outputs.
Pair each output (pins 16–10 for OUT1–OUT7) with a dedicated load: steeply rated DC motors drawing ≤500 mA per channel or 10A mechanical relays. Exceeding this threshold causes thermal shutdown; derate by 50% for continuous operation above 70°C ambient. Verify load polarity–outputs are open-collector, so connect positive load terminals to an external supply.
Add 1N4007 diodes across coil-driven loads if not using the internal flyback protection. These snub transient voltages above 50V that could otherwise forward-bias internal junctions and destroy channels. For PWM applications, restrict switching frequency to ≤5 kHz to prevent excessive switching losses.
Test each channel independently before parallel operation. Drive a single motor or relay while monitoring Arduino’s 5V rail; voltage drops >0.5V indicate insufficient power supply capacity. Use an external 1A linear regulator for sensitive loads when Arduino’s onboard 5V regulator delivers ≤800 mA.
Isolate high-power circuits by separating ground planes. Connect Arduino GND and load supply GND only at the transistor array’s pin 8, minimizing noise coupling into logic signals. For fan-cooled enclosures, ensure airflow reaches the array’s heat spreader–the SOT-16 package dissipates 1W per channel without airflow, dropping to 0.5W in still air.
Constructing a High-Current Driver Matrix with Darlington Transistor Configuration
Begin by pairing the ULN chip’s internal Darlingtons with inductive loads like stepper motors or relays requiring 500mA per channel–exceeding typical GPIO limits. Connect the input pins (IN1–IN7) directly to a 3.3V or 5V logic source (e.g., Arduino, ESP32), ensuring the common cathode (pin 8) is tied to ground for proper flyback diode operation. For higher voltage loads (≤50V), attach the external power supply’s positive terminal to the load’s anode and route the load’s cathode to the chip’s output pins (OUT1–OUT7).
- Use 1N4007 diodes across inductive loads if the internal clamp diodes are insufficient for your voltage ratings.
- Avoid exceeding the 500mA per channel limit; parallel channels for currents up to 2.5A by combining outputs (e.g., OUT1 + OUT2) with a heatsink.
- For PWM control, ensure the input signal frequency stays below 5kHz to prevent switching losses from overheating the array.
Thermal management dictates reliability: solder the chip’s ground tab (pin 9) to a copper pour on a 2-layer PCB with 2oz copper thickness to dissipate ≤2.5W without derating. Test load switching with an oscilloscope–probe the output pin and ground–to confirm rise/fall times (
Common Voltage and Current Ratings for Darlington Array Applications
Always verify that the input signal voltage matches the driver’s specifications–typically 3.3V or 5V logic levels for standard TTL/CMOS compatibility. Exceeding these thresholds risks damaging the internal transistors without protective diodes, especially when interfacing with microcontrollers or FPGAs operating at higher levels.
Output stage ratings must align with the load requirements. The typical Darlington pair sustains a maximum continuous collector current of 500mA per channel, though transient peaks up to 600mA are permissible for brief periods (under 100ms). For inductive loads like relays or stepper motors, ensure flyback diodes are present to prevent voltage spikes exceeding 50V.
Power dissipation constraints dictate safe operating limits. Each channel handles up to 1W when mounted on a standard PCB, but thermal management becomes critical at currents above 350mA. Heatsinks or copper pours are mandatory if driving multiple channels simultaneously at near-maximum loads, with ambient temperatures kept below 70°C.
Recommended Operating Conditions
- Input Voltage: 2.4V–5.5V (logic high), with 0.5V max for logic low. Optimal switching occurs at 5V.
- Output Voltage: Up to 50V for inductive loads, but 30V for resistive loads to avoid breakdown.
- Supply Voltage: 7V–15V for VCC (compatible with 12V relays/steppers); decoupling capacitors (0.1μF) are essential near the power pin.
- Current per Channel: 200mA–350mA (continuous), with derating required for higher temperatures.
Precise load calculations prevent overheating. For example, driving an 8Ω solenoid at 12V consumes ~1.5A–requiring parallel channel operation with equal current sharing. Each channel’s internal resistance (~1Ω) drops ~0.5V at 500mA, so account for this in power supply sizing. PWM control demands faster switching rates; keep frequencies below 5kHz to avoid excessive switching losses.
Grounding practices impact performance. Connect the common emitter pin (pin 9) directly to the system ground plane to minimize noise. For sensitive applications (e.g., low-current LED driving), add a snubber network (100Ω resistor + 0.1μF capacitor) across outputs to suppress ringing. Avoid floating inputs–tie unused channels to ground via 10kΩ resistors.
Critical Safety Margins
- Never exceed the absolute maximum collector-emitter voltage of 50V. Use zener diodes (e.g., 1N4733A) for overvoltage protection.
- Derate current by 10% per °C above 25°C. At 50°C, the maximum current drops to 400mA per channel.
- Inductive loads require external flyback diodes (1N4007) rated for 2× the load current.
- Paralleling channels demands current-balancing resistors (1Ω–2Ω) to prevent uneven loading.
For battery-powered systems, optimize efficiency by lowering VCC to the minimum required voltage (e.g., 7V for low-torque steppers). Disabling unused channels reduces quiescent current draw (typically 1.4mA per channel). Diagnose faults by measuring voltage drops across outputs–normal operation shows ~0.7V–1.2V per channel under load, while higher values indicate overheating or overload.
