Begin by identifying power sources immediately–batteries, voltage regulators, and AC-DC converters form the backbone of any functional layout. Mark their polarity and voltage ratings explicitly to prevent reverse connections that can destroy components before assembly even begins. For switched-mode supplies, isolate high-frequency sections with proper grounding to minimize noise interference.
Next, label passive devices precisely: resistors must include both resistance (ohms) and power rating (watts), capacitors should denote capacitance (farads) alongside voltage tolerance (V), and inductors require inductance (henries) plus current handling capacity (A). Omitting these details leads to thermal failures or unexpected oscillations during operation.
Active parts like transistors, operational amplifiers, and microcontrollers demand clear pin assignments and signal flow direction. Use standardized symbols–npn/pnp for bipolars, MOSFET gates, or IC outlines–to avoid misreading during prototyping. For ICs, attach reference designators (U1, U2) and datasheet part numbers to streamline sourcing and verification.
Connectors and test points merit dedicated attention: include pin numbering, mating types, and signal names. High-speed interfaces (USB, HDMI) require impedance-matched traces; omit these details, and signal integrity collapses. Add pull-up/pull-down resistors where necessary to define logic levels on open-collector outputs.
Annotations serve as quick references: specify net names for busses (I2C_SDA, SPI_MOSI), critical voltage rails (3.3V, 5V), and ground symbols (chassis vs. signal ground). Separate analog and digital grounds at their respective origins to prevent ground loops. Document custom footprints or non-standard component bodies (heat sinks, modular jacks) to eliminate guesswork during PCB layout.
Key Components in Circuit Blueprints

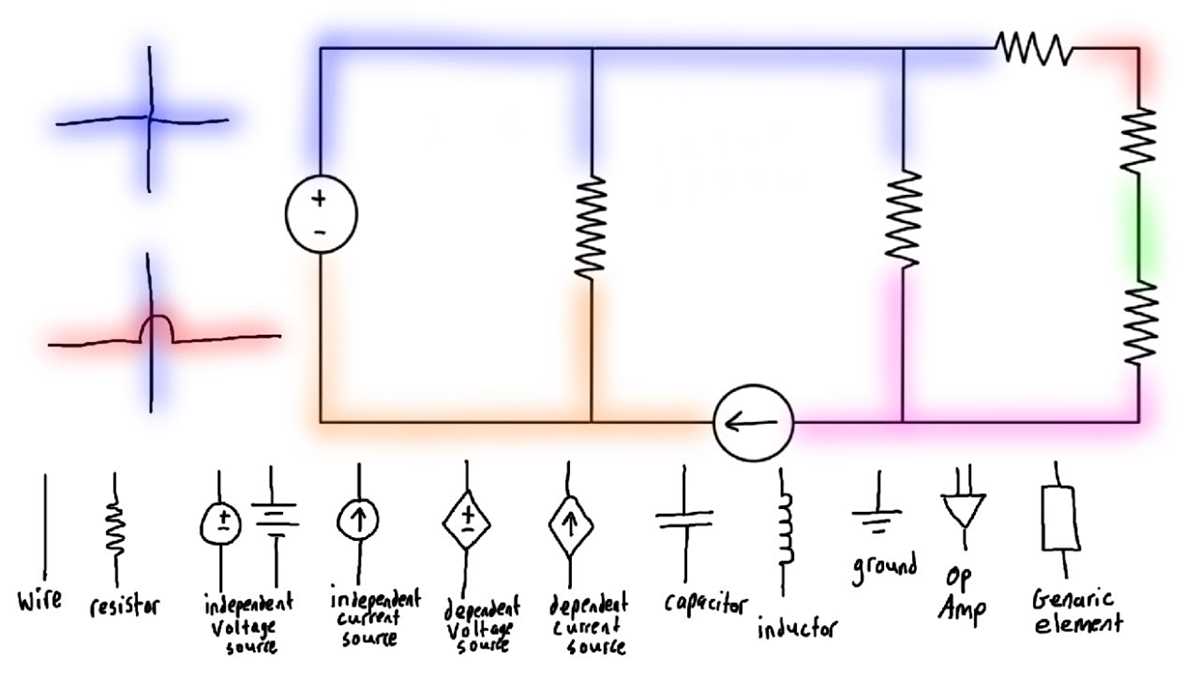

Start by identifying passive symbols–resistors, capacitors, and inductors–each marked with distinct shapes and labels. Resistors appear as zigzag lines with R or Ω, while capacitors use parallel lines (polarized versions include a curved line). Inductors show coiled wire symbols with L. Verify component values in adjacent text to avoid misinterpretation during assembly.
Active devices like transistors, diodes, and ICs demand precise recognition. Bipolar junction transistors (BJTs) display three leads: emitter, base, and collector, often labeled Q. Field-effect transistors (FETs) use a gap between source and drain. Diodes appear as a triangle pointing to a line, with LEDs including two arrows. Integrated circuits (ICs) use rectangular blocks with numbered pins.
Power sources include batteries (parallel lines of unequal length), voltage regulators (rectangles with Vout), and ground symbols (downward-pointing triangles or three horizontal lines). AC sources use sine wave icons, while DC sources opt for straight lines. Separate power rails from signal paths to prevent layout errors in multilayer boards.

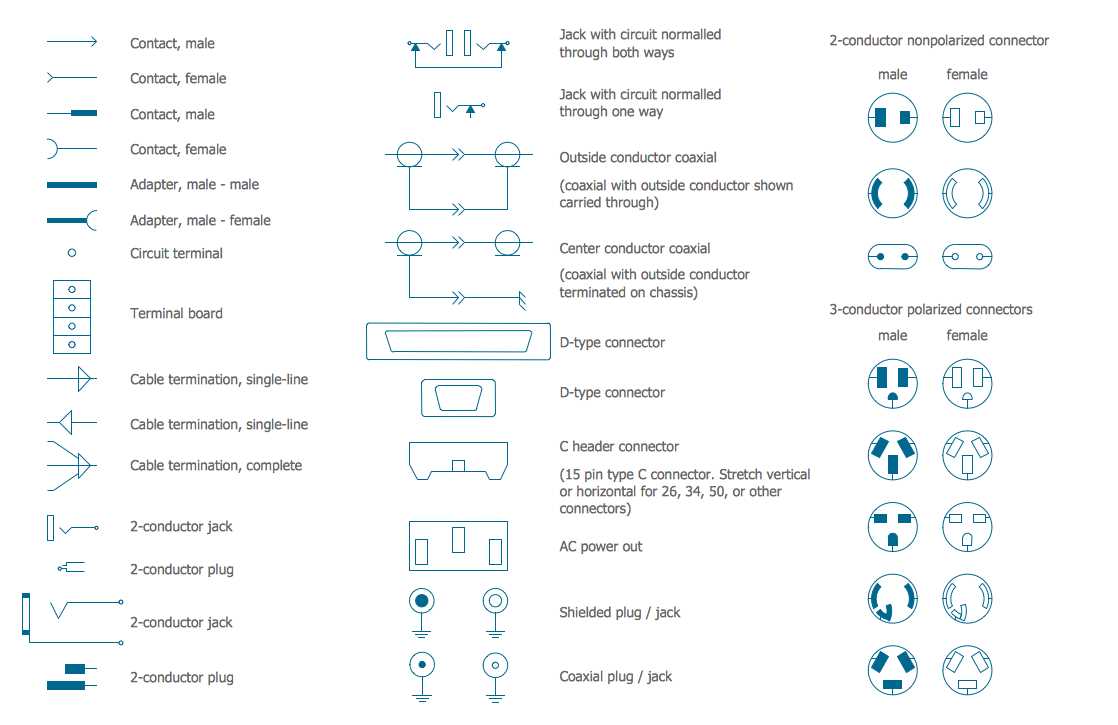

Connectors and switches use standardized notation: jumpers as short lines, headers as dots in a row, and pushbuttons as breaking lines. Mechanical switches (SPST, SPDT) show contact positions. Label each connector pin with its function (VCC, GND, DATA) to streamline testing and repairs.
Signal conditioning blocks–amplifiers, filters, and oscillators–are drawn as triangles (op-amps), or composite shapes with ± inputs. Operational amplifiers require power supply symbols attached to their rails. Filter circuits combine passive symbols (resistors, caps) with active components. Annotate cutoff frequencies or gain values directly on the blueprint.
Logic gates (AND, OR, NOT) use standardized geometric shapes: AND gates as D-shaped, OR as curved, and inverters as triangles with circles. Complex logic (flip-flops, counters) appears in rectangular boxes with internal labels. Group related gates into subcircuits and highlight reset/enable pins.
Annotate every symbol with reference designators (R1, C2, U3) and critical parameters (10kΩ, 22µF, LM324). Use net names for signal paths (CLK, SDA) instead of connecting lines. Add test points (circles with TP1) near high-failure areas. Cross-reference critical paths with a bill of materials to verify part availability before prototyping.
Identifying Passive Components: Resistors, Capacitors, and Inductors
Start by locating resistors marked with the letter “R” followed by a number (e.g., R1, R2). Check for color bands–four or five stripes–where each color corresponds to a digit. Use a resistor color code chart: black (0), brown (1), red (2), orange (3), yellow (4), green (5), blue (6), violet (7), gray (8), white (9). The last band indicates tolerance (gold ±5%, silver ±10%). Measure resistance with a multimeter if bands are unclear.
Capacitors appear as “C” followed by a number (e.g., C1). Look for two parallel lines (non-polarized) or a curved line with a plus sign (polarized electrolytic). Note the value in microfarads (μF), nanofarads (nF), or picofarads (pF), often printed directly (e.g., “10μF” or “.01μF”). For ceramic capacitors, decode markings like “104” (10 followed by 4 zeros = 100,000 pF or 100 nF). Verify polarity for electrolytic types–connect positive to the longer lead or marked side.
Inductors are labeled “L” (e.g., L1) and resemble coils or spirals. Values are given in henries (H), millihenries (mH), or microhenries (μH), often printed on the body (e.g., “10μH”). For toroidal inductors, count the number of turns and cross-reference with core material datasheets–ferrite cores handle higher frequencies than iron powder. If unmarked, measure inductance with an LCR meter at the circuit’s operating frequency.
For surface-mount devices (SMD), resistors use three-digit codes (e.g., “472” = 4.7 kΩ) or four-digit for precision (e.g., “1001” = 1 kΩ). Capacitors may show “104” (100 nF) or omit markings entirely–infrared thermometers can help identify heated components. Inductors in SMD form often lack labels; consult the bill of materials or manufacturer specs for dimensions and values.
Differentiate between variable and fixed components: potentiometers (labeled “VR” or “RV”) have adjustable resistance, while trimmers (smaller) fine-tune circuits. Variable capacitors (“VC”) and inductors (“VL”) adjust reactance–look for screws or rotating shafts. Polarized components (electrolytic capacitors, tantalum capacitors) risk catastrophic failure if reverse-biased–double-check orientation against the drawing.
Misidentification risks circuit failure. A 10 Ω resistor mistaken for 1 MΩ causes dramatic current changes. A reversed electrolytic capacitor explodes under high voltage. Use magnification for small SMD parts–their size belies their impact on frequency response or power dissipation. Cross-reference with SPICE models if available: component values directly affect filter cutoffs, amplifier gain, and oscillator stability.
Store components by value and type to streamline prototyping. Label bins with ranges (e.g., “10 Ω–1 kΩ,” “1 nF–1 μF”) and include tolerance bounds. For critical applications, measure actual values–manufacturing tolerances (±20% for film capacitors, ±5% for precision resistors) matter in high-frequency or low-noise designs. Keep a reference schematic nearby to verify connections–even identical-looking parts serve different roles based on placement.
Understanding Active Components: Transistors, Diodes, and Integrated Circuits
Always verify the pin configuration of a transistor before soldering–datasheets list emitter, base, and collector, but manufacturers sometimes reverse the order for compact footprints. A 2N3904, for example, typically follows the standard E-B-C sequence, but some SMD versions invert collector and emitter to optimize board space.
Use a multimeter in diode test mode to confirm junction behavior before integrating into a circuit. A forward-biased silicon diode drops ~0.7V, while Schottky diodes show ~0.2V–0.3V. Measure both directions: a short in reverse may indicate a failed device or incorrect placement in rectifier applications.
For MOSFET selection, prioritize RDS(on) at your target gate voltage. A logic-level IRLZ44N sustains 5V gate drive with RDS(on) ≤ 22mΩ, but a standard IRF540 needs 10V for full enhancement. Check switching speeds–slow turn-off increases losses in high-frequency converters.
| Component | Key Parameter | Test Method | Failure Indicator |
|---|---|---|---|
| Bipolar Junction Transistor (BJT) | hFE (current gain) |
Measure collector current at fixed base current (VCE = 5V) | Gain 1µA |
| Silicon Diode | Forward voltage (VF) | Apply 1mA forward current | VF > 1V or reverse leakage > 100nA |
| IC Voltage Regulator (e.g., LM7805) | Output voltage tolerance | Load test with 100Ω resistor | Output ±5% deviation or thermal shutdown |
When prototyping with ICs, add decoupling capacitors (100nF) within 2mm of power pins to prevent transient glitches. A 555 timer might oscillate unpredictably if ground noise exceeds 50mV–place capacitors directly between VCC and GND pads, not via adjacent traces.
Replace electrolytic capacitors near heat-generating components with tantalum or ceramic variants. A 7805 regulator dissipates ~1W at 1A load, degrading nearby electrolytics faster; ceramics maintain stability up to 125°C without capacitance drift.
For precision analog circuits, select ICs with guaranteed offset voltages. An OP07 op-amp specifies
Test switching regulators under actual load before final assembly. A TPS5430 buck converter might regulate 5V at 100mA but drop to 3.8V at 2A if the inductor saturates. Use an oscilloscope to verify 50mV indicates layout or component value mismatches.
