Choose HDMI for the simplest, most reliable link between a laptop and projector. Modern devices support resolutions up to 4K at 60Hz, ensuring sharp visuals with minimal setup–just connect the cable, select the correct input on the projector, and toggle display output via Win + P (Windows) or Command + F1 (macOS). For older projectors lacking HDMI, VGA remains functional but requires separate audio transmission; pair it with a 3.5mm aux cable to preserve sound. Avoid signal degradation over long distances–keep cables under 5 meters for HDMI and 3 meters for VGA unless using an active adapter.
For wireless transmission, Miracast (Windows/Android) or AirPlay (Apple) bypasses cables entirely. Verify both devices support the protocol–projectors must have built-in Wi-Fi Direct (e.g., Epson, BenQ models) or a dongle like Microsoft Wireless Display Adapter. Latency averages 50-150ms, sufficient for presentations but suboptimal for video playback; use wired connections for smoother performance. Configure network settings to prioritize 5GHz Wi-Fi for reduced interference, and ensure devices are on the same subnet to avoid pairing failures.
DisplayPort via USB-C offers a versatile, single-cable solution for newer laptops (e.g., MacBook, Dell XPS). Thunderbolt 3/4 ports compatibly transmit video, audio, and power over one connection, supporting 4K at 120Hz or 8K at 60Hz. Check projector inputs: HDMI 2.1 or DisplayPort 1.4 are mandatory for high refresh rates. If using adapters, opt for active converters (e.g., USB-C to HDMI 2.0) to avoid resolution scaling down to 1080p; passive adapters may cap performance at 30Hz.
For legacy setups, S-Video or Composite RCA yield lower fidelity but work with outdated equipment. Separate luminance (Y) and chrominance (C) signals in S-Video reduce color bleed compared to RCA, which merges video into a single channel. Stereo audio requires a separate red/white RCA cable. Expect resolutions limited to 800×600 or lower–these methods suit basic text/imaging but struggle with modern content.
Multi-monitor tools like DisplayLink enable USB-to-video conversion without native ports. Driver installation is mandatory; platforms like Linux require manual configuration via xrandr. Bandwidth demands may throttle USB 2.0 connections–use USB 3.0 or Thunderbolt for 4K output. Schematics should indicate power requirements (e.g., USB-powered adapters vs. hubs with external power) to prevent dropouts during extended use.
Always verify EDID handshake to prevent resolution mismatches. Projectors may default to 640x480 if the laptop fails to detect supported modes. Override settings in GPU control panels (NVIDIA Control Panel/AMD Radeon Software) or via terminal commands like xrandr --output HDMI-A-0 --mode 1920x1080. For multi-projection setups, use Matrox DualHead2Go or Datapath x4 to split a single signal across multiple displays without performance loss.
Choosing the Right Interface for Projecting from a Laptop
HDMI remains the most reliable method for modern devices, supporting both high-definition video and audio through a single cable. Ensure the laptop’s HDMI output matches the projector’s HDMI input–most support HDMI 1.4 or 2.0, with the latter handling 4K at 60Hz. For older projectors, check if they require an HDMI-A (standard) or HDMI-Micro connector. If latency is critical (e.g., gaming or presentations with animations), prioritize projectors labeled “low-latency” in their specs.
VGA serves as a fallback for legacy setups but lacks audio transmission, requiring a separate 3.5mm cable. Verify the projector’s native resolution–VGA’s maximum reliable output is 1920×1080, though many projectors downscale higher inputs. Use a high-quality VGA cable (shorter than 10 feet) to minimize signal degradation, and tighten screws securely to prevent intermittent disconnections. Note that VGA-to-HDMI adapters exist but often introduce compatibility issues with some operating systems.
USB-C (Thunderbolt 3/4) simplifies connections if both devices support DisplayPort Alternate Mode. Confirm the projector’s input–some require USB-C to HDMI/VGA adapters, which may limit resolution or refresh rate. For laptops with multiple USB-C ports, use one labeled “Thunderbolt” or “DisplayPort” for best performance. Active adapters are necessary for resolutions above 1920×1080, while passive adapters suffice for standard HD. Check power delivery (PD) support if the laptop relies on USB-C for charging.
Wireless options like Miracast (Windows) or AirPlay (Apple) eliminate cables but introduce latency and require strong network conditions. Miracast works directly between devices, while AirPlay needs an Apple TV or compatible receiver. For conference rooms, ensure the router supports dual-band Wi-Fi (5GHz preferred) to reduce interference. Screen mirroring apps (e.g., Google Cast) demand stable connections–test signal strength beforehand to avoid stuttering. Wired methods are still recommended for critical content like videos or large presentations.
| Interface | Max Resolution | Audio Support | Latency | Compatibility |
|---|---|---|---|---|
| HDMI | 4K@60Hz (2.0) | Yes | Low | Modern devices |
| VGA | 1920×1080 | No | Medium | Legacy systems |
| USB-C | 4K@60Hz (DP Alt Mode) | Yes | Low | Thunderbolt 3/4 |
| Wi-Fi (Miracast/AirPlay) | 1080p | Yes | High | Strong network required |
For setups involving adapters, verify the specific pin assignments–e.g., HDMI-to-VGA adapters require power for the digital-to-analog conversion. Some projectors offer “hybrid” inputs (HDMI/VGA/USB-C) but may prioritize one signal; check the manual for input switching behavior. If using a docking station, ensure it supports the desired resolution and refresh rate when driving the projector. Troubleshooting includes updating GPU drivers, testing cables on another device, and disabling secondary displays on the laptop to force output to the projector.
Choosing the Right Cable for Your Projector and Laptop
Select an HDMI cable for displays requiring 4K resolution at 60Hz or 1080p at 120Hz. Modern projectors and laptops with HDMI 2.0 or 2.1 ports support bandwidth up to 18Gbps, ensuring minimal latency and HDR compatibility. For older setups, verify the HDMI version–earlier iterations may not handle higher refresh rates or resolutions. Avoid ultra-high-speed cables unless confirmed necessary; standard HDMI 2.0 cables suffice for most presentations.
Use a DisplayPort cable when connecting high-refresh-rate projectors or laptops lacking HDMI 2.1. DisplayPort 1.4 supports 8K at 60Hz or 4K at 120Hz with DSC (Display Stream Compression), ideal for graphically intensive tasks. Check the laptop’s output and projector’s input ports–some devices support only mini-DisplayPort or USB-C with DisplayPort Alt Mode. Cable length impacts signal quality; 3 meters is reliable for 4K, while 5 meters may require active cables for stable transmission.
Opt for USB-C to HDMI/DisplayPort adapters if the laptop lacks dedicated video ports. Ensure the adapter supports the required resolution and refresh rate–cheaper models often cap at 1080p. Thunderbolt 3/4 ports can output video via USB-C, but compatibility varies; verify the projector’s supported protocols. For extended setups, prioritize Thunderbolt-certified cables or adapters with power delivery to avoid signal degradation.
- VGA cables work for legacy projectors but limit resolution to 1080p at best, often downgrading to 1280×1024. Avoid for color-critical or high-contrast content.
- DVI cables support 1080p but lack audio transmission; suitable for older setups where HDMI/DVI ports coexist.
- Wireless solutions (Miracast, AirPlay) introduce latency–use only for informal presentations where real-time accuracy isn’t critical.
Measure cable lengths precisely; excess slack degrades signal, while overly long cables demand signal boosters. Test connections beforehand to confirm color reproduction, particularly for detailed diagrams or video content.
Step-by-Step Wired HDMI Link: Direct Method with Pin Configuration Breakdown

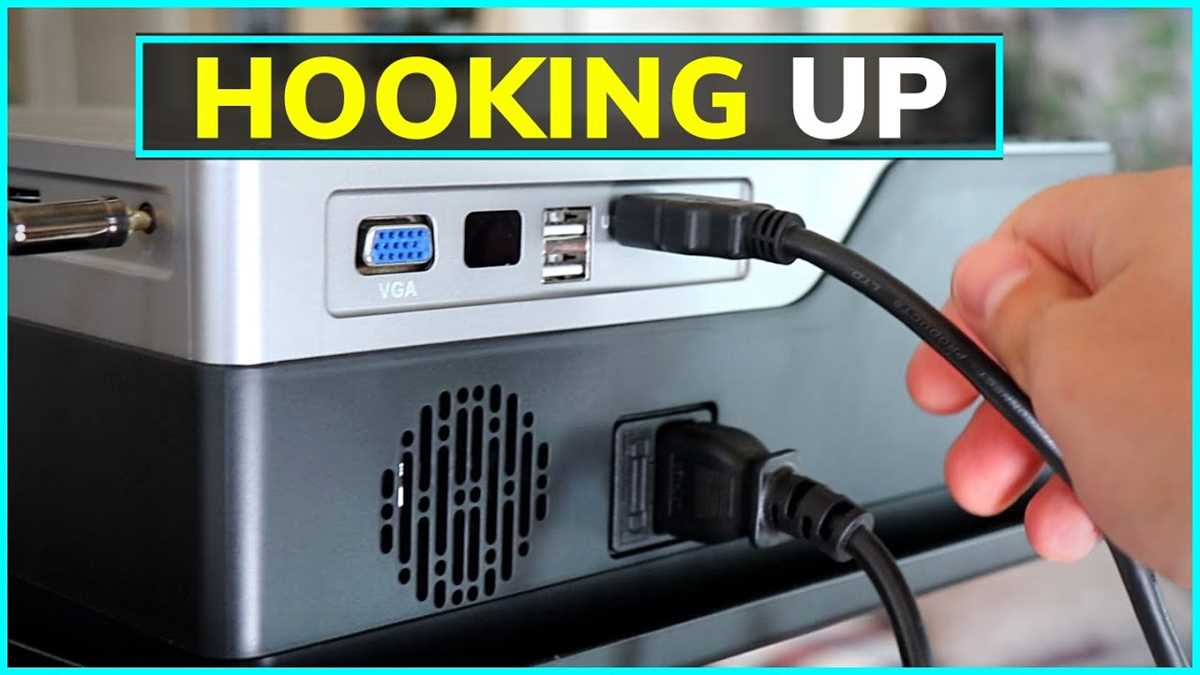

Power off both devices before attaching any cables to avoid electrical discharge risks–HDMI ports tolerate no hot-swapping under standard protocols. Connect a certified High Speed HDMI cable (Category 2, 19-pin, 10.2 Gbps bandwidth) from the laptop’s output to the projector’s input, verifying the connector orientation against the port’s trapezoidal key shape. Apply firm, even pressure until the connector clicks; improper insertion can bend pins or create intermittent signal loss. Test the setup by toggling the laptop’s display output (Windows: Win + P, macOS: Cmd + F1) to mirror or extend the screen–projector models with EDID compatibility will auto-detect resolution, while others require manual adjustment via Settings > Display.
The HDMI standard defines 19 pins, each with a distinct role–pins 1-9 (TMDS channels) carry uncompressed video/audio data, pins 10-12 (TMDS clock) synchronize signal timing, pin 13 (CEC) enables single-remote control of linked devices, pins 14-17 (utility/reserved) handle bi-directional communication like Ethernet over HDMI, pin 18 (Hot Plug Detect) signals device presence, and pin 19 (+5V, max 55mA) powers low-consumption peripherals. Verify continuity with a multimeter if signal drops occur–poor soldering on pin 19 often causes handshake failures, requiring cable re-termination. For 4K@60Hz output, ensure the cable supports HDMI 2.0/2.1 (3840×2160 resolution at 60 fps) and that the projector’s EDID table advertises this capability; mismatched EDID may default to 1080p.
If the projector fails to display, check for HDCP compliance–content protected by High-bandwidth Digital Content Protection (e.g., Netflix, Blu-ray) demands HDCP 2.2/2.3 on both ends. Inspect the cable for physical damage: kinked shielding or exposed conductors at the connector can cause chroma subsampling artifacts (e.g., 4:2:0 instead of 4:4:4). Replace cables longer than 15 meters with an active optical HDMI extender, as passive copper cables degrade signal integrity beyond this length. For legacy projectors without HDMI, use a VGA adapter (pin 1: Red, 2: Green, 3: Blue, 6/7/8: Ground, 13/14: H/V Sync) but expect up to 50% color depth loss and no audio–supplement with a 3.5mm audio cable.
Projectors with HDMI-CEC enabled (e.g., Epson, Sony) may auto-switch inputs–disable this feature via the projector’s OSD if it interferes with multi-device setups. For HDR content, confirm the laptop’s GPU (Intel Arc, NVIDIA RTX 30/40 series, AMD RX 6000/7000) supports HDR10, and configure Windows (Settings > System > Display > HDR) or macOS (System Preferences > Displays > HDR) to output in “HDR” mode. Test with calibration patterns (e.g., Spears & Munsil) to verify BT.2020 color space adherence–deviations indicate EDID or cable limitations. If flickering occurs, reduce refresh rate to 30Hz for 4K or enable “HDMI Ultra HD Deep Color” in the projector’s settings to stabilize TMDS clock signals.
For laptops with USB-C/Thunderbolt only (e.g., MacBook Pro, Dell XPS), use an HDMI adapter rated for 4K@60Hz–passive USB-C-to-HDMI adapters (DisplayPort Alt Mode) often cap at 30Hz, while active adapters with retimers maintain peak bandwidth. Avoid daisy-chaining adapters (e.g., USB-C > DP > HDMI) as each conversion introduces latency and potential audio dropout. If the laptop outputs 1080p despite supporting 4K, update GPU drivers and force resolution via NVIDIA Control Panel > Change Resolution or AMD Adrenalin Edition > Custom Resolution. Projectors with dual HDMI inputs may require input switching–use the correct port labeled “HDMI/PC” for optimal color accuracy.
Troubleshooting checklist for no-signal scenarios: 1) Swap HDMI cables to rule out cable failure; 2) Test the laptop on another display to isolate the issue; 3) Factory reset the projector’s settings; 4) Update projector firmware via manufacturer’s utility; 5) Disable laptop hybrid graphics (Intel/NVIDIA) if using an external GPU; 6) Check for bent HDMI connector pins–straighten with a precision tool if misaligned. For audio issues, ensure the HDMI cable carries audio (pins 1-3, 9-11) and select the correct audio output device in Sound Settings > Playback–some projectors route audio to 3.5mm jack by default. If colors appear washed out, calibrate using the projector’s “Color Management” menu and enable “Full RGB” range in GPU settings, as limited RGB (16-235) truncates black/white levels.
