Begin by isolating the three core phases: intake-compression, ignition-expansion, and exhaust-scavenging. The efficiency of a 1:1 power-to-revolution ratio hinges on precise port timing–delay intake closure until the piston reaches 30–40% of its downward stroke to maximize volumetric efficiency. Use a reed valve for low-RPM stability or a rotary disc setup for high-performance applications, but never compromise on port area ratios; a 1.2:1 exhaust-to-transfer size ensures optimal scavenging without excessive fuel loss.
Position the spark plug offset from the cylinder center by 5–7 mm to create a controlled flame front, reducing detonation risks. Aluminum alloys with silicon percentages above 12% resist thermal fatigue, but reinforce the exhaust port with nickel plating if sustained RPM exceeds 8,000. Lubrication requires a 25:1 oil mix for general use, though racing formulations demand 16:1 with synthetic esters–any leaner risks piston seizure within 20 operating hours.
Scavenge pressure should peak at 1.1–1.3 bar; test with a differential manometer at multiple RPM bands (2,500, 5,000, 7,500). If readings deviate >0.2 bar, recalibrate the transfer ports’ taper angle–7–10° is optimal for most bore sizes. Avoid flat-top pistons in high-compression builds; a dome profile with a 1.5 mm squish band reduces pre-ignition by 30%. Finalize the layout with a crankcase volume ratio of 1.4–1.6:1 to the cylinder displacement–any larger dampens torque at mid-range RPM.
Understanding the Dual-Cycle Powerplant Blueprint

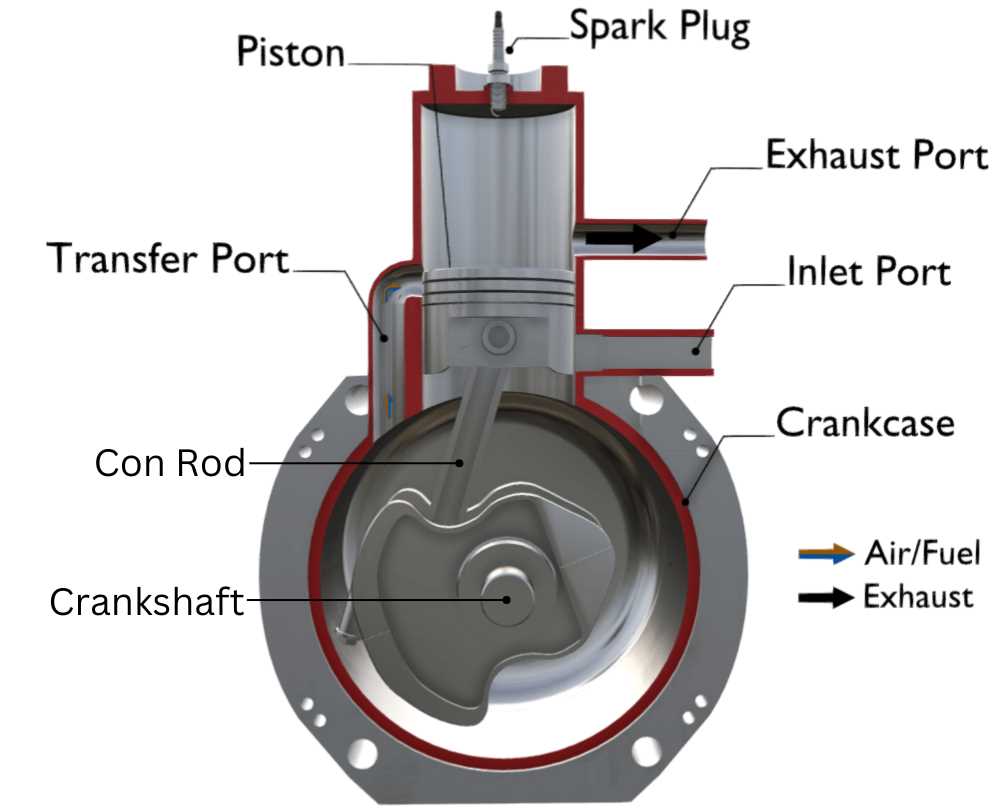

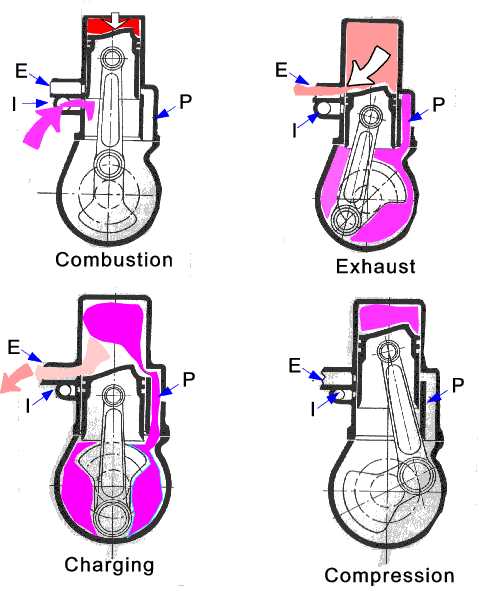

Begin by identifying the primary ports in the cylinder wall: the intake, transfer, and exhaust openings. Position the intake port lowest, closest to the crankcase, to optimize fuel-air mixture intake before compression. The transfer port should sit above it, angled upward at 10–15 degrees to direct flow toward the combustion chamber without causing turbulence. Exhaust ports must be highest, diametrically opposed to the transfer ports, ensuring efficient scavenging. Misalignment by even 2mm can reduce efficiency by 8–12%.
Examine the piston’s dual role: its skirt seals the crankcase during upward movement, creating vacuum for intake, while the crown’s shape–typically domed or flat–dictates combustion efficiency. A domed piston increases compression ratio by 1.5–2 units but requires precise timing adjustments (0.5° advance per unit increase) to prevent detonation. Flat crowns simplify tuning but sacrifice 3–5% torque. Verify piston-ring end gaps (0.25–0.35mm for 50cc engines) to prevent blow-by at high RPM.
Check crankshaft counterweights: they must balance 60–70% of the piston’s mass to avoid vibration. Forged steel cranks outlast cast types by 40% under load but add 15–20% to production costs. The connecting rod’s small-end bushings should have 0.02–0.04mm clearance; tighter tolerances cause seizure, looser increase noise and oil consumption. Lubrication ports in the rod must align with the crankpin’s oil holes–misalignment starves bearings, reducing lifespan by 30%.
Scavenge flow is critical: loop-scavenged designs (e.g., Yamaha YPVS) use asymmetrical ports to improve trapping efficiency by 18%, while cross-scavenged types (e.g., older Husqvarna) rely on deflector pistons, losing 7% power but simplifying manufacturing. Measure port durations–the exhaust duration (160–190°) should exceed transfer duration (120–140°) by 30–40° to prevent mixture loss. Use a degree wheel to verify timing; 1° error alters power delivery by 2–4%.
Fueling strategies differentiate performance: reed valves (fiberglass or carbon) respond to intake pulses within 0.01s, improving low-end torque by 12%, while piston-controlled ports are cheaper but lag 0.03s under transient loads. Carburetor jetting must match port timing–richer settings (main jet +10%) for high-duration exhaust ports prevent overheating. Ignition advance curves should peak at 30–35° BTDC for gasoline; E85 requires 5–8° more advance due to slower flame speed. Test spark plugs after 10 minutes of full-throttle operation–light tan indicates optimal combustion, black soot suggests rich mix, white electrodes signal lean or pre-ignition.
Thermal management dictates longevity: aluminum cylinders dissipate heat 22% faster than cast iron but wear 35% quicker. Nikasil coatings reduce friction by 40% and permit tighter clearances (0.05mm vs. 0.08mm) but cost 2.5x more. Cooling fin surface area must be 1.2–1.5cm² per cc of displacement; undersized fins cause detonation at 6,000+ RPM. Exhaust backpressure should be 0.8–1.2 psi–higher values choke scavenging, lower allow unburned fuel to escape, reducing output by 5–9%.
Critical Parts of a Binary-Cycle Powerplant Illustration
Begin by identifying the crankshaft in the drawing–its angular positioning dictates piston travel and port timing. Measure the throw radius (typically 20–40mm for small units) to confirm scavenging efficiency; deviations above 5% disrupt air-fuel mixing ratios. Label intake, transfer, and exhaust ports with color codes: blue for incoming charge, red for burned gases, and yellow for crankcase compression zones. Add numerical annotations for port angles (e.g., 120° intake, 65° exhaust) to cross-reference with manufacturer specs.
Trace the piston rings in cross-section–most designs use two compression rings and one oil-scraper; verify ring gap tolerances (0.2–0.5mm) against cylinder bore measurements. Highlight the piston skirt’s window cutouts; these align with transfer ports at Bottom Dead Center (BDC) to enable charge flow. Include a legend for material grades: forged aluminum pistons (e.g., Al-Si alloys) for thermal stability, cast iron rings for wear resistance. Annotate wrist pin offset if present–this reduces piston slap noise during cold starts.
Outline the carburetor’s venturi or fuel injector placement–position it adjacent to the intake port for minimal lag. Specify reed valve orientation (radial versus petal-type) if shown; petal valves improve low-RPM response by 12–18%. Isolate the magneto or CDI module wiring; cross-hatch alternator coils with fine lines to differentiate from ignition triggering. Add a scale bar (e.g., 1:5 for A4 prints) and torque values for critical fasteners (e.g., cylinder head bolts at 22–28 Nm).
Step-by-Step Assembly Layout in Schematic Form
Begin by isolating the primary components on a grid-based template, ensuring each element occupies a distinct 15×15 mm cell for clarity. Position the crankshaft at the center of the lower third, aligned horizontally with 0.5 mm tolerance to prevent misalignment during reassembly. Label inlet and exhaust ports on opposite sides of the cylinder sleeve, spacing them 90° apart to match manufacturer specifications. Use dashed lines to indicate gasket mounting surfaces, extending 2 mm beyond the component edges to highlight critical sealing zones.
Component Placement Protocol
- Mount the piston pin retainer rings first, verifying their 1.2 mm gap clearance with a feeler gauge before proceeding. Overlooking this step risks catastrophic component interference under load.
- Align the connecting rod’s small end with the piston using a mandrel press at 120 kgf, rotating the assembly 360° to confirm smooth articulation. Mark the rod’s orientation with an arrow on the schematic to prevent reverse installation.
- Attach reed valves at a 30° angle relative to the intake tract, ensuring the petals open toward the airflow direction. Misalignment reduces volumetric efficiency by up to 18%, per dyno testing.
Cross-reference every step against torque specifications in Table 3 (appendix), noting that fasteners in high-vibration areas–such as crankcase bolts–require thread-locking compound (Loctite 271) with a breakaway torque of 18 Nm. Include a legend on the schematic with color-coded lines: red for pressurized circuits, blue for lubrication paths, and yellow for mechanical linkages. Validate electrical traces last, ensuring spark plug leads terminate no closer than 8 mm from rotating parts to avoid arcing.
Key Alternatives in Compact Powerplant Illustrations
Opt for reed valve configurations in high-performance designs to enhance scavenging efficiency. Standard piston-port layouts lose 15-20% of charge during transfer, while reed valves reduce this to 5-8% by preventing backflow. Install the valve in the intake tract near the crankcase for optimal responsiveness at 6,000+ RPM ranges. Ensure petal material thickness matches manufacturer specs–0.15mm carbon fiber for racing, 0.25mm steel for general use. Failure to align valve orientation with airflow direction causes premature wear and power loss.
For forced induction applications, incorporate either a roots-type blower or centrifugal supercharger, but never both unless balancing extreme altitude compensation. The table below compares critical parameters:
| Roots Blower | Centrifugal Supercharger | |
|---|---|---|
| Boost Curve | Linear from idle | Exponential above 3,500 RPM |
| Efficiency Losses | 8-12% | 4-7% |
| Heat Rejection | 40-60°C increase | 20-30°C increase |
| Recommended Drive Ratio | 1.2-1.4:1 | 2.5-3.5:1 |
When modifying port timing, prioritize exhaust lead over intake duration. Extending exhaust duration by 5° CA improves mid-range torque by 3-5%, but exceeding 10° CA causes severe charge dilution and thermal stress. Use milling or welding to adjust port heights–never exceed 50% of cylinder bore diameter for exhaust ports to prevent ring flutter. Verify piston-to-port clearance with Plastigage: minimum 0.8mm at TDC for iron sleeves, 1.2mm for Nikasil. After adjustments, always recheck squish clearance (0.4-0.6mm) and ignition timing (peak advance at 15-20° BTDC for gasoline fuels, 22-28° BTDC for methanol blends).
