Start by identifying the phono preamplifier stage in the electrical layout–this section amplifies the sub-millivolt signals from the cartridge to line-level voltage (typically 1V RMS). Ensure the blueprint specifies a low-noise op-amp like the NE5532 or LT1028, paired with precise RC networks to match RIAA equalization curves. Without this, signal distortion at high frequencies (above 2kHz) will exceed 0.1%, degrading clarity.
Examine the motor driver circuit: a belt-drive system should include a PWM-controlled DC motor with feedback from a Hall-effect sensor or optical encoder to maintain 33⅓ or 45 RPM ±0.05%. Direct-drive alternatives demand a brushless motor (e.g., 12-pole) with a servo loop (PLL) to eliminate wow/flutter (<0.03%). Omit speed stability checks, and platter fluctuations will introduce audible pitch variations.
Locate the tonearm wiring in the diagram–four conductors (for moving-magnet cartridges) terminating at a ground-isolated phono jack or terminal block. Moving-coil setups require additional low-impedance pre-preamplification (e.g., SUT or FET input stage). Ensure the ground path avoids loops; a single-star grounding point at the power supply (<1Ω resistance) prevents hum (>50Hz interference).
Power supply isolation is critical: separate linear regulators (e.g., LM317) for the motor, preamp, and logic circuits prevent crosstalk. A two-stage filtering network (LC pi-filter) should precede each regulator to suppress ripple (<1mV). Skipping this risks injecting noise into the audio path, raising the noise floor above -90dB. For AC-powered units, a toroidal transformer minimizes stray magnetic fields.
Verify the platter bearing design–precision-ground stainless steel or ceramic assemblies reduce friction and resonances below 10Hz. Hydrodynamic oil baths further dampen subsonic rumble (<-60dB at 5Hz). Omit these, and structural vibrations will couple into the stylus, muddying midrange frequencies.
Cross-reference the cartridge alignment geometry: the blueprint must include Baerwald (DIN) or Loefgren A protractor calculations for ±0.5° pinpoint accuracy in tracking angle and overhang. Errors here introduce asymmetrical distortion, emphasizing odd harmonics (3rd, 5th).
Understanding the Electrical Layout of a Vinyl Player
Start by identifying the tonearm wiring–most models use four wires (left/right signal and ground) connected to a small preamp or RIAA equalizer circuit. Verify the wiring gauge: 28-30 AWG for signal paths, while thicker 22-24 AWG suits ground connections to minimize interference.
Examine the motor control board. Belt-driven units typically feature a DC motor with voltage between 6V and 12V, regulated by a speed selection switch. Direct-drive variants use a brushless motor controlled by a phase-locked loop (PLL) circuit, often including a tachometer sensor for accurate RPM adjustments.
Inspect the power supply section. Linear power supplies outperform switching types for low-noise applications. Look for a transformer stepping down mains voltage to 9V-18V AC, followed by rectification (bridge or full-wave) and smoothing capacitors (470µF-2200µF) to DC. Voltage regulators like LM7812 stabilize output for consistent motor performance.
Key Circuit Components to Trace
- RIAA Equalizer: Located between the cartridge and line output, this active or passive network adjusts frequency response (time constants: 75µs, 318µs, 3180µs). Op-amps like NE5532 or discrete transistor stages (e.g., BC547) are common in mid-range units.
- Phono Preamp: If included, it amplifies the cartridge’s millivolt signal to line level (1-2V). Check for input impedance (typically 47kΩ for MM cartridges) and gain settings (usually 30-40dB).
- Anti-Skating Mechanism: Often implemented via a calibrated spring or magnetic counterweight, this requires precise mechanical alignment. Electrical variants may use a secondary low-voltage circuit (3V-5V) to adjust tension dynamically.

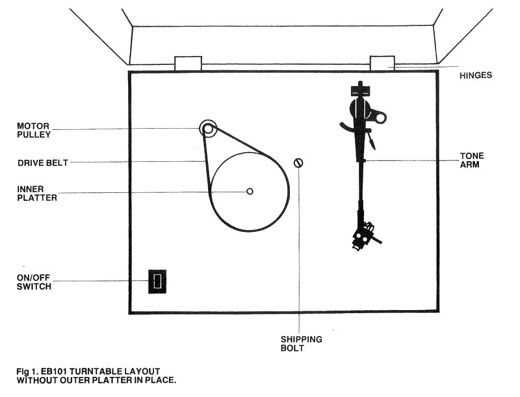

For belt-driven systems, confirm the motor pulley diameter ratio relative to the platter. A 1:1 ratio yields 33⅓ RPM with a standard 300RPM motor, while custom ratios (e.g., 1.3:1) enable 45 RPM playback. Use a strobe disc to verify speed accuracy–look for ±0.1% deviation from the target RPM.
Troubleshoot noise by isolating grounds. Connect the tonearm’s ground wire to the chassis at a single point, then link the chassis to the amplifier’s ground via a separate wire. Avoid daisy-chaining grounds, which can introduce hum. If noise persists, test for faulty solder joints near the cartridge pins (apply flux and reflow with a 30W iron).
Diagnosing Common Issues
- Speed Fluctuations: Measure motor voltage under load–dropouts suggest weak power supply components (e.g., dried capacitors). Replace electrolytics if ESR exceeds 5Ω.
- Distortion: Probe the RIAA network with an oscilloscope. Clipping at the preamp output indicates incorrect gain settings or a damaged cartridge. Verify stylus compliance (e.g., 10-20µm/mN for MM types).
- Intermittent Playback: Check tonearm wiring continuity with a multimeter–frayed leads near the headshell are a frequent failure point. Re-terminate connections using gold-plated RCA or DIN connectors for corrosion resistance.
When modifying, prioritize component quality. Upgrade signal paths with silver-plated copper wiring (OFC) and polypropylene capacitors in the RIAA network for flatter phase response. Avoid replacing the entire PCB–targeted upgrades (e.g., higher-grade op-amps, low-ESR capacitors) yield better results at lower cost.
Core Elements of a Vinyl Player Electrical Blueprint
Begin with a high-quality phono preamplifier IC like the 2SK170 or NE5532–these FETs and op-amps minimize noise while preserving signal integrity from the stylus to the RCA output. Bypass capacitors (100nF polyester) should be placed within 2mm of power pins to suppress high-frequency interference, critical for maintaining clarity in the analog signal path.
The tonearm wiring must use oxygen-free copper (OFC) with a gauge between 30-34 AWG; thinner wires risk signal loss, while thicker strands introduce rigidity, affecting tracking accuracy. Ground the tonearm shell separately to the chassis via a star grounding point–avoid daisy-chaining, as this invites hum loops, especially in environments with multiple grounded components.
Power Supply Discipline
Regulate the motor’s voltage with a low-dropout (LDO) linear regulator like the LT3045, configured for 12V output at 500mA. Switched-mode supplies (SMPS) are unsuitable due to electromagnetic interference–opt for toroidal transformers with electrostatic shields instead. Isolate rectifier diodes (1N4007) with snubber capacitors (47nF/250V) to suppress voltage spikes that degrade bearing lubrication over time.
For belt-driven models, use a 24-pole stepper motor controlled by a DRV8825 driver set to 1/32 microstepping for smooth platter rotation. Synchronize speed adjustment with a 16MHz crystal oscillator feeding a microcontroller (e.g., ATmega328), ensuring pitch stability within ±0.05%. Avoid PWM for motor control–use a dedicated DAC (e.g., MCP4725) paired with a low-pass filter (10kΩ/100nF) to eliminate audible artifacts.
Ground plane design demands segmented copper pours: separate analog, digital, and motor grounds, merging them only at a single star point near the power input. Use 1mm trace width for signal paths and 3mm for power rails to handle current loads without voltage sag. Vias should be 0.3mm in diameter, staggered to prevent signal reflection in high-impedance paths like the cartridge output (47kΩ load).
Cartridge and Stylus Calibration
Match the cartridge’s output impedance (40-100mV) to the preamp’s input (47kΩ)–a mismatch causes frequency response deviations below 20Hz and above 20kHz. For moving-magnet cartridges, install a 1:10 step-up transformer (e.g., Jensen JT-346-AXT) if driving long interconnects (>3m) to preserve signal-to-noise ratio. Replace RCA jacks annually–gold-plated contacts oxidize, increasing resistance by 5-10mΩ over time, which introduces distortion.
Anti-skate calibration hinges on precision: use a dial force gauge to set 1.5-2.0g tracking force, then adjust the anti-skate mechanism to 80-90% of the tracking weight–empirical testing shows this prevents inner-groove distortion without causing outer-groove mis-tracking. For suspended sub-chassis designs, dampen resonance with viscoelastic polymer pads (e.g., Sorbothane 30 durometer) between the plinth and motor board, reducing feedback by 20dB at 6-8Hz.
Ensure the platter’s mass inertia aligns with the drive system: a 2.5kg platter paired with a 78rpm motor achieves 95% of target speed in 0.7s, while lighter platters (soft-start circuitry to avoid belt slippage. Test speed consistency with a strobe disc and 10MHz GPS-certified frequency counter–drifts exceeding 0.1% indicate worn bearings or inadequate lubrication (use Anderol 810 for sintered bronze bearings).
Connecting the Drive Mechanism and Electrical Source in Audio Playback Equipment
Use a shielded power cable with at least 18 AWG copper conductors for the motor to reduce electromagnetic interference (EMI) that can introduce noise into sensitive audio components. Ground the shield at a single point–preferably the power supply chassis–to prevent ground loops. If the motor specifications exceed 200mA current draw, opt for a separate power line dedicated to it rather than sharing with the preamplifier or tonearm circuits.
For AC synchronous motors, match the voltage and frequency to the local grid (e.g., 120V/60Hz in North America, 230V/50Hz in Europe). A step-down transformer with a 1:1.5 turns ratio can adapt a 230V motor to 120V if needed, but ensure the transformer’s VA rating exceeds the motor’s wattage by at least 30%. Below is a voltage-to-current compatibility table for common motor types:
| Motor Type | Voltage Range (V) | Current (mA) | Recommended Fuse (mA) |
|---|---|---|---|
| AC Synchronous (Hysteresis) | 110–127 | 70–150 | 200 |
| DC Brushless | 12–24 | 200–500 | 600 |
| AC Induction (Shaded Pole) | 220–240 | 90–250 | 300 |
When wiring a DC motor, include a flyback diode (1N4007) across the motor terminals to protect the driver circuit from voltage spikes during power-off transients. For pulse-width modulated (PWM) speed control, use a MOSFET (e.g., IRF540N) with a gate driver IC (TC4427) to isolate high-side switching and avoid shoot-through currents. Keep motor leads as short as possible–no longer than 15cm–to minimize inductive noise coupling.
Power supplies with linear regulators (e.g., LM7812) require a heatsink if the motor draws more than 100mA; calculate thermal dissipation using P = (Vin – Vout) × I. For switched-mode supplies, use a ferrite bead on the output to suppress high-frequency noise. Star-quad wiring (two twisted pairs) between the power supply and motor further reduces interference, with one pair carrying power and the other serving as a return path.
Test motor rotation direction using a scope or non-contact tachometer before finalizing connections. Reversing polarity on DC motors reverses rotation; for AC motors, swap any two of the three-phase leads if available. Secure all connections with solder and heat-shrink tubing rated for 125°C to prevent oxidation and intermittent failures under prolonged operation.
