Connect the power lead directly to the 12V or 24V battery terminal–no intermediate fuses or switches–unless the relay’s pull-in current exceeds 40A. For most 1.5–2.5kg plunge mechanisms, this bypass prevents voltage drop during initial engagement, ensuring consistent retraction. Below the activation coil terminal, install a 20A slow-blow fuse within 15 cm of the battery to protect against short circuits.
Use 4 AWG copper cable for runs over 3 meters to minimize resistance; for shorter connections, 8 AWG suffices. Avoid aluminum or hybrid conductors–thermal cycling leads to oxide buildup at junctions, increasing resistance by up to 30%. Secure connections with crimped ring terminals, then solder and heat-shrink each joint to prevent corrosion. Tin-plated terminals resist oxidation better than bare copper or nickel-plated options.
Include a 1N4007 flyback diode across the control circuit terminals, cathode to the positive side, to absorb inductive spikes during deactivation. Without it, back EMF can exceed 200V, degrading internal switch contacts within 500–1000 cycles. For vehicles with fluctuating voltage (e.g., diesel trucks), add a 1000μF 35V capacitor in parallel to stabilize the control signal during cranking.
Mount the relay vertically, coil facing downward, to allow condensation to drain; horizontal installations trap moisture, accelerating coil corrosion. If ambient temperatures exceed 80°C, upgrade insulation to Class H materials–standard Class B components begin degrading at 130°C, reducing lifespan by 40%. Test continuity with a multimeter after installation: coil resistance should measure 4–8 ohms; values outside this range indicate partial short or open winding.
Connecting Electromagnetic Actuators: Key Electrical Schematics
Begin by identifying the power source’s voltage rating–most systems operate at 12V or 24V DC. Connect the positive terminal directly to the actuator’s activation terminal, ensuring the circuit includes a momentary switch or relay for controlled engagement. Ground the opposing terminal to the chassis or a dedicated negative lead, verifying resistance below 0.5 ohms to prevent voltage drop. For dual-coil designs, isolate each circuit with discrete switches, as simultaneous activation risks overheating.
Integrate a fuse rated 10–20% above the actuator’s peak current draw (typically 15–30A) between the power source and activation point. Use 10–12 AWG wire for distances under 3 meters; increase to 8 AWG for longer runs to mitigate resistive losses. Label all connections with heat-shrink tubing or durable tags: “+BAT” for input, “GND” for return, and “ACT” for the signal lead. Test continuity with a multimeter before finalizing connections to confirm no shorts exist.
For enhanced reliability, add a flyback diode (1N4007 or similar) across the actuator’s terminals to suppress inductive spikes. Position it cathode-to-positive to shunt transient voltages away from sensitive components. If pairing with an electronic control unit, introduce a 1kΩ resistor in series with the signal wire to limit current during faults. Document the schematic with clear symbols: arrows for current flow, circles for splice points, and dashed lines for alternate paths if redundancy is required.
Identifying Terminals on Heavy-Duty Relay Units for Proper Hookup

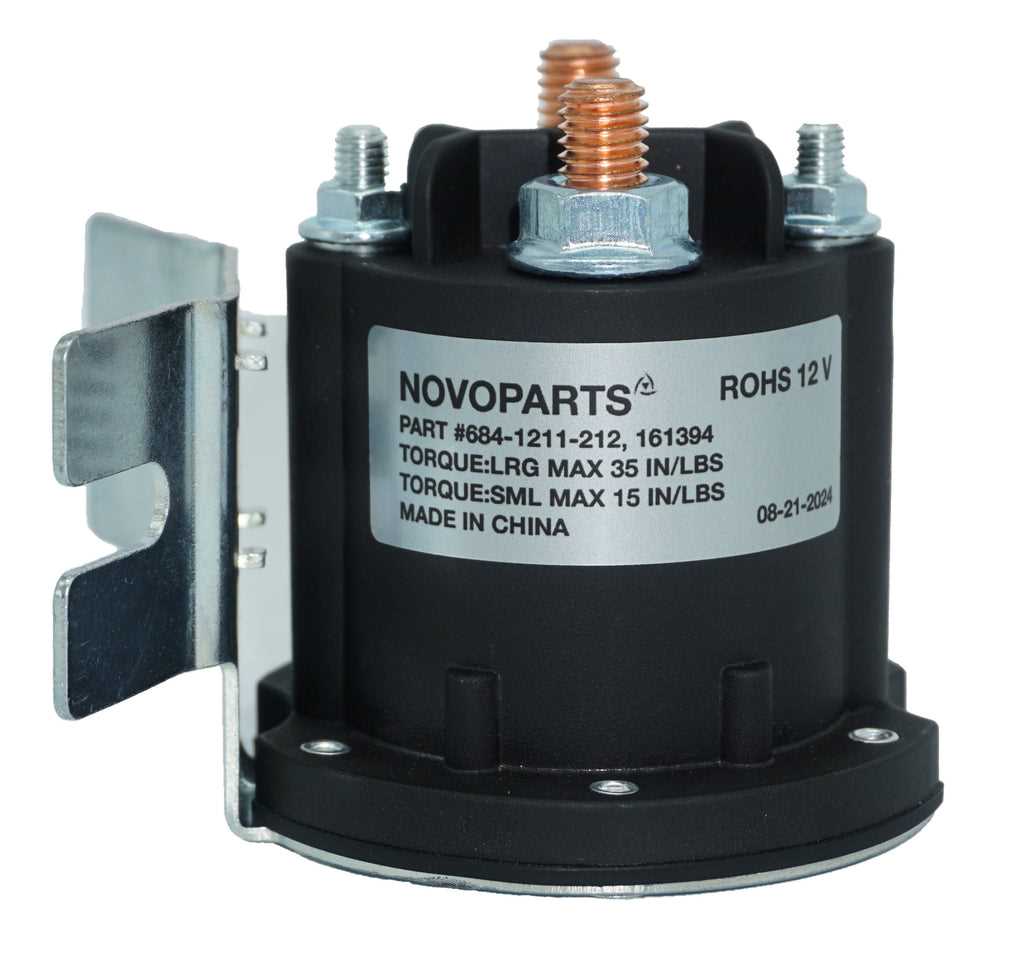

Locate the two large posts–these carry the primary load current. The thicker post typically connects to the battery’s positive lead, while the other handles the switched output to the starter or accessory. Smaller terminals include a control post (often marked “S” or “50”) and a ground reference (sometimes labeled “I” or “85”). Use a multimeter set to continuity mode: probe the control post and the ground reference–if resistance reads near zero, the ground is correct. Incorrect pairing risks immediate high-current shorts or burned coils.
Compare terminal markings against these common configurations:
| Terminal Label | Common Connection | Voltage Reading (Key On) |
|---|---|---|
| B (or 30) | Battery positive | 12–14 V |
| M (or 87) | Load output | 0 V until engaged |
| S (or 50) | Starter switch signal | 8–12 V when cranking |
| I (or 85) | Ground reference | 0 V |
Test before final wiring: jumper a 12 V source to the control terminal while monitoring load voltage with a test light. If the light illuminates and the unit clicks audibly, polarity is confirmed. For models with threaded studs, torque fasteners to 12–15 Nm to prevent heating at loose contacts. Always verify dielectric grease on terminals to block moisture ingress.
How to Connect an Electromagnetic Switch to Your 12V or 24V Electrical Setup
Begin by identifying the two large terminals on the relay–they handle the high-current circuit. Mark them with tape if labels are missing. The smaller terminals manage control voltage, typically 12V or 24V, depending on your system. Use a multimeter to verify terminal functions if documentation is unavailable.
Prepare cables: 8-10 AWG for high-current paths, 12-14 AWG for control lines. Strip 10mm of insulation from each end, then crimp heavy-duty ring terminals for secure connections to the relay. For 24V systems, ensure wire gauge accounts for reduced current but maintain tight crimping to prevent voltage drop.
Attach the battery’s positive lead to one of the relay’s high-current terminals. Connect the load–starter motor, winch, or compressor–to the second terminal. Double-check polarity: reversing these will short the circuit when activated. For inductive loads, add a flyback diode (1N4007 or similar) across the load terminals to protect the relay’s contacts.
Run a control wire from the ignition switch, push button, or another trigger source to the relay’s smaller activation terminal. The second small terminal connects to ground. For momentary operation, use a push-to-make switch; for latching, wire a toggle switch or relay. Test the control circuit with a 12V test light before finalizing connections.
Fuse both high-current and control circuits. Place a 20A-30A fuse within 15cm of the battery terminal for the main circuit. For the control line, use a 5A-10A fuse. In 24V setups, halve the fuse ratings compared to 12V to match reduced current draw. Never omit fuses–arcing at the relay can melt insulation and start fires.
Mount the relay on a non-conductive surface, away from heat sources. Use M6 bolts or the relay’s threaded studs–shake-proof washers prevent vibration from loosening connections. Route cables tidily, avoiding sharp edges or moving parts. Loose wires near rotating equipment risk chafing; secure them with zip ties every 20cm.
Activate the system with a brief press of the control switch. Listen for a sharp, metallic click–this confirms engagement. If silent, check ground continuity or control voltage. If the relay chatters, the coil voltage may be too low; add a voltage stabilizer or upgrade the power source. For 24V relays used on 12V systems, the coil may not engage–replace with a 12V model or add a step-up converter.
Finalize by sealing connections with heat-shrink tubing or vinyl tape. Avoid electrical tape alone–it degrades under UV and oil exposure. Label each wire with its function; future troubleshooting will take minutes instead of hours. Document the setup with photos or sketches, noting fuse ratings and wire colors for maintenance.
Key Errors in Electromagnetic Actuator Connections and Prevention
Reverse polarity is the most frequent failure point in high-current switching assemblies. Even brief exposure degrades internal coatings on contact surfaces, reducing lifespan by up to 70% before visible arcing occurs. Always verify pin markings against the schematic before powering – most DC variants label terminals with “+” and “-“, though some industrial models use numeric codes where “1” corresponds to ground. Test with a multimeter set to continuity mode if labels are unclear; a beep confirms correct pairing between coil windings and power leads.
Voltage Mismatches and Heat Buildup
Applying 24V to a 12V actuator triggers rapid overheating within 45-90 seconds, permanently warping spring mechanisms in self-resetting types. Conversely, undervolting reduces holding force below specifications, causing unintended dropouts in critical applications like marine starter relays or HVAC compressors. Measure source voltage at the connector terminals during operation – real-world readings often differ from battery nominals by 1.5-2V due to cable resistance. Upgrade wiring gauge if voltage drop exceeds 3% over runs longer than 3 meters, using 10 AWG for 12V circuits and 8 AWG for 24V configurations.
When and How to Integrate Relays with Heavy-Duty Electromagnetic Actuators
Directly powering high-current electromagnetic locks or pullers from microcontroller outputs risks damage. Use a relay module rated for at least 125% of the device’s peak inrush current–typically 30A for 12V industrial units. Place the relay within 15 cm of the actuator to minimize voltage drop.
- For 24V systems, select relays with 40A contacts and epoxy-sealed coils to resist vibration.
- SPST relays suffice for basic on/off control; SPDT enables failsafe configurations with secondary circuits.
- Coil resistance below 100Ω risks overheating–opt for 200Ω or higher for continuous duty cycles.
Implement a flyback diode (1N4007) across the relay coil when driving inductive loads. Position it no farther than 2 cm from the coil terminals to suppress voltage spikes above 200V. For PWM-controlled setups, add a snubber circuit: 0.1µF capacitor in series with 100Ω resistor across the relay contacts.
Selecting Relay Enclosures for Harsh Environments
IP67-rated relays prevent corrosion in salt spray or dust-laden areas. Seek models with silver-alloy contacts for extended switching cycles–gold-plated contacts degrade below 1A loads. Mount relays vertically to optimize heat dissipation.
- For sub-zero applications, specify relays with -40°C coil temperature ratings.
- High-altitude deployments require derating: reduce switching capacity by 10% at 3,000m elevation.
- Use socket-mount relays for field replacements, but ensure the base withstands the same environmental specs.
Suppress electromagnetic interference with twisted-pair wiring, maintaining a 1:1 twist ratio for every 10 cm of conductor length. Ground the relay’s metal enclosure directly to the chassis using a 10AWG wire, avoiding daisy-chained paths. For CAN bus or sensor networks, add a ferrite bead (100Ω @ 100MHz) on the control line near the relay.
Circuit Protection Strategies
Fuse both relay coil and load circuits separately. Coil-side fuses should blow at 125% of nominal coil current; load-side fuses at 150% of steady-state device draw. Use fast-acting fuses (5×20mm) for coils, time-delay (ABC) fuses for motors or compressors.
Isolate control signals from power circuits using optocouplers (4N25) when actuating loads above 20A. For relays toggling high-voltage DC or three-phase AC, incorporate arc suppression: a 0.047µF capacitor across contacts for 480VAC, or a transient voltage suppressor (VR14) for 96VDC.
Log relay activation cycles if duty exceeds 20%–replace contacts at 100,000 cycles for resistive loads, 10,000 for inductive. For bistable devices, ensure the relay’s holding current exceeds the actuator’s latching current by 30% to prevent unintended dropouts.
