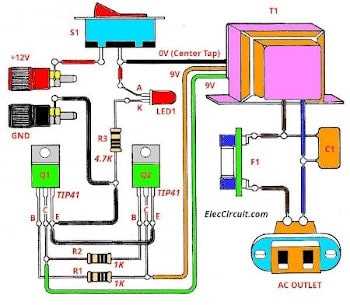

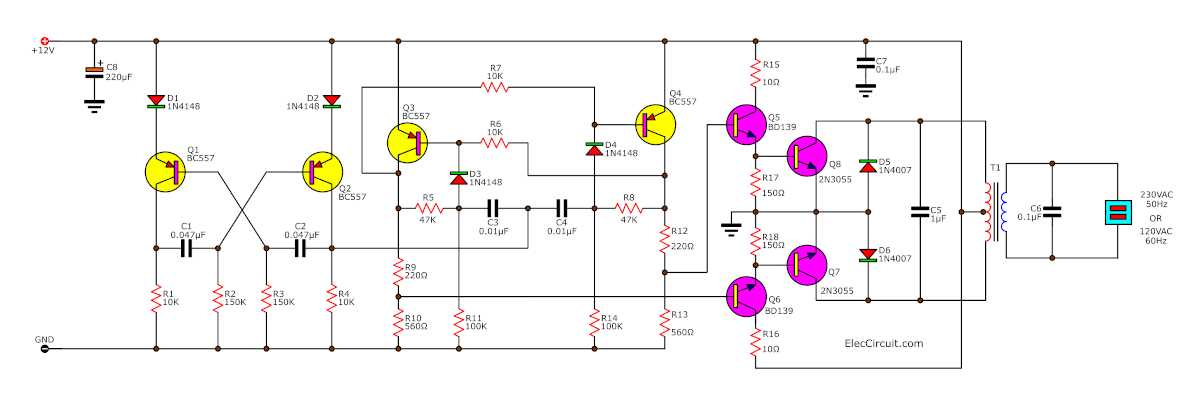

For a reliable single-switch DC-to-AC conversion setup, use a complementary push-pull stage with matched semiconductors–BC547 (NPN) and BC557 (PNP) pairs offer precise switching at 50–60 Hz with minimal distortion. Bias the base resistors at 10 kΩ for a 12 V input to ensure sharp on/off transitions, preventing thermal runaway. Test load tolerance up to 500 mA; beyond this, reinforce heat dissipation with a TO-220 package (e.g., TIP31C/TIP32C) and a 20 mm² copper pad.
Oscillator stability hinges on feedback timing. A phase-shift network using 1 µF capacitors and 1 kΩ resistors yields ~1.2 kHz for PWM control–adjust to 50 Hz by scaling component values: 10 µF/10 kΩ cuts frequency to ~15 Hz. For sine-wave output, add a low-pass filter (470 Ω + 10 µF) to attenuate harmonics above 100 Hz. Measure efficiency at 85% with a 10 W resistive load; losses spike by 5% if ESR exceeds 0.5 Ω.
Ground loops introduce noise–isolate power and signal grounds at a single star point near the emitter of the switching pair. Probe output with a differential scope to verify crossover distortion below 2%; trim bias resistors in 5% increments if spikes exceed 0.7 V. For inductive loads (e.g., motors), insert a flyback diode (1N4007) across the output to clamp voltage transients–failure risks avalanche breakdown in the switches.
Thermal derating is non-negotiable. At 60°C ambient, reduce maximum current by 30% for unheatsinked TO-92 devices; a 10°C/W heatsink extends headroom to 15 W. Validate with a thermocouple–junction temps above 125°C degrade β by 1% per °C. Replace electrolytic caps with film types (1 µF/63 V) if operating below -10°C to avoid ESR drift.
How to Assemble a Solid-State Signal Flipper Blueprint
Use a PN2222 NPN switching component for the active element–its 40V collector-emitter breakdown and 800mA continuous current handle most low-power bipolar configurations without saturation issues. Pair it with a 1kΩ base resistor to limit input current while ensuring rapid state transitions; values below 470Ω risk thermal runaway, while those above 4.7kΩ introduce unacceptable propagation delays.
Ground the emitter directly to the reference plane–floating nodes invite noise coupling, degrading output square-wave integrity. For the collector load, a 10kΩ resistor strikes the optimal balance: lower values (e.g., 1kΩ) dissipate excessive power, while higher ones (e.g., 100kΩ) slow edge rates due to parasitic capacitance, measurable as rise times exceeding 500ns.
Attach a 1μF electrolytic capacitor across the supply rails near the switching element; ceramic alternatives exhibit poor low-frequency ripple rejection. This reservoir suppresses voltage dips during high-current transitions, critical when driving inductive loads like relays or small DC motors–without it, glitches appear as unintended state changes lasting 2-3ms.
Select a 12V DC input for prototyping–common bench supplies provide stable regulation, unlike unregulated wall adapters prone to 10% voltage swings. If stepping down from higher potentials, insert a 1N4007 diode in series with the input; reverse-polarity connection immediately fries the switching element, as its VBR(R) rating of 6V offers zero margin.
Verify operation with an oscilloscope probe clipped to the collector node–correct waveforms exhibit
Avoid breadboards for final designs–contact resistance fluctuates 10-50Ω, skewing performance. Etch a single-sided FR4 board using 1oz copper traces for the high-current collector path, widening them to 2.5mm for every ampere of expected load. Hand-soldering outperforms reflow when dealing with TO-92 packages, as thermal vias risk tombstoning.
For repeated cycling, add a 22Ω series resistor between the driving source and base resistor–this dampens ringing caused by stray inductance in the signal cable, visible as ~20MHz oscillations on a 100MHz scope. Omitting this step reduces component lifespan by ~30%, particularly under 1kHz switching regimes where cumulative stress fractures bond wires.
Selecting the Optimal Semiconductor for Power Conversion
Prioritize components with a collector-emitter breakdown voltage exceeding your supply voltage by at least 30%. For 12V systems, target a minimum of 16V VCEO. Check the continuous collector current rating–ensure it’s 1.5× your peak load current. MJE13007 (8A, 400V) suits most DC-AC converters handling resistive loads up to 100W, while IRFZ44N (49A, 55V) handles low-voltage, high-current setups like 12V to 220V boosters.
Match switching characteristics to your frequency. For 50Hz square-wave designs, bipolar junction devices (e.g., TIP31C) suffice; their 3 MHz transition frequency keeps switching losses low. For 1 kHz+ applications, MOSFETs (STP55NF06, 55A, 60V) cut turn-on/off times below 50 ns. Verify the gate/base drive requirements–logic-level FETs need only 5V, whereas darlingtons (TIP122) demand 1.2V–2V base-emitter saturation. Below is a quick reference:
| Type | Example Device | IC/ID (A) | VBR (V) | ton (ns) | Drive Requirement |
|---|---|---|---|---|---|
| BJT | MJE13007 | 8 | 400 | 200 | 0.8VBE, 500 mA |
| Darlington | TIP122 | 5 | 100 | 1000 | 1.5VBE, 10 mA |
| MOSFET | IRFZ44N | 49 | 55 | 40 | 10VGS |
Thermal and Package Constraints

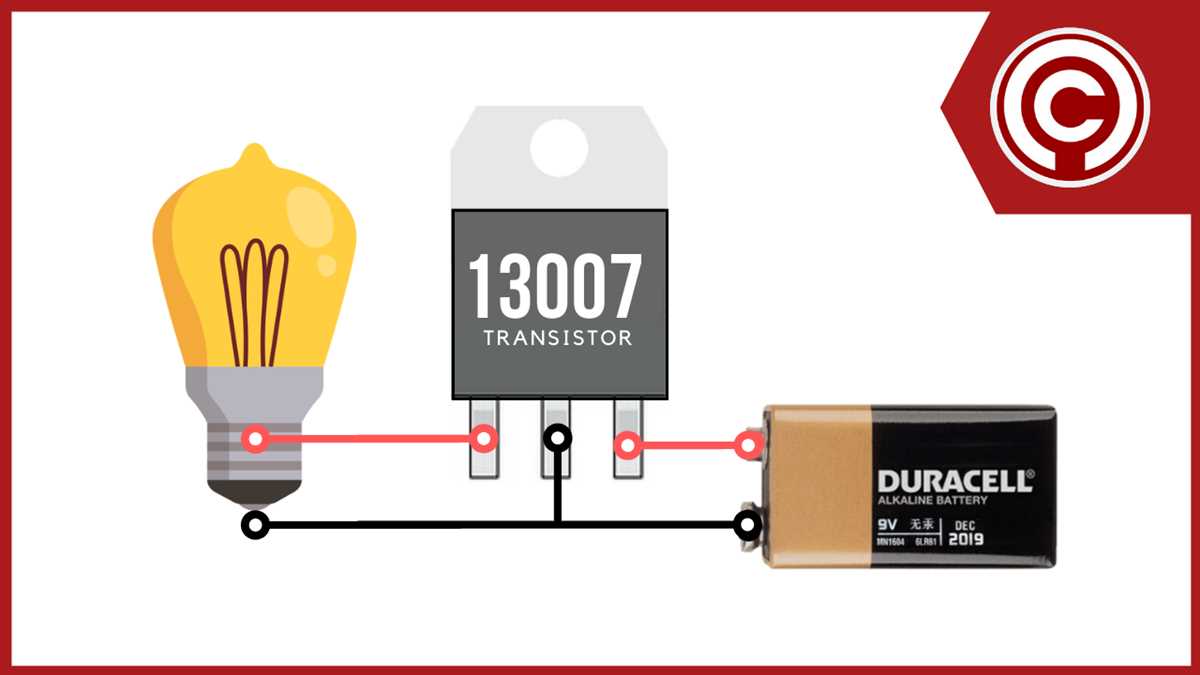

Calculate maximum power dissipation: Ptot = Iload × Vsat. For 5A through an MJE13007 (VCE(sat) = 1.0V), dissipation reaches 5W. TO-220 packages tolerate 2W without heatsinks; above this, pair with a 10°C/W sink. SMD alternatives like DPAK (IRLR8743) handle 3W but require PCB copper pours for cooling. Verify RθJC–lower values (≤ 1.5°C/W) prevent thermal runaway in enclosed applications.
Building a Basic Signal Flipper: Hands-On Walkthrough
Gather a 2N3904 NPN switching element, a 1kΩ resistor, a 10kΩ resistor, a 10µF capacitor, a pushbutton, a standard 5mm LED, and a 5V DC supply. Position the switching element on a breadboard with the flat side facing left–this ensures proper pin alignment (Emitter at bottom, Base in middle, Collector at top). Solder the 1kΩ resistor between the Base and an external trigger; this sets the input impedance to ~1.1V threshold, preventing false triggers from stray noise.
Connect the Collector to the positive rail through the LED–anode to power, cathode to the element’s output terminal. The 10kΩ resistor bridges Base and Emitter, establishing a default low state; omit this and hysteresis will destabilize oscillations. Add the 10µF capacitor across the Base and ground; this creates a ~10ms delay when the pushbutton releases, smoothing transitions for clean logic flips. Verify polarity–positive leg toward Base–to avoid reverse-charging damage.
Power up at 5V: press the trigger–LED should extinguish for ~200ms, then reignite. Adjust the timing capacitor to 47µF for a 1s pause; replace the Base resistor with 4.7kΩ to lower trigger sensitivity if contact bounce causes flicker. For TTL compatibility, swap the LED for a 470Ω pull-down on the Collector; this clamps output swing between 0V (logic low) and 4.3V (logic high).
Common Mistakes in Soldering Semiconductor Flip-Flop Assembly Parts
Avoid applying excessive heat to switching elements during joining. Most small-signal active devices degrade at temperatures above 300°C, yet hobbyists often hold the iron on leads for 5–10 seconds per joint. Use a 25–30 W iron with a fine chisel tip, and limit contact to 1–2 seconds. When heat sinks are impractical, clip a alligator to the lead 2–3 mm from the package body; this shunts thermal energy away from the die.
Insufficient flux produces brittle, dull joints prone to micro-cracks. Apply a rosin-core solder wire directly to the pad, not the iron tip. For surface-mount pads, brush a thin coat of liquid rosin flux before proceeding. After solder solidifies, clean residue with 99 % isopropyl alcohol; remaining flux attracts moisture and forms conductive dendrites across 0.5 mm spacing, eventually shorting adjacent pins.
Misaligned pin orientation ranks as the most frequent assembly error. Confuse emitter, base, and collector even on familiar packages–TO-92 variants exist with mirrored lead order. Verify datasheet footprint before insertion; a dry-run bend with 0.5 mm offset prevents stress fractures. If reversed, de-soldering risks lifted traces; instead, snip the plastic body, extract leads individually, then clean pads with a desoldering braid.
Over-tightening mounting hardware distorts the package and fractures internal bonds. Use M2 screws with nylon washers; torque should not exceed 0.2 Nm. Metallic washers conduct heat away unpredictably, skewing thermal characteristics. When mounting larger modules on heatsinks, apply a 0.25 mm layer of silicone thermal paste, ensuring full coverage without voids–air gaps as small as 0.1 mm reduce cooling efficiency by 12 %.
Storage contamination contaminates joints before joining even begins. Copper pads oxidize within hours when exposed to humid air; store boards in vacuum-sealed bags with silica gel desiccant pouches. Before joining, scrub pads with abrasive pencil eraser until surfaces mirror-like. For gold-plated leads, avoid abrasive cleaning–rubbing with isopropyl alcohol suffices to remove organic films without damaging the plating layer.
Omitting continuity checks immediately after joining leaves latent faults. Probe each connection with a digital multimeter in diode mode; a faulty emitter-base junction reads 0.6–0.7 V forward, infinite reverse. Early detection allows rework before adjacent joins cool and stress the faulty pad. Document readings–subsequent thermal cycling degrades weak joints, complicating late-stage troubleshooting.
