Begin by locating the high-voltage terminal block–typically marked *L1*, *L2*, and *N*–on the indoor climate system’s control panel. Verify input voltage matches the nameplate rating (208/240V or 120V) before proceeding. A multimeter set to AC voltage should read within ±10% of expected values at these terminals; deviations indicate supply issues or internal faults.
Trace the power feed from the disconnect switch to the blower motor relay. The relay coil activates at 24VAC, triggered by the furnace control board or thermostat *R* and *G* terminals. Confirm continuity between *G* and the relay coil’s low-voltage side–open circuits here prevent blower operation.
Examine the blower motor wiring: dual-speed models use separate run capacitors for *HI* and *LO* speeds. Check capacitance (e.g., 10µF for *LO*, 20µF for *HI*) against the manufacturer’s spec sheet–degraded capacitors cause overheating or sluggish performance. For variable-speed ECM motors, measure DC bus voltage at the module inputs: 325VDC ±5% is nominal; values below 290VDC indicate failed rectification.
Identify the transformer secondary: 24VAC output must be present at the *R* and *C* terminals under all operational states. Load calculations dictate minimum VA ratings–10VA for basic systems, up to 40VA for zoned setups. Insufficient VA causes voltage sag at *C*, leading to erratic control signals.
For heat pump configurations, the defrost board connects via *DF* and *DE* terminals. Jumper *DE* to *R* temporarily to test defrost cycle initiation–failure suggests a faulty board or sensor. Reversing valve solenoid (24VAC) draws ~0.5A; higher currents indicate shorted coils.
Label all wires during disassembly using a permanent marker: *Y1* (cooling), *W2* (aux heat), *O/B* (reversing valve). Cross-reference with the schematic before reattaching–miswired *O/B* energizes the valve unintentionally, forcing emergency heat activation. Use 18-gauge thermostat wire for low-voltage circuits; 14-gauge minimum for high-voltage runs to prevent voltage drop.
Understanding Internal Climate System Electrical Layouts
Begin by locating the primary control board–typically mounted behind the blower assembly panel. Verify the 24V transformer connections (terminals labeled R, C, W, Y, G) before touching any low-voltage circuitry. If voltage readings at R-C drop below 23VAC, replace the transformer immediately; undervoltage causes erratic relay behavior and compressor failure.
For variable-speed ECM motors, note the dedicated 115V harness linking the motor module to the furnace’s integrated control. Misrouting this harness to a standard 230V circuit destroys the motor controller instantly. Confirm polarity: the white wire connects to neutral, black to line, and the red jumper wire bridges motor windings–incorrect polarity triggers a permanent fault code, rendering the blower inoperable.
Troubleshooting Common Connection Errors

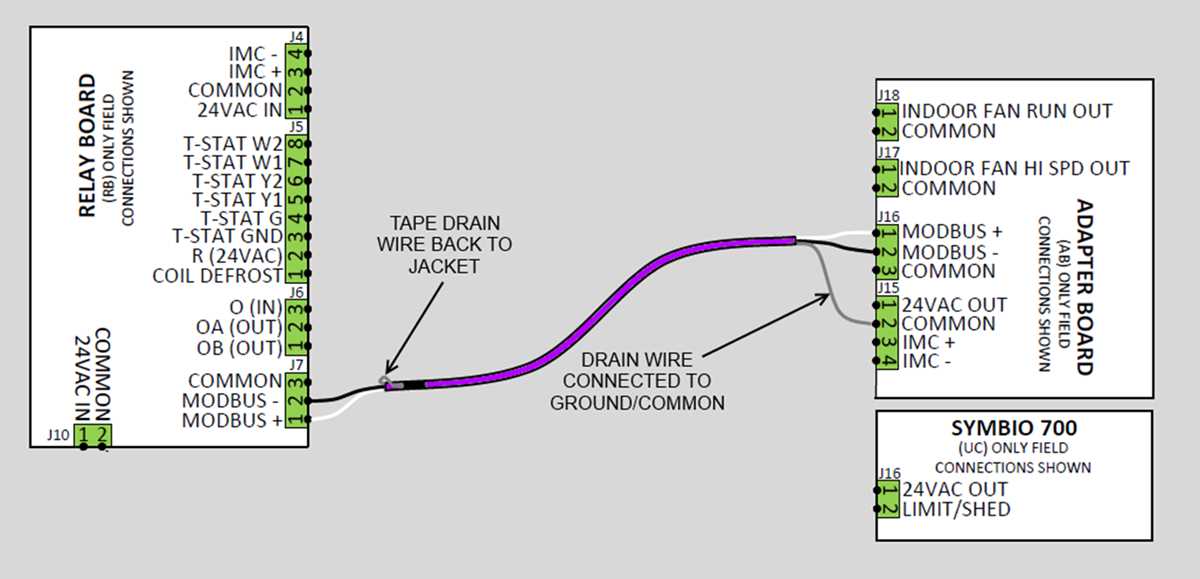

Inverter-driven systems use a dedicated 10-pin communication cable between indoor and outdoor units. Ensure this cable terminates at the correct ports–swapping it with the defrost sensor cable causes the system to enter lockout mode. Refer to the unit’s data plate for exact terminal designations (e.g., “COMM” vs. “SENSOR”); manufacturer labels vary across models year-to-year.
High-voltage disconnects must include a fused pull-out switch rated for 125% of the maximum load current. If replacing fuses, match the slow-blow type; standard fuses nuisance-trip under motor inrush currents. Verify torque on split-bolt connectors–loose connections oxidize rapidly in humid environments, increasing resistance and overheating risks localized to 22-28 in-lbs specifications.
When integrating smart thermostats, bridge the “O/B” terminals only if the system uses heat pump functionality. Reversing valves on cooling-dominant setups require the valve to energize in cooling mode–mismatched wiring reverses this, forcing the compressor to run in defrost cycles continuously. Use a multimeter to confirm voltage at the valve coil; absence of 24VAC during cooling calls indicates a faulty defrost board or severed low-voltage wiring.
Locating Critical Elements in Climate Control Unit Electrical Blueprints
Trace the main power input first–it’s typically marked as “L1,” “L2,” or “Line” on the schematic, often connected to a double-pole circuit breaker rated for 20–60 amps depending on the model’s capacity. Verify voltage specifications (208/230V or 240V) against the unit’s data plate to prevent miswiring, which can fry the control board. The transformer, usually a compact 40VA unit near the top right, reduces incoming power to 24V for low-voltage circuits; confirm its secondary side reads 24–28VAC with a multimeter before proceeding. Locate the blower motor relay next–its coil side connects to the thermostat’s “G” terminal, while the load side drives the fan; a failed relay often emits a faint click but no motor engagement.
| Component | Schematic Label | Voltage (Typical) | Failure Symptoms |
|---|---|---|---|
| Indoor Fan Motor | MTR or FAN | 120/240VAC | No airflow, humming, tripped breaker |
| Capacitor (Run) | CAP or C | 370–440VAC | Motor won’t start, clicking relay |
| Heating Element Relay | HEAT RELAY | 24V (coil), 240V (load) | No heat, erratic cycling |
| Limit Switch | LIMIT or LSW | 24V or line voltage | Unit shuts off prematurely |

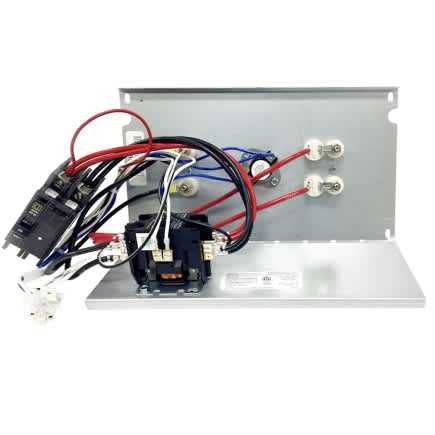

Check the sequencer–it orchestrates multiple resistive heat strips in stages, preventing overheating. Look for labels like “SEQ,” “STAGE,” or “HEAT 1/2/3”; each stage should activate sequentially with a 10–30 second delay. The high-limit safety switch, often marked “HL” or “SAFETY,” cuts power if temperatures exceed 160°F; test continuity during normal operation to rule out false trips. For variable-speed ECM motors, identify the “ECM” or “VS” module on the diagram–it adjusts speed via PWM signals from the control board, and wiring mistakes here cause erratic RPM or total failure.

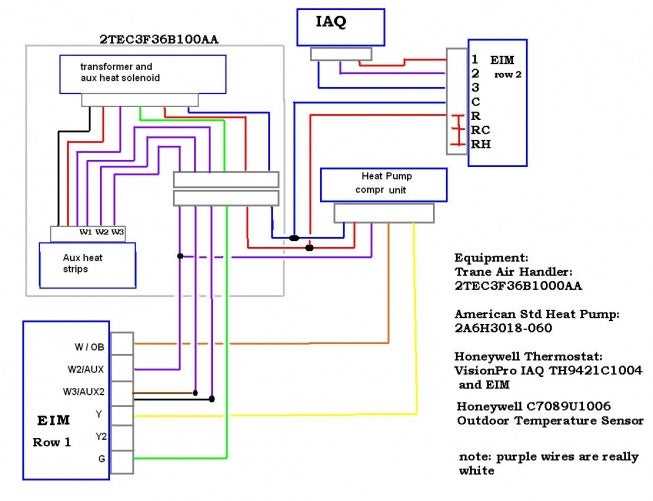

Step-by-Step Guide to Connecting Low-Voltage Thermostat Cables
Disconnect power at the breaker panel before handling any control circuit connections. Verify the absence of current using a multimeter set to 24V AC–probe the transformer secondary terminals or the dedicated safety switch if present. Failure to confirm a dead circuit risks short circuits or equipment damage.

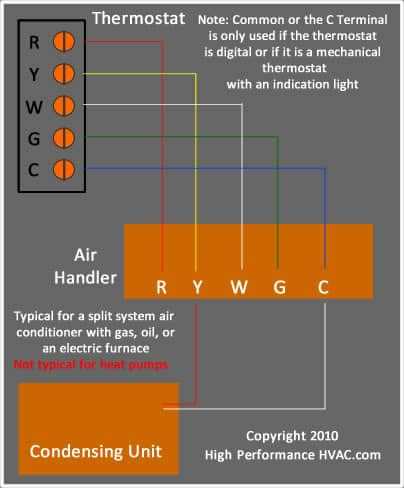

Identify the five standard control leads: red (R), white (W), yellow (Y), green (G), and common (C). Label each wire at both the control module and wall unit ends using color-coded sleeve markers. For systems with auxiliary heating or cooling stages, locate the supplementary W2 or Y2 leads; these require matching to the corresponding furnace or coil terminals.
Secure the red lead to the R terminal marked on the control board–this serves as the constant power source. Connect the common lead to the C terminal if present; modern modulating units often include a dedicated slot labeled “C” or “24V COM.” For heat pump configurations, link the white lead to the W terminal and the yellow to Y; reverse these assignments if cooling mode operates via heat pump instead of furnace.
Attach the green lead to the fan relay terminal–typically marked “G” or “FAN.” This connection governs forced-air circulation independent of heating or cooling cycles. For variable-speed motors, ensure compatibility by cross-referencing the motor rating plate with the control module specifications; mismatched voltages may trigger fault codes.
Reconnect power and initiate a test sequence: set the wall unit to “HEAT,” “COOL,” and “FAN-ON” modes sequentially while monitoring relay clicks and blower engagement. Measure voltage across R-C and R-G terminals during each mode switch–expected readings should be 24V AC ± 5%. If voltage drops below 22V or relays fail to energize, inspect transformer tap settings or replace the control module if fuses test intact.
Complete the installation by securing loose leads with nylon clamps and sealing control panel access with tamper-proof screws. Document connections in a schematic affixed inside the access door for future reference. Repeat the test sequence after 24 hours to verify consistent operation under thermal load cycles.
Common Electrical Connection Errors and Troubleshooting Steps
Double-check polarity before energizing the system. Swapped L1 and L2 lines cause motors to run backward, overheating coils within minutes. Use a multimeter to verify 240V between hot legs and 120V to neutral. Mark wires with colored tape–black for line, red for load–to prevent reversal during future maintenance.
- Loose termination points: Torque screws to manufacturer specs (typically 12-15 in-lbs). Vibration loosens connections, creating high-resistance hot spots that melt insulation. Inspect terminals every 90 days; tighten if resistance exceeds 0.5 ohms.
- Incorrect fuse or breaker sizing: Replace 30A fuses with 25A slow-blow types for 2-ton units. Undersized protection trips prematurely; oversized risks fire. Match fuse rating to unit data plate, not circuit ampacity.
- Jumping safety switches: Bypassing pressure or thermal cutouts voids warranties and risks compressor burnout. Test switches with a 1k ohm resistor across terminals–normal operation should close contacts within 3 seconds.
Grounding faults often mimic component failure. A single loose ground wire can cause erratic thermostat behavior or 15V ghost voltage on the control board. Scrape paint from enclosure surfaces before securing ground lugs; use a star washer to penetrate oxidation.
Misaligned low-voltage leads (24V) introduce interference. Daisy-chaining transformers from multiple zones creates ground loops, corrupting data on communication buses. Route R, C, Y, G wires in separate conduit from power lines; maintain 6-inch separation. If blower cycles intermittently, probe control board pins with an oscilloscope–spikes above 1.5V indicate noise issues.
- Verify continuity: Disconnect power, set meter to ohms, probe across each motor winding. Values below 5Ω or above 150Ω indicate short or open windings. Compare against schematic–variance over 10% means replacement.
- Test capacitors: Discharge fully with a 20kΩ resistor. Measure microfarads with a dedicated meter; bulging or leaking cases require immediate swap. Run motor without load–if it struggles to start, capacitor ESR exceeds 2.5Ω.
- Check voltage drops: With system running, probe incoming supply and downstream of contactor. Drops over 5% signal corroded terminals or undersized wire. Trace path back to breaker–aluminum wire needs antioxidant paste at every connection.
