Install a standardized 7-way modular socket system with clearly labeled circuits for brake control, tail lights, reverse signals, and auxiliary power to match OEM configurations in modern vehicles. Use color-coded wiring following SAE J560 specifications–yellow for left turn (L), green for right turn (R), white for ground (G), brown for marker lights (M), blue for electric brakes (E), red for battery charge line (+12V), and black for reverse lamp activation. Ensure the wiring gauge meets minimum requirements: 12 AWG for brake and charge lines, 14 AWG for lighting, and 16 AWG for ground connections.
Integrate a weatherproof distribution panel with corrosion-resistant terminals (e.g., tin-plated copper) and include a dedicated ground bus bar isolated from the main chassis. Route cables through protective conduit–either split-loom tubing or spiral wrap–to prevent abrasion against sharp edges. Secure connections with soldered joints reinforced by heat-shrink tubing containing adhesive-lined seals, avoiding crimp connectors without waterproofing measures.
For vehicles with variable voltage systems (e.g., diesel trucks with 24V starter batteries), install a relay-activated converter to step down power to a consistent 12V output. Test continuity with a multimeter at each circuit stage: verify 12.6±0.2V at the charge line under load,
Add a resettable circuit breaker rated 30A for brake and charge lines, positioned near the power source to protect the harness. Disable automatic trailer-sway detection systems temporarily during installation to prevent false triggering. Confirm compatibility with adaptive lighting controllers by testing signal harmonization between towing vehicle and attached unit before finalizing the setup.
Connecting Vehicle Lights via Central Hub Layout
Begin by matching the color-coded leads from the tow vehicle’s harness to the terminal strip inside the hub. Most adapters follow a standard: brown for tail lamps, yellow for left turn/brake, green for right turn/brake, white for ground, and blue for electric brakes or auxiliary circuits. Cross-reference the hub’s printed legend against the vehicle’s manual–discrepancies often indicate custom splices from previous modifications. Use crimp connectors or soldered joints for permanent setups; opt for weatherproof heat shrink tubing rated for at least 105°C to prevent corrosion in exposed connections.
Label each terminal with durable, adhesive-backed markers (e.g., heat-resistant polyester) before securing wires. For heavy-duty applications, upgrade to a hub with a built-in voltage regulator (common in setups exceeding 15 amps) to protect LED elements prone to burnout from voltage spikes. If the hub lacks a fuse block, install an inline fuse–30 amps for basic lighting, 40 amps if adding electric brakes–positioned within 7 inches of the power source to meet SAE J560 standards.
Testing and Troubleshooting
After assembly, verify continuity with a multimeter: probe each terminal to its corresponding bulb socket while activating the tow vehicle’s signals. For intermittent faults, check for loose ground connections–often the culprit in dim or flickering lights. If using a plug-and-play hub, ensure the mating surface is free of debris; a light coat of dielectric grease on pins can prevent oxidation. For systems with reverse lights (typically purple), confirm the vehicle’s backup lamp circuit is not fused with other signals, as this can overload the hub.
Selecting an Optimal Electrical Hub for Towing Applications
Begin by evaluating the connector types your vehicle supports. Standard 4-pin setups handle basic lighting, but heavier loads demand 7-pin round or flat variants for auxiliary circuits like electric brakes or reverse signals. Verify your towing setup’s pin configuration against the hub’s terminal layout–misalignment risks malfunction and safety hazards.
Prioritize corrosion-resistant materials. Polymer enclosures withstand moisture better than metal alternatives, though zinc-plated steel options offer durability for high-vibration environments. Check IP ratings–minimum IP65 ensures dustproof and water-resistant performance, critical for off-road or marine use.
Assess terminal capacity. Entry-level hubs accommodate 10-12 AWG wires, while heavy-duty models handle 8 AWG for brake controllers or power outlets. Overloaded terminals cause overheating; match wire gauge to the hub’s specifications. Look for pre-stamped markings–these simplify troubleshooting and future upgrades.
Avoid universal hubs lacking circuit protection. Quality assemblies integrate fuses or breakers for each output, preventing short circuits from damaging the entire system. Brands like Hopkins and Curt embed self-resetting breakers, eliminating manual fuse replacements.
Consider modular designs. Some hubs allow detachable harness sections, enabling swift replacements for damaged segments without rewiring the entire setup. This feature reduces downtime during repairs, especially for commercial fleets.
Examine mounting flexibility. Surface-mounted hubs suit trailers with limited space, while recessed models protect against impacts. Ensure the unit’s footprint fits between cross members or under flooring–measure twice before purchasing.
Review compatibility with smart controllers. Advanced brake systems and LED arrays require hubs supporting CAN bus or PWM protocols. Verify voltage ratings–some hubs handle 12V only, while others manage dual-voltage setups for European imports.
Test before final installation. Use a multimeter to confirm voltage at each terminal under load. Check ground integrity–a weak connection mimics wiring faults, leading to erratic lighting or controller malfunctions. Document each connection’s function for future reference.
Critical Features to Compare
- Terminal locking mechanisms (screw vs. push-in) for vibration resistance
- Heat-resistant insulation ratings (minimum 85°C for continuous use)
- OEM vs. aftermarket hubs–aftermarket units often include diagnostic LEDs
- Weight limits for portable vs. stationary applications
- Warranty coverage for water intrusion or terminal failure
How to Safely Link Electrical Components in Your Towing Connector Hub
Begin by disconnecting the vehicle’s power source to prevent short circuits. Use a multimeter to verify no current flows through the cables before handling them–this step prevents accidental shocks and equipment damage.
Identify each cable’s function by color-coding: white for grounding, brown for tail lights, yellow for left turn/brake, green for right turn/brake, and blue for auxiliary functions like electric brakes. If colors deviate from this standard, consult the manufacturer’s documentation for precise labeling.
Strip 5–7 mm of insulation from each wire using a wire stripper. Avoid cutting into the copper strands, as this weakens conductivity. Twist the exposed strands lightly to prevent fraying when inserting them into the terminal slots.
Insert each prepared wire into its corresponding slot in the terminal block. Push firmly until it clicks or reaches the stop–some hubs use spring-loaded clamps, while others require a screw to secure the connection. Tug gently on each wire to confirm it’s locked in place.
Testing and Securing the Assembly
Reconnect the vehicle’s power and activate each lighting function one at a time. Observe the towed vehicle’s lights–if any fail, recheck the connections for loose strands, incorrect pairing, or corrosion on the terminals. Apply dielectric grease sparingly to metal contacts to inhibit oxidation without obstructing the current flow.
Route excess cables through protective sleeves or split loom tubing to shield them from abrasion, moisture, and road debris. Secure the tubing to the chassis using zip ties every 15–20 cm, avoiding sharp edges that could wear through the insulation over time.
For auxiliary systems like brakes or 12V accessories, attach the blue cable to a relay if the current exceeds 10 amps. Use a fuse rated at 125% of the expected load–typically 20 or 30 amps–to protect the circuit from overheating. Mount the relay and fuse holder in a dry, ventilated location near the hub to simplify future inspections.
Finalize the setup by wrapping the hub in a weatherproof casing or housing it in a sealed enclosure. Ensure the lid seals tightly to prevent water ingress during rain or high-pressure washing. Re-test all functions after sealing to confirm nothing shifted during installation.

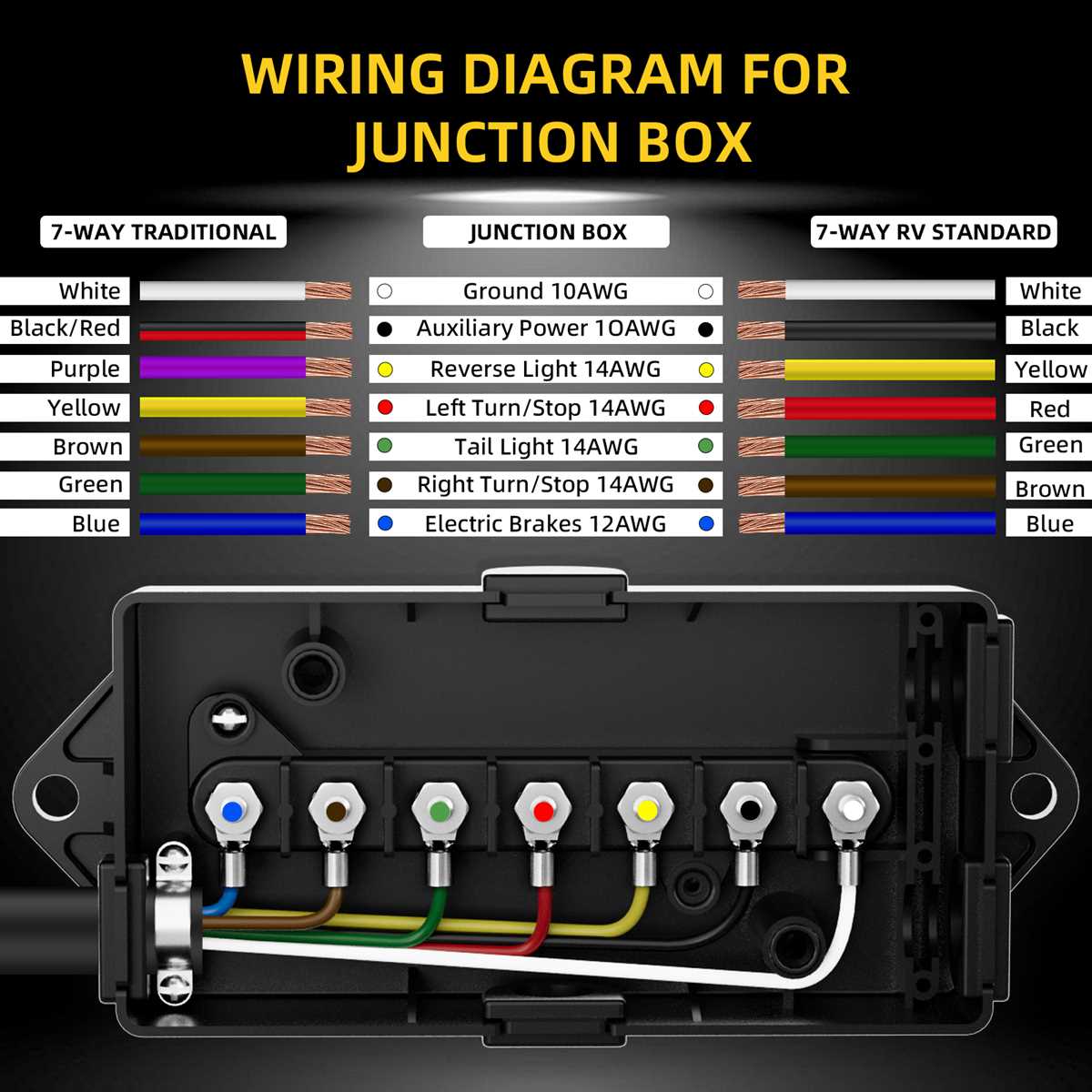

Standard Connector Color Standards and Electrical Roles
Match the brown wire to the running lights on every towed vehicle–it carries constant power for side markers, taillights, and license plate illumination. Verify continuity before connecting; corrosion here causes intermittent failure even if bulbs test fine.
White cables serve as the ground path–bond them directly to the frame using a dedicated bolt, not sheet metal. A loose or rusty ground can mimic faulty circuits by causing dim or flickering lights.
- Green: Right turn and brake signal
- Yellow: Left turn and brake signal
- Blue: Electric brake controller output
Install a dedicated fuse (typically 20A) inline with the blue lead–this prevents damage to the brake actuator during unexpected voltage spikes. Test brake operation at low speeds before every trip.
Black conductors deliver 12V auxiliary power–common uses include winches, interior lights, or charge lines. Secure connections with heat-shrink terminals and seal against moisture; a single drop can short the circuit.
Inspect insulation regularly; cracked or brittle coatings expose bare copper to vibration and road debris. Use spiraled wire loom to protect long runs, especially near axle areas.
Mismatched colors typically indicate non-standard harnesses–always cross-reference with a multimeter set to continuity mode. Record voltage readings at the plug before splicing; variations point to upstream issues, not the terminal connections.
