Begin by matching the color codes to your vehicle’s harness. The central terminal (often white) carries the ground signal–attach it to a clean, unpainted metal surface to ensure solid conductivity. The remaining six contacts follow this layout: yellow (left turn/brake), green (right turn/brake), brown (running lights), blue (electric brakes or auxiliary), black (12V power), and red (reverse lights, if equipped). Verify each connection with a multimeter before finalizing; even a slight misalignment can disrupt functionality.
Use crimp connectors rated for 16-14 AWG wire–avoid soldering unless working in a controlled environment. Secure connections with heat-shrink tubing to prevent corrosion, especially on the ground and brake circuits. For plug-and-play compatibility, confirm the pin orientation: most European and Australian setups reverse the left/right turn signals compared to North American standards. Adapters exist but complicate troubleshooting; measure twice before cutting wires.
Test under load before hitting the road. Activate each circuit–turn signals, brakes, marker lights–and check for flickering or voltage drops. A faulty ground will cause intermittent failures; re-crimp or relocate if issues persist. For towing heavy loads, consider a relay for the 12V circuit to handle higher current draw without overheating the harness. Keep a spare fuse and connector set in the glovebox–repairs are simpler when tools are within reach.
If retrofitting an older model, inspect the socket for bent or corroded contacts. Clean with electrical contact cleaner and a small wire brush; replace the entire assembly if damage is severe. Label wires at both ends during installation–this saves hours when diagnosing future problems. Avoid twisting wires together for a “quick fix”; poor connections degrade over time and can melt insulation.

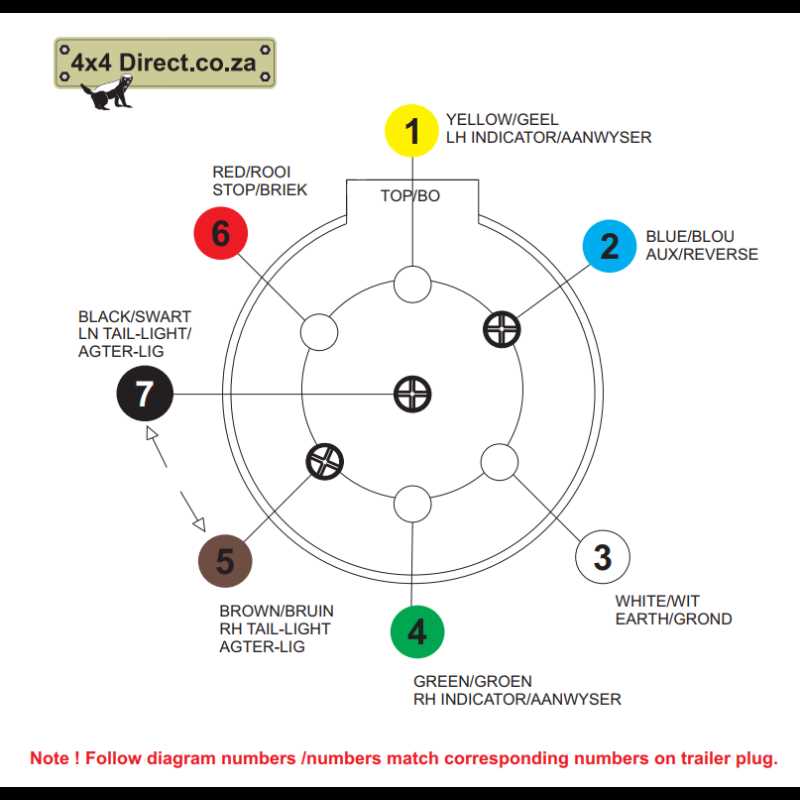

Connecting Your Towing Vehicle Electrical Plug: 7-Way Circular Configuration
Match socket terminals to function groups by verifying color codes against manufacturer guidelines–common patterns include yellow for left turn/brake, green for right turn/brake, brown for taillights, white for ground, blue for auxiliary circuits (typically brakes), black for power (12V), and red for reverse lights. Use a multimeter to test continuity before securing connections; a faulty ground (white) often causes intermittent failures. Avoid twisting wires–crimp with insulated connectors rated for 16-14 AWG, then seal with heat-shrink tubing to prevent corrosion. For European models, consult ISO 11446 standards; North American setups follow SAE J2863 for auxiliary circuits.
Troubleshooting Common Errors
If brake lights activate incorrect functions, check for crossed wires between yellow/green and brown–separate them with color-coded tape. Flickering lights indicate a weak ground; clean connection points with a wire brush and reattach to bare metal. For aftermarket adapters, ensure the plug’s center pin aligns with the vehicle’s socket–misalignment can damage terminals. Replace frayed cables immediately; moisture inside connectors leads to voltage drops. Test circuits in sequence: running lights first, then turn signals, brakes, and auxiliary power last to isolate faults without overloading the system.
How to Match 7-Contact Vehicle Connector Cables by Hue Standards
Begin with the yellow lead–this always carries the left-turn signal and should be your first verification point. Compare it against the vehicle’s corresponding output; mismatches here indicate reversed connections or incorrect adapters. Use a multimeter set to DC voltage (12V range) and confirm a flickering reading when activating the left-turn switch.
Next, the green wire relays the right-turn signal. Test it under the same conditions as the yellow cable to rule out faults in the circuit. If both turn signals share identical hues (common in aftermarket kits), trace the cables back to the connector’s housing and cross-reference with the manufacturer’s documentation–the green wire typically sits opposite the yellow.
The brown conductor handles running lights, often grouped with other functions in older setups. Verify its role by turning on the vehicle’s low beams or parking lights; the brown cable should maintain a steady 12V output. If voltage fluctuates, inspect the fuse box or harness splices for corrosion or loose connections, as this wire can degrade faster due to prolonged exposure.
Check the white ground cable last–its insulation may appear identical to others, but its purpose is non-negotiable. A weak ground causes erratic behavior in all circuits. Strip ½ inch of insulation, attach a multimeter’s negative probe, and test against the vehicle’s chassis; resistance should read near 0 ohms. If readings exceed 0.5 ohms, clean the contact surface or relocate the ground point.
Purple (if present) and blue cables serve auxiliary functions like reverse lights or electric brakes. The purple wire (backup lights) should only energize when the vehicle is in reverse, while the blue wire (brake controller output) activates during braking. Use a test light or multimeter to validate these states–absence of voltage on the blue wire during braking suggests a controller or vehicle interface issue.
Common Color Code Variations by Region
| Function | North America | EU Standard | Australian |
|---|---|---|---|
| Left Turn | Yellow | Yellow | Black/Yellow Stripe |
| Right Turn | Green | Green | Green/Yellow Stripe |
| Running Lights | Brown | Brown | Red |
| Ground | White | White | White |
| Backup Lights | Purple | Black | Blue |
| Brake Signal | Blue | Blue | Blue/White Stripe |
For lifts or trailers exceeding 3,000 lbs, the red cable (12V auxiliary power) becomes critical. This wire, often fused at 20A, powers internal accessories like refrigerators or charging ports. Test it by connecting a load (e.g., a 12V bulb) and verifying sustained voltage. If voltage drops under load, inspect the fuse and wiring gauge–undersized connectors overheat and fail prematurely.
Document any deviations from standard hues immediately, especially in imported or modified vehicles. Label each conductor at both ends of the harness with heat-shrink tubing or colored tape. Keep a reference photo or schematic stored in the vehicle’s manual for quick troubleshooting, as even minor errors in identification can lead to safety hazards like non-functional lighting or damaged braking systems.
Step-by-Step Wire Connection Guide for Towing Vehicles and Haulage Attachments
Begin by identifying the matching electrical connectors on both the towing vehicle and the hauled unit. Most modern setups use a 7-way circular plug configuration, where each slot serves a distinct function. Confirm the color-coding on your vehicle’s harness–standard schemes include white for ground, brown for tail lights, yellow for left turn/brake, green for right turn/brake, blue for auxiliary power, and red or black for brake controller or battery charge.
Strip 5mm of insulation from each lead without nicking the copper strands. Crimp a solderless butt connector onto each exposed wire end, ensuring a tight fit–loose connections cause intermittent faults. Apply heat-shrink tubing over the joint and use a heat gun to seal it; this prevents corrosion and vibration damage. For added security, solder the joints if the connection will endure high currents or frequent detachment.
Ground and Lighting Circuit Verification
Attach the white ground wire directly to the towing vehicle’s chassis using a self-tapping screw or bolt; avoid painted surfaces as they impede conductivity. Test the tail, turn, and brake circuits with a 12V test lamp before coupling the plug–momentary illumination confirms the circuit’s integrity. If lights flicker, check for oxidized terminals or loose bulbs; replace any corroded contacts with dielectric grease-coated components.
Connect the blue auxiliary wire to the brake controller, adjusting the gain setting to match the hauled load’s inertia–start with a 5.0 rating and fine-tune until braking feels proportional. Ensure the red (or black) battery charge lead links to a fused circuit, typically rated at 30A, to avoid voltage spikes damaging the vehicle’s electrical system. Route all wires through a protective conduit or loom to shield them from road debris and moisture.
Final Checks and Load Testing
Reattach the plug and verify all lighting functions–including hazard lights and reverse signals–while the hauled unit is stationary. Hook up a weigh-safe hitch to simulate load conditions, then drive at low speed, monitoring brake responsiveness and signal clarity. If any circuit fails, inspect the fuse box and harness for shorts; a multimeter should read ~12.6V across all active terminals when the ignition is on.
Stow excess cabling in a waterproof junction box mounted near the hitch, securing it with zip ties or adhesive clips. Label each wire with heat-shrink tags to simplify future troubleshooting. Recheck all connections after 50 miles of towing; vibrations often loosen initial installations, requiring periodic tightening or resealing.
Common Issues and Fixes for Non-Working Towing Connector Lights
Check the ground connection first–corrosion or loose screws on the vehicle’s frame are frequent culprits. Use a multimeter to verify continuity between the ground terminal and the chassis; readings above 0.5 ohms indicate resistance. Clean mating surfaces with a wire brush and apply dielectric grease to prevent future oxidation.
Inspect the fuse linked to the towing socket circuit if all lights fail simultaneously. Locate the fuse box under the dash or hood, referencing the owner’s manual for the exact slot. Swap in a fuse with the same amp rating–commonly 10A or 15A–but avoid exceeding the specified value to prevent fire risks.
Verify voltage at each socket terminal with the ignition on. Use a test light or multimeter set to DC voltage (20V range). Pinouts typically follow this pattern:
- Left turn/brake: Yellow (12V intermittent)
- Right turn/brake: Green (12V intermittent)
- Tail lights: Brown (12V steady)
- Reverse lights: Purple (12V when in reverse gear)
- Auxiliary power: Blue (12V continuous, often for electric brakes or accessories)
- Ground: White (0V, direct to chassis)
Absent voltage on any terminal suggests a broken wire, faulty relay, or disconnected plug inside the vehicle’s harness.
Examine the connector plug for bent or spread contacts. Straighten pins with needle-nose pliers, ensuring they make firm contact when mated. For female sockets, gently squeeze the sides with pliers to restore tension. Avoid over-tightening–excessive force can crack the plastic housing.
Test for short circuits by disconnecting the adapter from the vehicle and measuring resistance between any live terminal and ground. Infinite resistance confirms no shorts; readings below 100 ohms indicate a problematic harness segment requiring replacement. Focus on areas near sharp edges or moving parts where insulation may chafe.
Replace damaged sections of the harness with marine-grade tinned copper wire (12-14 AWG) to resist moisture. Splice connections using waterproof heat shrink butt connectors–never electrical tape. Route wires away from exhaust components and suspension travel zones to prevent abrasion.
If electric brakes or auxiliary functions misbehave, check the brake controller interface. Adjust gain settings according to the manufacturer’s specifications–typically starting at 5.0 for most loads. For inertia-based units, ensure proper calibration by driving steadily to 25 mph before activating, as incorrect settings can cause erratic braking or no response.
