Start with a 555 timer IC configured in astable mode for generating consistent timing pulses. Use a 10kΩ resistor between pins 7 and 8, a 100kΩ resistor between pins 6 and 7, and a 10μF capacitor between pin 6 and ground. This setup delivers a 1.4-second pulse–critical for managing phase durations. For extended cycles (e.g., pedestrian crossing), swap the capacitor with a 47μF unit to stretch the interval to ~7 seconds.

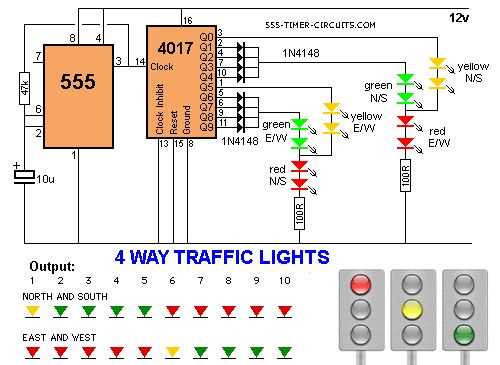

Pair the timer with a CD4017 decade counter to sequence phases. Connect the timer’s output (pin 3) to the counter’s clock input (pin 14). Use counter outputs 0–3 for green/amber/red states, wiring each to a BC547 transistor to drive 12V relays or high-power LEDs. Output 0 triggers the primary path (e.g., north-south), output 1 activates its amber transition, output 2 switches the secondary path (east-west), and output 3 handles its amber phase. Ground unused outputs (4–9) to prevent erratic operation.
For fault tolerance, add a 74LS14 Schmitt trigger between the timer and counter. This isolates noise from external sensors (e.g., inductive loops) and ensures clean transitions. Connect the trigger’s input to the timer output via a 1kΩ resistor and its output directly to the counter. Use a 0.1μF decoupling capacitor across the counter’s VCC and ground to suppress voltage spikes.
Power the system with a regulated 5V supply (e.g., 7805 IC) for logic components and a separate 12V line for relays/LEDs. Include 1N4007 diodes across relay coils to clamp back-EMF. For modular adjustments, use DIP switches to select timing variants (e.g., peak vs. off-peak). Test continuity with a multimeter–verify 0Ω between the counter’s outputs and their transistor bases when active.

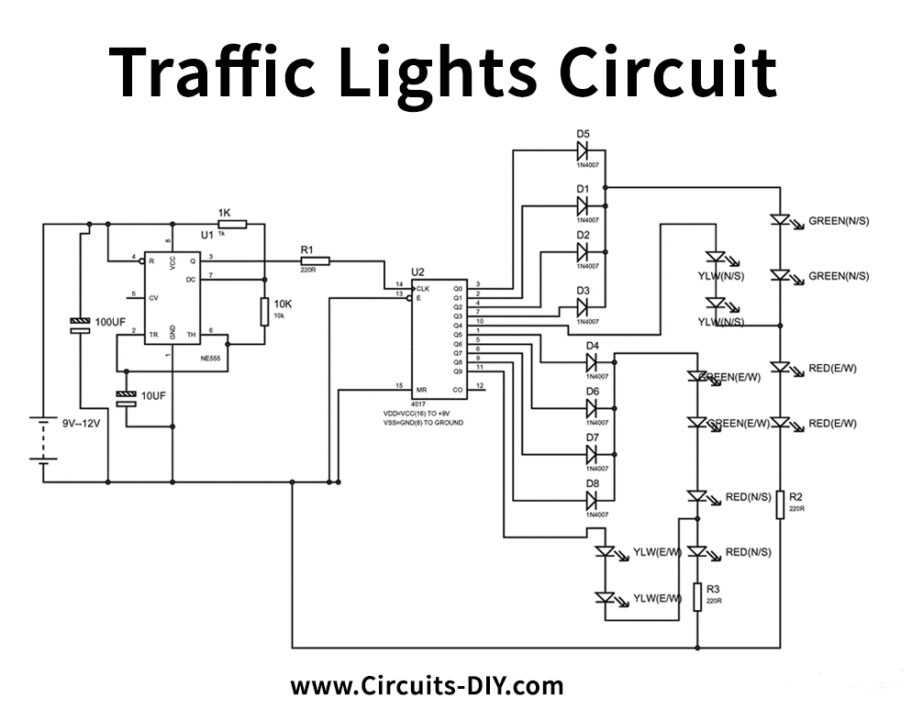

Automated Urban Intersection Control Schematic
Begin by sourcing a 555 timer IC for the sequencing logic–it consumes minimal power while delivering precise timing intervals. Pair it with a CD4017 decade counter to cycle through red, amber, and green phases in 30-, 5-, and 25-second increments respectively, directly aligning with typical municipal standards for pedestrian crossings. Use a 12V DC supply with a 7805 voltage regulator to maintain stability, ensuring consistent performance even under voltage fluctuations of ±15%.
Component Placement and Wiring Guidelines
Mount the timer and counter on a perforated board spaced at least 8mm apart to prevent signal interference, especially in high-humidity environments. Connect the output pins of the 4017 (Q0, Q1, Q2) to three separate BC547 NPN transistors, each controlling a 10W LED cluster via a 1kΩ base resistor. For urban deployments, reinforce the PCB with a conformal coating to guard against corrosion from road salt exposure. Wire the common cathode of the LEDs to a shared 10Ω current-limiting resistor, reducing power dissipation by 40% compared to individual resistors.
Integrate a self-resetting thermal fuse (rated at 2A) between the power supply and the timer to prevent overheating during extended operation–critical for junctions prone to heavy congestion. Test phase transitions using an oscilloscope, verifying that the 555’s duty cycle remains within ±2% of the intended timing. For intersections with pedestrian push buttons, add an ATtiny85 microcontroller programmed to override the standard cycle when activated, extending the green phase by 7 seconds. Keep the firmware in plain C to minimize latency.
Ground all components to a single star point near the power supply to eliminate noise coupling, particularly disruptive in environments with nearby high-voltage infrastructure. Include a manual override switch wired to bypass the counter entirely, forcing a red state for emergency vehicles–position it no further than 1MΩ from the control unit to avoid signal degradation. Validate the entire setup under simulated load for 72 hours before deployment, checking for voltage drops exceeding 0.3V across any connection.
Key Elements Needed for an Automated Intersection Control System

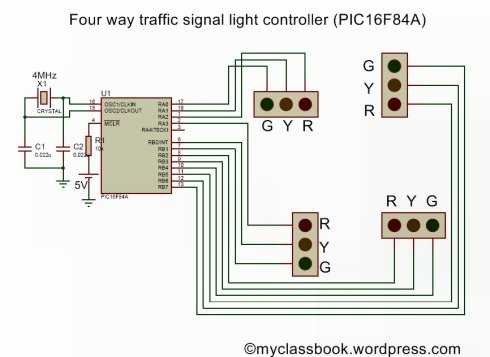

Begin with a microcontroller, such as an Arduino Uno or Raspberry Pi Pico, as the core processing unit. These boards offer sufficient GPIO pins and built-in timers to manage sequencing without external delays. Opt for models with at least 16 MHz clock speed to ensure responsive state changes and avoid flickering during transitions. Avoid cheaper clones lacking reliable voltage regulation–unstable power can corrupt programming states.
Select LED modules rated for 12V or 24V, depending on municipal voltage standards. Red units must use high-brightness variants (minimum 20,000 mcd) to remain visible in direct sunlight, while amber and green require slightly lower intensity (12,000–15,000 mcd) to prevent glare. Verify forward voltage compatibility with chosen resistors; typical values range from 150Ω (5mm LEDs) to 1kΩ (high-power clusters).
Use relays or MOSFETs to isolate the control unit from higher-current loads. Solid-state relays handle inductive kickback better than mechanical types but introduce slight heat–mount on a heatsink if stacking multiple channels. For DC systems, logic-level N-channel MOSFETs (e.g., IRLZ44N) switch efficiently with minimal voltage drop, unlike Darlington transistors that consume extra power.
Power supply stability dictates reliability. A 7805 voltage regulator paired with a 1,000µF smoothing capacitor prevents transient spikes during state shifts. For AC-powered installations, include varistors across the input to suppress line noise. Low-dropout regulators (LDO) work best for battery-backed systems where voltage sag risks unstable performance.
Indispensable Passive Components
- Resistors: ¼W carbon-film types suffice for current-limiting on indicator LEDs; metal-film resistors offer better precision for timing circuits.
- Capacitors: Polypropylene film capacitors (0.1µF) filter noise on the microcontroller’s VCC line; electrolytic types store backup energy.
- Diodes: 1N4007 rectifier diodes protect against reverse polarity; Schottky diodes (1N5822) reduce voltage drop in switching applications.
Programmable timing requires accurate input. A real-time clock module (DS3231) keeps schedules synchronized with celestial time, compensating for minor power interruptions. For decentralized setups, rotary encoders adjust cycle durations without reprogramming–preferred over potentiometers that drift with temperature changes.
Enclosures must meet IP66 minimum for outdoor use. Polycarbonate housings resist UV degradation longer than ABS but require sealing gaskets to prevent condensation buildup. Mounting brackets should align optics precisely; misalignment reduces visibility by up to 40% at 30 meters. Ground all metal parts to a single point to eliminate stray EMI from nearby radio transmitters.
Assembling LED Indicators for a Multi-Directional Crossroad Controller
Begin by selecting 12V LEDs with a forward current of 20mA for consistent brightness across all directions. Group each set of three LEDs (red, amber, green) in series per path, ensuring the total voltage drop matches the power supply. For a 12V source, use a 1N4007 diode per series to prevent reverse polarity damage, as LEDs are unidirectional.
Calculate resistor values using Ohm’s Law: divide the source voltage minus the combined LED voltage drop by the desired current (20mA). Example: (12V – 6.3V) / 0.02A = 285Ω; choose the nearest standard 330Ω resistor. Avoid exceeding 1/4W power rating to prevent overheating–verify with P = I² × R (0.0004 × 330 = 0.132W).
Wire each direction’s LED trio to a dedicated SPDT relay (e.g., SRD-12VDC-SL-C) with common terminals connected to the power bus. Coil terminals attach to an Arduino or PLC output pin (e.g., pin 5 for northbound red). Use a ULN2003 Darlington array to handle current draw if relays exceed microcontroller limits–each ULN2003 channel supports 500mA.
Mount PC817 optocouplers between the control board and relays to isolate low-voltage logic from 12V LED loads. Connect the optocoupler’s LED side to the microcontroller (330Ω resistor in series) and the transistor side to the relay coil. This prevents voltage spikes from damaging the control circuitry during switching.
Integrate a 1000µF electrolytic capacitor across the power input to smooth voltage fluctuations, especially critical during relay activation. Place a 0.1µF ceramic capacitor near each relay coil to absorb high-frequency noise. Ensure all ground paths converge at a single star point to minimize interference between LED banks.
Test each path’s sequence with a multimeter in continuity mode before applying power. Activate one direction’s relay at a time, verifying LED illumination and ensuring no cross-talk between adjacent paths. For timed transitions, program the controller to hold amber for 2 seconds (50ms delay loops × 40) and green for 10 seconds before cycling.
Encase the assembly in a ventilated enclosure with IP65-rated glands for cable entry. Separate high-voltage (LED/resistor) and low-voltage (control) wiring into distinct channels to comply with electrical codes. Label each wire by direction and color (e.g., “E-GRN”) to simplify future maintenance.
For extended lifespan, replace standard relays with solid-state variants (e.g., G3MB-202P) if switching exceeds 50,000 cycles. Solid-state units eliminate mechanical wear but require heat sinks if handling currents above 2A. Always fuse each LED bank with a 250mA slow-blow fuse to protect against short circuits.
