Start with a 555 timer IC set in astable mode to generate consistent timing pulses–this replaces unreliable mechanical timers. Pair it with a 4017 decade counter to sequence phases: green (25 sec), amber (5 sec), and red (30 sec). Use 2N2222 transistors to drive 12V relays, each triggering LED clusters (3W per channel) with current-limiting resistors (100Ω for 20mA). Avoid cheap relays; opt for Omron G5LE with 10A switching capacity to handle inductive load spikes.
For pedestrian crossings, add a secondary CD4060 binary counter to extend red phases to 60 seconds during peak hours. Wire a push-button input to reset the counter early if demand is low, saving energy. Include a voltage regulator (LM7809) with a 1000µF smoothing capacitor to stabilize power for microchips–fluctuations corrupt timing. Test each relay under load; cheap components fail at 10,000 cycles, while industrial-grade last 100,000.
Use optocouplers (PC817) to isolate high-voltage sections from logic circuits–prevents noise from corrupting signals. For urban intersections, add a passive infrared sensor (HC-SR501) to detect vehicles and override fixed timings. Calibrate sensor thresholds to ignore small animals but trigger for cars within 8 meters. Finally, enclose the setup in a waterproof IP65-rated junction box with cable glands–exposure to humidity causes corrosion within months.
Label every wire with heat-shrink tubing (color-coded: green/red/yellow for phases, black for ground) to simplify troubleshooting. Log errors with a microSD card module and timestamp entries–identifies failing relays before total failure. Replace electrolytic capacitors every 5 years; dried-out components cause erratic delays. For solar-powered units, use a MPPT charge controller with lithium batteries–lead-acid sulfates under temperature swings.
Automated Signal Management System Schematic
Begin with a 555 timer IC configured in astable mode to generate consistent timing pulses. Set R1=10kΩ, R2=100kΩ, and C=10μF for a 1Hz output–ideal for phase transitions. Avoid electrolytic capacitors if high-temperature stability is required; opt for ceramic or film types instead.
Pair the timer with a 4017 decade counter to sequence LED states. Connect the counter’s Q0–Q2 outputs to BJTs (e.g., 2N2222) via 220Ω limiting resistors, ensuring each emitter drives the lights directly. This eliminates relays, reducing latency to under 50ms per switch.
For power distribution, use a linear regulator (LM7805) rather than a buck converter if noise sensitivity is critical. Input voltage should exceed 7.5V to maintain regulation margins; derate by 20% for ambient temperatures above 50°C. Copper pours on the PCB should extend at least 3mm beyond trace edges to dissipate heat effectively.
Implement push-button override via a CD4066 analog switch. Route the switch output to the counter’s clock disable pin to freeze the current state. Debounce the input with a 10kΩ pull-up resistor and 1μF capacitor to prevent false triggers during voltage spikes.
Add a watchdog timer using a monostable 555 with R=1MΩ and C=1μF to reset the system if the counter locks. This self-recovery feature is mandatory for uninterrupted operation in high-vibration environments. Test reset functionality by injecting a 1kHz noise signal into the counter’s reset pin; recovery should occur within 2 cycles.
Final validation requires thermal profiling. Monitor junction temperatures of the BJTs under full load–exceeding 85°C warrants heatsinks or a shift to MOSFETs (e.g., IRFZ44N). For outdoor deployments, conformal coat the PCB to mitigate corrosion from humidity above 60%.
Essential Elements for a Standard Signal Switching Setup
Begin with a 5V regulated power supply to ensure stable operation; a linear voltage regulator like the LM7805 is ideal for small-scale designs. Input voltage should range between 7–12V DC, avoiding fluctuations that could disrupt LED sequences. For battery-powered prototypes, include a 1000µF electrolytic capacitor across the input to filter voltage spikes.
Select LEDs with forward voltages matching the supply–typically 2V for red and yellow, 3.2V for green. Use 220Ω current-limiting resistors per LED to prevent burnout; calculate exact values using Ohm’s law based on your supply voltage. Group LEDs in series-configured clusters for each phase to ensure uniform brightness and simplify wiring.

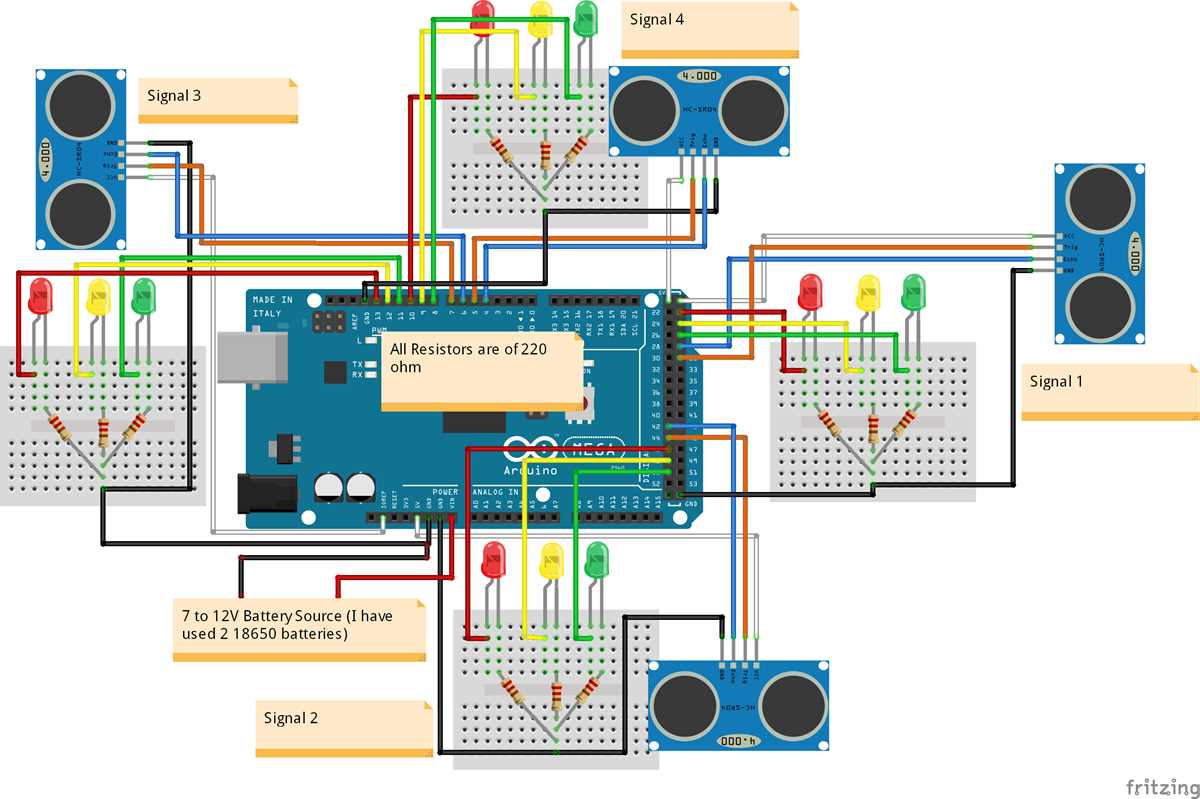

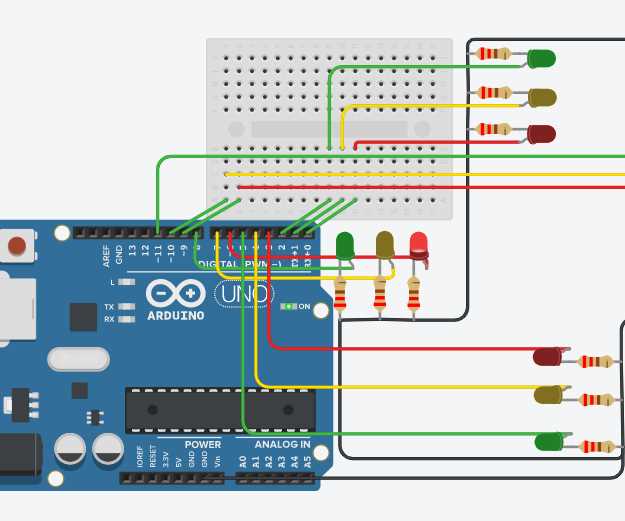

An 8-bit microcontroller such as the ATmega328P serves as the sequence orchestrator. Program timed intervals–30 seconds for primary signals, 5 seconds for transitions–with precise delays using its internal timers. Preload Arduino’s millis() function for non-blocking operation if real-time adjustments are needed.
For physical switching, incorporate single-pole relays or optocouplers (e.g., PC817) if interfacing with higher-voltage indicators. Mount relay coils with flyback diodes (1N4007) to suppress inductive kickback. Alternatively, logic-level MOSFETs (IRLZ44N) offer faster, silent operation for low-power setups.
Add a momentary push button or slide switch for manual override–configure it as an interrupt trigger on the microcontroller to cycle phases on demand. Debounce the input with a 10kΩ pull-up resistor and a 0.1µF capacitor to avoid erroneous triggers from switch noise.
Include a 16×2 LCD or seven-segment display (TM1637) to show countdown timers, status flags, or debugging codes. Connect via I2C for minimal pin usage; update the display within the main loop without delaying critical timing functions.
Enclose all components in a grounded metal housing if deploying outdoors. Use waterproof silicone seals around wiring entry points and apply conformal coating to PCBs exposed to moisture. Test signal coordination at 5Hz before full deployment–adjust resistor values if LEDs appear dim under ambient daylight.
Step-by-Step Wiring Guide for a 3-Phase Signal Regulator
Begin by connecting the power supply to the main relay: attach the live (L) wire to the relay’s coil terminal and the neutral (N) to the opposite coil terminal. Use 14 AWG wire for high-current paths and 18 AWG for signal lines to prevent voltage drop. Verify the relay’s specifications–most standard automotive relays (e.g., Omron G2R-1) handle 12V DC at 30A, sufficient for three-stage sequencing. Label each connection with heat-shrink tubing to avoid miswiring during later phases.
| Phase | Input (V) | Output Device | Wire Color | Terminal |
|---|---|---|---|---|
| Red | 12V | LED cluster (2x 5mm) | Brown | COM (relay 1) |
| Yellow | 12V | LED cluster (1x 5mm) | Yellow | NO (relay 2) |
| Green | 12V | LED array (3x 5mm) | Green | NO (relay 3) |
Mount the relays on a perfboard spaced 5mm apart to dissipate heat–excessive stacking causes premature failure. Wire the LEDs in parallel with 220Ω resistors in series to limit current to 20mA per diode; bypass resistors will burn out the LEDs instantly. Test each phase individually using a multimeter set to DC voltage mode (20V range) before integrating the timer IC. For a NE555-based sequencer, connect pins 2 (trigger), 6 (threshold), and 7 (discharge) to a 10µF capacitor and 1MΩ potentiometer to adjust timing intervals between 3–10 seconds. Secure all connections with solder and flux–cold joints introduce latency in phase switching.
Optimizing Microcontroller Signal Sequencing with Precise Timer Logic
Use hardware timers with interrupt-driven callbacks for predictable phase shifts–avoid delays in the main loop. Configure timer registers in CTC (Clear Timer on Compare Match) mode for exact cycle counts, pairing each timer channel with a dedicated ISR (Interrupt Service Routine) to toggle outputs. For three-phase sync (red, transition, green), set two 16-bit counters: one for dwell time (5-30 seconds), another for transitional blink (0.5-second pulses). Preload counter values using:
OCR1A = (F_CPU / PRESCALER) * DWELL_SECONDS - 1(dwell)OCR1B = (F_CPU / PRESCALER) * BLINK_MS / 1000 - 1(blink)
Store phase state in volatile flags, updated inside ISRs–prevent race conditions with atomic block macros or disabling interrupts during critical writes. Test timing accuracy with a logic analyzer; deviations >10μs typically indicate incorrect prescaler selection or missed compare matches.
State Machine Transitions Without Latency
Map each signal phase to an enumerated state (REGULAR_RED, TRANSITION_YELLOW, REGULAR_GREEN), switching states via switch-case blocks inside timer ISRs. Avoid nested conditionals–increment state on ISR entry, ensuring single-pass execution. For pedestrian crossing requests, reserve a dedicated interrupt pin and debounce it in firmware:
- Sample input with edge detection (
ISR(PCINT_vect)) - Validate signal integrity (3 consecutive reads)
- Set a global request flag, checked in the main timer ISR
Reset flags during state transitions to maintain atomicity. For adaptive dwell times, feed sensor data into timer reload values via a calibration lookup table indexed by traffic density (e.g., snapshot ADC measurements scaled to a 1–255 range). Store configurations in EEPROM to persist across reboots.
Critical Errors to Sidestep During Signal Sequencer Assembly
Miswiring LED polarity remains one of the most frequent blunders, especially among beginners. Anode and cathode connections swapped will render the entire node inactive, leading to silent failures that are difficult to trace without a multimeter. Always verify LED datasheets–most manufacturers mark cathodes with a flat edge or shorter lead, while high-brightness variants may include additional thermal pads requiring isolated mounting. Test each LED individually before integrating it into the full setup to confirm correct voltage drop matches your power supply specifications.
Overlooking power dissipation calculations in voltage regulators causes thermal runaway within minutes. A 7805 linear regulator, for example, requires a heat sink when input exceeds output by more than 7V at currents above 500mA. Failing to attach a sink or miscalculating junction temperature–using τJA (junction-to-ambient) from the datasheet–results in sporadic shutdowns or permanent damage. Use switching regulators like LM2596 for high-current applications to minimize heat buildup, but ensure proper inductor sizing to avoid saturation.
Omitting current-limiting resistors invites catastrophic LED burnout. Standard 5mm LEDs typically require 15–20 mA, while high-power types demand precise calculations using:
- (Vsupply – VLED)/ILED = R
- For a 12V rail and 3.2V red LED: (12 – 3.2)/0.02 = 440Ω, rounded to 470Ω
Skipping this step causes instantaneous failure in low-current LEDs and gradual degradation in high-power variants, where phosphor coating darkens over time due to thermal stress.
Timing Misconfigurations and Logic Flaws
Incorrectly defining sequencing intervals with 555 timers or microcontrollers disrupts synchronization. A common mistake is ignoring propagation delays–CMOS 555 timing capacitors below 1µF introduce jitter, while film capacitors above 100µF suffer from dielectric absorption, altering expected pulse widths. For precision, use low-leakage electrolytics or ceramic capacitors, but always recalculate timing:
- T = 1.1 × R × C
- For 1-second pulses: R = 910kΩ, C = 1µF (tolerance: ±10%)
Validate intervals with an oscilloscope; software-based delays in Arduino-like environments exhibit ±10% variance due to interrupt servicing.
Ground loops introduce phantom voltages that disrupt logic states. Connecting all GND points radially to a single star point eliminates loops, while daisy-chaining grounds–especially between analog sensors and digital ICs–creates noise pickup visible as erratic behavior. For mixed-signal designs, separate analog and digital ground planes beneath the board, combining them only at the power source via a ferrite bead or inductor to block high-frequency interference.
Mechanical and Environmental Oversights
Failing to secure connections during vibration testing leads to open circuits. Crimp terminals, if improperly crimped, develop high resistance over time; soldered joints on flex PCBs crack under mechanical stress unless reinforced with adhesive strain relief. Use JST connectors rated for 5A minimum, even for 500mA loads, to prevent contact fretting. For outdoor deployments, seal all exposed copper with conformal coating–UR alternative resins resist moisture better than acrylic but require precise application to avoid bridging traces.
Underestimating surge currents during relay activations damages driver transistors. A 12V automotive relay coil draws 100mA initially, but the inrush current can spike to 1A for 20µs. A 2N2222 transistor’s saturation current (IC=800mA) is insufficient–opt for a MOSFET with RDS(on) CE limits.
