Begin by locating the harness adapter specific to your model’s production year. Factory connectors typically follow a standardized color-scheme matrix, though variations exist between trim levels and regional markets. For instance, 2005-2010 Corolla sedans use solid yellow for constant 12V power, red-striped for switched ignition, and solid green for ground–deviations in this pattern are rare but documented for base models.
Verify the connection sequence using a multimeter before splicing. Probe each wire while the key is in the ACC position: power leads should read 12V, grounds 0V, and speaker outputs fluctuate between 4-8 ohms. Reverse polarity (e.g., black with white stripe vs. white with black stripe) is a common fault in aftermarket installations, particularly in vehicles with amplified antenna circuits.
Refer to EIA standard RS-477 for speaker wire identification: gray (+) / gray-black (-) for front left, white (+) / white-black (-) for front right. Factory harnesses often combine illumination control (orange) and mute function (brown) into a single 10-pin connector–disconnecting these without a load resistor may trigger fault codes in vehicles with CAN bus systems.
For European-spec models, check for ISO 10487 compliance; the 16-pin connector will include purple (telephone mute) and pink (speed signal) uncommon in North American variants. Use heat-shrink tubing rated for 150°C when repairing damaged wires–standard electrical tape degrades under hood temperatures within 12 months.
Understanding OEM Audio System Cable Configurations for Automobiles
Begin by locating the manufacturer’s wire harness behind the factory audio unit–this connection hub typically includes 12–16 wires, each serving a distinct function. Pinpoint the constant power lead (usually a thick yellow wire) and the switched 12V supply (often red or orange) before proceeding. These two cables must be correctly identified to prevent electrical shorts or damage to the replacement head unit.
Consult the vehicle-specific technical manual or an authorized service guide for precise cable assignments, as variations exist even within the same model year. For example:
- Ground cables (black or brown) should never be spliced–connect them directly to a clean metal chassis point.
- Speaker outputs (front-left, front-right, rear-left, rear-right) are frequently paired with striped patterns (e.g., gray/black for front-right positive/negative).
- Illumination wires (light green or purple) adjust display brightness based on dashboard lighting.
Use a multimeter to verify cable functions if documentation is unclear. Set the meter to DC voltage (20V range) and probe each wire while the ignition is in the “ACC” position. A reading of 12V confirms power sources; zero volts may indicate a ground, antenna trigger, or amplifier turn-on lead (blue/white). Label each wire with masking tape immediately after testing.
When integrating an aftermarket receiver, match the harness adapter’s cable colors to the factory harness–do not rely on universal color standards, as Japanese and European brands often differ. For instance, purple may denote rear-left positive in one model but serve as a parking brake sensor in another. Cross-reference with a pinout chart specific to the vehicle’s make and year.
Avoid twisting cables together during testing; use insulated butt connectors or solder with heat-shrink tubing for permanent installations. Exposed splices can corrode or short, especially in high-humidity environments. If the factory harness includes a subwoofer or amplifier output (pink or dark blue), retain these connections to preserve audio quality.
For vehicles with a premium sound system (e.g., JBL, Mark Levinson), additional steps are required. These setups often include separate amplifier units and noise-suppression cables. Disconnecting them without bypassing may disable speakers entirely or trigger error codes. Refer to the following steps:
- Identify the amplifier’s location–commonly behind rear seats or underneath the trunk.
- Locate the “speed signal” or “data bus” wire (thin orange or beige) and confirm it’s not spliced into the new harness.
- Reconnect any factory equalizer settings or time-alignment cables to maintain audio calibration.
After completion, power on the system and test all functions: radio reception, CD/USB playback, and steering wheel controls (if retained). If static or no audio occurs, recheck ground connections and speaker polarity. For persistent issues, consult a professional installer–some models require reprogramming or additional resistors for compatibility.

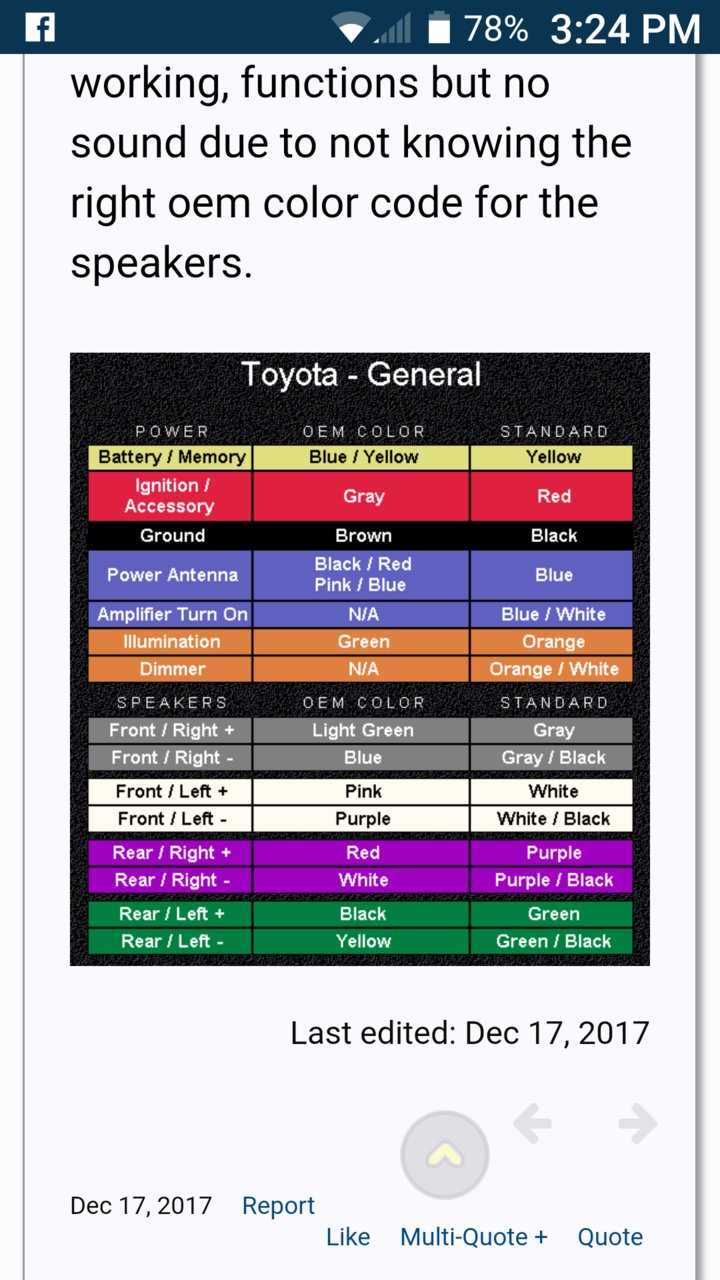

Pinpointing Factory Head Unit Harness Shades Across Production Generations
Begin by isolating the vehicle’s release span–pre-2000 harnesses overwhelmingly stick to a consistent 12-wire subset: ignition-switched power (typically red), continuous memory feed (yellow), ground (black with a white stripe), left-front speaker positive (green), right-front speaker positive (gray), rear speaker pair (violet for left, white for right), illumination control (light green or brown), and antenna trigger (blue or blue-white). Verify against a VIN decoder to confirm trim specifics; base models often omit the factory amplifier integration found in luxury variants.
For 2000–2005 models, anticipate deviations on premium trims like Sequoia and Land Cruiser: the amplifier’s remote turn-on splits into two leads–solid blue for high-power systems and blue-black for standard setups. Speaker wiring adopts polarity-sensitive stripes–gray-black for right-front negative, green-black for left-front negative–while rear channels mirror this pattern with violet-black and white-black. Steer clear of assuming exact matches; European-market models substitute orange illumination wires with solid red variants.
- 2006–2010: Introduces CAN bus compatibility in Avalon and Camry; seek pink (CAN high) and tan (CAN low) alongside traditional feeds.
- 2011–2015: Prius and RAV4 hybridize the harness–orange (battery backup) now doubles as a safety interlock, disabling high-voltage circuits.
- 2016 and newer: Switched 12V supply splits into dual feeds–red (ignition) and pink (accessory)–while ground consolidates into a single fat black lead.
Harness retention clips–located behind the dash panel on 1998–2008 4Runner models–require a 90-degree twist before disconnecting. Later Tacoma releases embed locking tabs that need deliberate inward pressure to release the connector assembly. Misalignment risks bending pins; use a multi-meter set to diode test mode to confirm conductivity before final reconnection.
- Yaris (2007–2017): Head unit retains rear speaker negatives in solid purple and white without striping.
- Corolla (2014–2019): Accessory power migrates to a dedicated light blue lead; older diagrams mislabel it as antenna activation.
- Tundra (2020–present): Security interface merges into the brown constant-power wire; splicing requires bypassing the immobilizer module.
Post-factory upgrades complicate identification–aftermarket navigation units frequently repurpose the brown wire for speed-signal input, while OEM subwoofer outputs in 2003–2013 Lexus-branded derivatives (derived from platforms) use a striped orange lead. Always cross-reference the BCM plug layout; 2018 Sienna adds a gray-green lead for lane-keeping integration, which third-party radios mistake for dimming control.
Step-by-Step Harness Hookup Instructions
Identify the vehicle’s factory connector by matching the pin layout to the aftermarket unit’s plug. Most OEM harnesses include a 12-pin or 16-pin block; verify the exact configuration in the service manual for your model year. The constant 12V lead is typically red or yellow, while the switched ignition wire is usually pink or violet. Ground connections are black or brown–never splice these without confirming resistance below 0.5 ohms.
Strip 5mm of insulation from each wire using a precision stripper, then twist strands tightly. Apply crimp connectors or solder with 60/40 rosin-core solder for long-term reliability. Avoid electrical tape; instead, wrap each joint with adhesive-lined heat-shrink tubing rated for automotive temperatures–apply heat until tubing forms a moisture-resistant seal. Label every connection with numbered flags to avoid cross-wiring during final assembly.
Testing Before Final Assembly
With the key in the “ACC” position, use a multimeter to verify voltage levels. A constant 12.6V reading on the red/yellow wire confirms proper battery retention; the pink/violet wire should show identical voltage only when ignition is on. Probe ground wires against chassis–measurements above 0.1V indicate corrosion or poor contact. If the amplifier turn-on lead (blue/white) does not trigger at 12V when the unit powers on, trace the wire back to the head unit’s remote output.
Align the aftermarket harness with the vehicle’s plug, ensuring each connector snaps securely without forcing. Misalignment often damages pins, causing intermittent audio dropouts. Route wires away from moving parts and sharp edges–use nylon loom or split tubing where cables cross metal surfaces. Secure bundles every 15cm with zip ties, trimming excess flush to prevent rattles. Recheck all crimps and heat-shrink seals before buttoning up panels.
Power on the system, verify illumination dimming matches dashboard controls, and test all speaker outputs with a 1kHz sine wave. Left/right balance should center at zero; fade front/rear should adjust evenly. If static or distortion occurs, recheck grounds and input sensitivity settings–most head units default to 800mV, but some OEM amplifiers require 4V pre-out adjustments. Store the completed hookup schematic with maintenance records for future diagnostics.
