Begin with a four-wire resistive configuration if your project prioritizes simplicity and cost efficiency. This layout requires only two conductive layers–typically indium tin oxide (ITO) on polyester substrates–separated by spacers. The outer layer withstands pressure, while the inner layer detects coordinates via voltage gradients. Use a 10 kΩ pull-up resistor on each X and Y axis to stabilize readings; values outside this range introduce signal drift.
For capacitive variants, integrate a multi-channel controller like the FocalTech FT5406EE8 or Microchip MTCH6303. These chips sample up to 10 sensor nodes simultaneously with 12-bit resolution, reducing false positives under rapid gestures. Route traces at 12 mil width with 0.2 mm clearance to prevent parasitic capacitance. Ground planes beneath sensor pads suppress EMI, but restrict them to 30% of the pad area to avoid desensitization.
Avoid common mistakes: omitting series resistors between the controller and flex cables invites electrostatic discharge. Use 100 Ω resistors on each data line. For I2C interfaces, maintain a bus frequency below 400 kHz; exceeding this threshold distorts coordinate mapping. Test impedance across all nodes with a LCR meter–ideal values hover between 80-150 pF at 1 kHz.
Power delivery demands attention: 3.3 V regulators must handle transient currents up to 500 mA during initial calibration. Capacitors placed within 2 cm of the controller pins–10 µF tantalum for bulk storage, 0.1 µF ceramic for high-frequency decoupling–ensure steady operation. Verify signal integrity with an oscilloscope before finalizing the layout; ringing above ±150 mV necessitates trace length adjustments or shielding.
For large panels, segment the matrix into 8×8 blocks and address each via multiplexers. This reduces controller pin count by 60%. Bonds between flex and glass layers require anisotropic conductive film (ACF)–cure at 160°C for 20 seconds under 5 MPa pressure. Over-bonding squeezes ACF beyond its 30 µm particle diameter, causing shorts. Under-bonding risks intermittent contact.
Constructing Interactive Panel Schematics
Begin with a 4-wire resistive layout for cost-sensitive applications requiring basic input detection. Use indium tin oxide (ITO) layers separated by spacer dots–apply 5V to the X+ electrode while grounding X-, then measure voltage at Y+ to pinpoint horizontal coordinates. For vertical position, reverse excitation: power Y+, ground Y-, and sample X+. Ensure 0.1μF decoupling capacitors at each corner to suppress noise from finger contact. Test impedance between layers–ideal resistance should stay below 500Ω/cm² for responsive feedback.
Integrate a microcontroller with dedicated interface controllers like the STMPE811 or FT5x06 for capacitive matrices. Route sensor traces in a diamond-grid pattern, maintaining 0.1mm clearance between adjacent channels to prevent parasitic coupling. Apply a 12MHz excitation frequency through series 22pF capacitors to each node–this balances sensitivity against EMI from LCD backlights. Calibrate the controller’s internal charge amplifiers to detect capacitance shifts down to 0.05pF for multi-point accuracy.
For rugged environments, deploy projected capacitance with a dual-layer stack-up: bottom ITO with routed traces for row sensing, top ITO as a continuous sheet for columns. Add a 2mm cover glass bonded with optical adhesive–this improves durability while preserving 90%+ transmittance. Shield unused PCB areas with grounded copper pours to minimize stray capacitance from USB or HDMI cables. Verify trace lengths–all I/O lines must match within 2mm to avoid phase skew during simultaneous sampling.
Fault Detection in Input Layers
Deploy a self-test routine triggered at power-on: alternately toggle electrodes between excitation and floating states while monitoring Schmitt-trigger inputs for stuck-at faults. Use internal ADC tolerance bands–accept ±3% deviation from baseline. Log anomalies to EEPROM; if a node exceeds 3 consecutive failure cycles, flag for physical inspection. Add a 1ms settling delay between cycling modes to account for RC time constants in flex circuits.
Critical Elements in a Resistive Interface Controller Layout
Begin by selecting a flexible upper conductive layer with a surface resistivity between 150–500 ohms per square. Polyethylene terephthalate (PET) films doped with indium tin oxide (ITO) provide the necessary balance of transparency and conductivity while resisting abrasion under frequent activation. Verify layer adhesion using cross-hatch testing; delamination at edge points will degrade field uniformity.
The insulating spacer dots must maintain consistent spacing–typically 20–50 µm–to prevent false triggers yet ensure responsiveness. Dot diameter directly affects actuation force: 0.5 mm dots suit 1–3 Newtons, while 0.2 mm dots reduce force to 0.3–1 Newton. Overlay a grid of dots in staggered formation to distribute contact pressure evenly across the panel.
| Material | Resistivity (Ω/□) | Activation Force (N) | Durability (Cycles) |
|---|---|---|---|
| ITO-coated PET | 150–500 | 1–3 | 1M–5M |
| AR-coated ITO | 100–300 | 0.5–2 | 5M–10M |
| Silver-doped PET | 50–150 | 0.3–1 | 10M+ |
Integrate electrodes at each axis endpoint, routed via silver conductive ink traces with ≤0.1 mm width to minimize visual obstruction. Route traces in serpentine patterns along panel edges to reduce stress concentration; abrupt bends induce microcracks under thermal cycling. Apply a protective overcoat–epoxy or urethane-based–to shield traces from moisture ingress and mechanical abrasion.
Choose a controller IC with
Avoid sourcing analog-to-digital converters (ADCs) with resolution below 10 bits; 12-bit resolution yields 1 mm precision on a 30 cm panel. Match ADC input impedance to signal path impedance–>1 MΩ–using a unity-gain buffer op-amp like the LMV324 to prevent loading-induced distortion. Implement hardware filtering via a 10 kΩ series resistor and 10 nF capacitor to attenuate 50/60 Hz noise from mains interference.
Validate drift compensation by subjecting the layout to prolonged 60 °C thermal soak; conductive layer resistance shifts should not exceed ±5 %. Store baseline calibration data in EEPROM at ambient (25 °C) and reapply during power-up to maintain accuracy across temperature fluctuations.

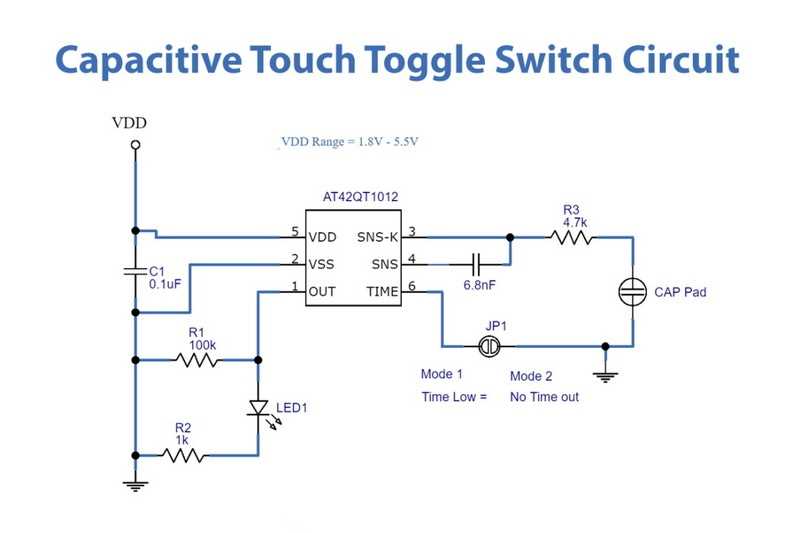

Decoding a Capacitive Control Interface Blueprint

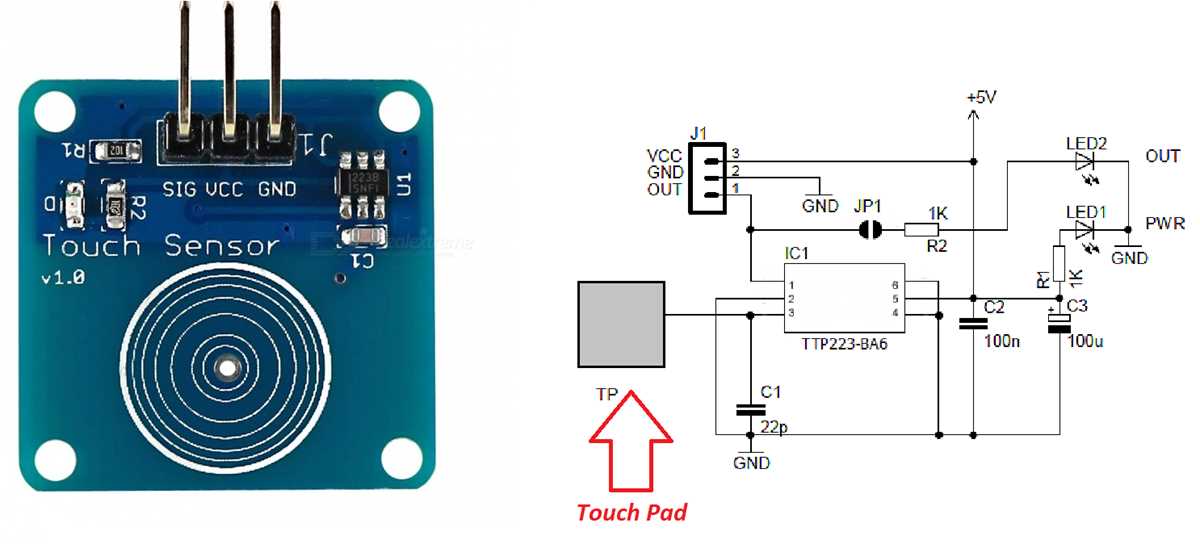

Identify the sensor grid layout first–most schematics display rows and columns as parallel traces forming a matrix. Each intersection represents a detection point, typically labeled with coordinates like X1-Y3 or TX2-RX5. Check for multiplexing signals if lines merge; these indicate shared scanning paths reducing pin count.
Interpreting Signal Paths and Components
Trace the thin lines connecting sensor pads to controller ICs–they often include series resistors (20–100 Ω) to limit current spikes. Capacitors (10–100 pF) appear between sensor lines and ground, serving as noise filters. Look for ESD diodes (e.g., SMAJ5.0A) near connector pins to protect against static discharges.
Examine the controller’s pinout–key terminals include output drivers (marked DRV or TX), receiver inputs (RX), and ground references. Internal registers controlling sensitivity thresholds may be indicated by I²C or SPI connections. If present, look for calibration resistors or capacitors tied to reference pins (VREF) setting baseline capacitance.
Analyzing Power and Ground Distribution
Power rails (usually 3.3V or 5V) feed both the sensor array and controller; decoupling capacitors (0.1–1 µF) should sit close to IC supply pins to stabilize voltage. Ground pours often isolate analog and digital sections to prevent noise coupling–verify their separation if mixed-signal design is used.
Check for pull-up/pull-down resistors (1–10 kΩ) on control lines, especially for interfaces switching between active and sleep modes. Test points or jumpers may be labeled “TP_CAL” or “JP_SENSE,” allowing adjustment of detection thresholds during prototyping. Cross-reference component values with the datasheet to verify compatibility with the intended layout dimensions.

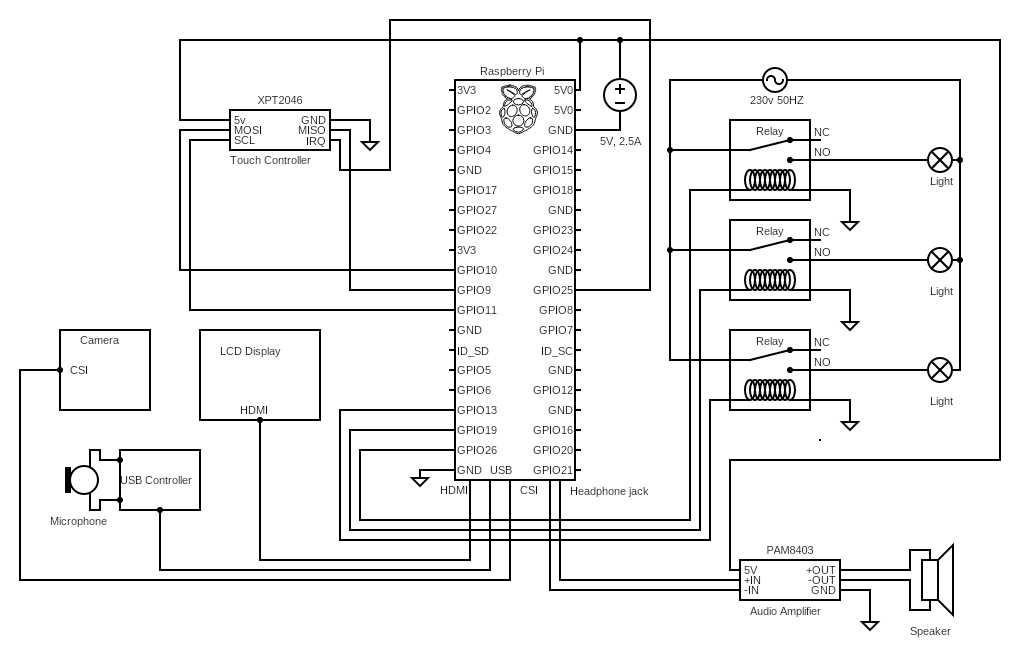

Connecting a 4-Pin Resistive Input Panel to MCU Boards
Use a 10-bit ADC or better to capture raw coordinates from the panel’s X+, X-, Y+, and Y- leads. Most 8-bit converters lack the resolution, causing sluggish or erratic cursor behavior.
Wire each terminal directly to GPIO pins configured as analog inputs; avoid any series resistors unless you measure > ±0.5 V leakage between adjacent layers. A common pitfall is mistakenly connecting X- to ground instead of the ADC channel, which collapses the voltage gradient.
- X+ → ADC0
- Y+ → ADC1
- X- → ADC2
- Y- → ADC3
- Pull-down resistors (10 kΩ) are optional but help suppress noise during idle periods.
Sample the X-axis by energizing Y+ and Y- with 3.3 V and GND respectively, then read ADC0 and ADC2. Swap to Y-axis: apply 3.3 V to X+ and GND to X-, reading ADC1 and ADC3. Poll at ≥ 50 Hz to prevent perceptual lag.
Convert raw ADC counts to display coordinates using linear interpolation. Typical panels range 0–1023 counts; scale these values to match your display’s pixel resolution. If calibration drifts, store three reference points–top-left, center, bottom-right–and apply a simple affine transform:
x’ = a·x + b·y + c y’ = d·x + e·y + f
Always debounce readings in firmware. A 3-tap median filter eliminates high-frequency spikes without adding visible latency. Test with a stylus–fingertip capacitance can skew readings by up to ±15 counts.
Solder the flex cable to a 0.5 mm pitch header; hand-soldering risks cold joints. Verify continuity with a multimeter; shorts between layers produce phantom presses. Power the panel from the MCU’s LDO to isolate it from USB noise–shared rails often inject 50–60 Hz hum.
